Fontana MotionWave™ Line Brushed Gold Touchless Bathroom Faucet:

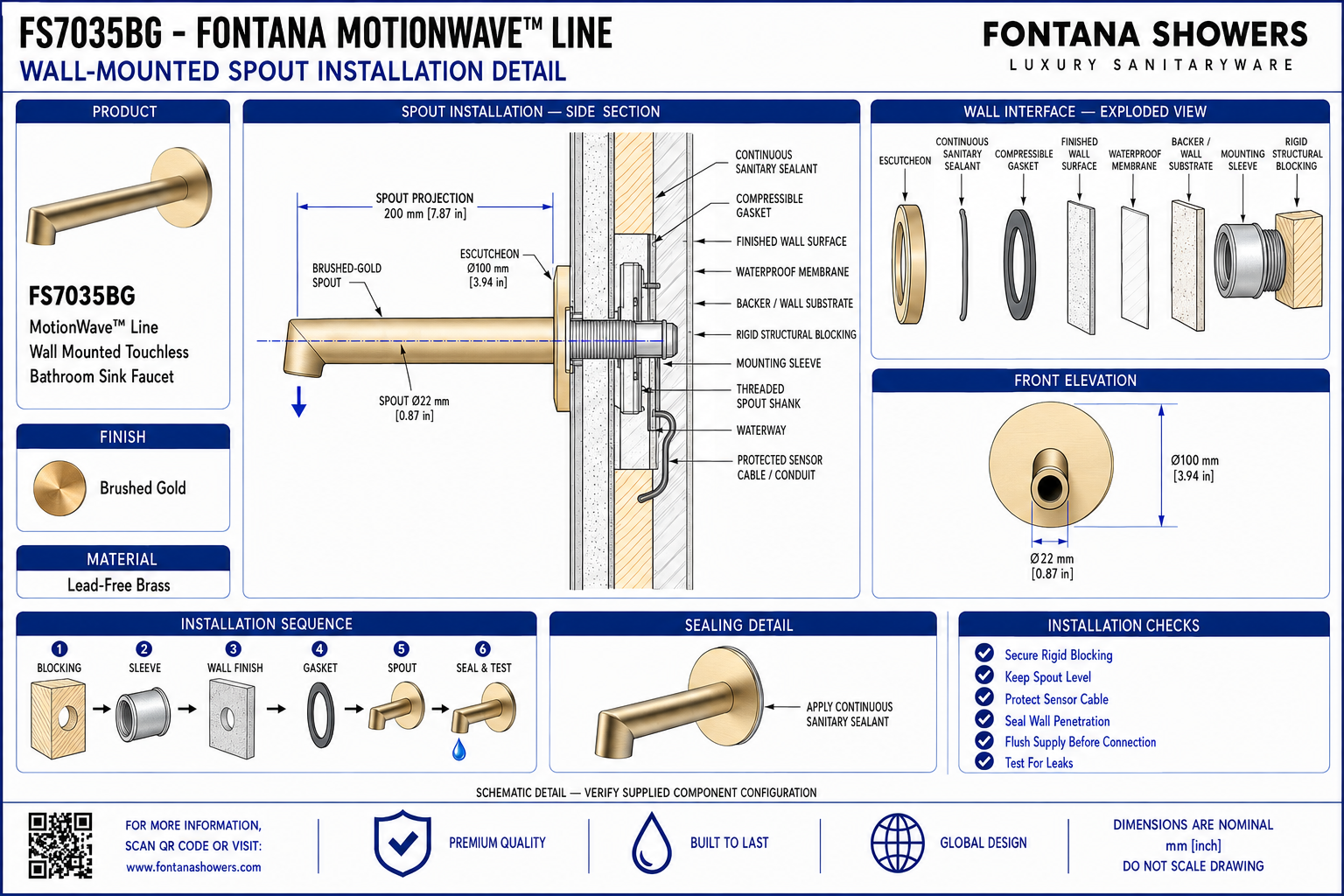

Wall-Mounted Spout Installation Detail
This wall-mounted spout installation-detail resource supports architects,
plumbing engineers, interior designers, contractors, installers and facility
managers coordinating the Fontana MotionWave™ Line FS7035BG touchless bathroom
faucet. The detail identifies the spout centerline, finished-wall interface,
concealed connection, mounting support, projection over the basin and required
clearances for correct installation.
Fontana MotionWave™ Line FS7035BG Touchless Bathroom Faucet
The FS7035BG is a wall-mounted touchless bathroom faucet with a
Brushed Gold finish, 6.93-inch spout reach and concealed wall installation.
-
Model: FS7035BG
-
Product type: Touchless bathroom faucet
-
Installation: Wall mounted
-
Material: Lead-Free Brass
-
Finish: Brushed Gold
-
Valve included: Yes
-
Valve type: Ceramic Valve
-
Water connection: 1/2-inch NPT
-
Flow rate: 1.2 GPM / 4.5 LPM
-
Spout reach: 6.93 inches
-
Overall height: 2.76 inches
-
Spout height: 0.87 inches
Spout Installation Detail Scope
The spout installation detail should show the relationship between the
exposed wall-mounted spout, finished-wall plane, concealed connection,
supporting structure and lavatory basin. Reference the spout mounting
centerline, finished-wall face and basin position. Only verified manufacturer
dimensions should be included in final construction documents.
Complete Spout Section
Show the wall-mounted spout, finished wall, concealed connection,
structural support and basin relationship in one coordinated
installation section.
Spout Centerline
Identify the horizontal centerline of the spout relative to the
finished wall and selected lavatory basin.
Finished Wall Plane
Use the completed wall surface as the primary reference plane
for exposed spout projection and trim positioning.
6.93-Inch Spout Reach
Show the 6.93-inch spout projection measured from the finished-wall
plane toward the basin and water-discharge area.
Spout Outlet Position
Locate the outlet so the water stream discharges within the effective
basin capture area without striking the rim.
Basin Relationship
Show the spout relative to the rear basin wall, drain and usable
washing area to support controlled water delivery.
Wall Connection
Show the concealed plumbing connection aligned with the exposed
spout and perpendicular to the finished wall.
1/2-Inch NPT Connection
Identify the 1/2-inch NPT connection and maintain sufficient
thread engagement and working clearance.
Spout Support
Provide rigid support behind the finished wall so the spout
does not rely on finish material for structural stability.
Structural Blocking
Show suitable blocking behind the wall assembly supporting
the concealed connection and exposed spout.
Mounting Alignment
Keep the concealed connection level and properly aligned so
the finished spout remains square to the wall.
Wall Opening
Show the coordinated wall penetration required for the spout
connection without unnecessarily enlarging the finish opening.
Trim Interface
Show the Brushed Gold trim or escutcheon seated evenly against
the completed wall surface.
Finish Clearance
Maintain adequate clearance around the connection so tile,
stone and backing materials do not interfere with final assembly.
Wall Thickness
Coordinate the concealed connection with the complete wall
build-up including framing, substrate, waterproofing and finish.
Waterproofing Interface
Coordinate the wall penetration with the project waterproofing
system to limit moisture entry into the wall cavity.
Perimeter Seal
Provide a compatible perimeter seal where required around
the finished-wall penetration and exposed trim.
Sensor Position
Show the sensing component in relation to the spout outlet
and intended hand-activation zone.
Sensor Clearance
Keep the intended sensing field clear of basin edges and
reflective surfaces that may cause unintended activation.
Water Stream Path
Show the discharge path from the spout outlet toward the
usable basin area and away from the rim.
Splash Clearance
Coordinate spout projection, basin depth and water-impact
location to reduce splash beyond the lavatory.
Service Access
Maintain reasonable access to the concealed spout connection
and related plumbing components for future inspection.
Level Installation
Verify the exposed spout is level after tightening and before
final sealing at the wall.
Finished Spout Assembly
Show the final installed relationship between the Brushed Gold
spout, finished wall and basin.
Engineering note:
Spout installation dimensions must not be based on estimated product
measurements. Confirm spout reach, connection requirements, mounting
centerline, wall thickness and basin relationship from the approved
FontanaShowers specification sheet or project submittal before wall fabrication.
Required Spout Installation Views
Side Installation Section
Show the finished wall, concealed connection, exposed spout,
6.93-inch projection and basin relationship.
Front Elevation
Show the spout centerline and alignment relative to the
lavatory basin and drain.
Spout Connection Detail
Show the concealed threaded connection, supporting structure,
wall penetration and exposed spout interface.
Wall Finish Detail
Show the wall substrate, waterproofing, finish material,
trim interface and perimeter seal.
Basin Coordination View
Show the outlet position, basin rim, drain and intended
water-impact area.
Mounting Support Detail
Show structural blocking and the concealed support arrangement
behind the finished wall.
Sensor Relationship View
Show the intended hand-detection area relative to the spout
and basin.
Finished Installation
Show the completed wall-mounted spout installation after all
wall finishes and trim components are installed.
Recommended Spout Installation Sequence
1. Review Approved Submittals
Confirm the final faucet model, spout reach, connection
requirements and installation dimensions.
2. Confirm Basin Position
Coordinate the selected lavatory before establishing the
final spout centerline.
3. Establish Centerline
Set the spout centerline so the outlet aligns with the
intended basin capture zone.
4. Install Blocking
Provide suitable structural support behind the finished
wall at the spout connection.
5. Position Connection
Set the concealed connection square and level relative to
the final finished-wall plane.
6. Connect Water Supply
Complete the plumbing connection without twisting or
misaligning the concealed fitting.
7. Pressure Test
Test concealed plumbing connections before permanent
wall finishes are installed.
8. Complete Wall Finish
Install substrate, waterproofing and finish material while
maintaining the coordinated spout opening.
9. Install Spout
Connect and secure the Brushed Gold wall-mounted spout
without damaging the finished surface.
10. Level Spout
Verify the spout is level and correctly oriented before
final tightening.
11. Seal Wall Interface
Complete the required perimeter sealing at the finished
wall and trim interface.
12. Verify Water Discharge
Test operation and confirm the water stream enters the
intended basin zone without excessive splash.
Architectural and MEP Coordination
Wall Coordination
Coordinate the concealed connection with the complete
wall thickness and final finish plane.
Structural Coordination
Provide rigid backing so the wall-mounted spout remains
stable during operation and maintenance.
Plumbing Coordination
Maintain proper supply alignment and adequate access to
the concealed spout connection.
Basin Coordination
Coordinate the 6.93-inch spout projection with basin depth,
rim position and drain location.
Finish Coordination
Verify the final trim covers the required wall opening
without interfering with finish material.
Waterproofing Coordination
Integrate the spout penetration with the project
waterproofing system before final trim installation.
Sensor Coordination
Keep the sensing field clear of basin geometry and
reflective surfaces that may affect activation.
Splash-Control Coordination
Review outlet position, basin geometry and operating flow
to maintain controlled water impact within the basin.
Spout Installation Components
-
Wall-mounted spout:
Visible Brushed Gold faucet component projecting over the basin.
-
Spout outlet:
Water-discharge point at the end of the wall-mounted faucet body.
-
Finished wall:
Final architectural surface establishing the installation reference plane.
-
Wall substrate:
Supporting material located behind the final finish surface.
-
Structural blocking:
Rigid backing supporting the concealed spout connection.
-
Concealed connection:
Internal plumbing fitting connecting the water supply to the exposed spout.
-
1/2-inch NPT connection:
Threaded plumbing connection serving the faucet assembly.
-
Trim / escutcheon:
Visible component covering the coordinated finished-wall penetration.
-
Waterproofing interface:
Moisture-control treatment surrounding the wall penetration.
-
Perimeter seal:
Compatible sealant protecting the finished-wall interface where required.
-
Sensor assembly:
Component supporting automatic touchless faucet activation.
-
Water-impact zone:
Intended basin area receiving water discharged from the spout outlet.
FontanaShowers Installation and Specification Resources
Professional Engineering and Accessibility References
Project verification:
This wall-mounted spout installation detail is intended for coordination
and does not replace an approved project submittal. The architect,
plumbing engineer, interior designer and licensed installer should verify
final spout reach, mounting centerline, basin compatibility, wall thickness,
connection requirements, structural support, waterproofing and locally
adopted codes before fabrication or installation.
|
|
|
