Fontana American Standard Deck-Mounted Sensor Faucet: Basin Alignment Guide

This basin alignment guide is intended to support architects, plumbing engineers, interior designers, contractors, installers and facility managers coordinating the Fontana American Standard deck-mounted automatic sensor faucet with commercial and residential lavatories. The drawing package identifies the faucet centerline, basin centerline, water-stream landing point, sensor detection area, rear-rim clearance, front-rim clearance, countertop spacing, backsplash clearance, adjacent accessories and accessibility coordination required for reliable hands-free operation.

Fontana American Standard Deck-Mounted Sensor Faucet

Correct basin alignment helps position the water stream within the usable washing area while maintaining reliable infrared sensor operation. The faucet, lavatory and surrounding accessories should be coordinated as one assembly rather than as individual fixtures.

The alignment drawing should be reviewed during architectural, plumbing and interior coordination to establish the proper relationship between the faucet outlet, basin centerline, user hand position and surrounding countertop elements before installation.

  • Model: FS2361TFDP
  • Installation: Deck mounted
  • Application: Commercial and residential lavatories
  • Alignment: Faucet centered over basin
  • Sensor: Infrared touchless activation
  • Outlet: Aerated water stream
  • Coordination: Basin, countertop and accessories
Product Page Installation Guide

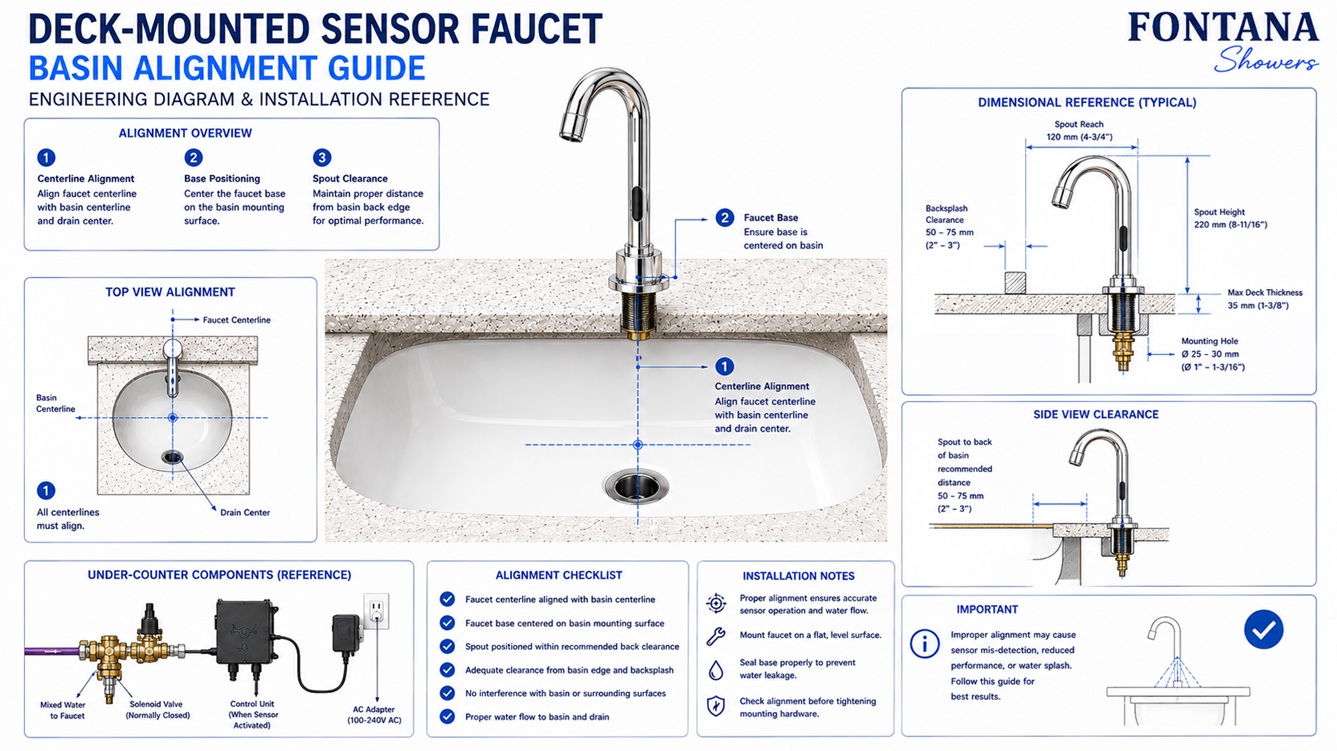

Required Basin Alignment Drawing Package

Each basin-alignment drawing should use a consistent scale, centerline references and product-identification block. The drawing should clearly illustrate the relationship between the faucet outlet, basin geometry, user hand position and surrounding countertop accessories.

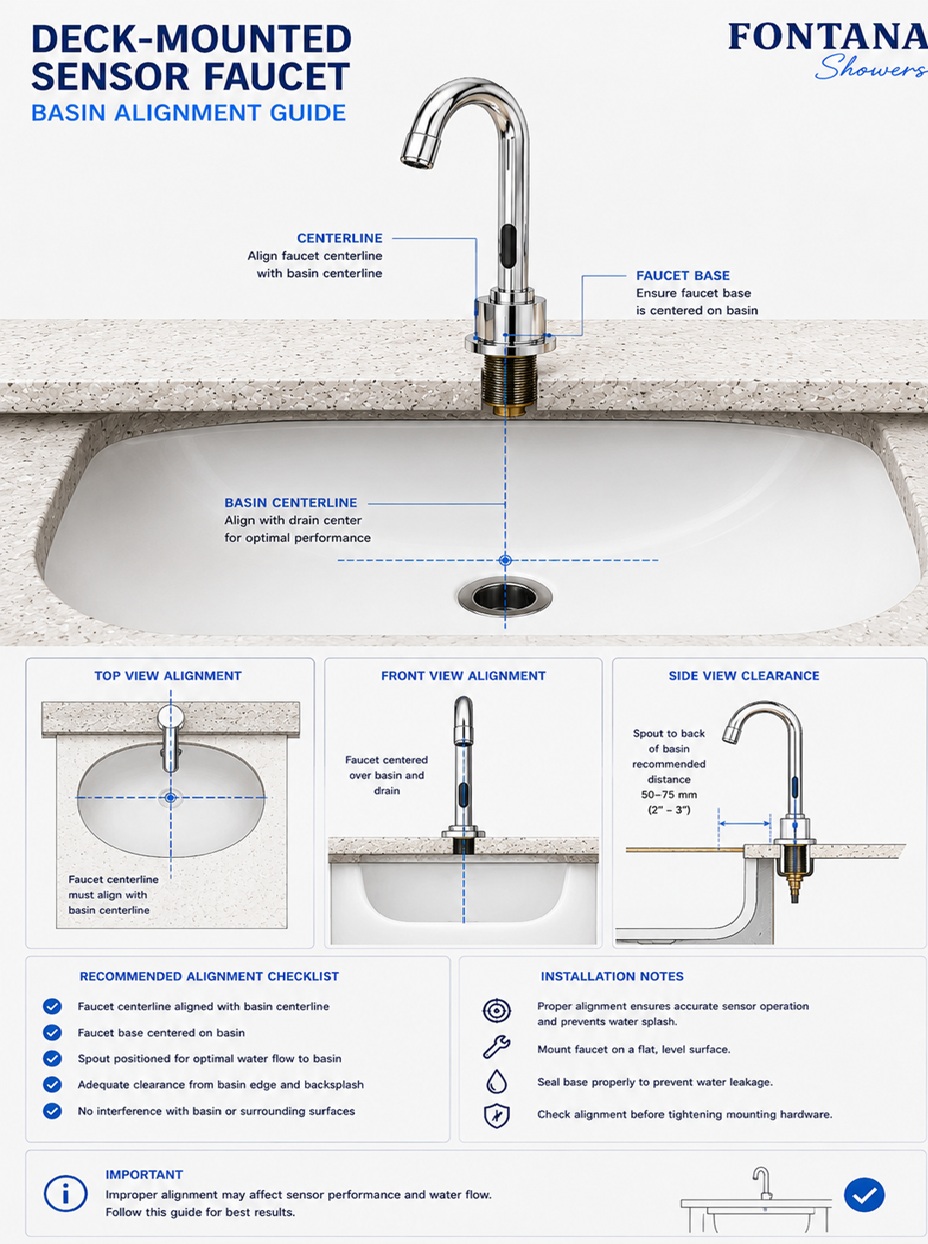

Basin Alignment Guide

Shows the complete relationship between the faucet, basin, countertop and surrounding fixtures before installation.

Faucet Centerline

Identifies the vertical centerline of the faucet used to align the outlet with the basin centerline.

Basin Centerline

Defines the primary reference used to position the faucet above the lavatory and maintain symmetrical fixture alignment.

Water Stream Landing Point

Shows where the water stream should enter the basin to minimize splashing while maximizing usable washing space.

Sensor Detection Area

Illustrates the recommended hand position beneath the faucet for dependable infrared activation.

Rear Rim Clearance

Shows the minimum clearance between the faucet outlet and the rear edge of the basin to reduce false sensor activation and maintenance issues.

Front Rim Clearance

Defines the usable handwashing area while reducing water splash beyond the front edge of the lavatory.

Countertop Edge Distance

Illustrates the relationship between the faucet body and the countertop edge to maintain comfortable user access.

Backsplash Clearance

Shows the recommended distance between the faucet and backsplash to accommodate installation and future servicing.

Soap Dispenser Coordination

Positions adjacent soap dispensers outside the sensor field while maintaining a comfortable handwashing sequence.

Mirror Centerline

Provides visual coordination between the faucet, basin and mirror for architectural consistency.

Adjacent Fixture Spacing

Defines the recommended spacing between neighboring faucets and accessories to prevent interference during use.

Splash Zone

Illustrates the expected water-impact area inside the basin and helps reduce countertop wetting.

Accessibility Alignment

Coordinates faucet location with accessible lavatory layouts, reach ranges and user comfort.

Commissioning Verification

Confirms the final water-stream position, sensor response and basin alignment before project completion.

Engineering note: Basin-alignment drawings are intended for architectural and plumbing coordination only. Final faucet location, basin dimensions, stream position, sensor performance and accessibility requirements should be verified using approved FontanaShowers documentation and project submittals before installation.

Project verification: The architect, plumbing engineer, interior designer and licensed installer should verify the final relationship between the faucet, basin, countertop, water-stream landing point, sensor detection area, adjacent accessories and accessibility requirements before the fixture is placed into service.
