Fontana DSFD0024GS Vessel Sink and Chrome Touchless Sensor Faucet: Touchless Faucet Overall Dimensions

This faucet-dimensional resource is intended to support architects, plumbing engineers, contractors, countertop fabricators and installers coordinating the chrome touchless motion-sensor faucet included with the Fontana DSFD0024GS vessel-sink combination. The drawing package communicates overall faucet height, spout projection, outlet position, sensor location, body width, deck footprint, mounting centerline and the relationship between the faucet and vessel-basin installation.

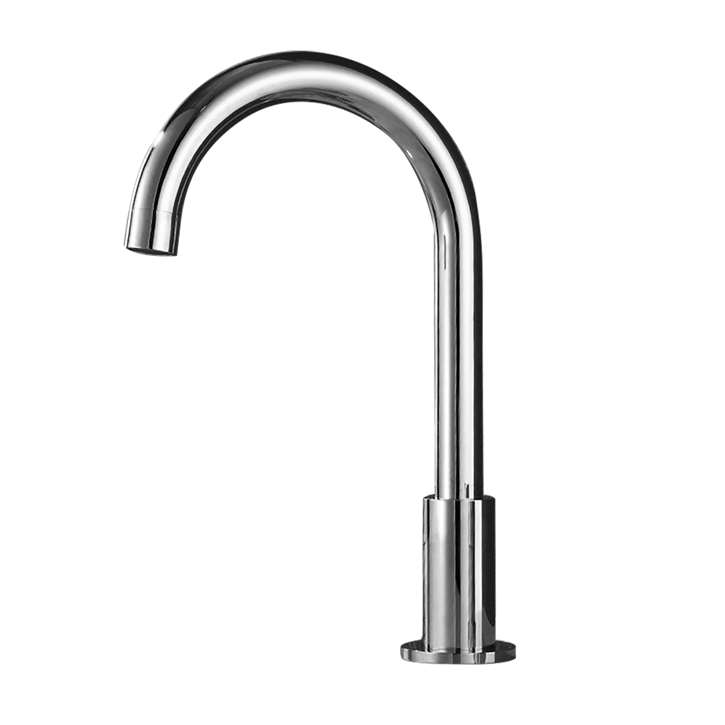

Fontana DSFD0024GS Chrome Touchless Motion Sensor Faucet

The DSFD0024GS faucet uses a tall curved chrome body designed for vessel-sink applications. The drawing shows the principal dimensional relationships used to coordinate countertop drilling, outlet placement, basin alignment, sensor operation and below-counter power / control access.

  • Model: DSFD0024GS
  • Finish: Chrome
  • Construction: Solid brass body with chrome finish
  • Operation: Touchless motion detection
  • Automatic shutoff: Approximately 30 seconds, adjustable
  • Power supply: AC 110 V / DC 6 V
  • Installation: Deck mounted
  • Overall height: 320 mm (12.6 in.)
  • Spout projection: 180 mm (7.1 in.)
  • Body width / diameter: Approx. Ø42 mm (1.7 in.)
  • Deck footprint: Approx. Ø50 mm (2.0 in.)
  • Sensor location: Underneath spout near outlet
FontanaShowers Installation Resources

Required Touchless Faucet Dimension Drawing Package

Each faucet coordination drawing should use a consistent countertop datum and mounting centerline. The package should clearly identify overall height, spout projection, body diameter, deck footprint, outlet location, sensor location and the relationship between the faucet mounting point and the intended basin landing zone before drilling or final installation.

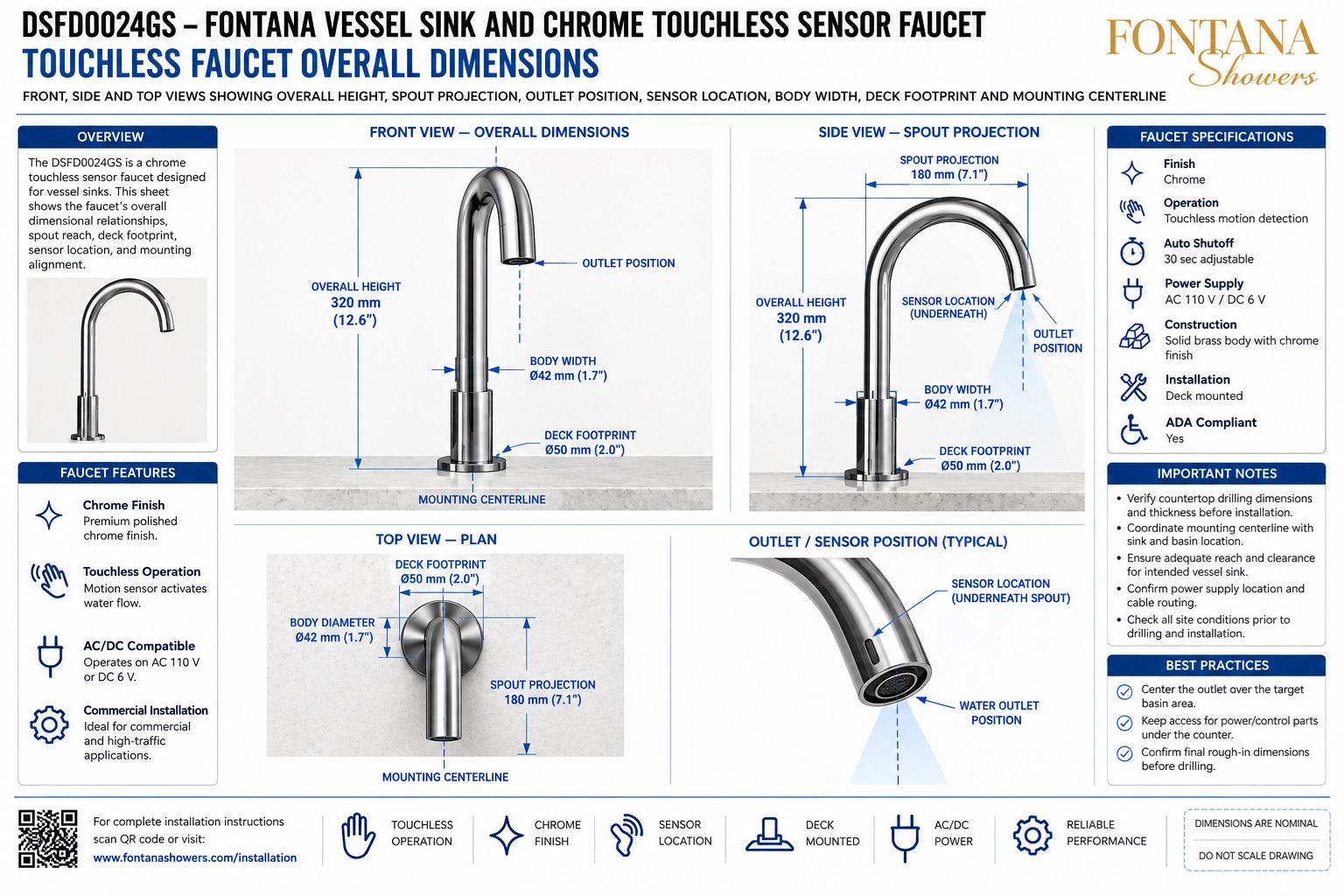

Touchless Faucet Overall Dimensions

Provides the complete dimensional relationship for the chrome touchless faucet, including overall height, spout projection, body width, deck footprint, outlet position and mounting centerline.

Front View — Overall Dimensions

Shows the approximate 320 mm (12.6 in.) overall faucet height, Ø42 mm body width and Ø50 mm deck footprint from the finished mounting surface.

Side View — Spout Projection

Illustrates the 180 mm (7.1 in.) horizontal projection from the mounting centerline toward the outlet, a key dimension for vessel-sink coordination.

Outlet Position

Identifies the water outlet at the end of the curved spout and establishes the discharge centerline used to coordinate the stream landing zone inside the basin.

Sensor Location

Shows the motion sensor positioned underneath the spout near the outlet, allowing natural hand entry into the sensing field below the faucet.

Top View — Plan

Shows the Ø50 mm deck footprint, Ø42 mm body diameter and 180 mm spout projection relative to the faucet mounting centerline.

Mounting Centerline

Establishes the primary drilling and alignment reference for coordinating the faucet with the vessel-basin centerline, drain zone and countertop layout.

Power & Control Coordination

Notes AC 110 V / DC 6 V power compatibility and the need to maintain accessible under-counter space for control and power components.

Final Installation Verification

Before drilling or handover, confirm faucet centerline, countertop thickness, outlet reach, sensor clearance, stream landing zone, power access and basin compatibility.

Engineering note: All dimensions shown are nominal coordination references and should not be scaled directly from the drawing. Final faucet height, spout projection, mounting-hole location, deck footprint, sensor performance, power arrangement, countertop thickness and basin alignment should be verified against the approved Fontana DSFD0024GS installation documentation and actual site conditions before countertop fabrication or final installation.

Countertop, Basin and Sensor Coordination Considerations

Mounting Centerline

Coordinate the faucet centerline with the vessel-sink centerline so the outlet projects over the intended bowl area and maintains balanced placement.

Spout Projection

Verify the 180 mm reach suits the selected vessel basin so the stream lands fully inside the bowl without striking the rim.

Sensor Clearance

Keep the sensor area beneath the spout clear of basin edges, accessories and reflective objects that could interfere with reliable motion detection.

Deck Footprint

Confirm the finished countertop provides a flat and stable surface beneath the approximate Ø50 mm faucet base and supports the required mounting hardware.

Power / Control Access

Maintain accessible below-counter space for the AC / DC power arrangement, controller connections and future service without disturbing the vessel installation.

Post-Installation Testing

After mounting, verify stable faucet alignment, reliable hand detection, correct automatic shutoff and a water stream that remains within the basin.
