Fontana DSFD0024GS Vessel Sink and Chrome Touchless Sensor Faucet: Faucet-to-Basin Coordination Drawing

This faucet-to-basin coordination resource is intended to support architects, plumbing engineers, interior designers, countertop fabricators, contractors and installers coordinating the Fontana DSFD0024GS vessel sink and chrome touchless sensor faucet combination. The drawing package communicates faucet centerline, spout projection, vessel rim height, water landing point, splash-control zone, recommended faucet setback, drain alignment and the overall countertop relationship.

Fontana DSFD0024GS Faucet & Vessel Sink Coordination

The DSFD0024GS combines a tall chrome touchless faucet with a white oval ceramic vessel basin. Proper coordination of the faucet mounting point, 180 mm spout projection, basin centerline, 150 mm vessel rim height and approximate 70 mm setback helps keep the water stream inside the bowl while maintaining comfortable sensor operation and controlled splash performance.

  • Model: DSFD0024GS
  • Basin shape: Oval
  • Basin size: 600 × 420 × 150 mm (23.6 × 16.5 × 5.9 in.)
  • Faucet height: 320 mm (12.6 in.)
  • Spout projection: 180 mm (7.1 in.)
  • Drain location: Center
  • Operation: Touchless motion detection
  • Power supply: AC 110 V / DC 6 V
  • Recommended faucet setback: Approx. 70 mm (2.8 in.) from sink edge
  • Basin rim height: 150 mm (5.9 in.)
  • Primary alignment: Faucet outlet to basin centerline
FontanaShowers Installation Resources

Required Faucet-to-Basin Coordination Drawing Package

Each coordination drawing should use a consistent countertop datum, faucet centerline and basin centerline. The package should clearly identify spout projection, vessel rim height, water landing point, splash zone, faucet setback, drain location and the relationship between the faucet outlet and the usable interior bowl area before countertop drilling or final installation.

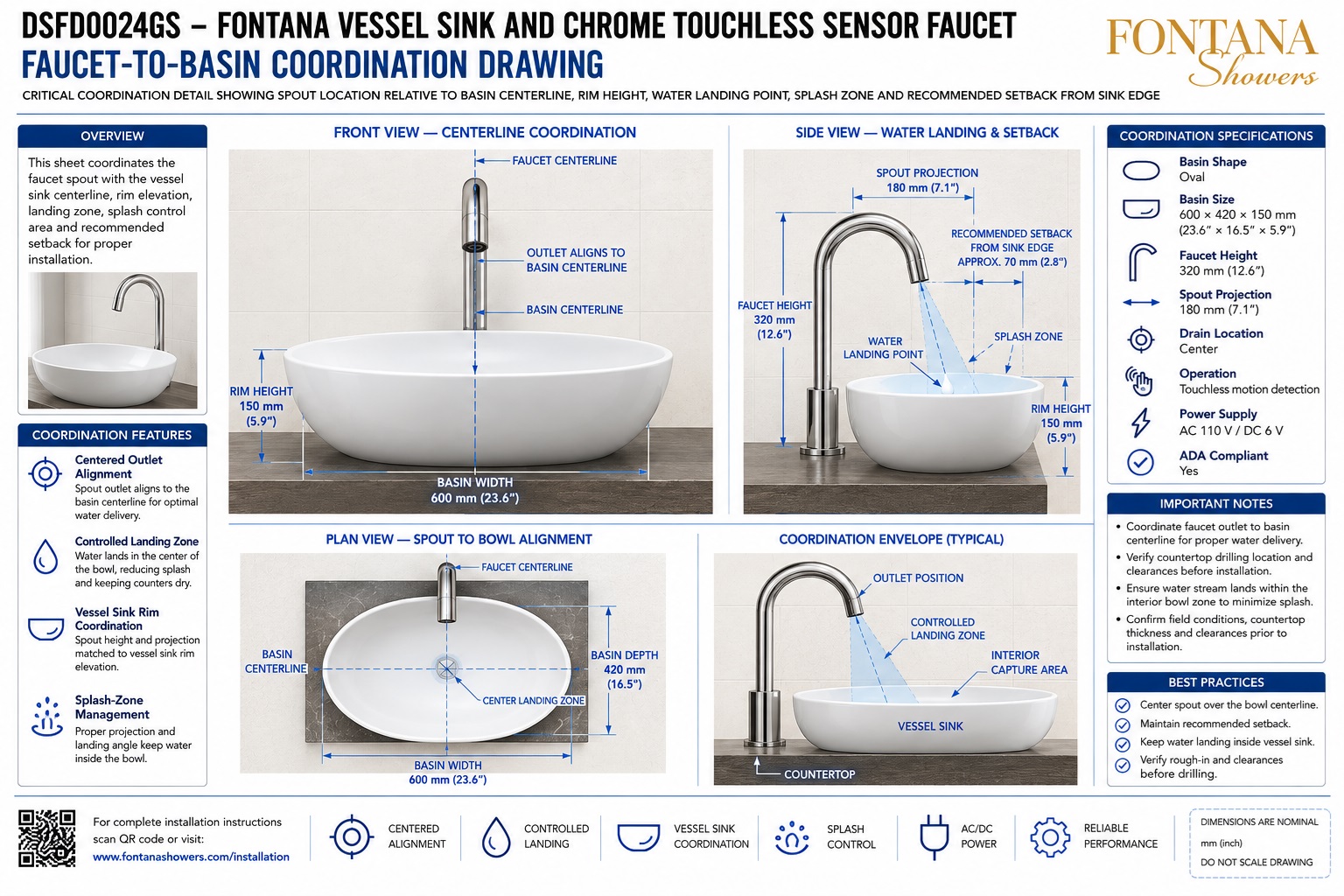

Faucet-to-Basin Coordination Drawing

Provides the complete dimensional relationship between the chrome touchless faucet and oval vessel sink, including centerlines, spout projection, rim height, setback and water landing zone.

Front View — Centerline Coordination

Shows the faucet outlet aligned with the basin centerline so the water stream remains centered within the bowl and clear of the side rims.

Centered Outlet Alignment

Establishes the faucet outlet and basin centerline as the primary alignment reference for balanced water delivery and comfortable hand placement.

Side View — Water Landing & Setback

Illustrates the 180 mm (7.1 in.) spout projection and approximate 70 mm (2.8 in.) setback from the sink edge used to position the stream within the vessel.

Water Landing Point

Identifies the preferred landing zone inside the central bowl area so the stream avoids the vessel rim and remains within the deepest usable portion of the basin.

Splash-Control Zone

Defines the controlled splash area within the bowl and emphasizes proper spout projection, flow direction and basin geometry for reduced countertop splash.

Plan View — Spout-to-Bowl Alignment

Shows the faucet centerline aligned with the 600 × 420 mm vessel footprint and the center drain / stream landing zone.

Coordination Envelope

Shows the faucet outlet, vessel rim, controlled landing zone and interior capture area as one coordinated installation envelope.

Final Installation Verification

Before drilling or handover, confirm faucet setback, spout projection, basin centerline, drain location, countertop thickness, sensor operation and stream landing performance.

Engineering note: All dimensions and clearances shown are nominal coordination references and should not be scaled directly from the drawing. Final faucet setback, spout projection, basin centerline, drain location, countertop thickness, water landing point, splash performance and sensor operation should be verified against the actual Fontana DSFD0024GS components and approved installation documentation before countertop fabrication or final installation.

Faucet, Basin and Countertop Coordination Considerations

Centerline Alignment

Center the faucet outlet over the basin centerline so the water stream remains balanced within the bowl and visually aligned with the vessel.

Recommended Setback

Use the approximate 70 mm setback as a coordination reference and verify it against the actual faucet, vessel rim and countertop before drilling.

Stream Landing Zone

Keep the water landing point within the interior capture area and away from the near and far vessel rims to reduce splash.

Vessel Rim Clearance

Coordinate the 150 mm vessel height with the faucet body and 180 mm spout projection so the outlet clears the rim comfortably.

Sensor & User Zone

Maintain clear hand access beneath the spout and keep nearby accessories or reflective surfaces out of the touchless sensing area.

Countertop Drilling

Confirm basin footprint, faucet centerline, setback, countertop thickness, mounting clearance and under-counter service access before permanent penetrations are made.
