Fontana DSFD0024GS Vessel Sink and Chrome Touchless Motion Sensor Faucet: Overall Combo Dimensions — Front, Side & Plan Views

This combo-dimension resource is intended to support architects, plumbing engineers, interior designers, contractors, countertop fabricators and installers coordinating the Fontana DSFD0024GS vessel-sink and chrome touchless motion-sensor faucet combination. The drawing package communicates basin size, faucet height, outlet projection, centerline alignment, installation envelope, countertop relationship and the coordinated positioning required for reliable stream placement and touchless operation.

Fontana DSFD0024GS Vessel Sink & Touchless Faucet Combination

The DSFD0024GS combines a white oval ceramic vessel basin with a polished chrome touchless motion-sensor faucet. The coordinated layout uses the faucet centerline, basin axis, outlet projection and overall installation envelope to position the stream inside the bowl while maintaining a clean countertop presentation and serviceable installation.

  • Model: DSFD0024GS
  • Basin shape: Oval
  • Basin finish: White
  • Basin material: Ceramic
  • Basin size: 600 × 420 × 150 mm (23.6 × 16.5 × 5.9 in.)
  • Faucet finish: Polished chrome
  • Faucet operation: Touchless motion detection
  • Automatic shutoff: Approximately 30 seconds, adjustable
  • Power supply: AC 110 V / DC 6 V
  • Faucet overall height: 320 mm (12.6 in.)
  • Outlet projection: 180 mm (7.1 in.)
  • Typical front-to-back envelope: 500 mm (19.7 in.)
FontanaShowers Installation Resources

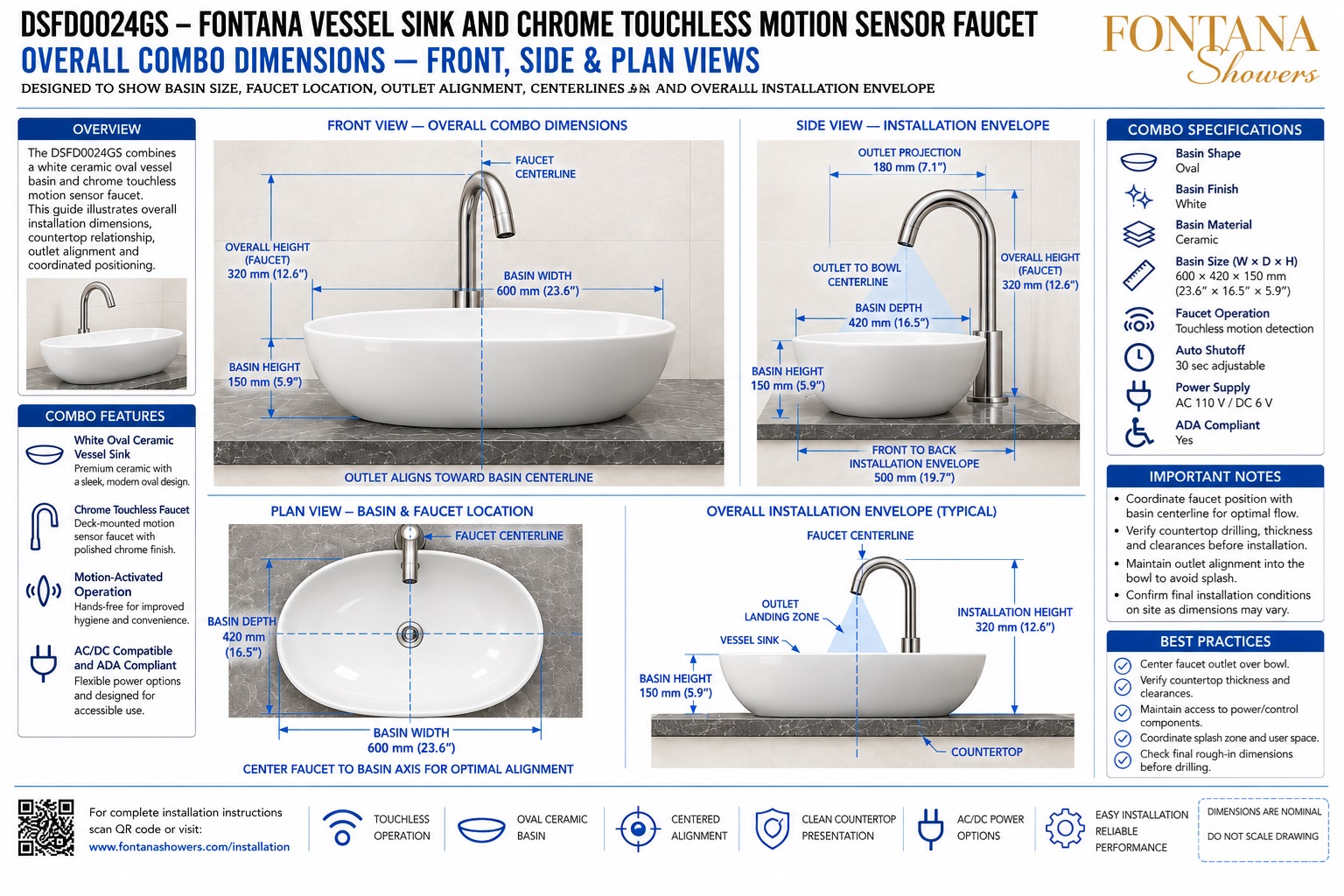

Required Overall Combo Dimension Drawing Package

Each coordination drawing should use a consistent countertop datum, faucet centerline and basin centerline. The package should clearly identify the basin footprint, faucet height, outlet projection, stream landing zone, front-to-back installation envelope and the relationship between the vessel sink, countertop and faucet before countertop drilling or final installation.

Overall Combo Dimensions

Provides the complete dimensional relationship between the vessel sink and touchless faucet, including overall faucet height, basin size, outlet projection, centerlines and installation envelope.

Front View — Overall Combo Dimensions

Shows the 600 mm basin width, 150 mm basin height, approximate 320 mm faucet height and faucet centerline aligned toward the basin center.

Side View — Installation Envelope

Illustrates the 180 mm outlet projection, 420 mm basin depth and a typical front-to-back installation envelope of approximately 500 mm.

Plan View — Basin & Faucet Location

Shows the oval basin footprint and faucet centerline coordinated with the basin axis and drain position for balanced stream placement.

Outlet Alignment

Coordinates the faucet outlet toward the bowl centerline so the waterfall stream remains comfortably inside the vessel and avoids the rim.

Basin Size & Countertop Coordination

Identifies the 600 × 420 mm basin footprint and 150 mm height to support countertop depth, basin placement and user-space coordination.

Touchless Operation

Coordinates the faucet position and user approach so the sensor can detect natural hand movement while the water stream remains within the basin.

Power-Supply Coordination

Notes AC 110 V / DC 6 V power compatibility and the need to maintain accessible power and control components below the countertop.

Final Installation Verification

Before drilling or handover, confirm basin location, faucet centerline, outlet projection, countertop thickness, stream landing zone, sensor operation and under-counter service access.

Engineering note: All dimensions shown are nominal coordination references and should not be scaled directly from the drawing. Final basin size, faucet position, outlet reach, countertop penetration, power-supply arrangement, user clearances, stream landing zone and installation envelope should be verified against the approved Fontana DSFD0024GS installation documentation and actual site conditions before countertop fabrication or final installation.

Architectural, Plumbing and Countertop Coordination Considerations

Faucet / Basin Centerline

Center the faucet on the basin axis whenever practical so the outlet and waterfall stream align with the bowl center and drain area.

Outlet Projection

Coordinate the 180 mm spout projection with the vessel geometry so the water lands well inside the bowl and does not strike the rim.

Countertop Depth

Verify that the countertop can accommodate the 420 mm basin depth, faucet setback and approximately 500 mm front-to-back installation envelope.

Vessel Height

Account for the 150 mm above-counter basin height when coordinating final rim elevation, user comfort and nearby wall-mounted accessories.

Sensor & User Zone

Keep the touchless sensing area clear of obstructions and confirm that the intended hand position remains comfortable relative to the vessel rim and spout.

Power & Service Access

Maintain practical access below the counter for AC / DC power, controls, supply connections and future maintenance without disturbing the vessel installation.

FontanaShowers Installation and Specification Resources

FontanaShowers Product Catalog Product information and technical resources for Fontana vessel sinks, touchless faucets and related bathroom products. Installation Resources General installation information for vessel basins, deck-mounted faucets and sensor fixtures. Touchless Faucet Collection Explore related automatic and motion-sensor faucet configurations for commercial and hospitality applications. Vessel Sink Collection Review related vessel sinks and lavatory basins for coordinated fixture selection and countertop planning. BIM and Design Resources Architectural coordination resources supporting faucet, sink and countertop layout development. Bathroom Faucet Collection Review related deck-mounted and commercial bathroom faucets for coordinated fixture selection.

Professional Engineering and Accessibility References

Project verification: Overall combo dimension drawings are coordination tools and do not replace approved project submittals. The architect, plumbing engineer, countertop fabricator, contractor and licensed installer should verify basin dimensions, faucet centerline, outlet projection, countertop opening, power arrangement, stream landing zone, user clearance, service access and locally adopted plumbing requirements before fabrication and installation.
