How to install Fontana Lima Chrome Solid Brass In Wall Mixer Control Valve For Fontana Shower Control Valve In Wall Shower Set | FS1461WM


Easy step by step Installation Instructions for 1 Way Wall-Mounted Shower Faucet Mixer Valve

  • Before you begin, please read the installation instructions below. Observe all local building and safety codes.
  • Unpack and inspect the product for any shipping damages. If you find damages, do not install.
  • Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower
mixer		Fontana Lima Chrome Solid Brass In Wall Mixer Control Valve For Fontana Shower Control Valve In Wall Shower Set


Shower Mixer Installation Instructions

Shower Mixer SizeShower Mixer Inlet and Outlet Connections
Shower
Mixer
Shower Mixer
shower mixershower mixer
Step 1:mixer Step 2:



shower mixershower mixer
Step 3:Step 4:
1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.


Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.
Shower Mixer Wall Mount View ConnectionShower Mixer Connection Overview

Shower
Mi

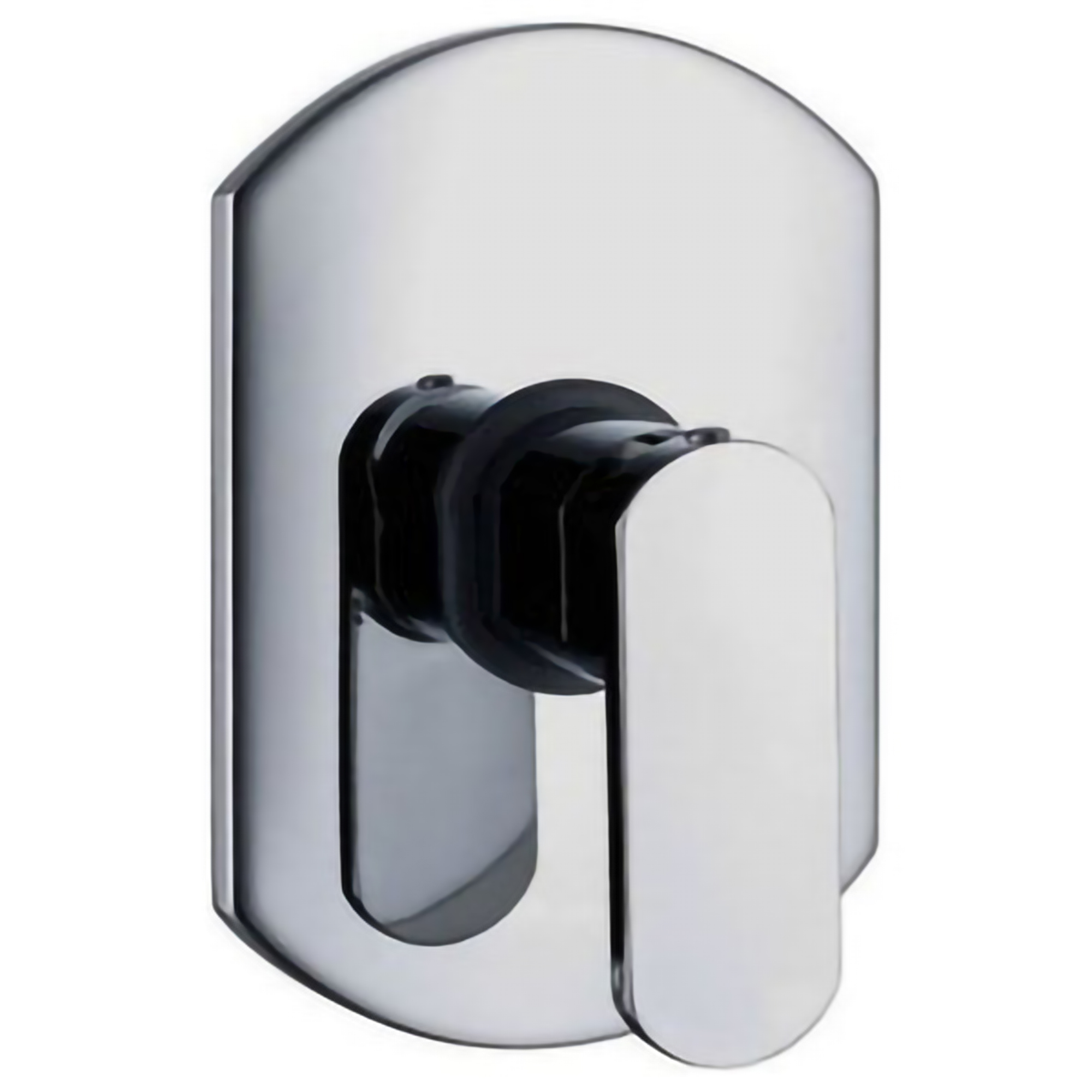

Fontana Bathroom In-Wall Shower Mixer Valve


When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for. Give your bathroom an elegant glance with sink faucets and fixtures. It comes super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

Features:

  • Brand Name: FontanaShowers
  • Model Number: FS1461WM
  • Type: Bath & Shower Mixer
  • Size: 11.85"-15.74" (301-400mm)
  • Number of Handle: Single Handle
  • Type: Fixed Support Type
  • Surface Material: Brass
  • Installation Type: Wall Mount
  • Control Type: Single Holder Dual Control
  • Style: Contemporary
  • Surface Treatment: Polished
  • Valve Core Material: Brass
  • Bath Shower Type: In-Wall B & S Mixer
  • Ceramic Cartridge Size: 1.37" (35mm)
  • Finish: Polished Chrome
    		• Fontana Lima Chrome Solid Brass In Wall Mixer Control Valve For Fontana Shower Control Valve In Wall Shower Set


    The installation and illustrations provided are for informational purposes only.

    For detailed and accurate installation instructions, please refer to the

    product specifications or the corresponding BIM file.
