Rain Shower Head and Rain Shower System Technical Drawing Options

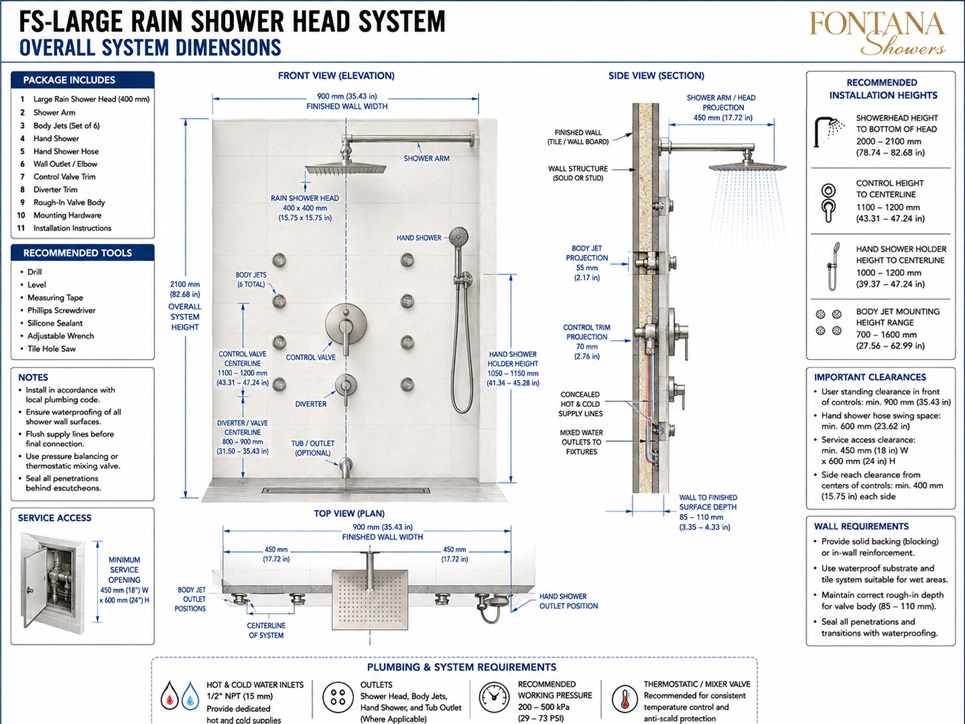

Overall System Dimensions

An overall-dimensions drawing is a primary coordination document for a large rain shower head and complete rain shower system. It translates the rain head, shower arm, hand shower, controls, body jets, and plumbing outlets into a measurable installation layout for architects, plumbing engineers, interior designers, contractors, and specification writers. Front, side, and top views should be developed early so the complete assembly can be coordinated with wall framing, ceiling structure, waterproofing, piping, access panels, finish materials, drainage, and user clearances.

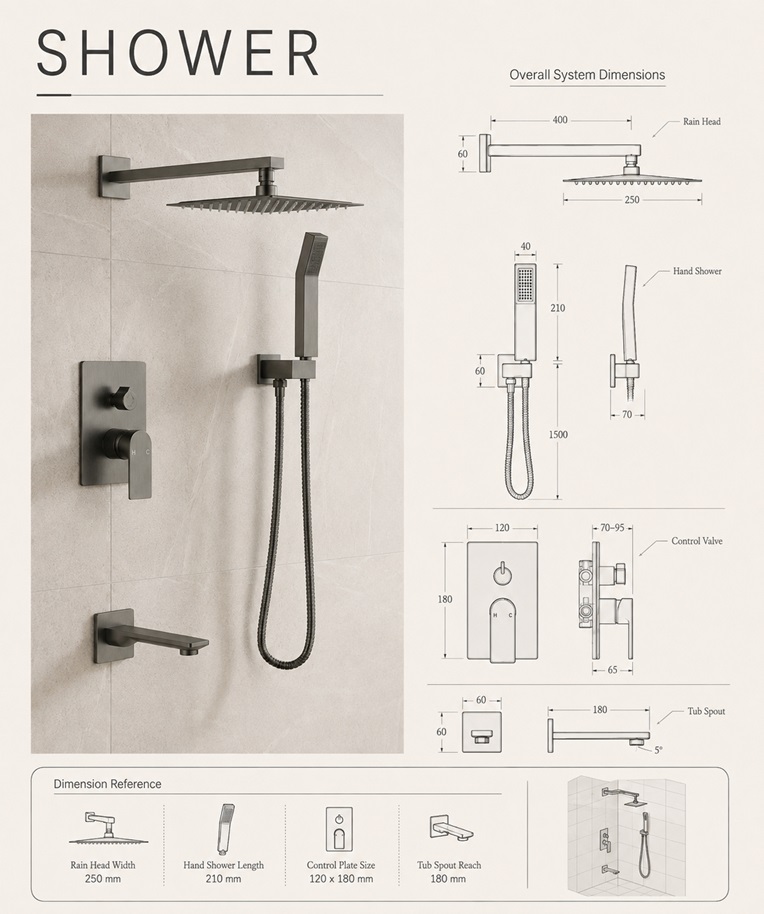

Rain shower head and complete rain shower system overall-dimensions drawing

Why Overall System Dimensions Matter

Large rain shower systems require more detailed coordination than conventional single-outlet showers. Rain-head width and length influence spray coverage and enclosure size, while shower-arm projection determines where water falls in relation to the user and floor drain. Concealed-valve depth must align with the finished wall assembly, and multiple body jets must maintain consistent vertical and horizontal spacing.

  • Complete system configuration: FontanaShowers rain shower systems may include wall- or ceiling-mounted rain heads, hand showers, thermostatic controls, diverters, and body-massage outlets.
  • Explore Rain Shower Systems with Body Jets
  • Orthographic documentation: Perspective renderings support design visualization, but construction requires front, side, and top views. These drawings establish installation heights, fixture centerlines, outlet spacing, valve depth, projections, mounting points, ceiling penetrations, and relationships to the enclosure and drain.
Read More Read Less
  • Required rain-head dimensions: Specification-grade drawings should identify the nominal width, length, thickness, inlet location, and mounting condition of the rain shower head, including wall-mounted, ceiling-suspended, flush-mounted, or recessed configurations.
  • Shower-arm and support details: Dimension the arm from the finished wall or ceiling surface to the rain-head connection. Identify connection size, thread type, mounting plate, structural support, and required clearance above the finished ceiling.
  • Product dimensional variation: Large rectangular ceiling rain heads can use wide, thin stainless-steel bodies. Selected-product dimensions should always replace generic design assumptions.
  • View the 20-by-40-Inch Ceiling Rain Head
  • Multi-outlet assembly: A complete system may combine a large ceiling rain head, ceiling arm, six body jets, hand shower, and multiple control functions within one coordinated installation.
  • View the Fontana Sofia Ceiling Rain Shower System
  • Product-specific geometry: Generic CAD symbols should be replaced with approved fixture dimensions during design development and construction documentation.
  • Control layout: Dimension controls to their centerlines and coordinate them with the concealed rough-in valve. Separate and identify thermostatic temperature control, volume control, and diverter functions.
  • Accessible placement: Where accessible bathing facilities are required, evaluate control and hand-shower locations against applicable ADA and accessibility criteria rather than copying a standard residential layout.
ADA Shower Room Guidance Accessible Shower Coordination Criteria

Drawing Views and Coordination Requirements

Front-view objective: Establish the vertical fixture layout. Dimensions to indicate: Rain-head height, body-jet spacing, control centerlines, hand-shower height, and outlet locations. Primary coordination risks: Conflicts with grab bars, wall niches, tile joints, benches, or accessible reach ranges.

Side Elevation

Primary objective: Resolve fixture depth and projection. Dimensions to indicate: Finished-wall build-up, valve depth, shower-arm projection, rain-head thickness, and service clearance. Primary coordination risks: Incorrect trim installation, insufficient projection, or spray discharge positioned too close to the wall.

Plan or Reflected Ceiling View

Primary objective: Coordinate the ceiling, enclosure, and drainage layout. Dimensions to indicate: Rain-head width and length, inlet location, mounting points, enclosure centerline, and distances to walls and drain. Primary coordination risks: Conflicts with framing, lighting, exhaust systems, sprinklers, glass panels, or access openings.

Plumbing Distribution Diagram

Primary objective: Document water distribution and fixture connections. Information to indicate: Hot- and cold-water inlets, valve connections, branch piping, outlet assignments, diverter sequence, and permitted simultaneous functions. Primary coordination risks: Excessive pressure loss, insufficient valve capacity, unbalanced flow, or inaccessible service components.

Read More Read Less

Hydraulic Coordination

The plumbing engineer should confirm available pressure and probable simultaneous demand before approving the system. A large rain head, multiple body jets, and a hand shower may require substantially more flow than a conventional single-outlet shower.

Operating Modes and Valve Capacity

Indicate whether outlets operate independently or simultaneously. Verify pipe sizing, thermostatic-valve capacity, hot-water demand, pressure loss, and balancing against manufacturer data and the applicable plumbing code.

Structural Support

Ceiling-mounted rain heads may require structural backing, threaded-rod suspension, or a framed mounting zone independent of the finish ceiling. Wall-mounted shower arms also require secure blocking and anchorage.

Water-Efficiency Review

Where project water-efficiency goals apply, compare the selected shower components with applicable efficiency requirements and approved product performance data.

Hospitality example: Consider a hotel bathroom with a 20-by-40-inch ceiling rain head, six body jets, a hand shower, and a three-function thermostatic control.

Hospitality Coordination Case

Initial Layout

The reflected ceiling plan originally centered the rain head within the shower, while the plumbing and floor plans located the drain closer to the valve wall.

Coordination Review

When the top-view drawing was overlaid on the floor plan, the design team found that the rain head’s spray field did not align with the intended drainage area.

Design Resolution

The rain head and its supporting structure were repositioned before framing and waterproofing, preventing field relocation, ceiling repair, waterproofing modification, finish replacement, and schedule delay.

Read More Read Less

Specification and Submittal Requirements

Include coordinated CAD or BIM geometry, dimensioned installation drawings, valve rough-in limits, connection sizes, operating-pressure requirements, outlet flow data, approved operating combinations, mounting details, finish-wall tolerances, and service-access provisions.

Technical Resource Support

FontanaShowers provides technical resources to support product research, design coordination, specification development, and construction-document review.

Architect and Specifier Technical Resources

Access project-oriented information for fixture selection, technical coordination, and specification support.

BIM and Specification Resources

Revit Shower Head Families Access FontanaShowers BIM resources for shower-head planning and project coordination. Architect and Specifier Resources Verify final dimensions against the approved product submittal and actual fixture before closing walls or ceilings.
Read More Read Less
Overall-Dimensions Coordination Summary Front, side, and top views convert a decorative product selection into a coordinated plumbing assembly by defining fixture centerlines, rough-in depths, mounting points, control locations, and outlet relationships.
