Touchless Soap Dispenser Specs & Rough-In Details

Search by model, power option, or spec topic. Use this page for coordination, submittals, commissioning, and clean install handoffs between AEC teams and trades.Commercial-grade hygiene with elevated design!

Downloads
Results (jump to section)
    Downloads
    0
    PDF Submittals
    Spec + Install
    CAD / BIM
    0
    Request Links
    By request
    Guides
    0
    O&M / Maintenance
    Facility use
    Jump to:
    Downloads Coordination Checklist Rough-In Notes Specs Table Architecture Details Recommended Models Videos Troubleshooting FAQ
    Focus Touchless soap dispensing
    Audience Architects, engineers, contractors
    Use Offices, healthcare, education, public facilities
    Open Download Hub Rough-In Notes Watch Install Videos Request BIM / CAD

    Download Hub (Submittals + Field Use)

    Keep these documents together for coordination, closeout packages, and trade reference. For BIM or CAD files, use the request link so your team can receive the correct format for the selected model.

    Cut Sheet
    FS9854 Specifications
    Open PDF
    Installation
    FS9854 Installation Instructions
    Open PDF
    Maintenance
    Repair and Maintenance Guide
    Open Guide
    BIM / CAD
    Request BIM or CAD Files
    Request Files
    Submittal package tip: Save the spec sheet + installation PDF + maintenance guide in one project folder and include it in your closeout documents.

    Architect and GC Coordination Checklist

    Rough-In and Deck Layout

    Confirm hole requirements, clearance to backsplash, and alignment with faucet centerlines to reduce false activation.

    Power and Controls

    Plan for AC or battery power, access to battery box or service cavity, and cable routing away from wet zones.

    Service and Refill Access

    Define refill workflow, bottle access, and maintenance frequency for high-traffic locations.

    • Keep consistent fixture spacing across lavatory banks so sensor zones do not overlap.
    • Avoid reflective surfaces directly in front of the sensor where possible.
    • Standardize soap type and viscosity across a facility to reduce pump strain and service calls.

    Rough-In and Coordination Notes (For Drawings and Trades)

    Use the FS9854 installation documentation for final dimensioning. The notes below help teams coordinate early and avoid field conflicts.

    Countertop / Deck Coordination

    Confirm the required mounting hole and maximum deck thickness in the install PDF before fabrication. Coordinate underside clearance for nuts, shanks, and tubing bends.

    Under-Deck Routing

    Route tubing with gentle bends and protect lines from sharp edges. Keep the bottle and service parts accessible without removing the vanity.

    Power and Service Access

    If using AC power, plan adapter placement and cable routing. If using battery power, ensure the battery box can be reached quickly for replacement.

    Open Install PDF (Verify Dimensions) Open Spec PDF (Model Data)
    Coordination rule: Do not finalize stone drilling or millwork cutouts until the exact model submittal is approved.

    Core Technical Specs You Can Reference in Schedules

    The values below are shown as FS9854 reference information. If you select a different model or finish family, confirm against that model’s submittal.

    Spec item FS9854 reference Why it matters in the field
    Mount type Deck mount (single hole) Impacts countertop fabrication and coordination with faucet and basin ledges.
    Sensor range 2.4 to 3.9 in (6 to 10 cm) Defines user experience and helps prevent unintended triggering in tight lav banks.
    Activation time 0.5 to 1 sec Sets commissioning expectations and reduces user complaints after turnover.
    Soap viscosity 100 to 3500 cP Helps prevent pump strain, under-dispense, and clogging when thick soaps are used.
    Power options AC or battery (model-supported) Changes electrical scope and maintenance cadence. Battery plans need access strategy.
    FS9854 Specs PDF FS9854 Install PDF Repair and Maintenance Guide
    Spec writing note: For contract documents, reference the product model number and attach the submittal PDFs as part of your closeout package.

    Architecture Details and Layout Notes

    Countertop Drilling

    Confirm the deck hole size range and maximum countertop thickness from the installation PDF. Coordinate core drilling and underside clearance early, especially for stone tops.

    Tube Routing and Bottle Placement

    Route tubing with gentle bends, keep it away from sharp edges, and plan bottle location for quick swaps. If the vanity is tight, consider a service panel.

    Commissioning

    Prime the pump and run several dispense cycles so soap fully fills the line. This prevents call-backs right after occupancy when the line is still empty.

    FS9854 technical drawing for deck-mounted automatic soap dispenser

    Technical drawing reference (FS9854)

    DrawingCoordinationSubmittals

    Use this as a quick visual reference in coordination meetings and finish schedule reviews. For dimension-critical work, rely on the PDF documentation.

    Open Spec PDF Open Install PDF

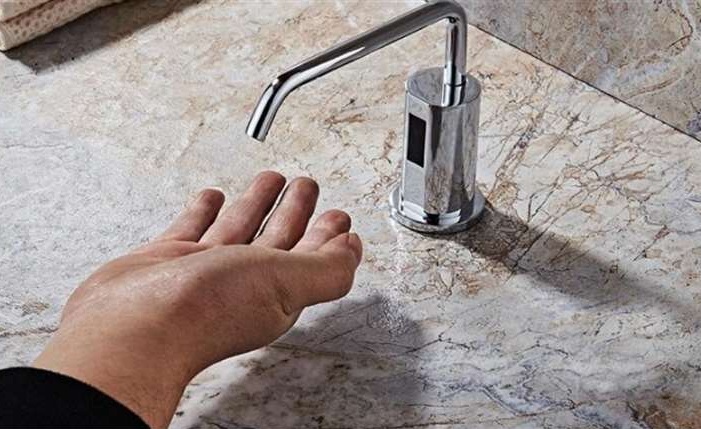

    FS9854 deck-mount soap dispenser installed on countertop

    Countertop appearance and projection check

    Field fitFinish coordinationCleanability

    Confirm user reach and dispenser projection relative to sink bowl geometry. This helps reduce drips on the deck and lowers daily wipe-down time.

    View product page

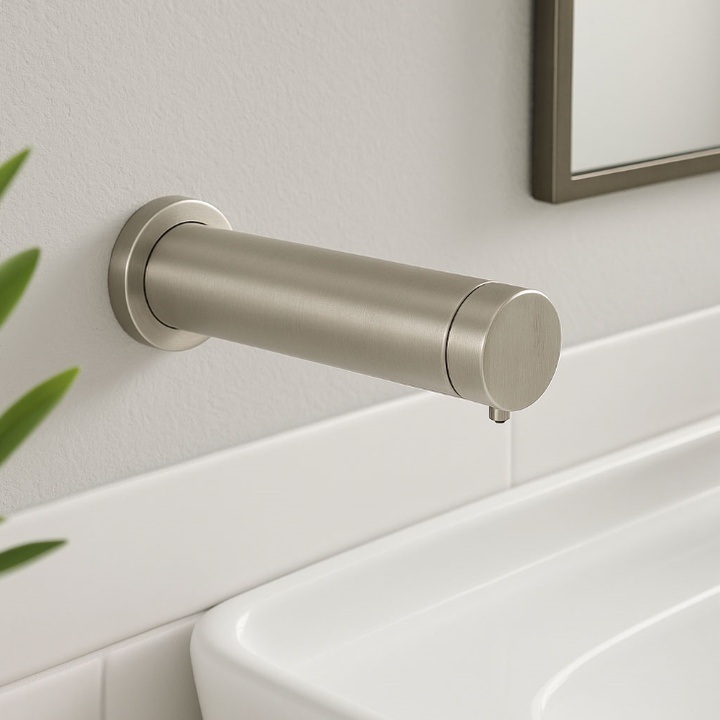

    Wall mounted touchless soap dispenser example hardware

    Wall mount option for high-traffic locations

    Service accessADA planningLess deck clutter

    Wall mounting can simplify cleaning and reduce countertop congestion. Plan backing, anchoring, and service access to power and refill points.

    View wall mount model (FS9085BN)

    Recommended Touchless Soap Dispenser Models for Project Use

    These are solid reference picks for submittals and detail sets. Use them as starting points and swap finishes as needed.

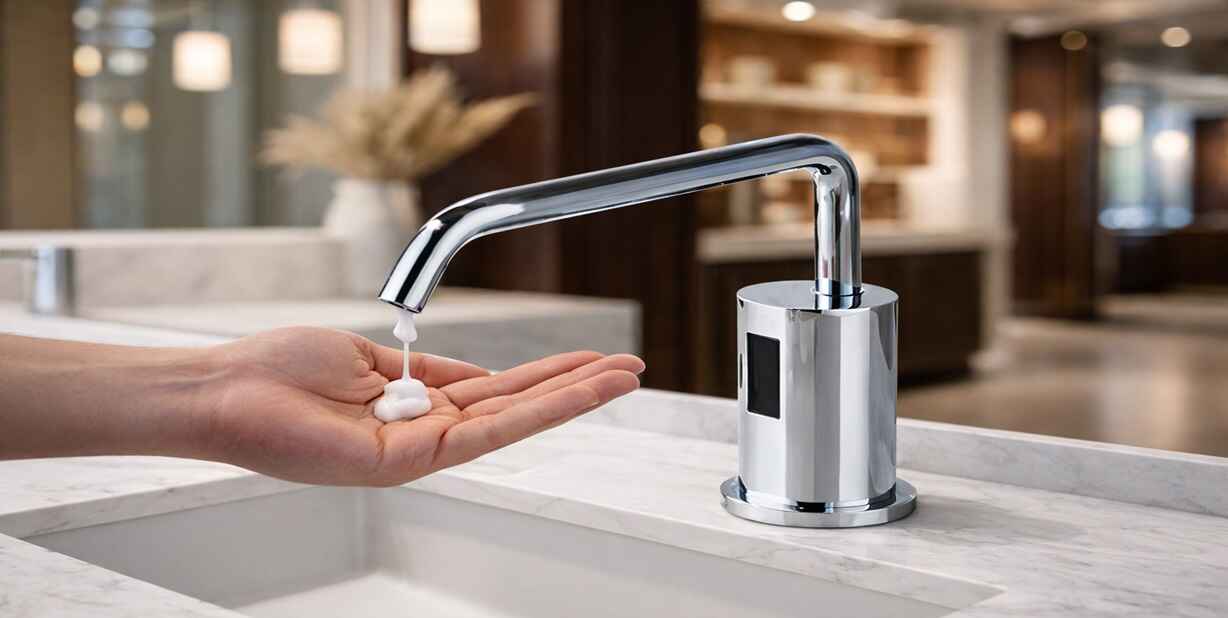

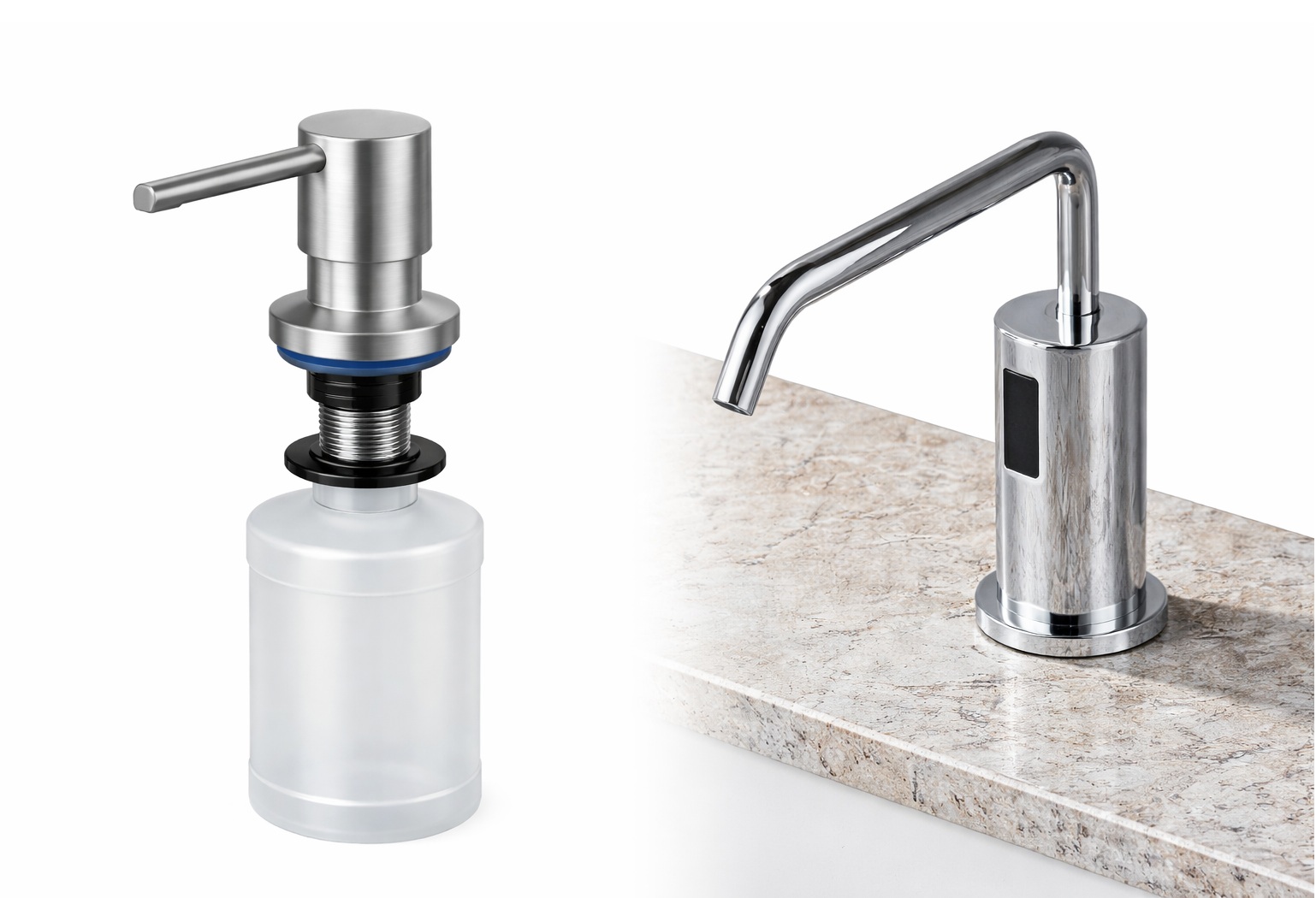

    Fontana Milan Chrome Automatic Soap Dispenser FS9854

    Fontana Milan Chrome Modern Automatic Soap Dispenser

    Model: FS9854 Deck mounted Commercial

    Good for offices and public restrooms where a clean, minimal chrome look fits common finish schedules.

    Product page Spec sheet (PDF) Install (PDF)

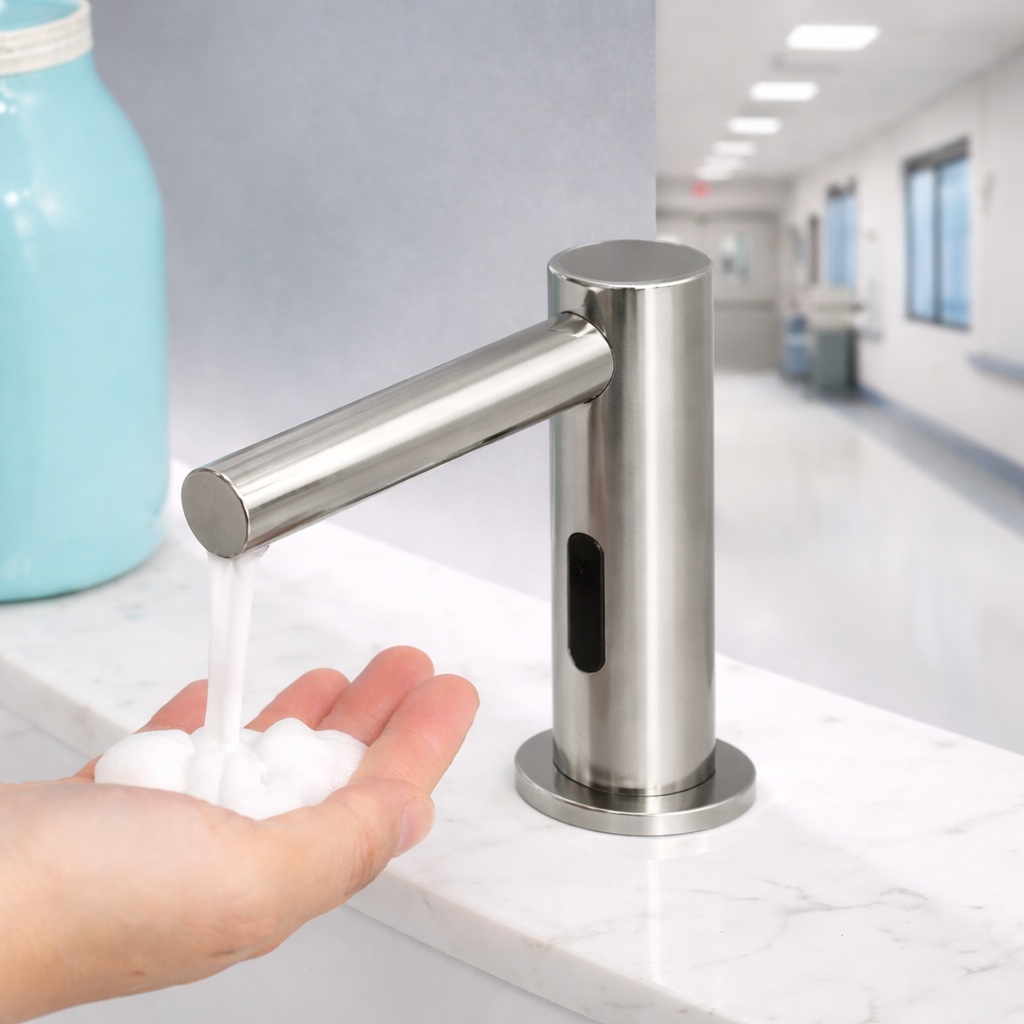

    Fontana Reno Wall Mounted Touchless Automatic Soap Dispenser hardware image

    Fontana Reno Touchless Automatic Soap Dispenser

    Model: FS9085BN Wall mounted Service-friendly

    Useful in corridors, healthcare, and controlled environments where wall mounting simplifies cleaning and access.

    Product page Maintenance guide

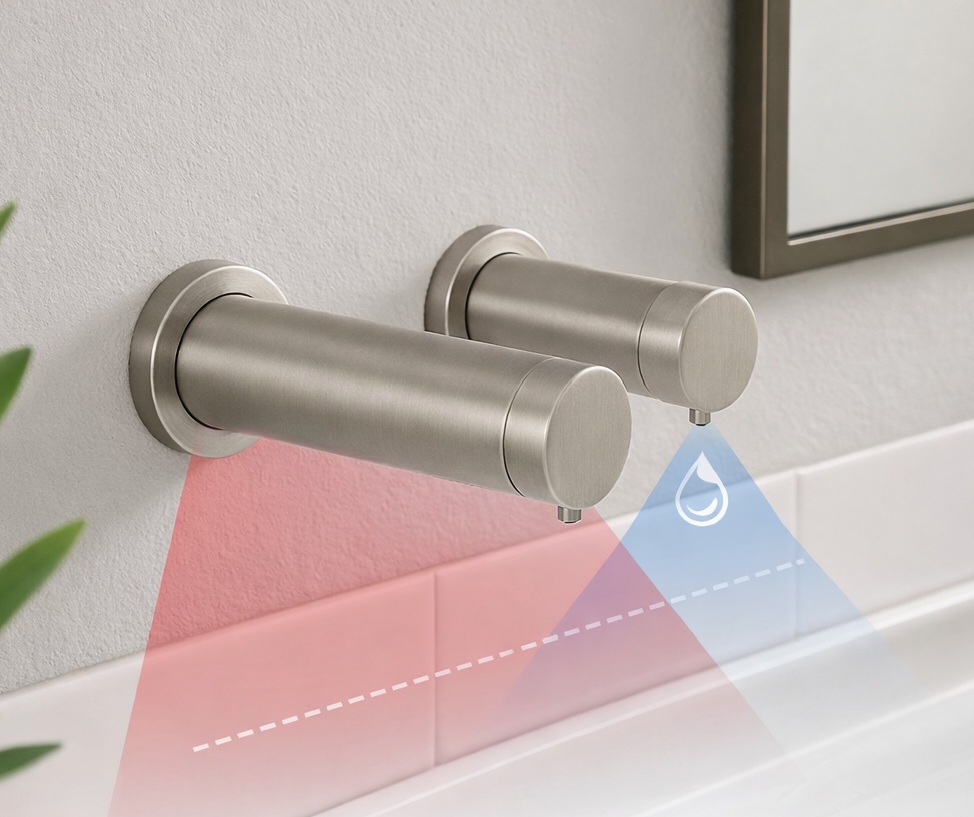

    Touchless soap dispenser placement guidance at a lavatory deck

    Layout guidance for dispenser placement

    Detailing False trigger control Commissioning

    Keep consistent spacing across a lavatory bank, avoid reflective surfaces facing sensors, and prime lines during startup so the first occupants do not experience “no soap.”

    Install PDF (Field steps) Maintenance guide

    Installation Videos (Quick Field Reference)

    Use these for commissioning and install workflow alignment during punch, turnover, and closeout.

    Video Soap dispenser installation detail reference

    Commissioning and Troubleshooting (Field Quick Fixes)

    These checks address the most common issues during startup and early occupancy. If the issue persists, reference the maintenance guide.

    No dispense on first use

    Prime the pump and run multiple cycles until soap fills the line. Verify the bottle is seated and tubing is not kinked.

    Intermittent dispense

    Check battery level or AC stability. Confirm sensor area is clean and free of residue that can affect detection.

    Drips or messy deck

    Confirm soap viscosity is compatible. Clean nozzle residue and verify the dispenser is aligned over the bowl where possible.

    False activation

    Increase spacing where possible, reduce reflective surfaces, and avoid overlapping sensor zones in tight multi-lav layouts.

    Slow response

    Confirm sensor range, lighting conditions, and that there is no obstruction. Re-check commissioning steps after cleaning.

    Under-dispense

    Inspect for partial clogs, thick soap, or air gaps in the line. Re-prime and ensure tubing routing is smooth.

    Open Maintenance Guide Open Install PDF

    FAQ: Installation and Maintenance (Field Notes)

    What causes false activation?

    Common causes include tight spacing, reflective surfaces, and overlapping sensor zones. Keep consistent spacing and align centerlines.

    What should crews check during commissioning?

    Prime the pump, verify sensor range, confirm stable power, and run several dispense cycles so soap fully fills the line.

    How do you reduce service calls?

    Plan refill access, avoid sharp tube bends, standardize soap type, and include the maintenance guide in closeout documents.
