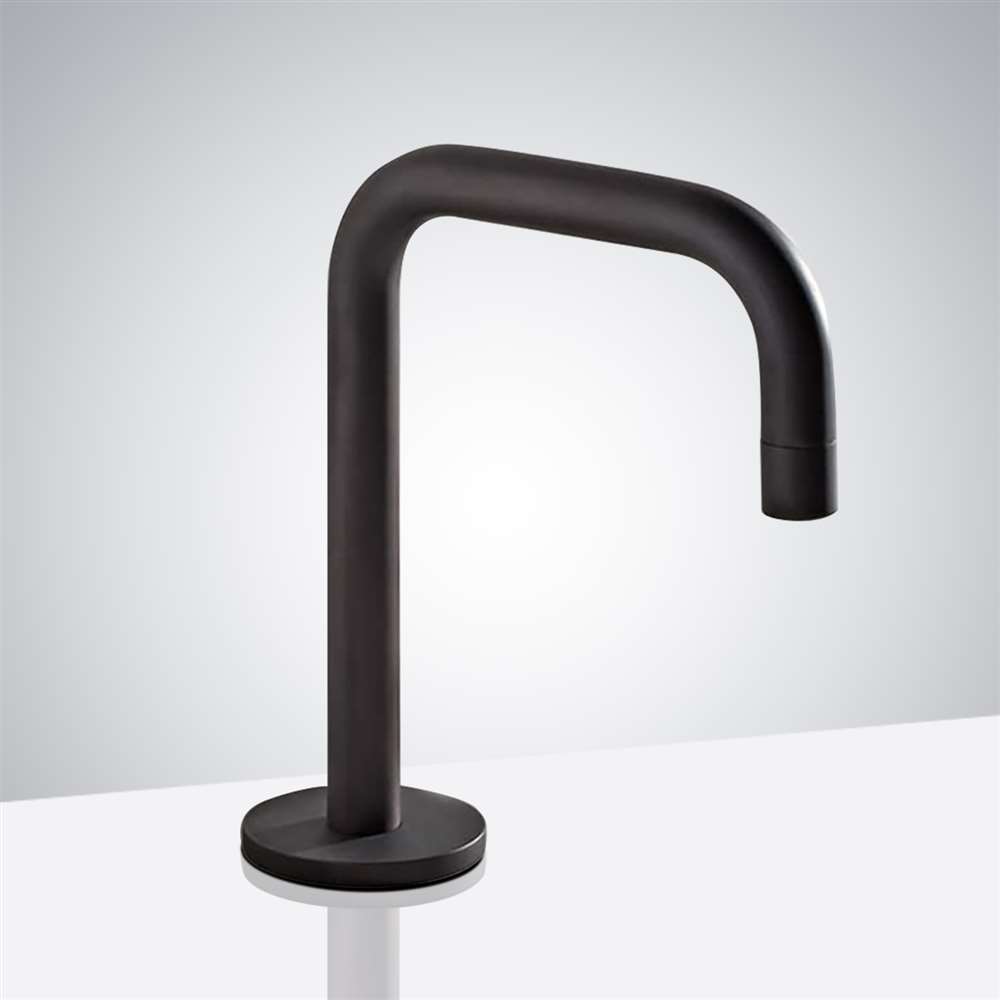

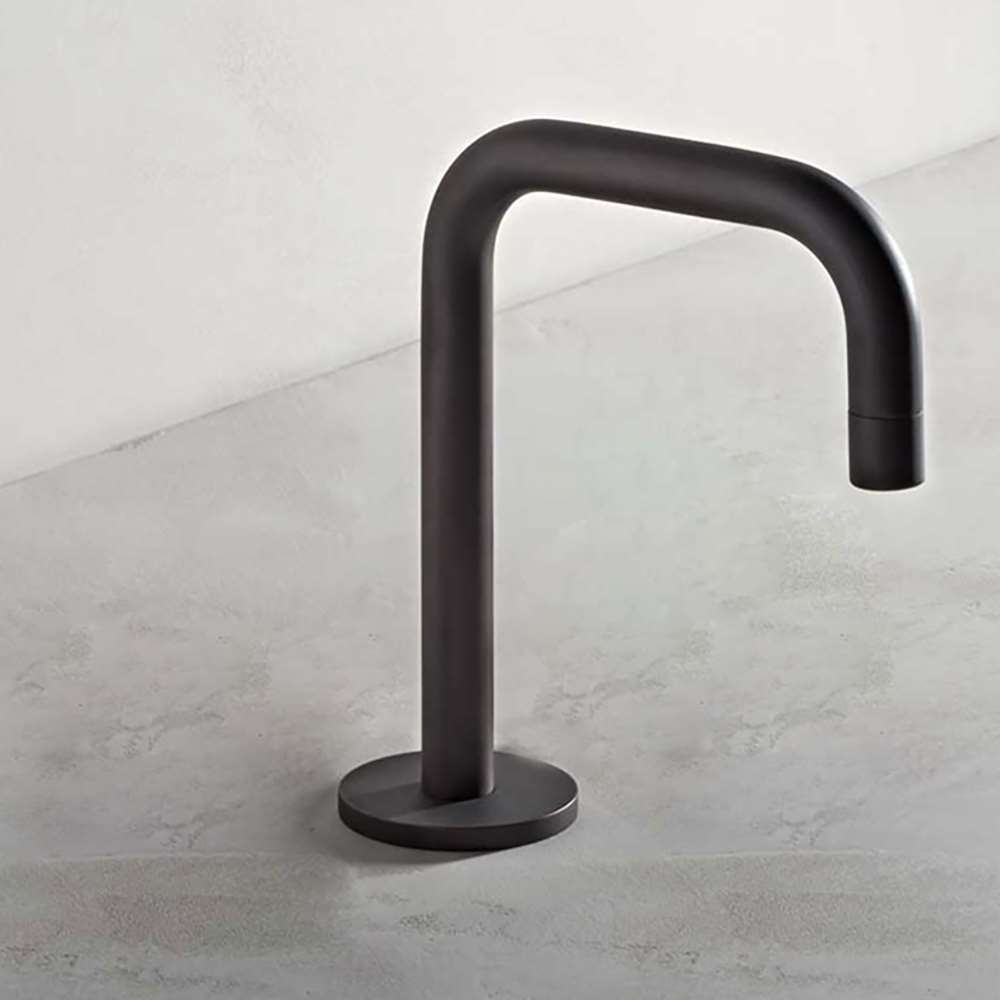

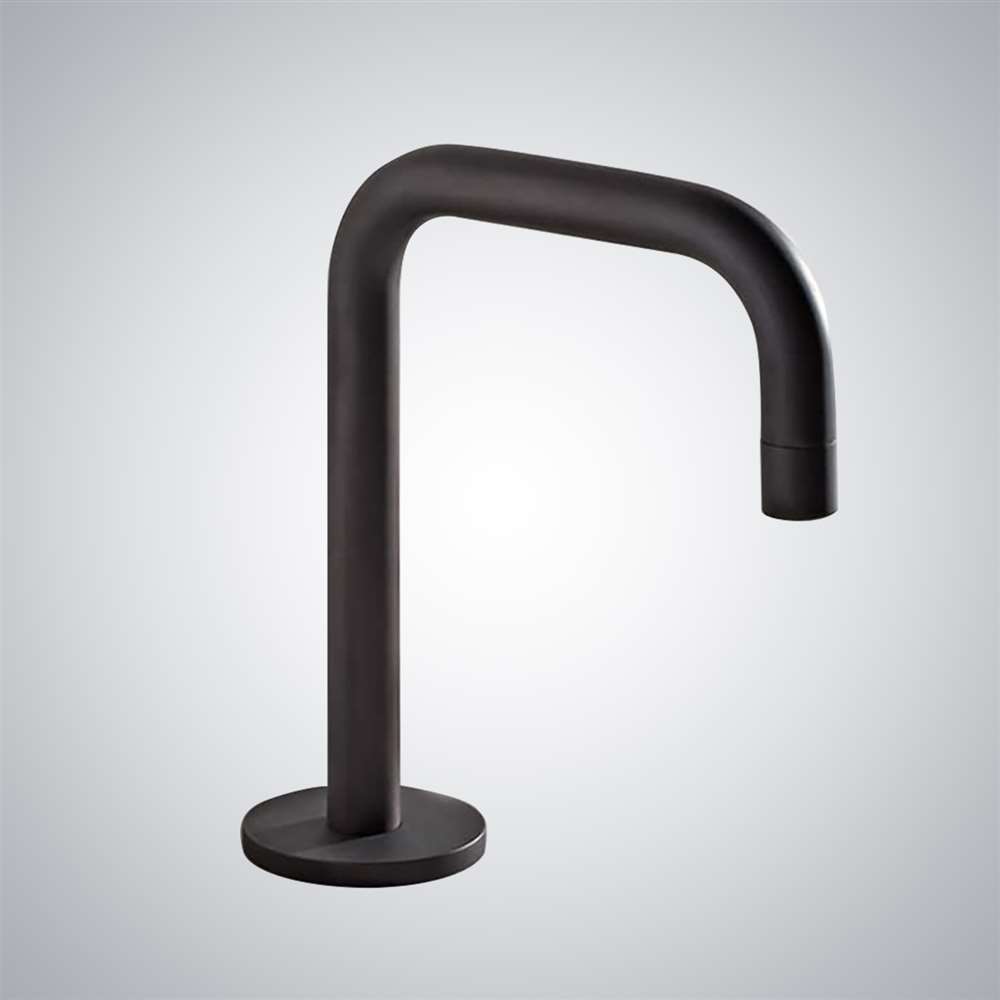

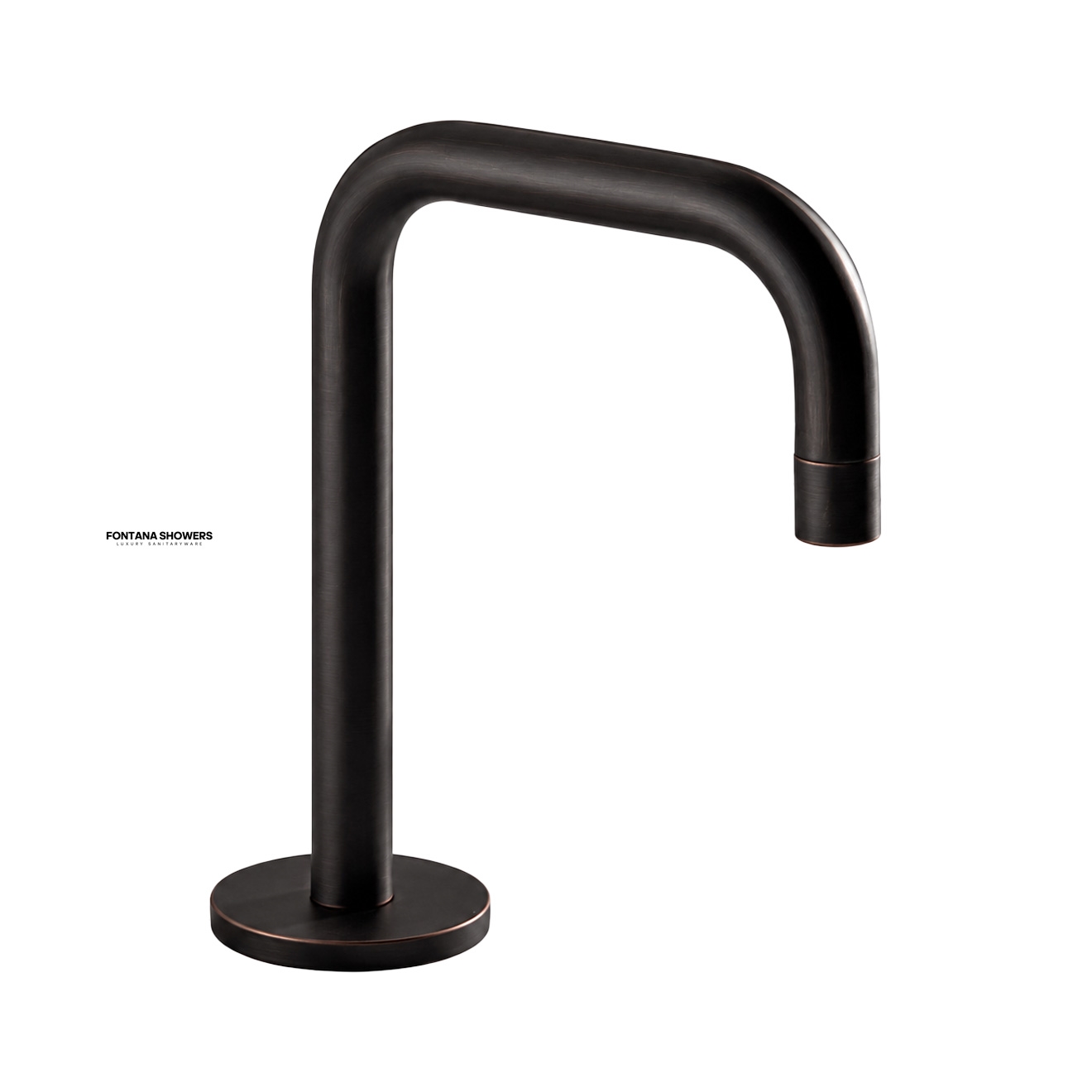

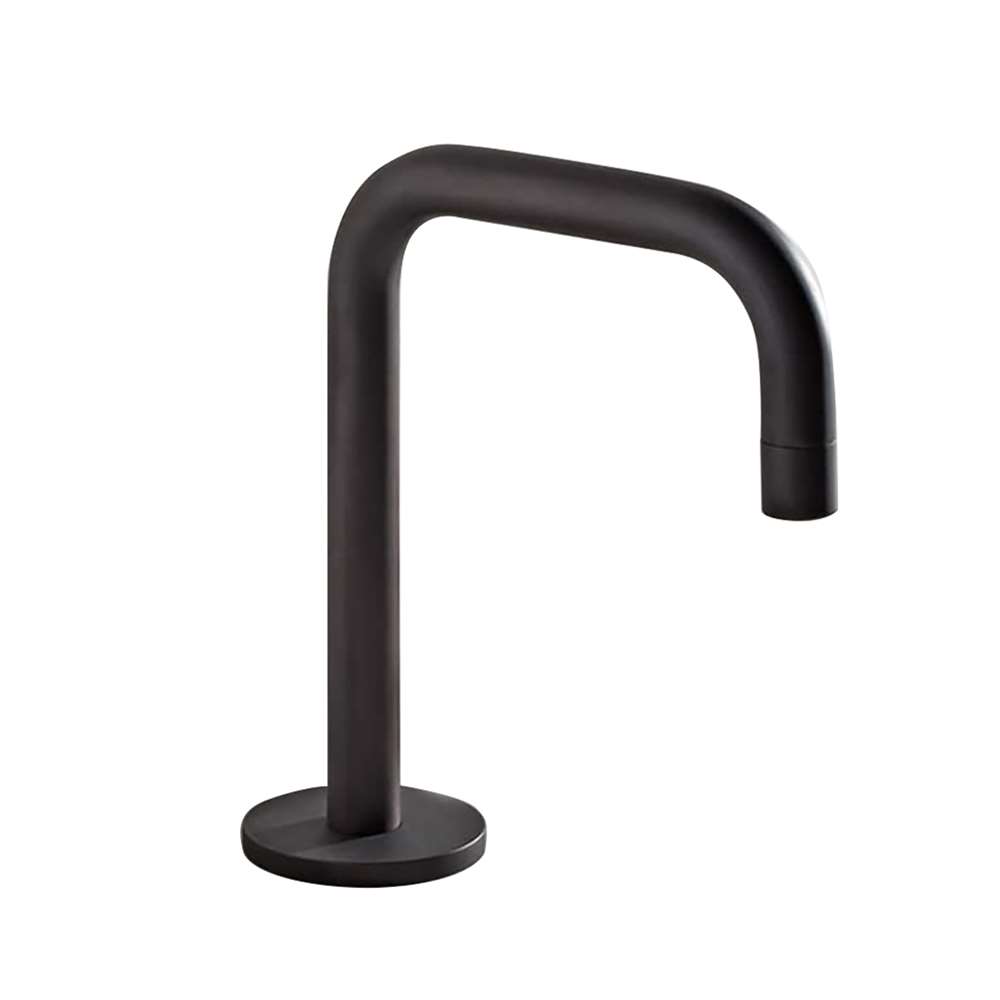

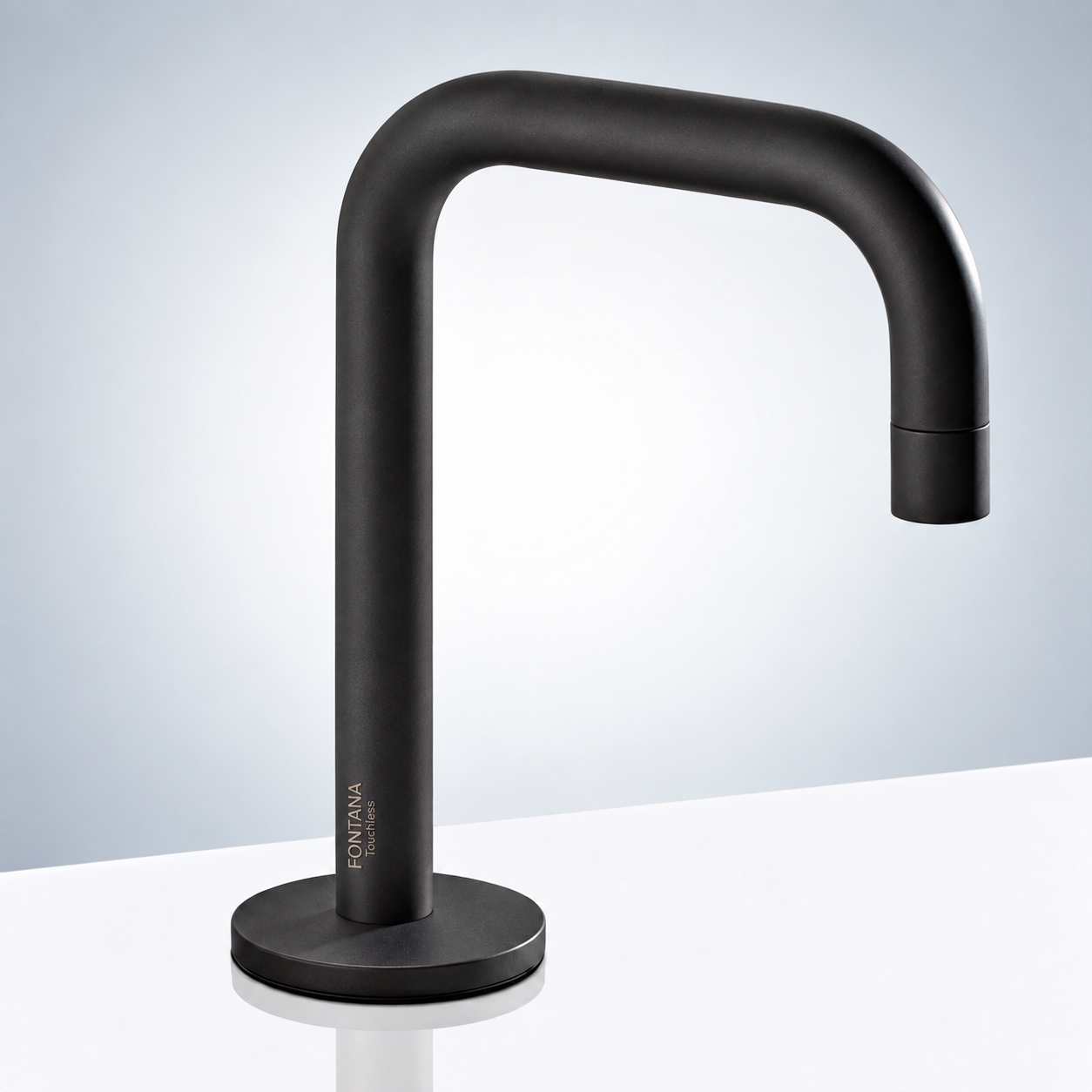

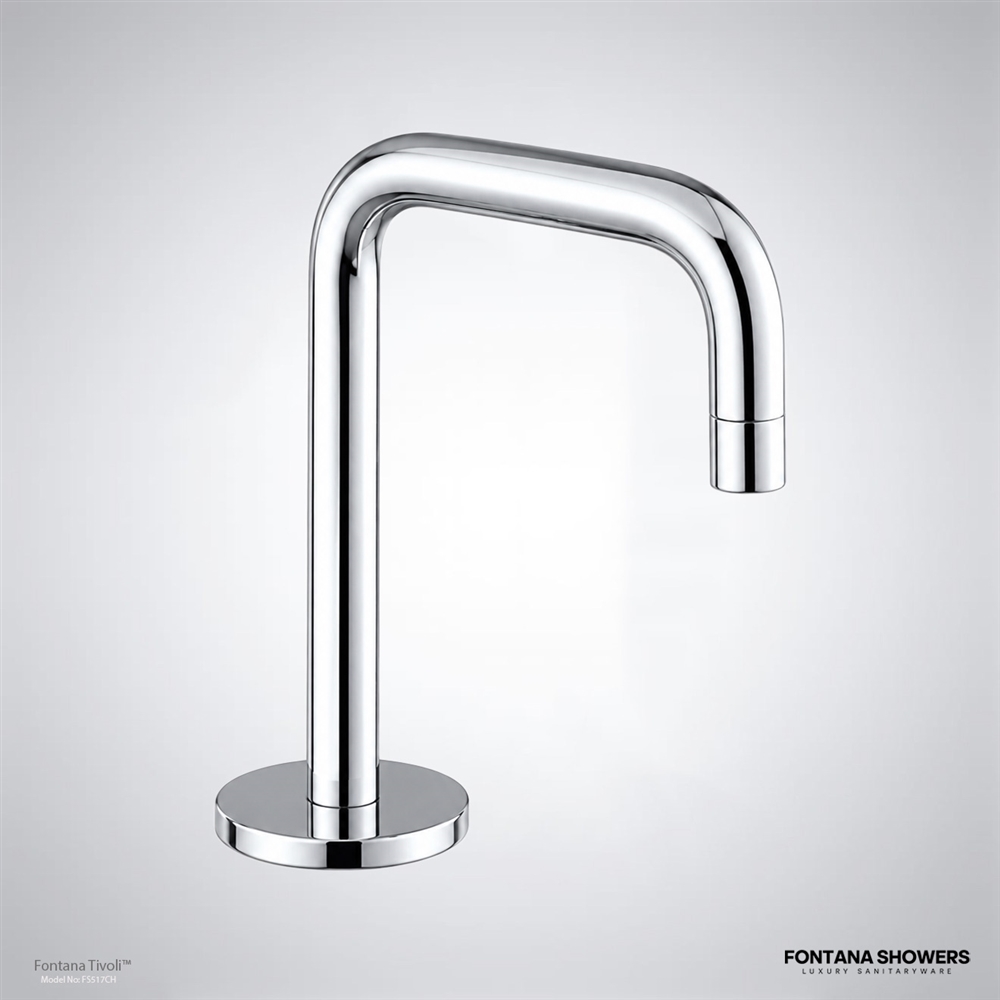

Fontana Commercial Automatic Hands Free Sensor Faucet

Engineered with high-precision infrared sensing and sub-second activation, delivering reliable, touchless operation while maximizing hygiene and minimizing water waste in demanding commercial environments. ndustrial Hands-Free Faucet Line; Designed for industrial and institutional environments featuring robust brass bodies, impact resistance, smart hands-free operation, ADA compliance, and long-life sensor performance.

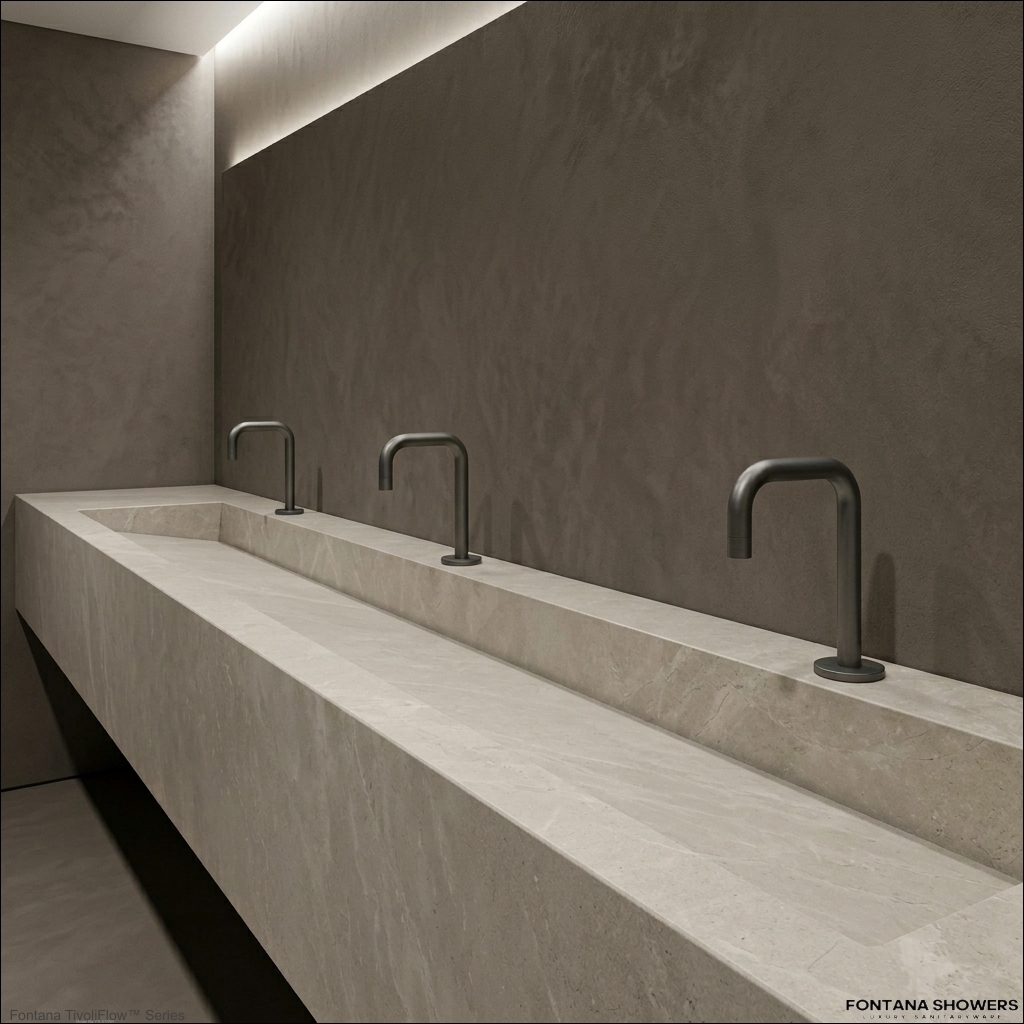

This Fontana Commercial Infrared contemporary touchless Sensor activated Bathroom Faucet comes with a self-setting detection range, is low maintenance, and has an easy access screen to protect working components from debris and natural waterborne elements. Sensitive Sensor with Infrared AI Smart-Chip, Factory set to 30-second Auto Shutoff (can be adjusted). Motion electronic touchless sensor faucets for commercial operations such as Restaurants, Hotels, Office buildings and Malls. Advanced energy-saving design for long-lasting battery life. Comes complete with Hoses & Accessories. AC110V And DC6V Power Supply (batteries not included). Ideal for commercial use applications. Easy to Install - Instructions Included.

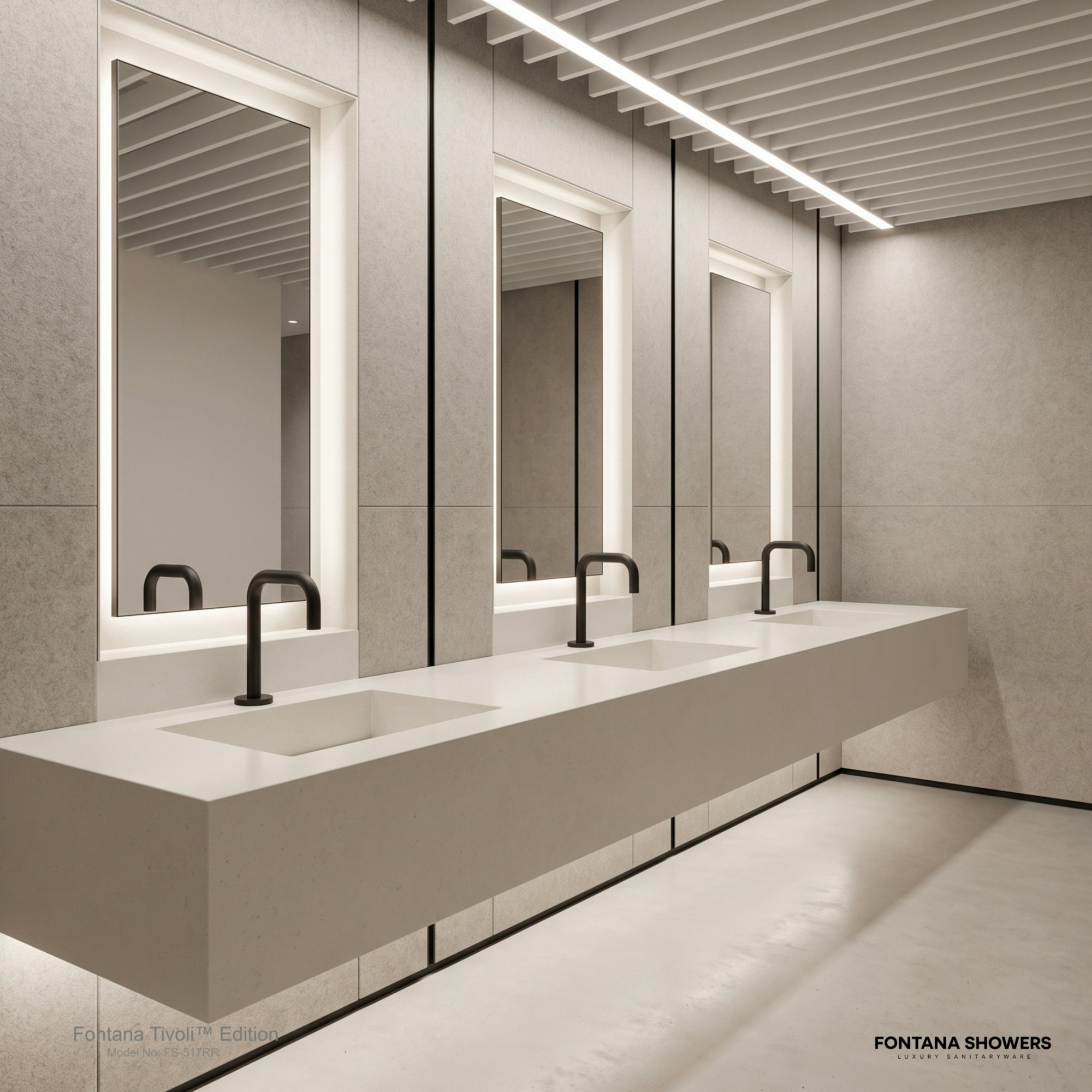

TIVOLI™ EDITION

Fontana Tivoli Touchless Faucet FAQs

Commercial infrared touchless faucet with solid brass construction, ceramic valve control, single-hole deck mounting, AC110V/DC6V power capability, self-setting sensor detection, and water-efficient 1.3 GPM performance.

✥ Sensor Calibration Procedure? +

Complete infrared sensor commissioning after the basin, countertop, backsplash, mirror, and surrounding accessories are fully installed. The sensing system uses a self-setting detection range, so keep the activation area unobstructed during startup and confirm reliable hand detection before releasing the faucet for regular use.

◇ Hydraulic Checks During Installation? +

Flush the incoming supply piping before final connection, verify supply hoses and fittings are securely installed, and inspect accessible screens for construction debris. Confirm adequate dynamic water pressure throughout repeated activation cycles before commissioning is complete.

◯ 1.3 GPM Flow Rate Verification? +

Verify approximately 1.3 GPM under normal operating conditions. If water delivery is below expected performance, inspect the aerator, inlet screen, supply hoses, service stops, dynamic water pressure, and any construction debris that may restrict the water path.

↻ Continuous Water Flow Diagnostics? +

Clean the infrared sensing window, remove objects from the activation field, and confirm stable power to the electronic control system. Inspect the ceramic valve and control components for debris or incomplete closure if water continues flowing after hands leave the sensing area.

⌁ Automatic Shutoff Operation? +

The smart sensor system is factory configured with an approximately 30-second automatic shutoff period that can be adjusted. During commissioning, verify that extended activation terminates correctly and that normal operation resumes when the user re-enters the sensing field.

⌂ Operating Water Pressure? +

Maintain water pressure within approximately 10–125 PSI. Excessive pressure should be regulated where required, while insufficient dynamic pressure may reduce available flow when several fixtures operate simultaneously.

⚡ AC110V and DC6V Power Options? +

The Tivoli FS517 series supports AC110V and DC6V configurations. Verify the specified power arrangement before sensor commissioning, protect electrical components beneath the countertop from moisture, and maintain service access for future electrical or battery maintenance.

⌕ Routine Finish Maintenance? +

Clean the selected finish using a soft cloth and mild non-abrasive cleaner. Avoid aggressive polishing compounds, abrasive pads, acidic chemicals, and chlorine cleaners. Periodically clean the sensor window and aerator and verify dependable activation and automatic shutoff.

‹ ›

Chrome

Chrome Brushed Nickel Gold Brushed Gold Rose Gold Champagne Matte White Matte Black Gun Metal Gray Antique Brass

♧

1.3 GPM Water Efficient

◇

Solid Brass Durable Construction

⌁

Infrared Sensor Self-Setting Detection

⚙

Ceramic Valve Precision Control

◇

AC / DC Power Commercial Grade

• Brand Name: FontanaShowers®
• Model Number: FS-517
• Type: Automatic Faucet
• Water Pressure: 0.5-7.0 KGS/cm, 10-125 psi

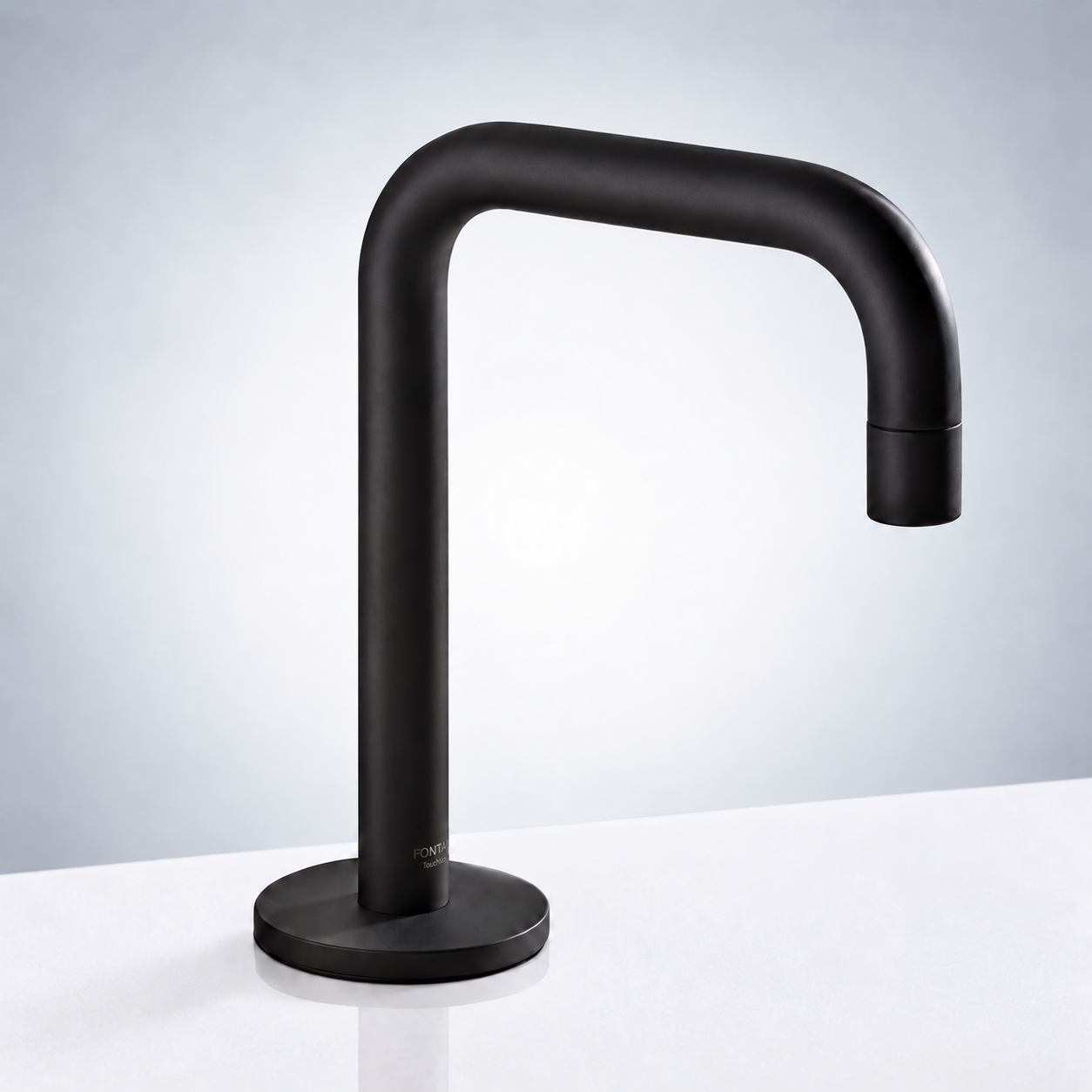

• Finish: Dark Oil Rubbed Bronze/Matte Black
• Construction: Solid Brass
• Power Supply: AC110V And DC6V
• Batteries Included: Not
• Mounting Type: Deck Mounted
• Use: Commercial Use
• Body Material: Brass
• Faucet Mount: Single Hole
• Style: Contemporary
• Flow Rate: 1.3 GPM (gallons-per-minute)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Overall Height: 7.69"
• Spout Length: 5.72"
• Valve Type: Ceramic Valve
• Usage: Commercial Applications
• Usage: Commercial
