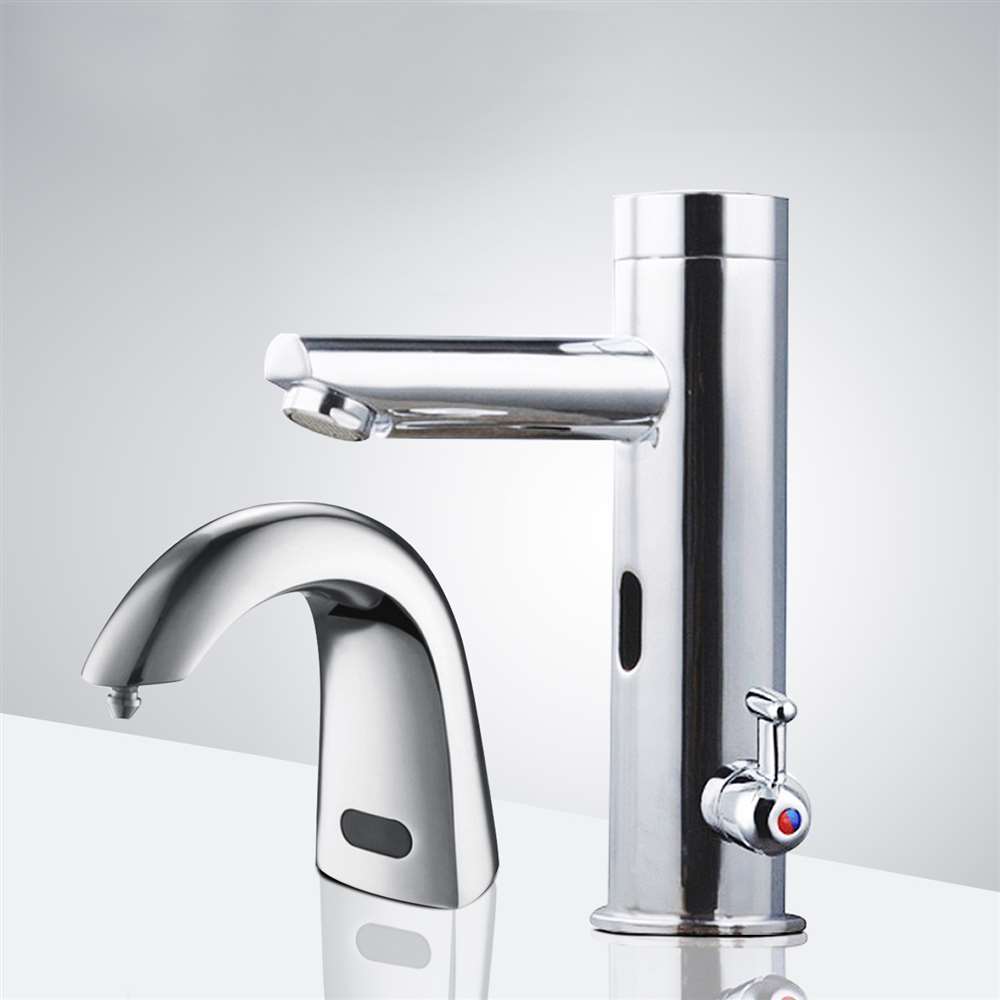

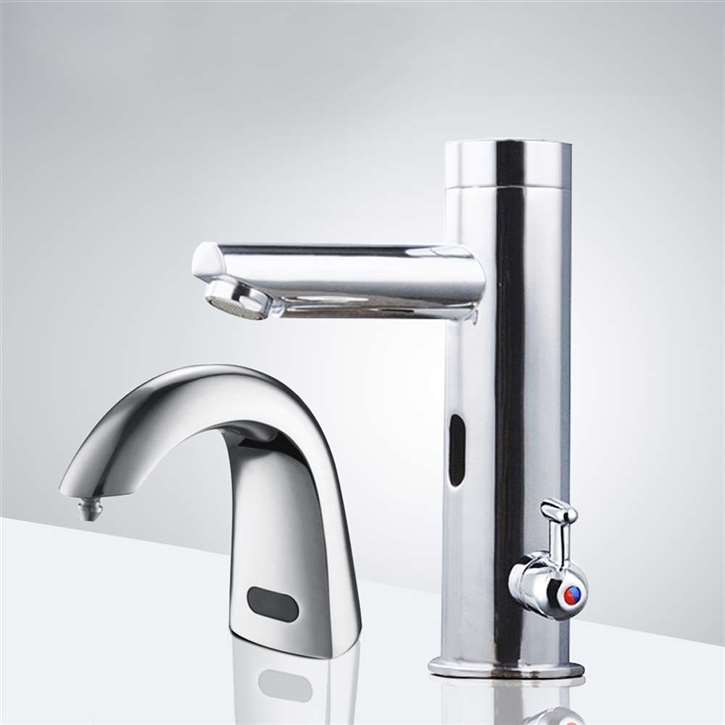

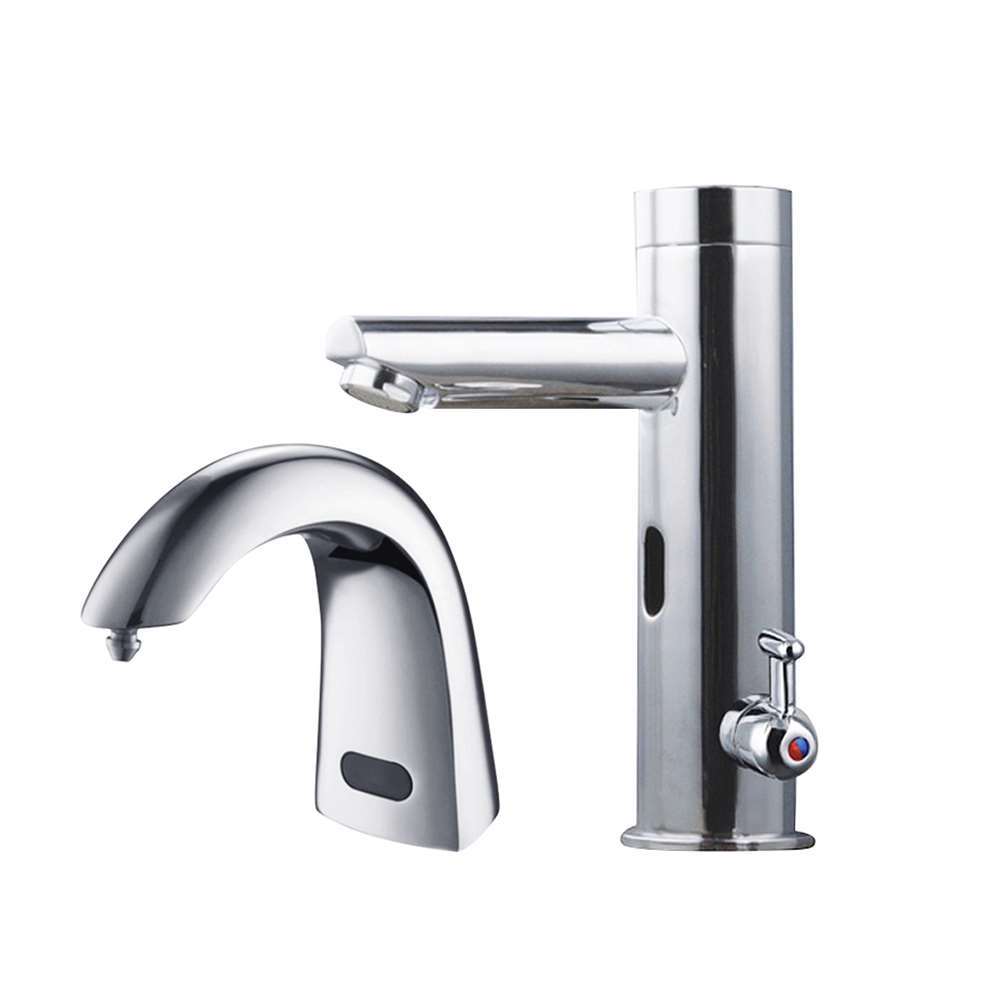

Fontana Florence Thermostatic Commercial Sensor Faucet with Automatic Sensor Soap Dispenser in Chrome
Fontana Florence Thermostatic Commercial Sensor Faucet with Automatic Sensor Soap Dispenser in Chrome

Alternative Views:
List Price $1,731.84
Sale Price: $1,666.91
Savings: $64.93

Sale Price: $1,666.91







Availability: Usually Ships in 5 to 10 Business Days
Product Code: B5125DC-B9837


Hot & Cold Option:

Qty:
Description Extended Information


Fontana Florence Thermostatic Commercial Sensor Faucet with Automatic Sensor Soap Dispenser in Chrome

All-in-one Commercial Temperature Control Automatic Touchless Sensor Faucet with Mixing ValvePlatinum Commercial Automatic Temperature Control Thermostatic Sensor Tap B505 Solid Brass Construction - (Available in Oil Rubbed Bronze)
  • Fits all standard US plumbing.
  • Uses 4AA Alkaline Batteries (purchase separately).
  • Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi
  • Sensor Faucet Applications: Residential & Commercial.
  • Touchless Operation
  • Sensitive Sensor with Infrared AI Smart-Chip
  • Factory set to 30-second Auto Shutoff (can be adjusted).
  • Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
  • Solid Brass Construction, Chrome Finish
  • Easy to Install - Instructions Included
  • Water resistant solenoid enclosure
  • Advanced energy saving design for long lasting battery life
  • Comes complete with Hoses & Accessories
  • ADA Compliant
  • Can be installed easily in new or retrofit applications.
  • Can easily be installed in new or retrofit applications
  • Usage: Commercial restrooms including high traffic bathroom facilities
  • Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing




PRODUCT FAQ

Integrated Touchless Hygiene, Infrared Water Activation & Commercial Restroom Efficiency

This automatic faucet and soap dispenser system integrates infrared touchless technology, controlled dispensing performance, and commercial-grade hygiene management for modern restrooms.

How does the touchless activation improve restroom hygiene?
The infrared sensor system minimizes direct contact with both soap and water dispensing components to reduce contamination risk.
How does the integrated system improve operational efficiency?
The combined faucet and dispenser configuration streamlines handwashing functionality while reducing countertop clutter.
How does the system support water and soap conservation?
The electronic control assembly regulates dispensing duration and flow output to minimize unnecessary waste.
What supports long-term commercial reliability?
The reinforced housing and infrared sensor assembly are engineered for continuous high-cycle restroom operation.

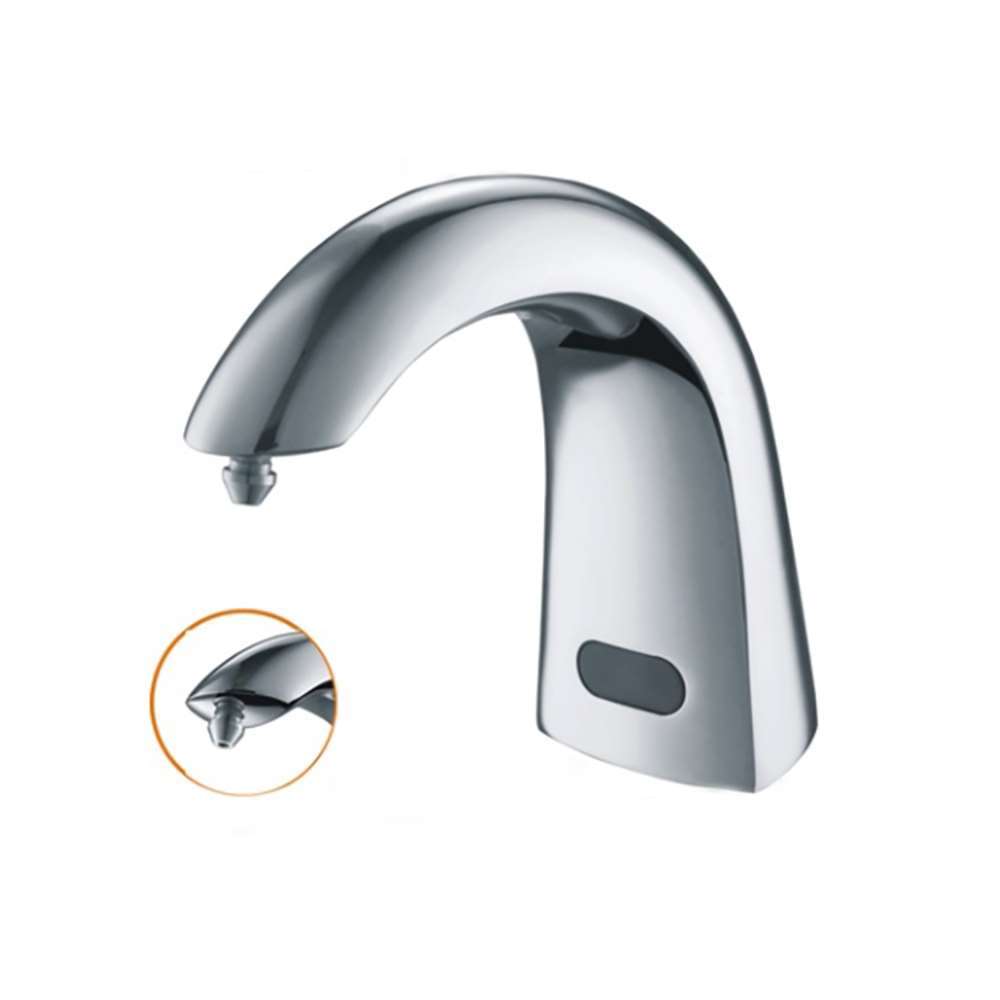

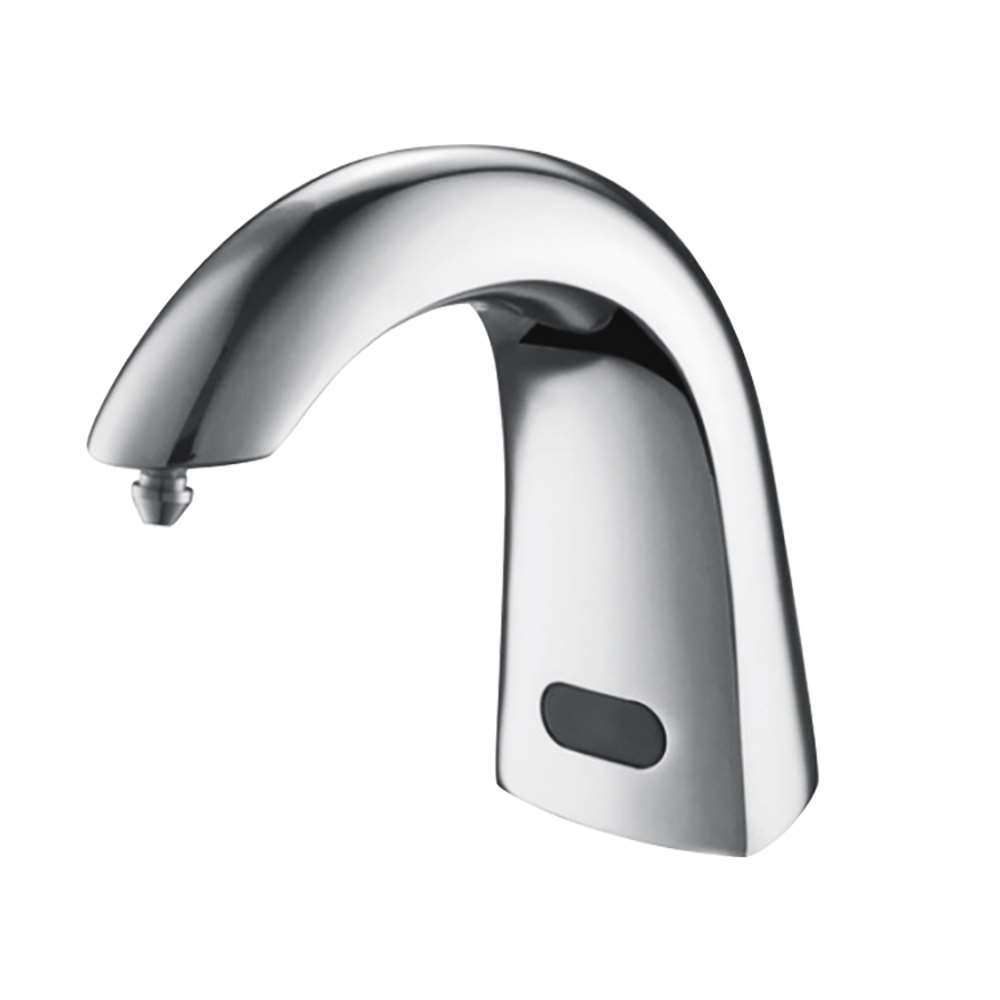

Automatic Sensor Faucet And Soap Dispenser
Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Temperature Control Sensor Faucet Special Features:

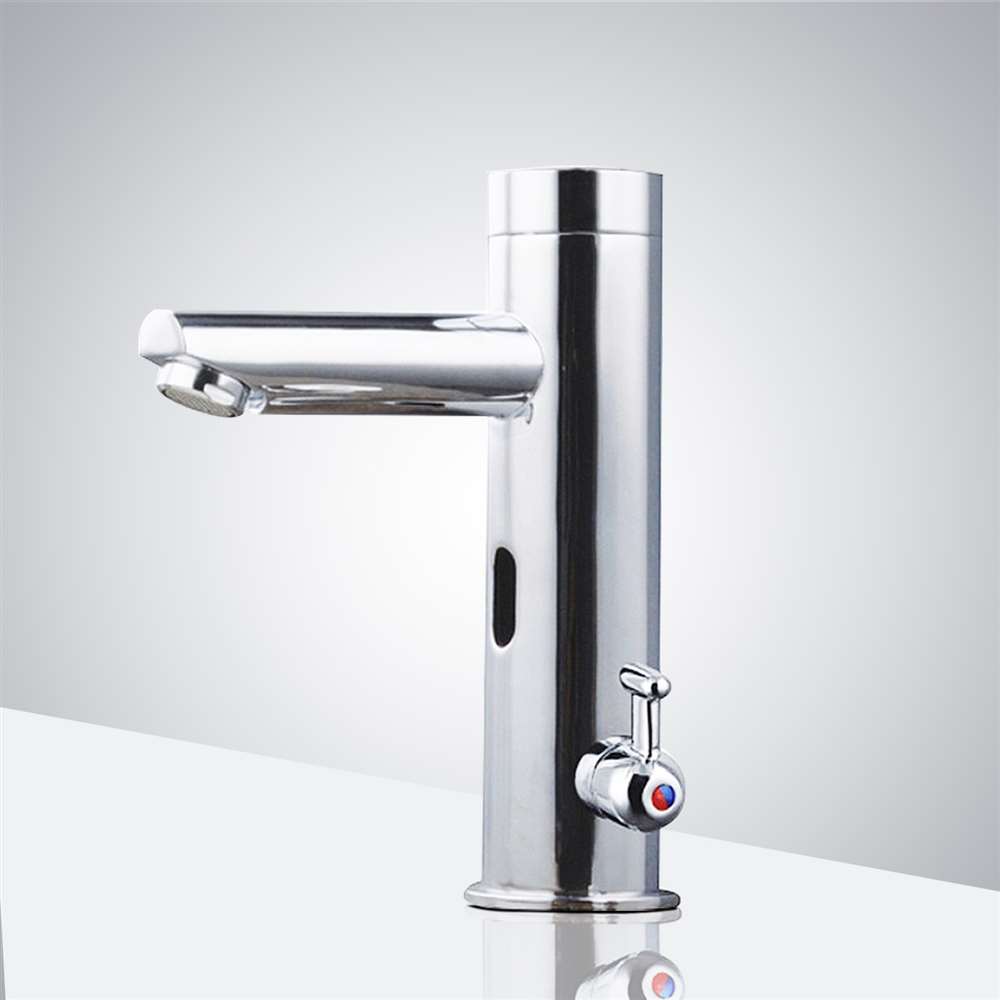

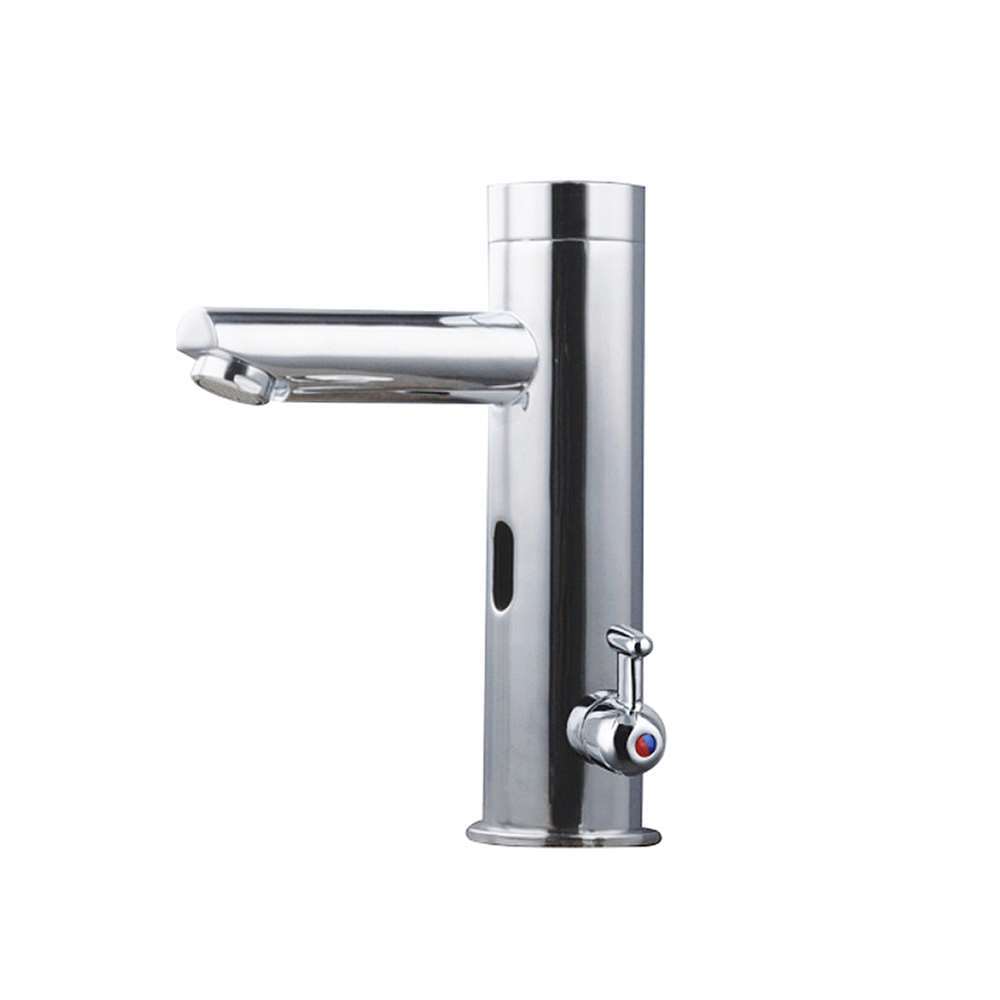

Sensor Faucet Specification:

Overall Height 7" (measured from counter top to the highest part of the faucet)
Spout Height 3-1/2" (measured from counter top to the spout outlet)
Spout Reach 4" (measured from the center of the faucet base to the center of spout outlet)
Mounting Type Single hole
Number of Holes Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes) Single Hole
Flow Rate 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness 1-5/8"
Infrared sensor operation with temperature control.

Sensor Faucet Special specification

  • The infrared sensor technology: Sensor-operated taps increase hygiene in public and patient restrooms. Surprisingly, the dirtiest area in the bathroom, as far as germs are concerned, are the handles to the tap that collect most of the germs on them.
  • The thermostatic technology: Controlling the temperature fluctuations at the outlet prevents scalding. Mixing the water at the desirable temperature at the point of use allows to store the water enough cold and hot to prevent scalding.
  • Installation is a child's game, almost like a manual faucet
  • Easy servicing
  • Version with mixer to adjust the temperature.
  • The Chrome finish will not fade, tarnish or corrode for the lifetime of the faucet.
  • 6V battery or electrical connection version available
  • Solenoid valve inside the product
  • Operates with low and high pressures (0.5 to 7Bar)
  • Range adjustment
  • Two products in 1: the thermostatic mixing valve and operates by an infrared sensor

FontanaShowers® Product Warranty Information FontanaShowers Product Warranty
  • Durable Vandal-Resistant Brass Body; Ideal for Residential as well as commercial high use applications
  • Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
  • Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
  • Meaning of the codes are described in the installation instructions.
  • Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
  • Faucet can be mount to any sink surface.
  • ADA Compliant
  • Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
  • Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
  • Diameter of inlet pipe DN15
  • Diameter of outlet pipeDN15
  • Water Flow Rate: 1.3 GPM (gallons-per-minute)
  • Power DC.6V
  • Detection Zone Factory set 25cm/10" (based on standard inductive board)
  • Ambient Temperature 1 - 45 ℃ / 33.8 -113 °
  • Degree of protection by enclosure 1P56
  • Usage: Commercial restrooms including high traffic bathroom facilities

Average Rating: Average Rating: 4.5 of 5 4.5 of 5 Total Reviews: 3 Write a review »

  1 of 1 people found the following review helpful:

5 of 5 Dual Sensor April 6, 2026
Reviewer: Evan Ross from Austin, TX
The Installation of this combined faucet and dispenser unit showed strong system integration. Sensor accuracy remains consistent for both functions, ensuring efficient hygiene control while minimizing water waste in high-traffic commercial restroom environments.

Was this review helpful to you?

  0 of 0 people found the following review helpful:

4 of 5 Dual Sensor Interference Pattern February 6, 2026
Reviewer: Ximena Reed, Facility Coordinator from San Jose, CA
While triggering the faucet and soap dispensing systems simultaneously under repeated activation testing, we observed sensor overlap introducing a sequencing delay near approximately 0.2 seconds. After recalibration procedures were completed, synchronization stabilized successfully across both systems. Overall activation timing and operational consistency remained dependable during prolonged commercial-style testing conditions and continuous usage cycles.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

4 of 5 Deck Mount Sensor Excellence February 25, 2025
Reviewer: Alicia Monroe from Boston, MA
This faucet replaced an older unit that struggled with temperature consistency. We installed it several months ago and reached out to support beforehand to confirm compatibility with our countertop thickness. The response was clear and helpful. Since then, temperature blending has been smooth and predictable. Water flow feels controlled without excessive splash, and performance has remained steady with daily use.

Was this review helpful to you?
