Bathroom Sink Wall Mount — Commercial & Institutional Technical Specification

ADA-Compliant Lavatory Design

Wall-mounted lavatories and faucets are coordinated to meet 2010 ADA Standards and Access Board guidance for rim height, clear floor space, and knee/toe clearance. Pipe protection and control force limitations support inclusive, accessible restrooms across commercial and institutional projects.

WaterSense & CALGreen Efficiency

Fontana wall-mount lavatory faucets are specified at 1.5 gpm for WaterSense applications and 0.5 gpm in CALGreen jurisdictions, supporting aggressive water-use and hot-water energy targets while maintaining usability and minimizing splash at low flow rates.

ASME / CSA Compliance

Lavatory faucets are selected to comply with ASME A112.18.1/CSA B125.1 for durability, flow performance, and corrosion resistance, with compatible waste fittings per ASME A112.18.2/CSA B125.2 to complete the wall-mount assembly.

Structural Carriers & Support

Wall-mount lavatories use carriers rated for commercial loads (typically 250–300 lb or greater), anchored to studs, slab, or CMU. Adjustments for finish depth maintain ADA geometry after tile or panel installation for consistent performance across floors.

Service-First Sensor Layouts

Sensor faucets integrate control boxes, power units, strainers, and filters in accessible chase spaces or panels to support non-destructive maintenance. Purge cycles and timeouts help limit stagnation in healthcare and high-risk environments.

System Cohesion

Wall-mount lavatories coordinate with other Fontana washroom fixtures for unified activation logic and finishes, supported by the Washroom Fixtures gateway and Touchless Thermostatic Faucet families.

Faucet Bodies & Trim

• Solid brass or stainless steel construction supports high-cycle commercial use.
• PVD and high-performance finishes provide chemical and abrasion resistance under aggressive cleaning protocols.

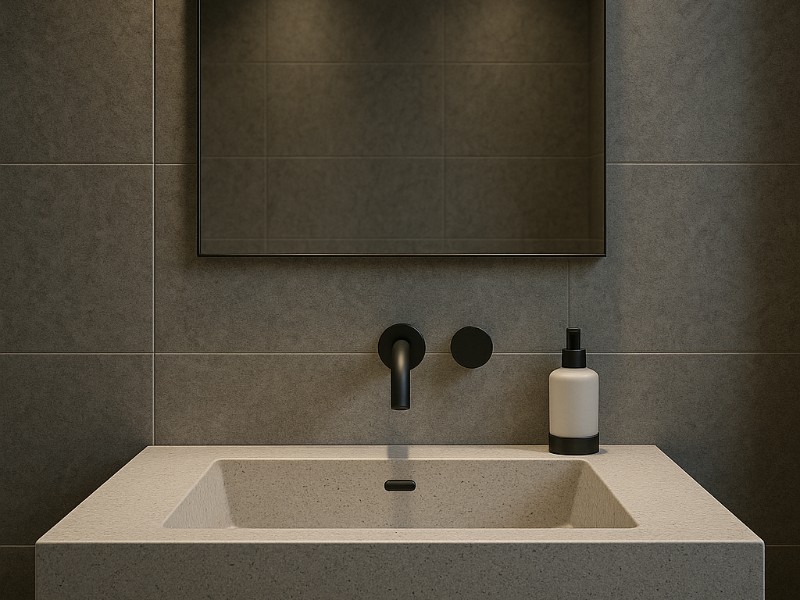

• Coordinated finishes (stainless, matte black, brushed gold, and others) align with adjacent FF&E and lavatory design; see wall-mounted faucet examples.

Carriers, Waste & Pipe Protection

• Commercial carriers handle eccentric loading from wall-mount basins and users, maintaining alignment over time.
• Corrosion-resistant supply and waste piping with ASME-compliant fittings is paired with ADA-compliant pipe protection or concealed assemblies.
• ASSE 1070 thermostatic mixing valves at lavatory banks limit outlet temperatures for occupant safety and low-flow operation.

Airports & Transit

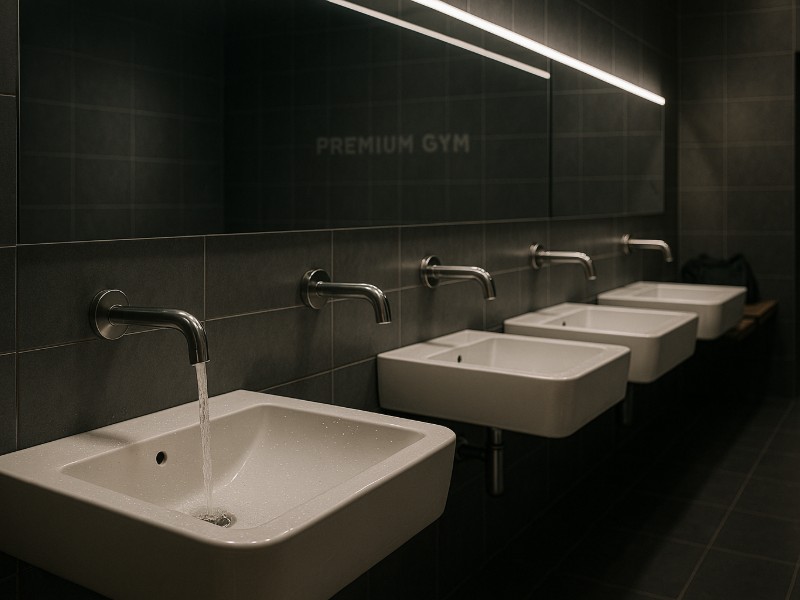

Wall-mounted lavatories with sensor faucets free floor space for cleaning and survive high duty cycles. Low-flow WaterSense or CALGreen rates support terminal-wide water budgeting when combined with other high-efficiency fixtures.

Healthcare

Touchless wall-mount faucets with purge features support infection-control strategies. Chase-wall installations keep controls, mixing valves, and strainers accessible from non-patient zones.

Retail & Mixed-Use

Wall-mounted basins reduce clutter and provide a clean visual line in public-facing restrooms, while robust carriers and concealed wastes protect assets in high-traffic areas.

Education & Civic

Standardized wall-mount lav specifications simplify maintenance across campuses and civic portfolios, while durable finishes and accessible components support long service life.

Hospitality

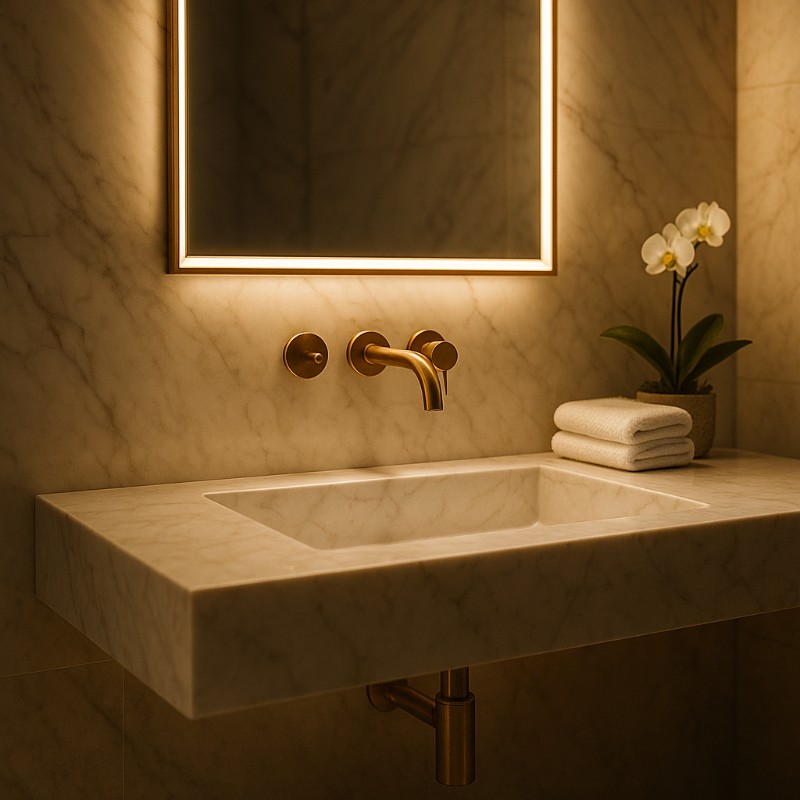

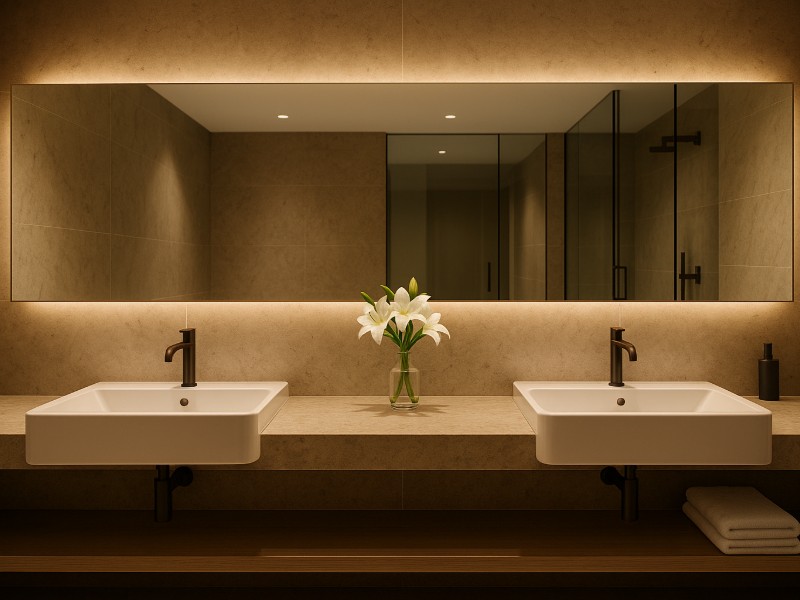

Wall-mounted lavatory assemblies support elevated guest experiences with refined finishes and coordinated faucets, while maintaining cleaning efficiency for housekeeping teams.

Corporate Campuses

Consistent wall-mount lavatory and faucet specifications streamline facility management and align with corporate sustainability mandates through WaterSense and CALGreen flow targets.

Engineering Depth

From structural carrier coordination to ASME-compliant fittings and sensor-valve design, Fontana wall-mount lavatory systems are engineered as complete assemblies rather than isolated parts, streamlining both installation and operation.

High-Use Validation

Design intent targets airports, healthcare, arenas, and campuses with heavy duty cycles. Commercial-grade materials, finishes, and electronics support long-term performance across high-traffic restrooms.

Codes & Standards Support

Fontana project teams can assist with aligning wall-mount lavatory packages to ADA, WaterSense, CALGreen, and ASME/CSA plumbing standards, helping specifiers document compliance clearly in Division 22.

System Thinking

Lavatories, faucets, and ancillary fixtures are coordinated across the Fontana ecosystem, tying wall-mount faucets into broader restroom strategies via the Washroom Fixtures gateway.

Specifier Toolkit

Product data, rough-in drawings, BIM families, and O&M manuals support a clean specification framework for Section 22 42 00 (Plumbing Fixtures) with clear flow-rate, ADA, and material requirements for wall-mount lavatories.

Lifecycle Value

Robust carriers, corrosion-resistant finishes, and accessible service components help lower total cost of ownership for owners, while supporting sustainability and performance modeling at the whole-building scale.

Included

• Cut sheets (PDF) and rough-in guides for wall-mount lavatories and faucets
• Editable submittal forms for Section 22 42 00 – Plumbing Fixtures
• BIM / CAD families for wall-mounted lavatories, carriers, and faucets
• ADA, WaterSense, CALGreen, and ASSE 1070 coordination notes
• Recommended spare parts and O&M documentation for facility teams

Project Notes

Ask about sensor module selection, ADA rim and carrier heights, and CALGreen/WaterSense flow targets for your jurisdiction. Fontana can support Division 22 specification language, BMS integration discussions, and coordinated lavatory and faucet packages within the broader washroom fixture ecosystem.
