How should the FS-134-BG rainfall shower system be rough-installed to maintain proper hydraulic balance between the rainfall and waterfall outlets?

Install the concealed valve body on rigid wall framing before waterproofing and verify that all outlet ports are connected according to the designated flow path. Confirm the piping layout provides balanced pressure to both the rainfall and waterfall functions while maintaining proper valve orientation before the finished wall is completed.

What commissioning procedure should be completed before operating the 22-inch rainfall shower head for the first time?

Flush both hot and cold supply lines independently to remove solder residue, pipe scale, thread sealant, and construction debris before connecting the shower outlets. Operate each shower function separately to confirm unrestricted flow, stable pressure distribution, and smooth ceramic valve performance throughout the complete operating range.

How can installers verify equal water distribution across the oversized rainfall shower head?

Operate only the rainfall function while observing spray uniformity across the full shower face. Uniform nozzle discharge without dry sections, pressure concentration, or uneven spray patterns confirms balanced internal water distribution and proper hydraulic supply to the large-format shower head.

How should the ceramic valve cartridge be evaluated during acceptance testing?

Cycle the mixer repeatedly through its complete operating range while monitoring handle torque, temperature transition, flow modulation, and shutoff precision. Proper ceramic valve performance is confirmed when movement remains smooth, repeatable, and free from sticking, chatter, excessive resistance, or residual water discharge after closure.

Why should the rainfall and waterfall functions be tested independently before final project handover?

Operating each outlet separately verifies complete diverter isolation, confirms there is no unintended cross-flow between functions, and ensures each outlet maintains its designed discharge characteristics. This commissioning step also identifies installation errors before concealed wall finishes limit service access.

How should concealed supply connections be pressure-tested before closing the wall assembly?

Complete a hydrostatic pressure test on all concealed hot, cold, and mixed-water connections before waterproofing is finalized, followed by a dynamic flow test through every shower function. Inspect the brass valve body, threaded joints, outlet ports, and concealed fittings for leakage, pressure decay, or mechanical movement.

What maintenance practices help preserve the Brushed Gold finish and maintain long-term shower performance?

Clean exposed Brushed Gold components with a soft microfiber cloth and a pH-neutral cleaner while avoiding abrasive pads, acidic descalers, bleach, or ammonia-based chemicals. Periodically remove mineral deposits from the rainfall nozzles and inspect the ceramic valve assembly to maintain uniform spray distribution and reliable flow control.

Which commissioning inspections confirm the FS-134-BG shower system is ready for long-term residential or hospitality operation?

Final acceptance should verify secure concealed valve installation, leak-free supply connections, smooth ceramic valve operation, proper rainfall and waterfall function selection, balanced hydraulic performance, uniform spray coverage across the 22-inch shower head, accurate trim alignment, and consistent Brushed Gold finish quality during extended operational testing.

Free Shipping

We Ship Internationally!

Bravat's Brushed Gold Rainfall Shower Set With Multiple Functions

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-134-BG

Request Quote

Description

Technical Specs

Extended Information

Brushed Nickel

Gold

Chrome

Rose Gold

Oil Rubbed Bronze

Champagne

Matte White

Matte Black

Gun Metal Gray

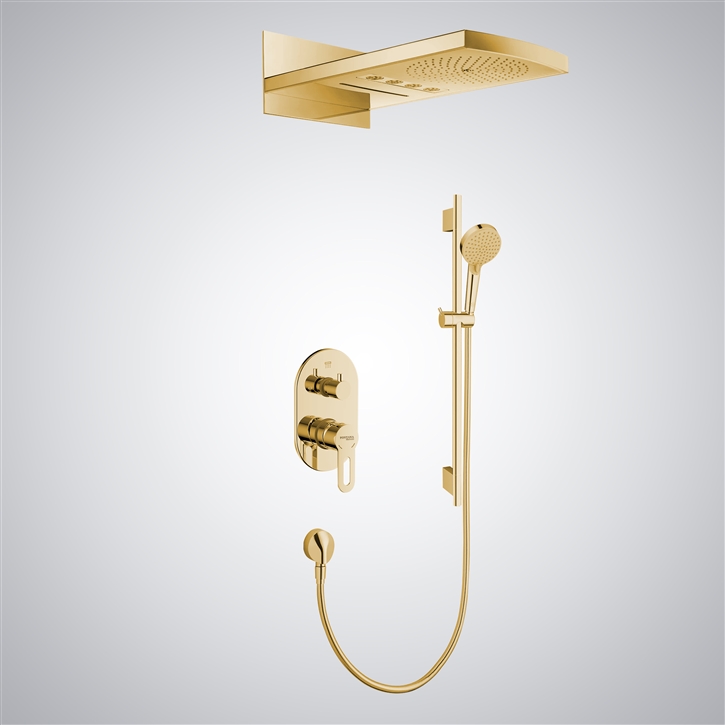

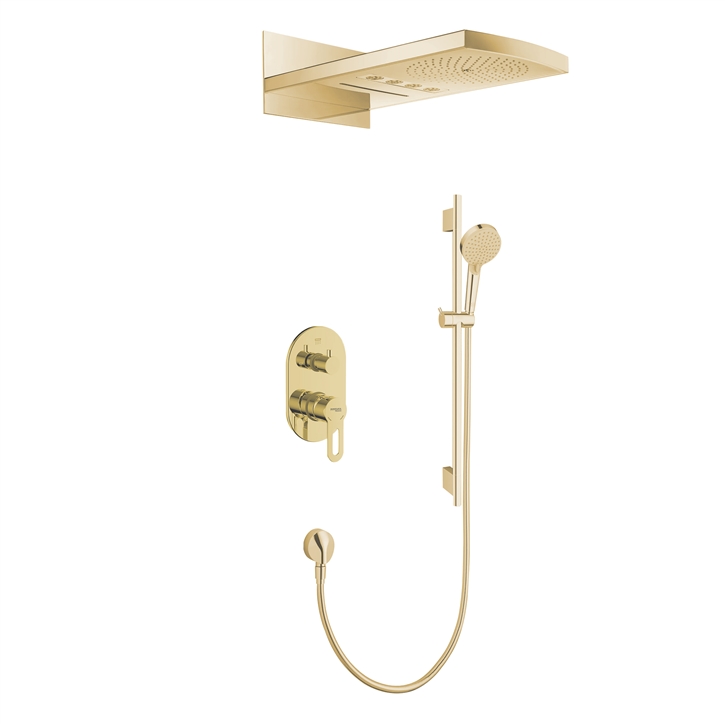

Bravat's Brushed Gold Rainfall Shower Set With Multiple Functions

The Bravat Brushed Gold Rainfall Shower Set combines top-notch architectural design with premium materials and versatile functionality, making it an opulent and contemporary addition to any bathroom. Featuring a chic Brushed Gold finish, clean geometric lines, and balanced design elements, this shower set epitomizes simple yet refined elegance. Constructed from durable stainless steel and high-grade ABS, it guarantees durability and consistent performance over time. Its array of functions, such as a rainfall showerhead and handheld showerhead, allows for a personalized shower experience, while adjustable controls offer flexibility in water flow and temperature. Simple installation and user-friendly operation add to its attractiveness, presenting it as a practical and stylish choice for elevating your daily shower routine to a lavish experience.

Bravat's Brushed Gold Rainfall Shower Set With Multiple Functions Features:

Brand Name: FontanaShowers®
Model Number: FS-134-BG
Type: Bathroom Shower Set
Cold/Hot Water Control Type: Dual Holder Dual Control
Valve Core Material: Ceramic
Type: Fixed Support Type
Surface Finish: Brushed Gold
Style: Contemporary
Installation Type: Wall Mount
Bathroom Faucets Sink: Temperature Sensor 3 Color Water
Shower Head Function: Rainfall and Waterfall
Shower Head Size: 22"
