Commercial Automatic Sensor Faucet Hot & Cold Water Temperature Mixer Mixing Valve in Chrome
Commercial Automatic Sensor Faucet Hot & Cold Water Temperature Mixer Mixing Valve in Chrome

Alternative Views:
Retail Price: $80.94
Sale Price: $72.85
Savings: $8.09

Sale Price: $72.85



Free Shipping
Availability: Usually Ships in 3 to 5 Business Days
Product Code: FS6118MV


Mixer Water Outlet:

Qty:
Description Technical Specs

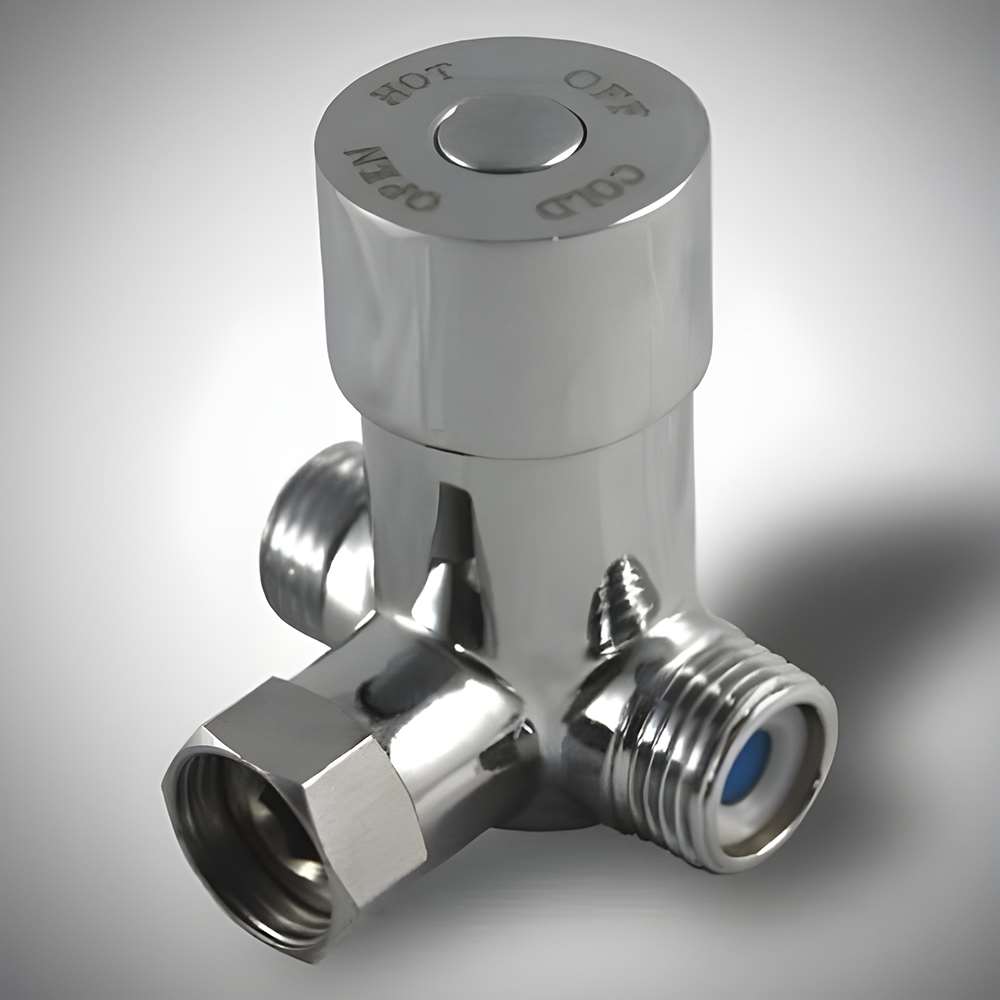

Commercial Automatic Sensor Faucet Hot & Cold Water Temperature Mixer Mixing Valve in Chrome

With Fontana Temperature Mixing Valve, you can connect both of the water hose into the valve for temperature control. Simply switch the knob to Cold, Open, Hot or Off for the perfect temperature. (Note: The valve does not set the exact temperature of the output. The temperature will be depended on the hot & cold water input and the setting of control.

Commercial Automatic Sensor Faucet Hot & Cold Water Temperature Mixer Mixing Valve in Chrome Features:

- Condition: Brand new
- Enjoy hot & cold water for touchless faucet
- Connections: 1/2" FIP/IPS thread fittings
- 2x Inlet: RED-hot, BLUE-cold and Outlet
- Easy to adjust knob: Cold, Open, Hot or Off
- Solid brass construction
- Very easy to install
- Perfect for home & commercial use
- U.S. standard size
Usage: Commercial / Residential

Package Includes:
- Temperature Mixing Valve
- Installation Illustration
- Rubber Gasket
- Mounting Hardware are not included (supply lines)
Usage: Commercial / Residential
Specification:
- Control: Cold, Open, Hot or Off
- Inlet: RED: hot - ½"
- BLUE: cold - ½"
- Outlet: Composition ½"
- Dimension: set size: 2 3/4" X 2 1/4"
- Construction: Solid Brass Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.
Similar Thermostatic Shower Mixer Vales
Shower Mixers valve are available in many functions including the thermostatic shower mixer valve and the digital shower mixer. You can browse our main list of these mixers and enjoy big savings on most of these shower valves. We carry the 2 way till the 6 way mixers, all mixers comes with built in thermostatic valve which is an anti scalding and these mixers come as well as pressure balance valve. These shower mixer valve are made of solid brass so they are made to last lifetime.




Features


PRODUCT FAQ

Infrared Detection Accuracy, Thermal Mixing Stability & Commercial Water Efficiency

This commercial automatic faucet integrates infrared activation precision, hot-and-cold temperature regulation, and optimized water conservation technology for high-traffic restroom environments.

How does the infrared sensor maintain reliable activation in busy commercial restrooms?
The calibrated detection module filters unintended movement interference to improve response accuracy during continuous public use.
How is stable outlet temperature maintained during fluctuating supply pressure?
The integrated mixing chamber continuously balances hot and cold intake ratios to stabilize discharge temperature.
What mechanism minimizes unnecessary water consumption after hand removal?
The automatic shutoff solenoid valve immediately terminates flow once the sensing field is cleared.
How are the electronic components protected from long-term moisture exposure?
The sealed control housing isolates the sensor circuitry from humidity, condensation, and splash infiltration.
