Faucets For Touchless Commercial Bathroom
Commercial Touchless Bathroom Faucet with Infrared Sensor – FontanaShowers FB517DP
Bathroom Sensor Faucet

Alternative Views:
Retail Price: $687.69
Sale Price: $602.46
Savings: $85.23

Sale Price: $602.46





Availability: Usually Ships in 3 to 5 Business Days
Product Code: BATHROOM-SENSOR-FAUCET-FB517DP


Hot & Cold Option:

Qty:
Description Technical Specs Extended Information


Faucets For Touchless Commercial Bathroom

As practicing good hygiene routines in public restrooms using non-touch technology such as smart faucets helps reduce the spread of germs. This contemporary, Automatic Touchless Sensor Faucet comes with a self-setting detection range, is low maintenance, and has an easy access screen to protect working components from debris and natural waterborne elements. Available also in polished chrome, oil rubbed bronze, or gold finish, to compliment any bathroom sink. Cold only or hot & cold mixer option available. Easy to Install - Instructions Included Water resistant solenoid enclosure Advanced energy saving design for long-lasting battery life Comes complete with Hoses & Accessories. Fontana commercial restroom faucets and soap dispensers are tested for durability, they can withstand high traffic repetitive use and will hold up well against wear and tear even with thousands of daily uses.

Faucets For Touchless Commercial Bathroom Features:

  • Brand Name: FontanaShowers®
  • Model Number: BATHROOM-SENSOR-FAUCET-FB517DP
  • Type: Touchless Bathroom Faucet
  • Water Pressure: 0.5-7.0 KGS/cm, 10-125 psi
  • Finish: Brushed Nickel
  • Construction: Solid Brass

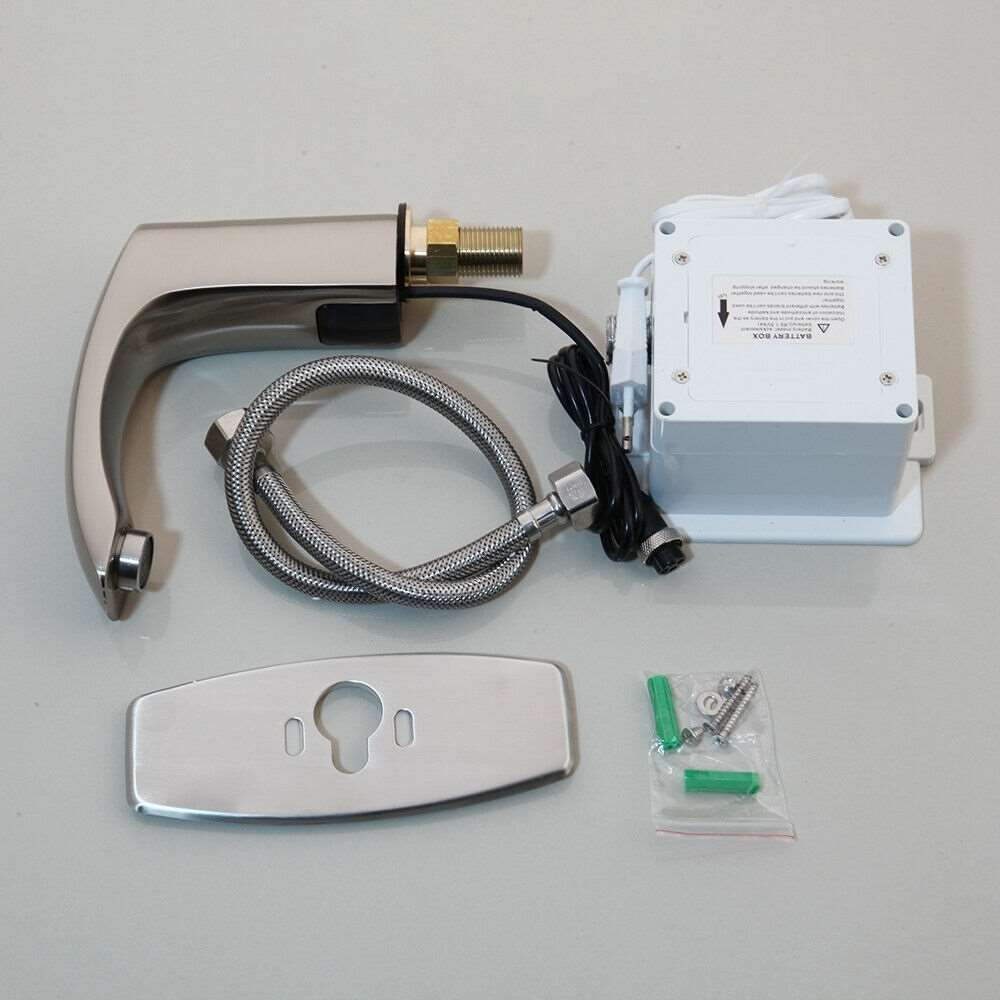

  • Control Box: Included- Hardwired & Battery Operated
  • Supply Hoses: Included
  • Other Features: Vandal resistant
  • Remote Control: Optional- Reset or Adjust the Sensing Distance or turn off/on
  • Flow Rate: Built-in Aerator Available from .5 GPM - 1.5 GPM
  • Flow Rate Special: Customizable can be provided for any Water Flow Requirement
  • Sensor Range: Adjustable
  • Mounting Hardware: Included
  • Power Supply: AC110V And DC6V
  • Batteries Included: No
  • Mixing Valve: Water Temperature Mixing Valve Available
  • Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
  • Mixing Valve: Water Temperature Mixing Valve Available
  • Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
  • Mixing Valve Material: Solid Brass Thermostatic Mixing Valve Available
  • Mounting Type: Deck Mount
  • Usage: Commercial
  • Body Material: Brass
  • Valve Body: Brass
  • Total Height: 4.7"
  • Spout Height: 3.5"
  • Spout Length: 6.6"
  • Valve Type: Ceramic Valve
  • Number of Holes Required for Installation: 1 Hole
  • Flow Rate: 1.3 GPM
  • Touchless restrooms operation is ideal for commercial use applications in restaurants, office buildings, and public facilities. Fits all standard US plumbing.

Features


Faucets For Touchless Commercial Bathroom FAQ

Infrared Sensing Algorithms, Solenoid Valve Timing & High-Cycle Durability

This commercial touchless faucet must detect motion accurately, control valve timing, and sustain high-frequency operation cycles.

How does infrared sensing detect user presence?
Sensors emit IR signals and measure reflection intensity to detect objects within range.
What controls water activation timing?
A solenoid valve opens and closes based on sensor input processed by a control unit.
How is durability ensured in commercial settings?
Components are rated for hundreds of thousands of cycles, minimizing wear from repeated use.
How is water efficiency achieved?
Timed shut-off prevents unnecessary flow, reducing consumption in high-traffic environments.

Average Rating: Average Rating: 4 of 5 4 of 5 Total Reviews: 5 Write a review »

  5 of 6 people found the following review helpful:

5 of 5 Sensor Performance A+ August 6, 2026
Reviewer: Norman, W from Worcester, CA
Installed in a high-traffic commercial restroom about 9 months ago, the Fontana touchless faucet has performed reliably under continuous daily use I must give it a thumbs up our use is high compared to restroom industry standards. Sensor response is fast and consistent, with accurate hand detection and minimal false triggering. The adjustable detection range helped us calibrate activation to the basin depth and reduce unnecessary cycles. The AC 110V / DC 6V power configuration, automatic shutoff, water-resistant solenoid enclosure, and the 10–125 PSI operating range are strong features from a facility-maintenance perspective. Flow remains stable during pressure fluctuations, while interchangeable aerator options allow better control of GPM, splash, and water consumption.
The solid-brass construction feels substantially more durable than other lighter commercial fixtures we've serviced. Maintenance access to the sensor, power supply, and solenoid is straightforward.

Was this review helpful to you?

  1 of 1 people found the following review helpful:

4 of 5 Sensor Flow Control April 12, 2026
Reviewer: Sarah Davis, Facility Manager from Houston, TX, U.S.
In commercial sensor faucet setups, inconsistent activation often disrupted water efficiency goals. This model uses hybrid AC/DC sensing for precise triggering and controlled flow. It performs reliably under fluctuating pressure. Brass construction ensures durability beyond plated sensor faucets.

Was this review helpful to you?

  6 of 6 people found the following review helpful:

5 of 5 Suited for Commercial March 5, 2024
Reviewer: Tucker, E from Garland, TX
I have reviewed this Fontana touchless faucet from an MEP coordination standpoint. The PSI operating range provides useful tolerance for commercial plumbing conditions, while the power configuration gives the electrical team flexibility during installation. Sensor range can be adjusted during commissioning to suit basin geometry and minimize unintended activation. The automatic shutoff, water-resistant solenoid enclosure, configurable aerator options, and solid-brass construction are all practical specifications for high-cycle applications. What stands out is the serviceability. The sensor, power, and valve components can be coordinated without overcomplicating under-counter maintenance access. Overall, it is a technically sound option for busy office building. I highly appreciate the quality., fits perfectly for our office building restrooms.

Was this review helpful to you?

  2 of 2 people found the following review helpful:

4 of 5 Responsive Infrared Control April 24, 2023
Reviewer: Thomas Thomas from Atlanta, GA
I installed this touchless faucet in a high-use office setting and immediately noticed the rapid infrared response and consistent flow regulation. Compared to previous brands I purchased, activation delay is minimal and water pressure remains controlled. Delivery was timely, and Fontana’s customer service provided clear setup guidance, reinforcing long-term reliability and positive Google-rated performance standards.

Was this review helpful to you?

  3 of 3 people found the following review helpful:

3 of 5 Follow-Up Was Needed August 21, 2021
Reviewer: Chad, H from Tucson, AZ
The faucet itself met the project requirements, but the ordering and tracking process could have been smoother. Shipment tracking was not updated as quickly as expected, sand while we tried multiple times to reach the support team they were helpful once reached and provided the information we needed, although the response took some follow-up.
Packaging was adequate and all required components arrived intact. Technical questions regarding installation and power configuration were answered clearly, since installation was bit confusing. Overall, the product experience was good, but faster tracking updates and more proactive communication would make the procurement process better for contractors working against tight project schedules. I would give the product 5 stars but the support can do much better.

Was this review helpful to you?
