Fontana Bonifacio Brushed Gold Touchless Basin Faucet FAQ
7.20-Inch Spout Reach, Ceramic Cartridge;
Single-Hole Mount & Hot-Cold Supply Coordination

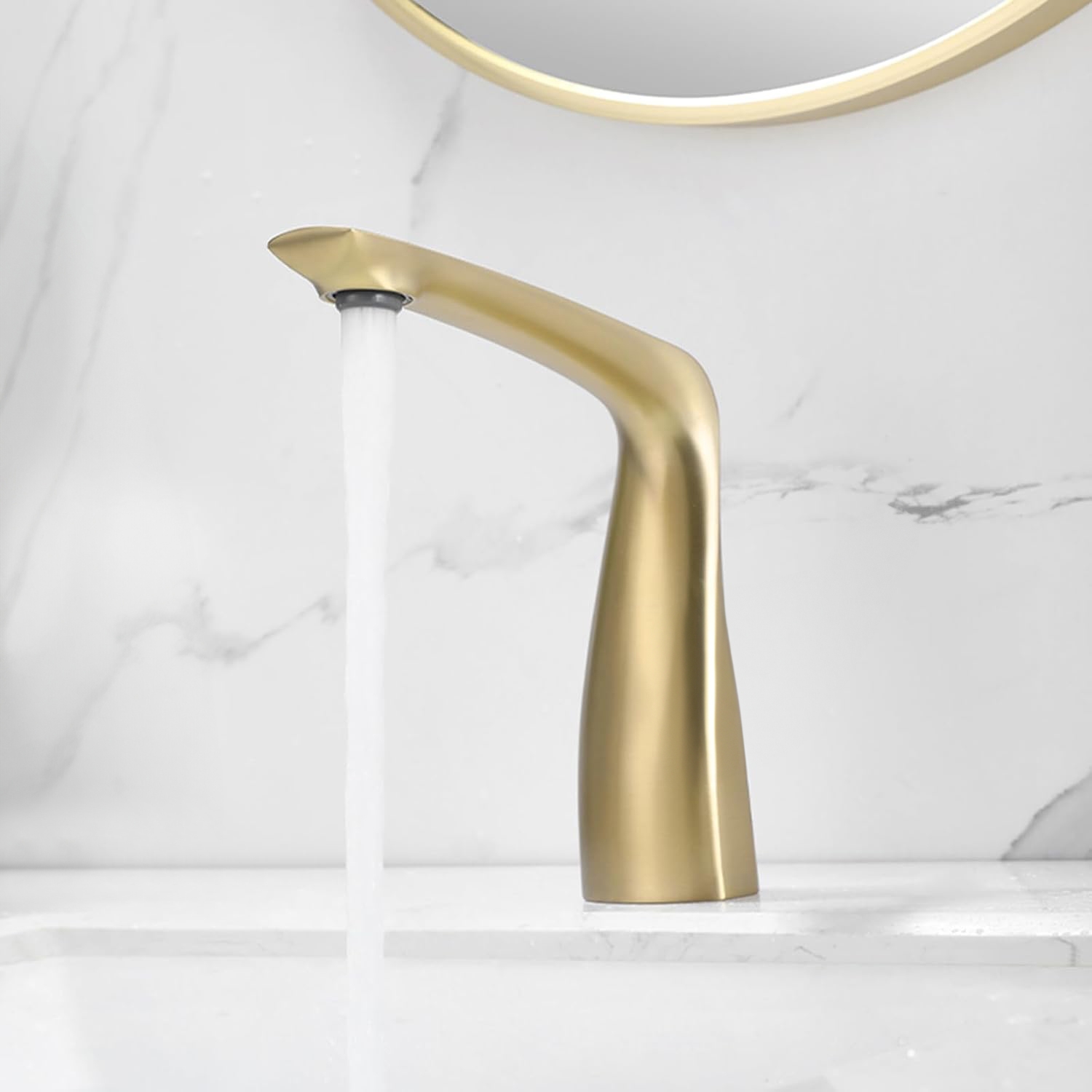

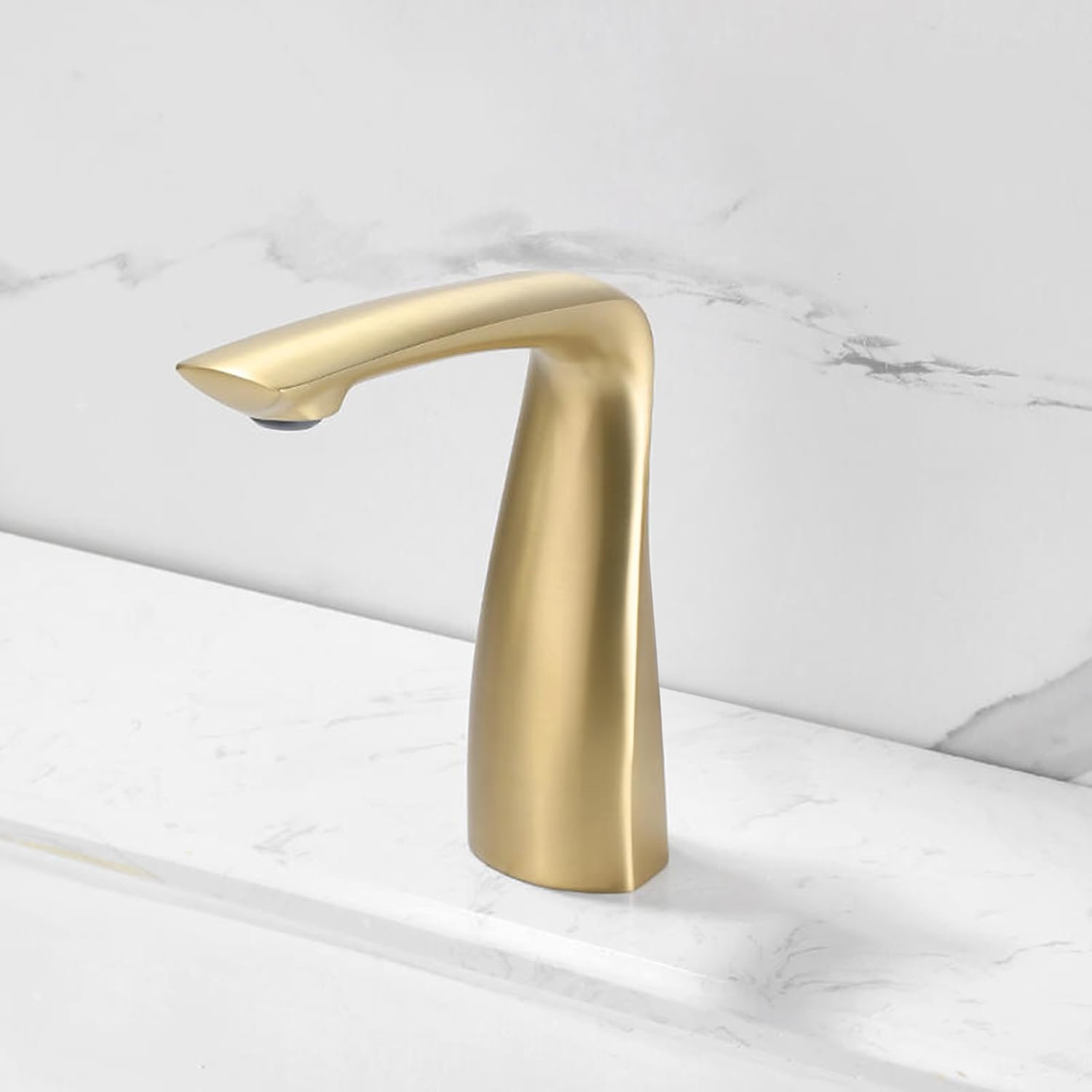

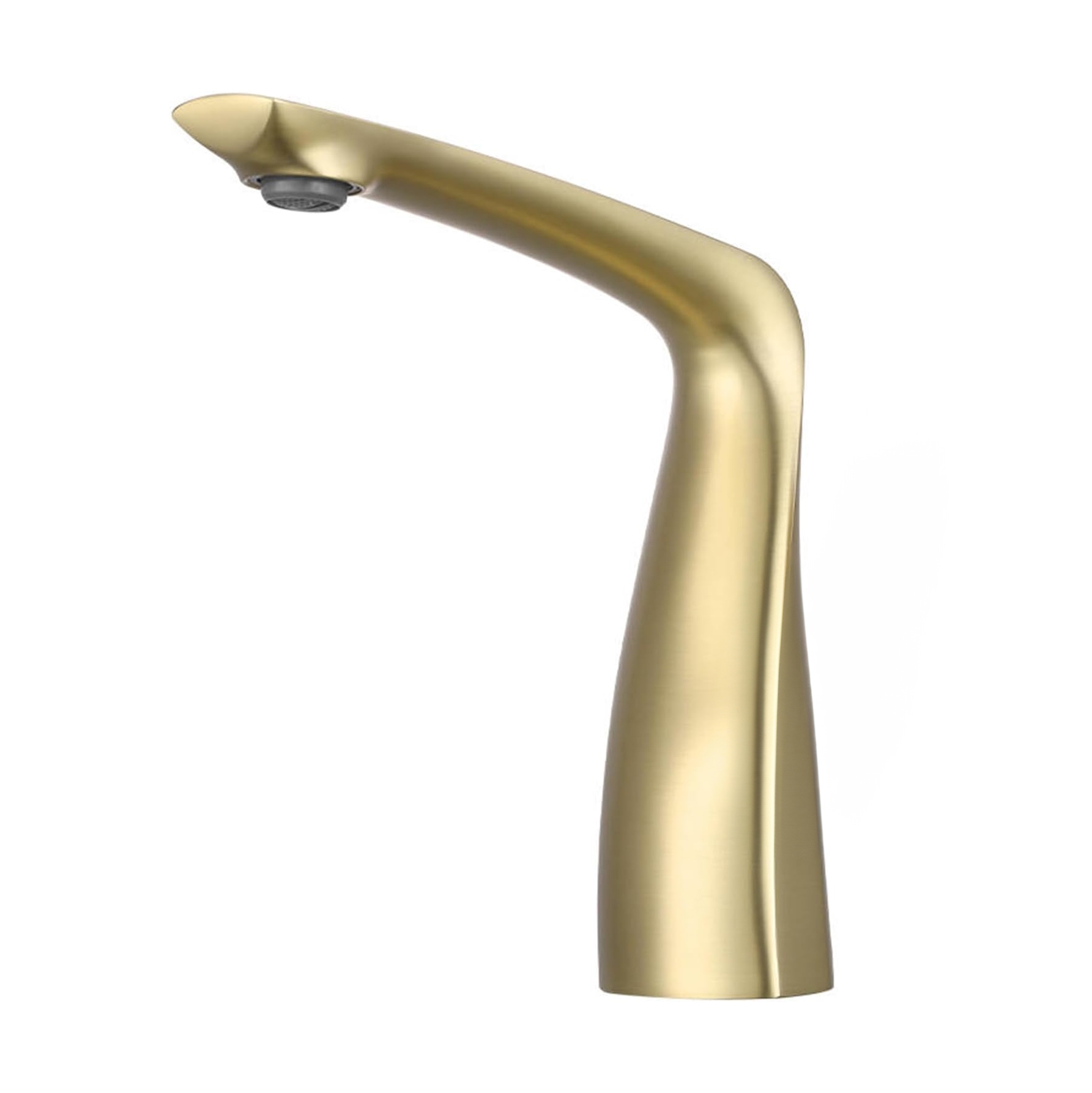

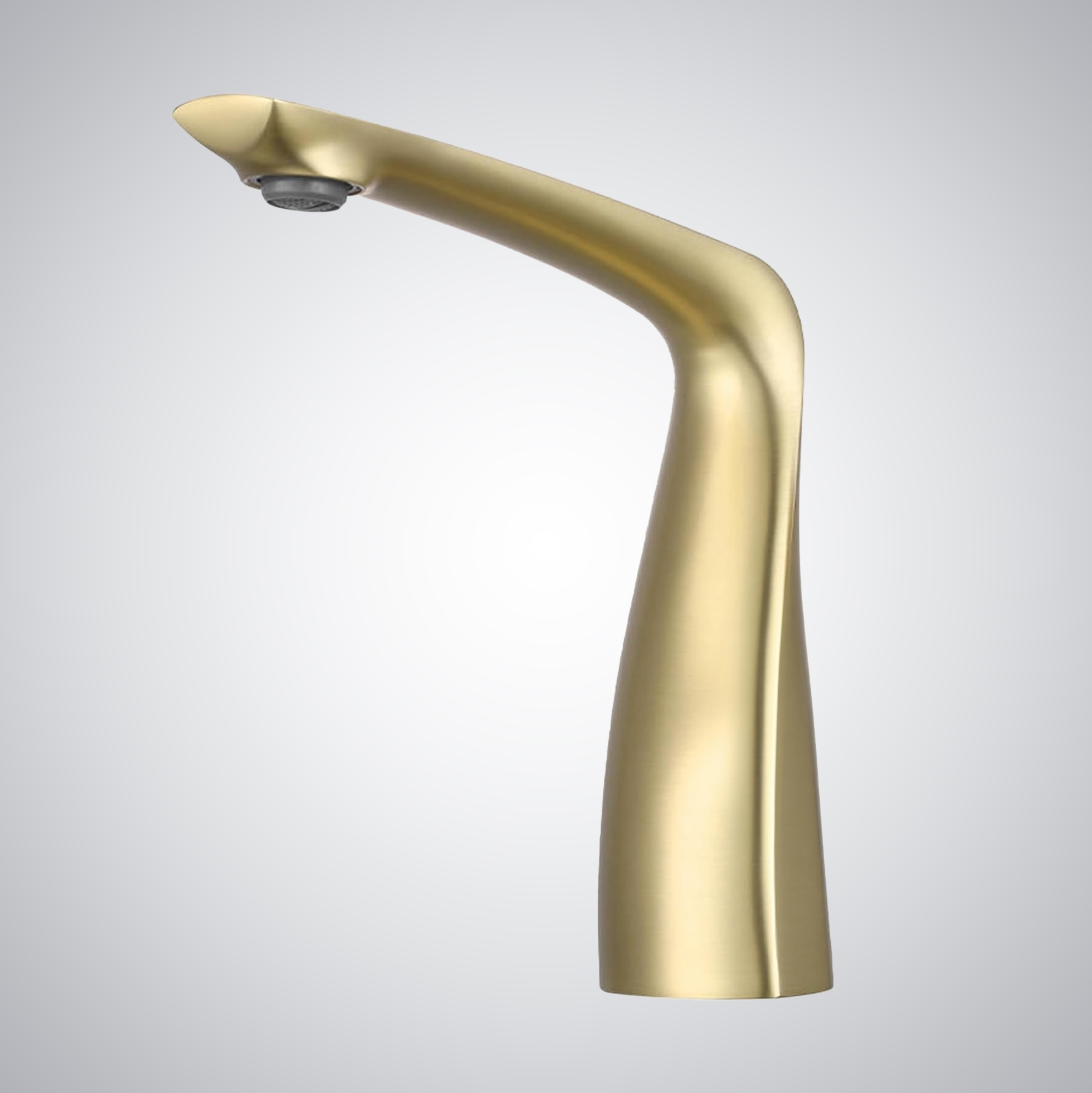

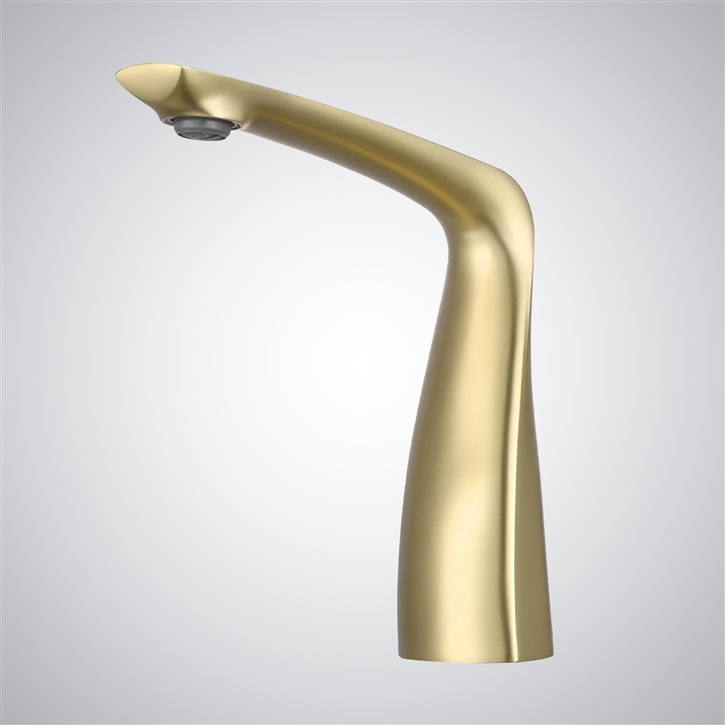

The Fontana Bonifacio FS75114BG combines touchless operation,
brass construction, ceramic valving, and a single-hole
deck-mounted configuration.

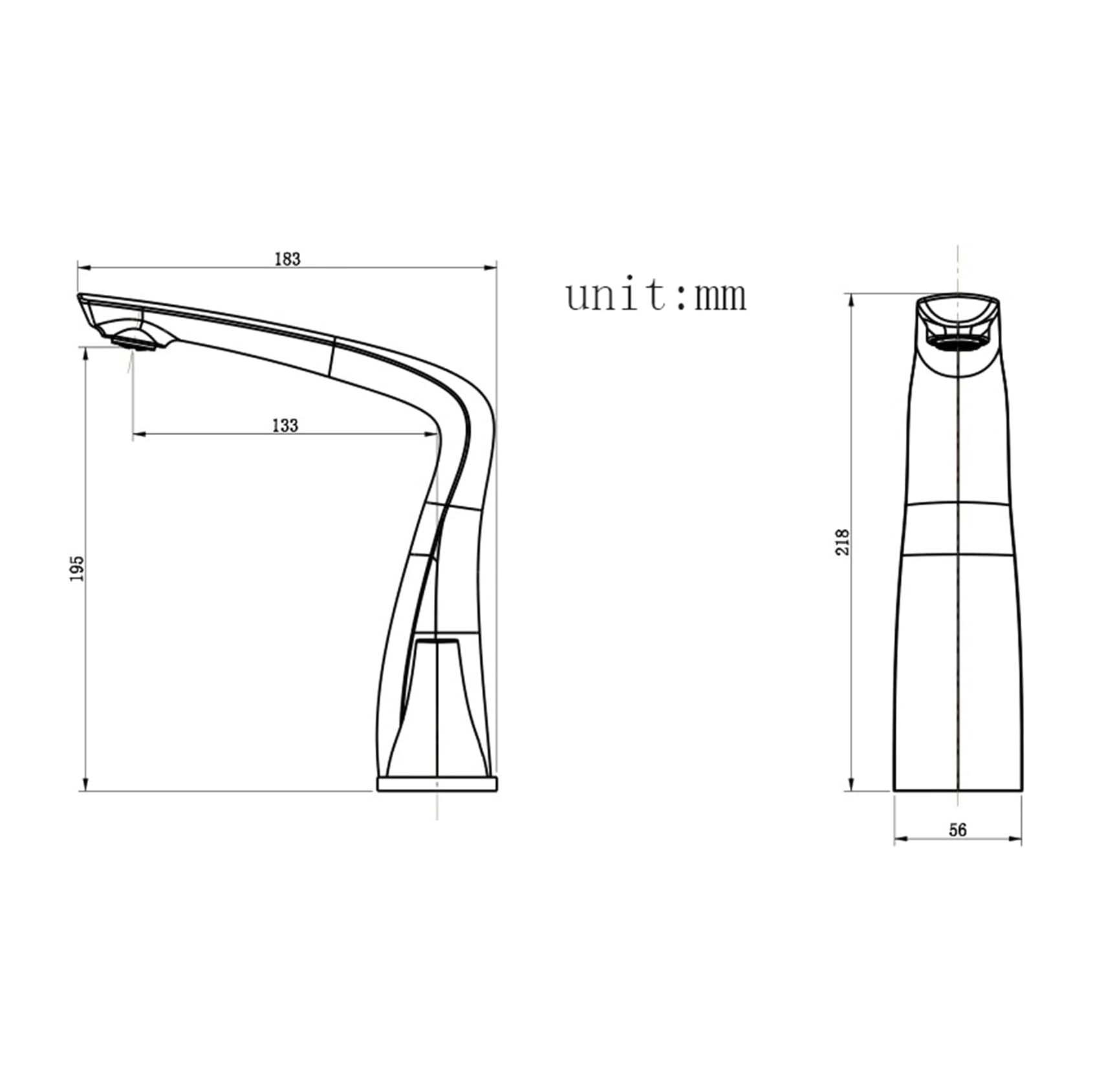

How should the 7.20-inch spout reach be coordinated with basin geometry?
Establish the mounting centerline relative to the basin before drilling
or tightening the faucet. The 7.20-inch reach should position the
discharge within the primary hand-washing zone rather than near the
bowl edge. Verify the stream location under operating pressure to
minimize backsplash and countertop wetting.
What clearance is required below the 7.68-inch outlet?
Evaluate the 7.68-inch spout height together with basin depth and rim
elevation. Adequate vertical clearance should support normal hand
movement without creating an excessive drop between the outlet and
water strike point. Final commissioning should include splash testing
at several hand positions within the basin.
How should the ceramic cartridge be protected during initial commissioning?
Flush the hot and cold supply lines before making the final faucet
connections. Construction debris, pipe scale, and sealant residue can
interfere with ceramic sealing surfaces and restrict internal passages.
After connection, complete repeated operating cycles and check for
smooth flow, positive closure, and leakage at concealed joints.
How should the electrical connection and single-hole mounting remain serviceable?
Coordinate the electrical connector, supply routing, mounting hardware,
and service space before securing the fixture. Components below the
deck should remain accessible for inspection rather than being enclosed
permanently. Verify mounting stability, electrical continuity, sensor
response, and hot-cold water operation before final project turnover.
