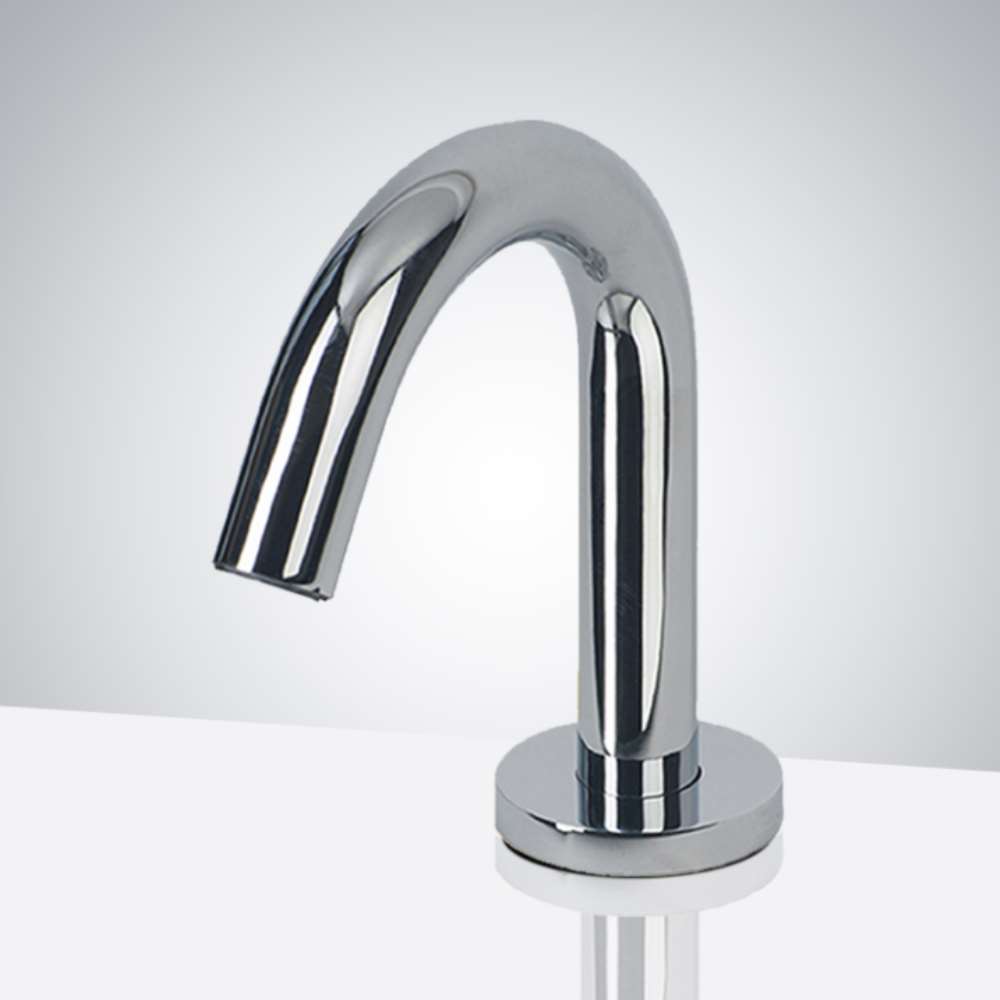

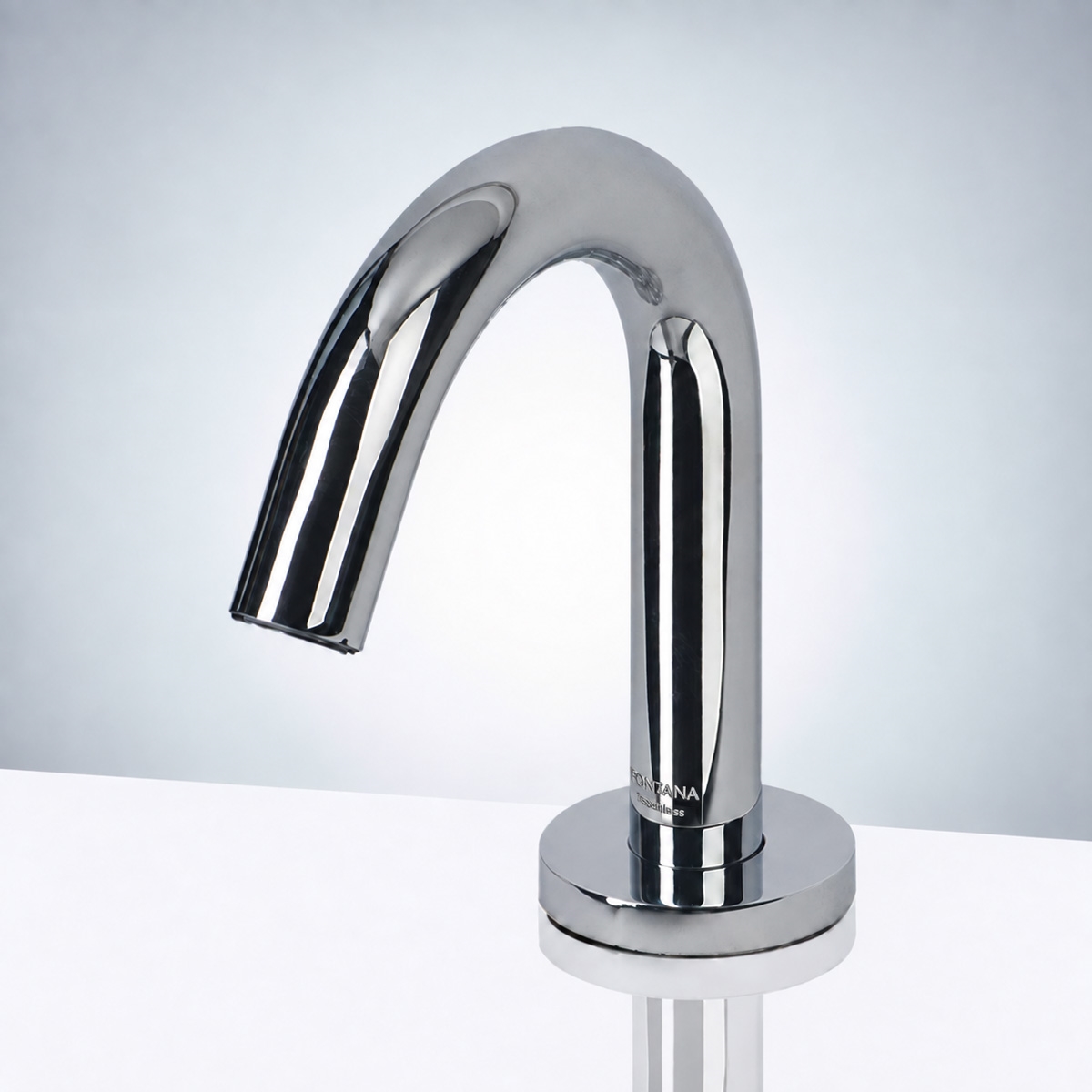

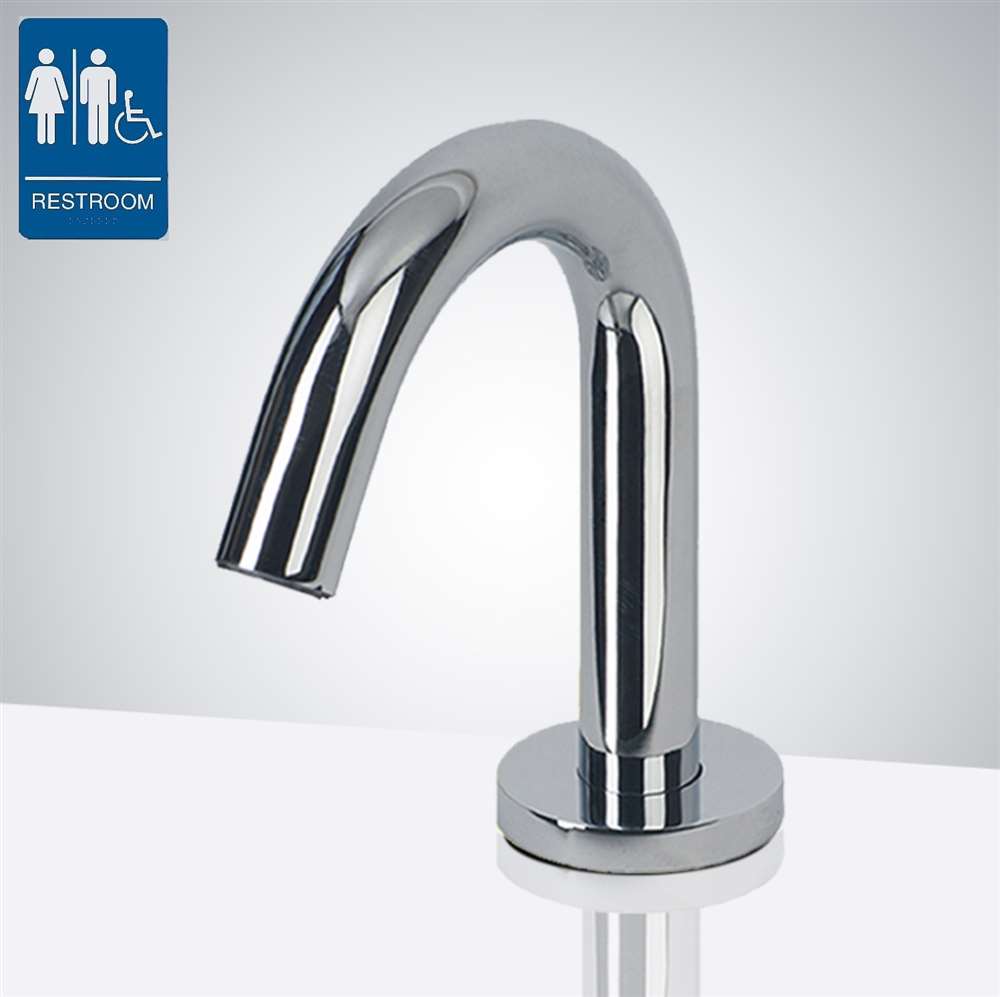

Fontana Chatue Commercial Automatic Sensor Faucet is a refined fusion of contemporary elegance and commercial-grade engineering, tailored for high-end washroom environments. Its advanced infrared sensing delivers consistent hands-free activation with adjustable detection range, rapid response times, and automatic shutoff to elevate hygiene and reduce water waste in busy spaces.
Built from robust materials with corrosion-resistant finishes and a durable solenoid valve, it supports both AC and DC power options and stable operation across varied pressure ranges. Designed for seamless wall-mount installation with standard plumbing integration, it’s ideal for luxury hotels, corporate lobbies, upscale retail, and signature hospitality interiors where precision and aesthetics converge. Commercial washroom fixture utilizing ToF distance sensing for precise user detection, ensuring consistent activation without splashback or false cycling.
Fontana Chatue Commercial Automatic Sensor Faucet FAQ
ToF Distance Sensing, IP56 Protection & Hydraulic Flow Commissioning
The Fontana Chatue Commercial Automatic Sensor Faucet combines precision touchless detection, solid brass construction, and controlled water delivery for high-traffic commercial washrooms.
How does ToF distance sensing improve activation accuracy compared with conventional proximity detection?
Time-of-Flight (ToF) sensing determines user presence by measuring distance within the detection zone, allowing the control system to distinguish intentional hand placement from surrounding basin surfaces. The faucet is factory configured around a 25 cm detection zone, so commissioning should verify activation with the completed basin and countertop installed. Multiple approach angles should be tested to confirm dependable recognition without false cycling from splashback or stationary objects.
What does the IP56 enclosure rating mean for electrical-component protection during commercial operation?
The IP56-rated enclosure provides protection against dust ingress sufficient to prevent harmful accumulation and against powerful water jets under defined test conditions. This is particularly valuable around commercial lavatories where moisture and routine cleaning are unavoidable. The rating does not eliminate the need for correct installation, so electrical connections, enclosure seals, cable entries, and concealed control components should still be inspected for proper positioning and moisture protection during commissioning.
How should the 0.05–0.7 MPa pressure range be coordinated with the specified 1.3 GPM flow rate?
Technicians should verify dynamic supply pressure while the faucet and nearby fixtures are operating rather than relying solely on static readings. The faucet is designed for approximately 0.05–0.7 MPa supply pressure with a specified 1.3 GPM flow rate. Testing under representative peak demand helps identify branch-line pressure losses, restrictions, or excessive pressure that could alter stream characteristics, increase splash, or produce misleading valve-performance symptoms.
Why must the 1-5/8-inch maximum deck thickness be verified before installing the single-hole faucet assembly?
Deck thickness directly affects the available engagement of the mounting hardware and the stability of the faucet body. Countertops exceeding the specified 1-5/8-inch maximum can prevent correct fastening or compromise access to below-deck connections. During rough-in coordination, installers should verify countertop build-up, mounting-hole clearance, supply routing, and service accessibility before final fabrication so the solid-brass faucet can be securely anchored without modifying the finished deck.
