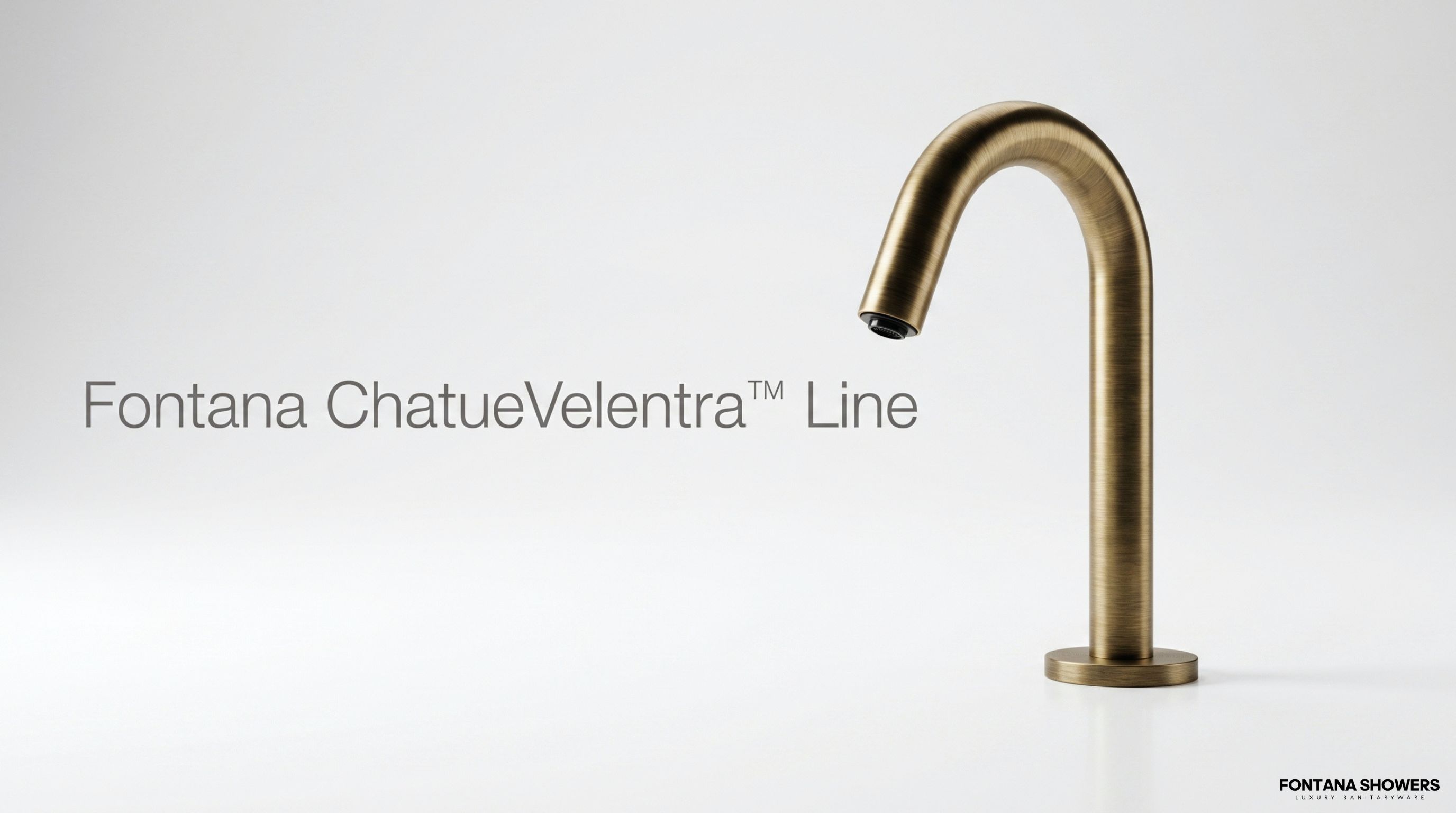

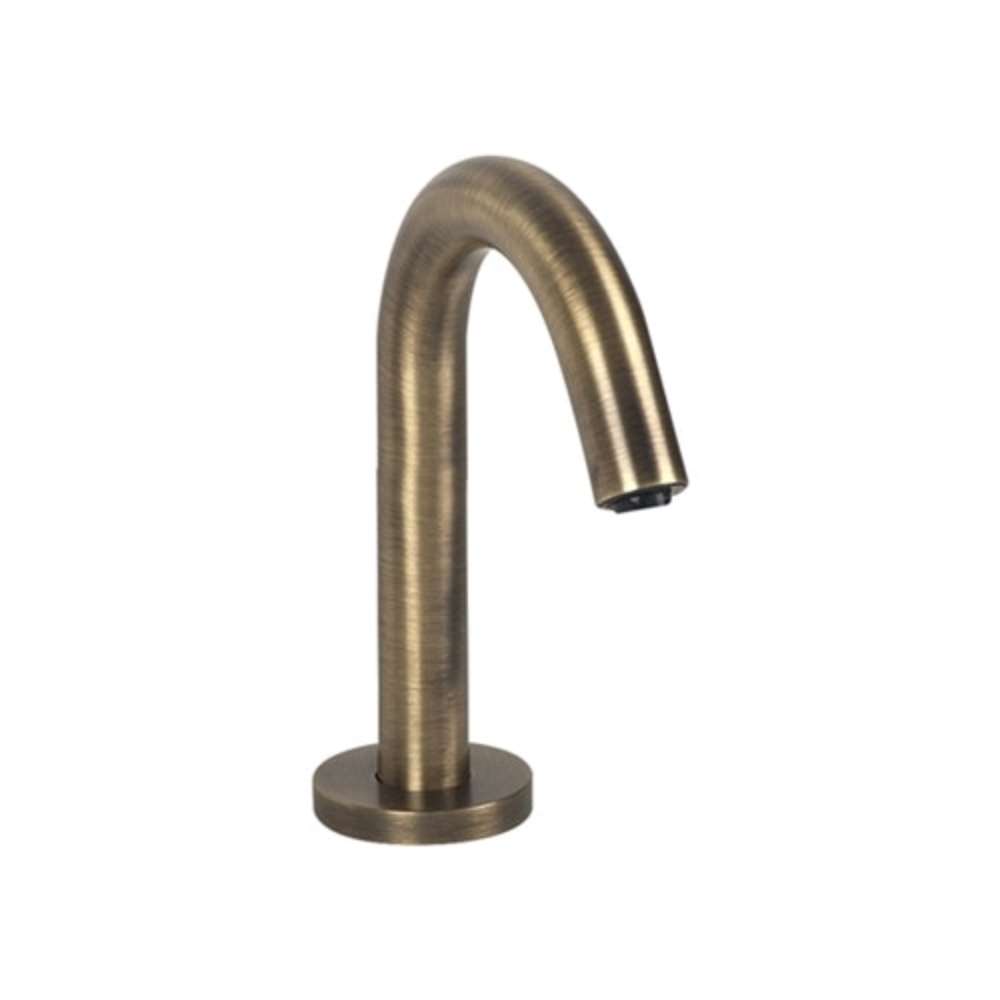

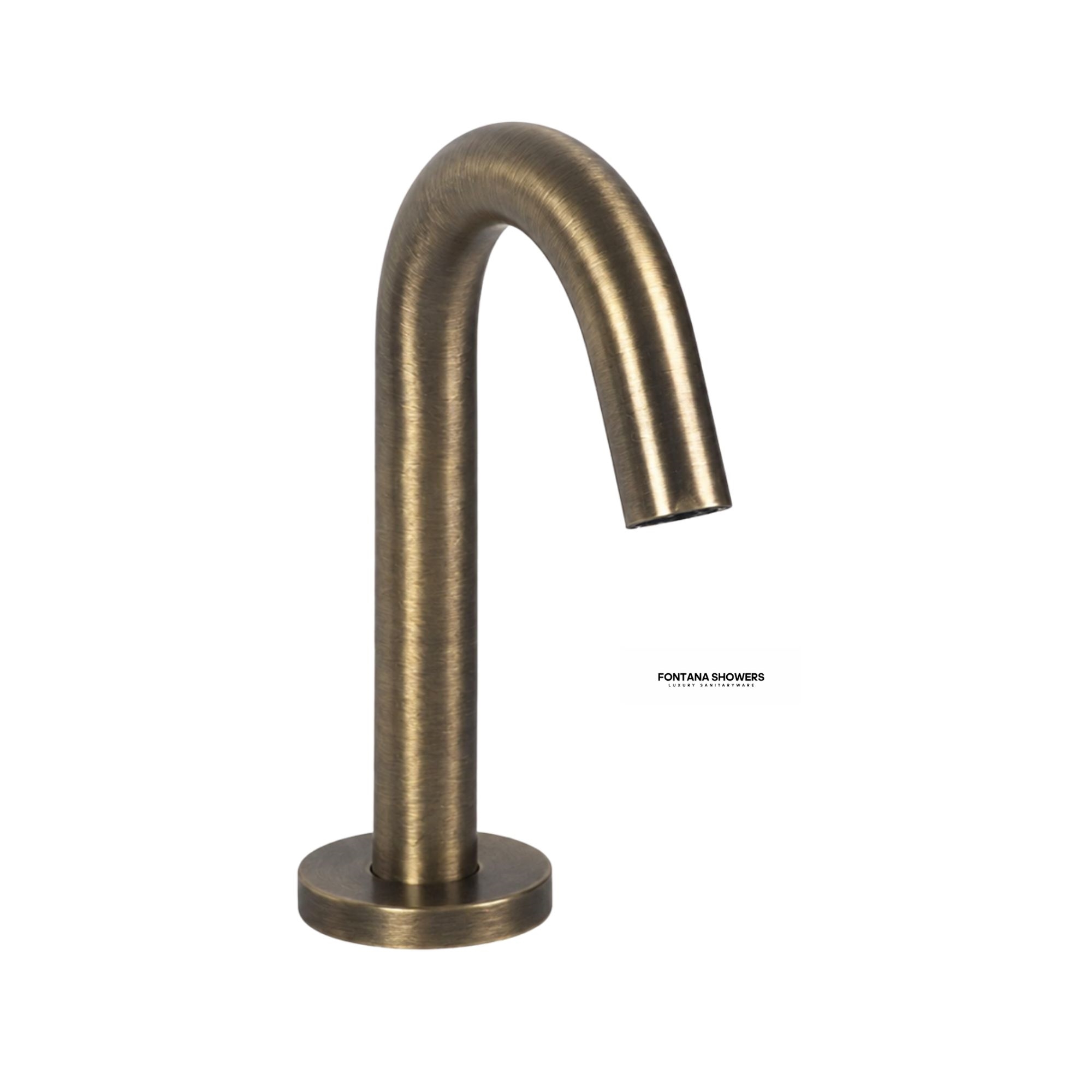

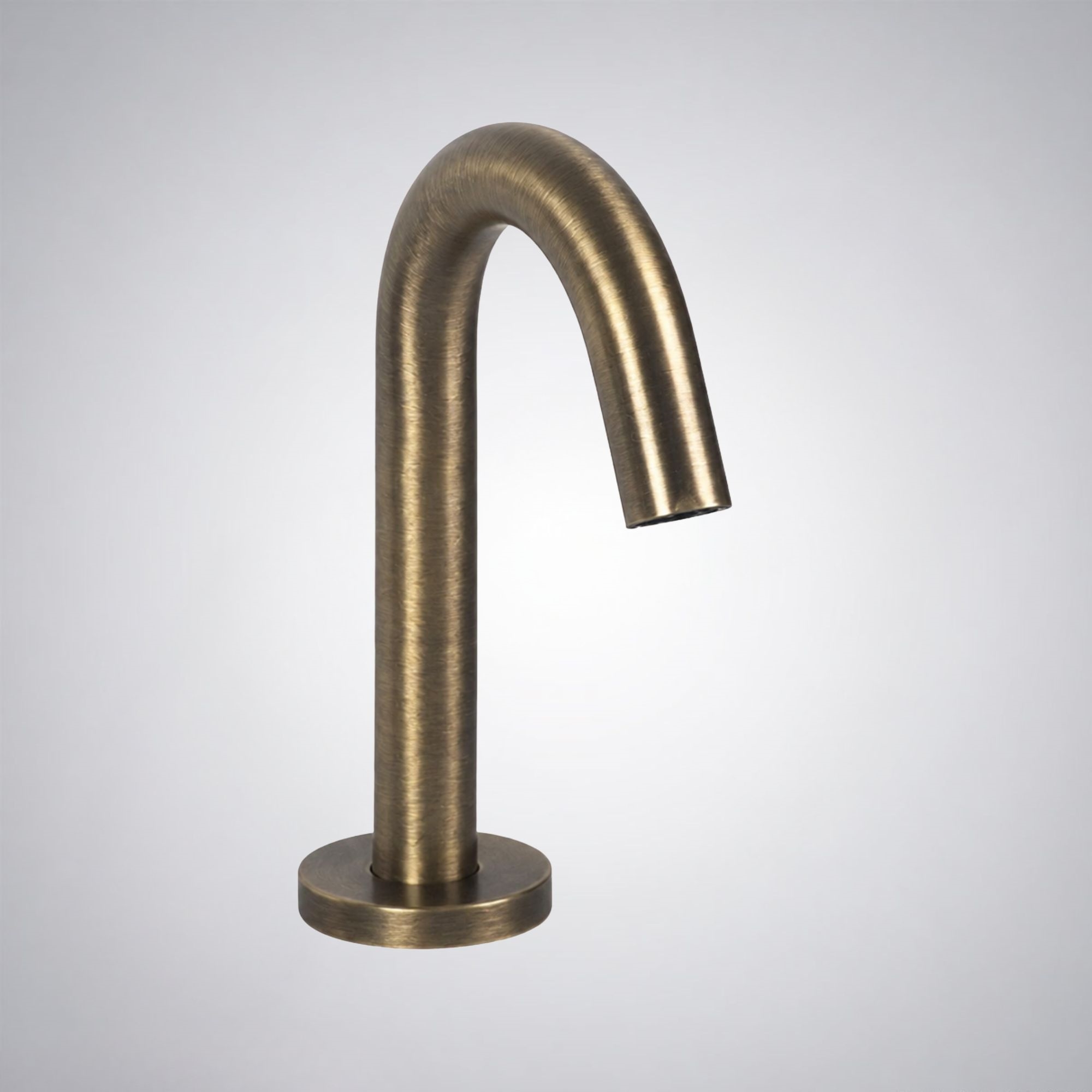

Fontana Chatue Commercial Automatic Touchless Sensor Faucet Antique Brass Finish

Fontana Chatue Commercial Automatic Sensor Faucet Antique Brass Finish

Alternative Views:

Retail Price: $882.16

Sale Price: $752.86

Savings: $129.30

Price with Selected Options: $752.86

Availability: Usually Ships in 5 to 10 Business Days

Product Code: FST9889-SF

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Polished Gold

Brushed Gold

Brushed Nickel

Dark Oil Rubbed Bronze

Antique Brass Commercial Automatic Touchless Sensor Faucet s

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is Polished Gold, with a built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.
Specifications Hands Free Faucet Antique Brass Finish

Diameter of Inlet/outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power: DC.6V
Detection Zone: Factory set 25cm(based on standard inactive board)
Ambient Temperature: 1 - 45° / 33.8 -113 °F
Degree of protection by enclosure: 1P56
Overall Height: 11- 1/2" (measured from countertop to the highest part of the faucet)
Spout Height: 7-3/4" (measured from countertop to the spout outlet)
Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of the spout outlet)
Mounting Type: Single Hole
Number of Holes Required for Installation: 1
Faucet Centers (Distance Between Handle Installation Holes): Single Hole
Flow Rate: 1.3 GPM (gallons-per-minute)
Maximum Deck Thickness: 1-5/8"
Maximum Deck Thickness: 1-5/8"
Faucet Body Material: Solid Brass
Faucet Spout Material: Solid Brass
Infrared sensor operation

Features for Fontana Chatue Commercial Automatic Touchless Sensor Faucet Antique Brass Finish

Rio Infrared sensor operated, touch-free operation
Advanced energy-saving design for long-lasting battery life
Waterproof sensor
Battery low LED light indicator
Sensing distance adjusted automatically
Long life durable body
Advanced circuit design saves electricity and water
Battery: 4*'AAA' size cells
Operational water pressure range: 0.05 - 0.6MPa
Water supply pipe size: DN15
Ambient temperature range: 0.1 - 45 degrees
Sensing distance: factory set 20cm
Time delay: 0.5 seconds
Operation duration: power will automatically cut off after continuous use for 60 seconds
Pop-up drain: No
Color: Polished Gold

Fontana Chatue Commercial Automatic Sensor Faucet Antique Brass Finish

Fontana Chatue Commercial Automatic Sensor Faucet Antique Brass Finish free faucet is specially designed for commercial uses. Its goose neck adds a lot of flexibility and ease in washing applications. Its ADA compliant material and rugged electronics are highly appreciated by our commercial customers. Our Eco-minded professionals have tapped the latest technologies to achieve water and energy saving goals. ADA Compliant. Heavy Duty Sensor Faucet, Antique Brass, Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Commercial Applications.

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!

This Sensor Faucet Applications; Commercial use & ADA

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
All the hardware necessary for satisfactory installation

Specifications and Dimensions

<> Microprocessor

Spout	Chrome Plated Solid Brass
Power	4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy	250,000 cycles
Solenoid valve	6 Volt magnet latching
Working Water Pressure	1 PSI -100 PSI
Supply Inlet Size	1/2” NPT Male
Water Temperature Control	Built-in Pop-Up Drain
Sensor type and Location	Active Infrared, Neck mount Sensor
Digital, Pug And Play
Sensing Range	2” to 6”
Response Time	0.3 Second
Shut-Off Delay Time	2 Seconds
Anti vandalism maximum Running Time	60 Seconds
Particle filter size	50
Mesh Aerator	2.2 GPM Standard

Features

Antique Brass Commercial Automatic Sensor Faucets Features

Fit for commercial use applications.
Motion touchless bathroom sensor faucet.
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Antique Brass Finish
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant
Easily can be installed in new or retrofit applications.
Usage: Commercial
Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all standard US plumbing.

Sensor Activated Faucet Special Features

Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
