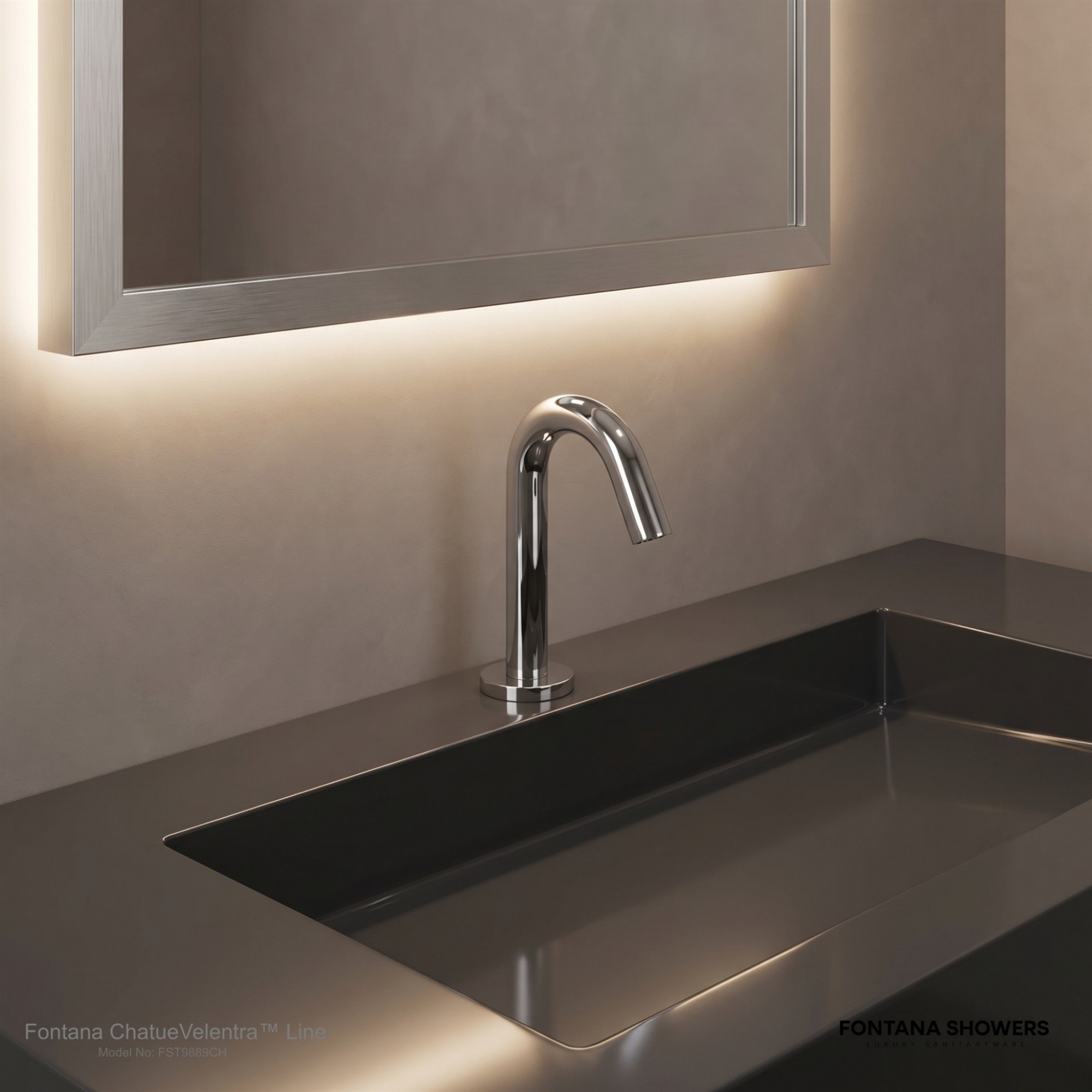

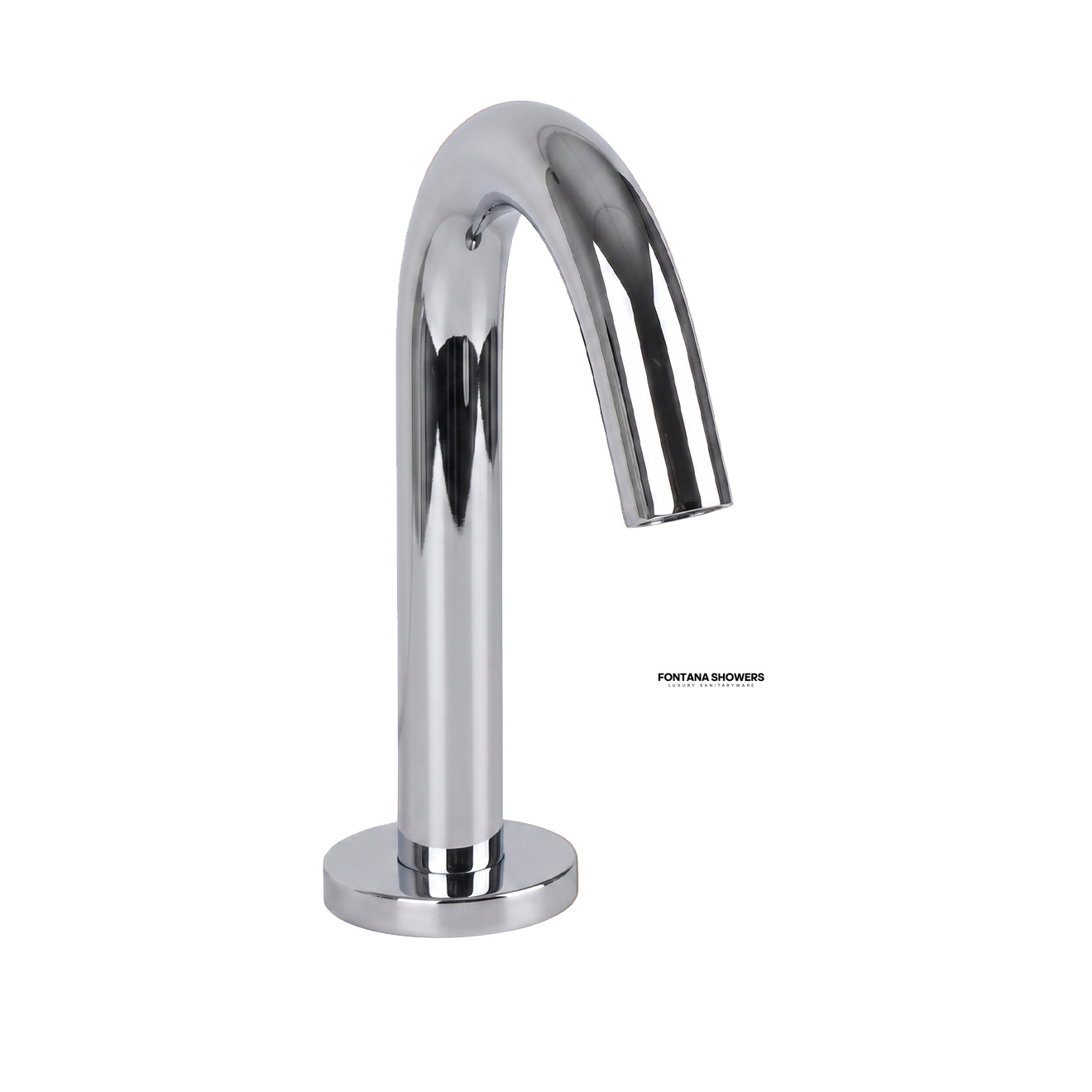

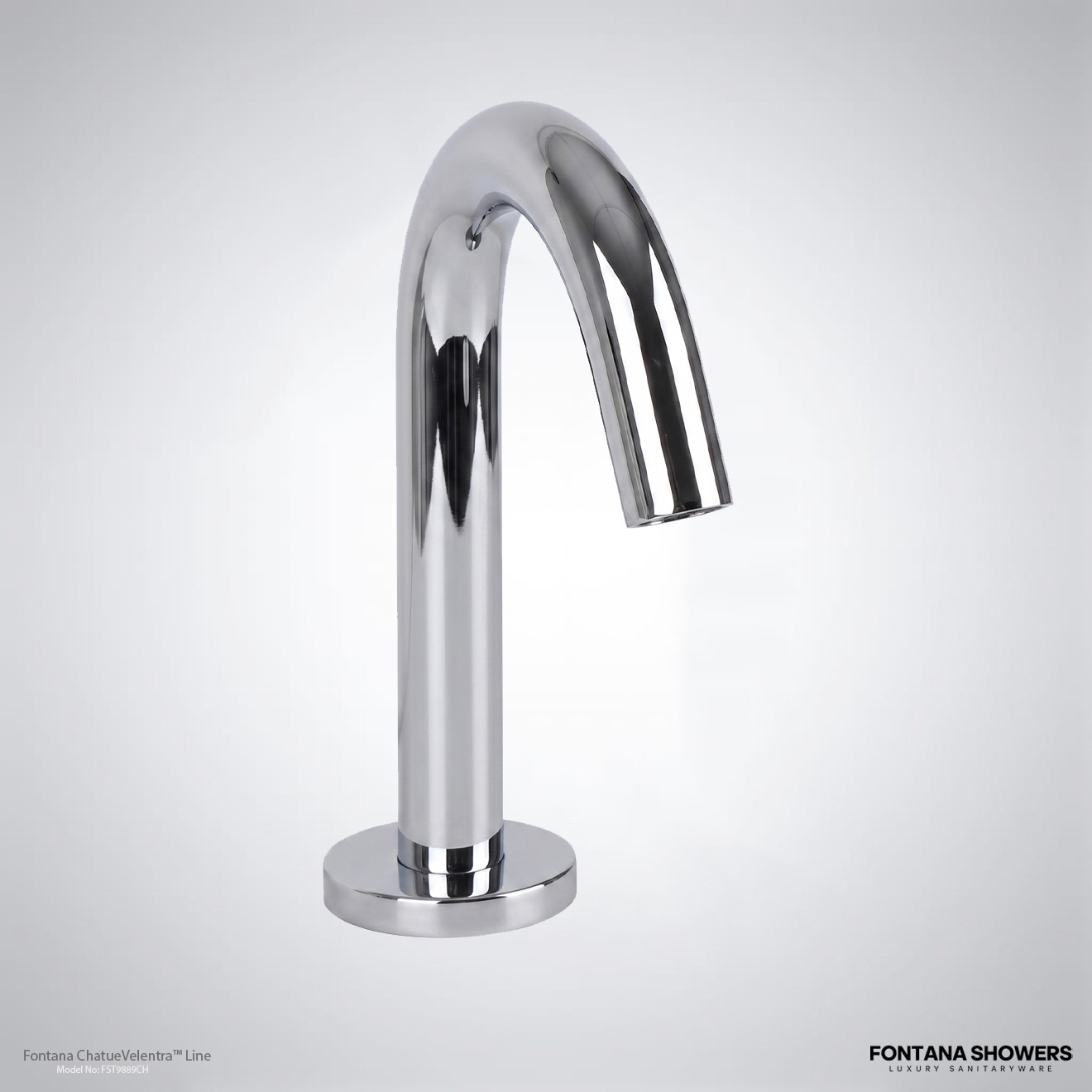

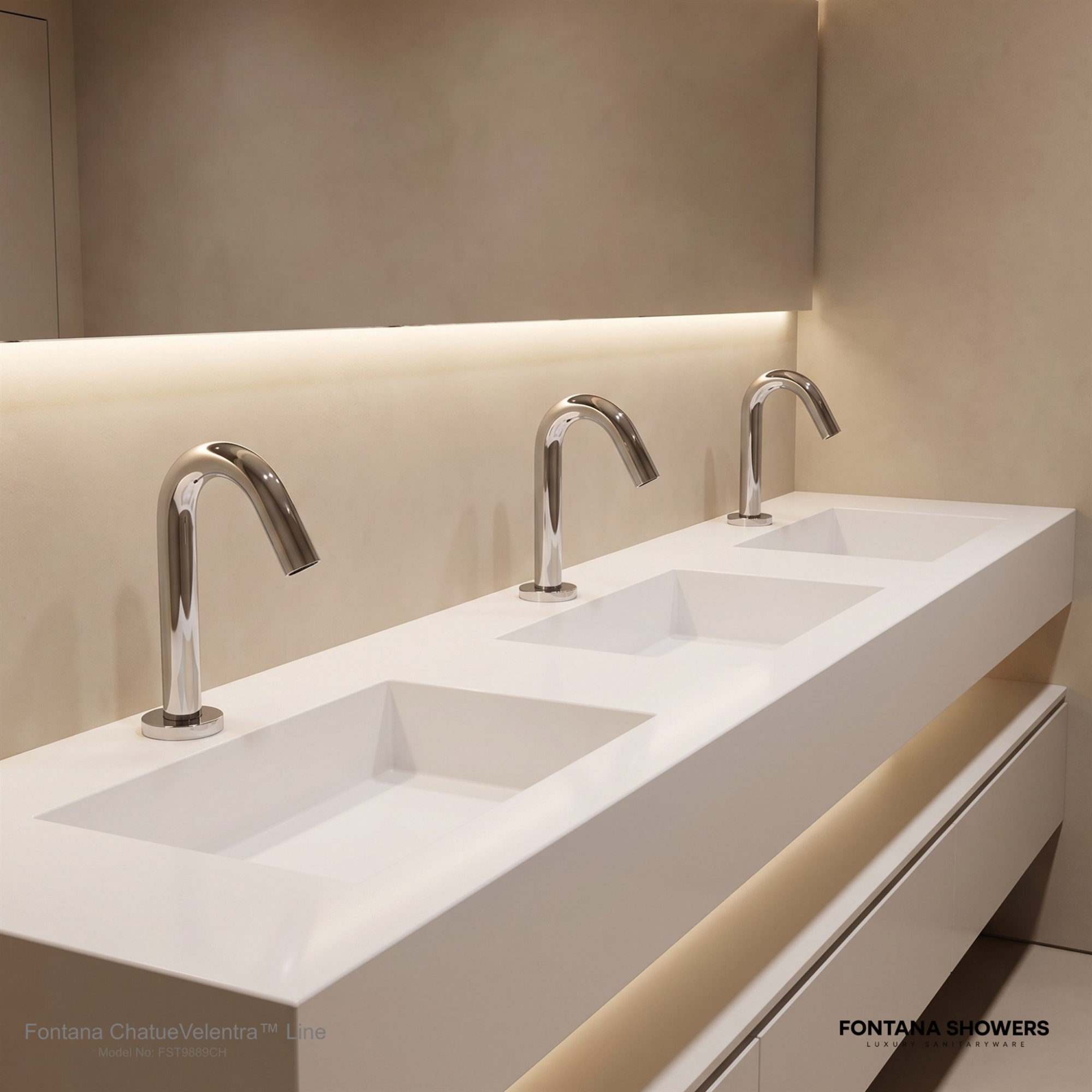

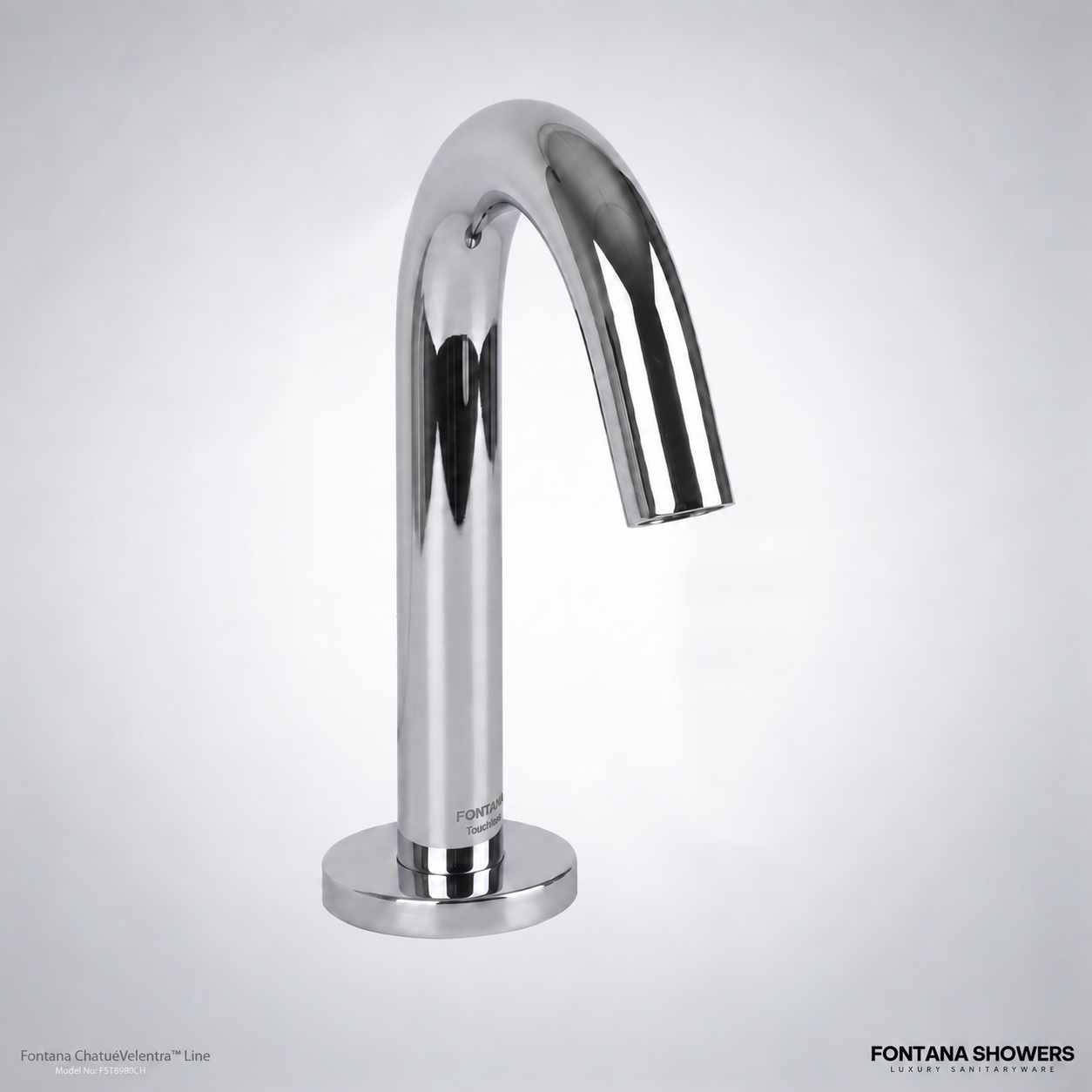

Fontana ChatueVelentra Line Chrome Luxury Touchless Bathroom Faucet
The complete solution of this product development, combines cutting-edge technology with minimalistic elements, provides automatic feature operation and superior bathroom cleanliness and maintains an attractive visual works in locations with heavy foot traffic. The unit features a reflective surface creates a modern appearance, while its advanced infrared sensing technology enables fully contactless use, helps maintain better hygiene standards. The product guarantees exceptional strength and extended life through its solid brass construction, maintains its attractive throughout continuous usage. It achieves effective water conservation through its controlled flow rate, works together with energy-efficient modes and an automatic shutoff mechanism that stops excessive resource consumption, thus enabling eco-friendly facility operations while keeping users at their desired comfort level. The Fontana ChatueVelentra™ Line Chrome Luxury Touchless Bathroom Faucet represents a perfect blend of modern and intelligent performance, delivering consistent functionality improves both user experience and visual appeal of high-end interior spaces. The system is designed for single-hole deck-mounted installation enables simple installation across numerous architectural and its waterproof sensor with low battery indicator and quick response time features provide reliable performance in high-demand situations. It provides touch-free access combines modern elements to improve user experience at commercial locations, including airports, hotels, restaurants, shopping malls. The system achieves industry standards for safety and accessibility and environmental sustainability because it follows ASME, CSA, ADA, WaterSense, and CALGreen compliance requirements give architects, designers and facility managers confidence to use this solution meets current standards for operational efficiency and product endurance and advanced quality.
CHATUEVELENTRA™ LINE
Fontana ChatueVelentra Touchless Faucet FAQs
Commercial infrared touchless bathroom faucet with solid brass
construction, single-hole deck mounting, 1.3 GPM water-saving
performance, waterproof sensing, DC power capability,
automatic shutoff, and commercial-grade hands-free operation.
✥ Sensor Commissioning Procedure? +
Complete sensor commissioning after the basin,
countertop, backsplash, mirror, and surrounding accessories
are fully installed. The factory detection distance is
approximately 25 cm. Verify dependable hand detection
throughout the intended wash zone without unintended
triggering from reflective surfaces.
◇ Hydraulic Checks During Installation? +
Flush the DN15 water supply before final connection,
verify secure plumbing fittings, inspect the water path for
construction debris, and confirm stable dynamic pressure
within the specified 0.05–0.7 MPa range before completing
sensor commissioning.
◯ 1.3 GPM Flow Rate Verification? +
Verify approximately 1.3 GPM under normal dynamic
operating conditions. If discharge becomes restricted,
inspect the outlet, supply connections, internal valve,
and available water pressure for mineral deposits,
sediment, or installation debris.
↻ Continuous Water Flow Diagnostics? +
Clean the infrared sensor window and remove
stationary or reflective objects from the sensing field.
Verify stable electrical power and inspect the automatic
valve and internal water path for debris or incomplete
closure if water continues flowing after hands leave the
detection zone.
⌁ Sensor Detection Range? +
The live product specification lists a factory
detection zone of approximately 25 cm. Final performance
should be checked after the basin and surrounding finishes
are installed to ensure normal hand movement activates
the faucet without false triggering.
⌂ Automatic 30-Second Shutoff? +
The ChatueVelentra control system is factory
configured with an approximately 30-second automatic
shutoff. During commissioning, verify extended activation
terminates correctly and that normal operation resumes
after the sensing field clears.
⚡ DC Power and Battery Requirements? +
The faucet operates at DC 6V using four AAA
batteries. A low-battery LED indicator provides service
notification. Maintain dry and accessible space beneath
the countertop for battery replacement and electronic
control maintenance.
⌕ Routine Commercial Maintenance? +
Periodically clean the infrared sensor and faucet
outlet, inspect the supply and valve components, remove
mineral buildup, and verify dependable automatic shutoff.
Clean decorative finishes using a soft cloth and mild
non-abrasive cleaner appropriate for the selected finish.
Chrome
♧
1.3 GPM Water Efficient
◇
Solid Brass Durable Construction
⌁
Infrared Sensor Waterproof Detection
⚙
DC 6V 4 AAA Battery Power
- Brand Name: FontanaShowers®
- Model Number: FST9889CH
- Type: Touchless Faucet
- Style: Contemporary
- Installation Type: Deck Mounted
- Finish: Chrome
- Number of Holes: Single Hole
- Faucet Body Material: Solid Brass
- Faucet Spout Material: Solid Brass
- Sensor Type: Infrared
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Degree of protection by enclosure: 1P56
- Ambient Temperature: 1 - 45° / 33.8 -113 °F
- Power: DC.6V
- Water Pressure: 0.05Mpa - 0.7Mpa
- Advanced Energy Saving: Yes
- Long Lasting: Yes
- Waterproof Sensor: Yes
- Battery low LED Light Indicator: Yes
- Battery: 4*'AAA' size cells
- Time Delay: 0.5 seconds
- Auto Shutoff: Factory Set to 30 Second Auto Shutoff
- Diameter of Inlet/outlet Pipe: DN15
- Detection Zone: Factory set 25cm
- Overall Height: 11- 1/2"
- Maximum Deck Thickness: 1-5/8"
- Spout Height: 7-3/4"
- Spout Reach: 5-1/2"
Luxury Touchless Sensor Control
|
