How should the FS-1197DP thermostatic mixer be rough-installed to ensure precise concealed valve positioning?

Secure the solid brass thermostatic valve body to rigid structural framing before waterproofing and tile installation. Verify the specified installation depth and maintain the valve body level so the Chrome escutcheon, thermostatic control, and two-function selector align accurately with the finished wall.

What commissioning procedure confirms the thermostatic cartridge maintains accurate mixed-water temperature?

Flush the hot and cold supply lines thoroughly before startup, stabilize inlet temperatures, and measure the mixed-water outlet with a calibrated thermometer. Cycle the thermostat repeatedly through its operating range to verify stable temperature regulation, repeatable control accuracy, and smooth response.

How can installers evaluate the thermostatic mixer under changing hydraulic conditions?

Operate the mixer while varying normal hot and cold supply pressures and flow demand. A correctly functioning thermostatic element should continuously compensate for hydraulic fluctuations and maintain a consistent outlet temperature without sudden thermal variation.

How should the two-function outlet selector be verified during system commissioning?

Cycle the selector repeatedly between both shower outlets while monitoring flow transfer, outlet isolation, and temperature stability. Proper commissioning confirms positive indexing, complete hydraulic separation of the inactive outlet, and uninterrupted thermostatic performance during every transition.

What pressure-testing procedure should be completed before concealing the thermostatic valve assembly?

Perform both hydrostatic and dynamic pressure testing after completing all threaded connections. Inspect every concealed joint for leakage, pressure loss, fitting movement, and sealing integrity before the wall cavity is permanently closed.

How should the thermostatic mixer be maintained to maximize long-term operating reliability?

Clean external Chrome surfaces using a soft microfiber cloth with a pH-neutral cleaner and avoid abrasive pads, acidic descalers, bleach, or ammonia-based products. Periodically flush the plumbing system to minimize mineral accumulation around the thermostatic cartridge and internal flow passages.

How can compatibility with connected shower outlets be confirmed after installation?

Install compatible threaded shower heads and shower arms, then operate each outlet individually under normal system pressure. Verify balanced hydraulic performance, stable mixed-water temperature, and reliable operation of both shower functions without excessive flow restriction.

Which final acceptance inspections verify the FS-1197DP is ready for commercial operation?

Final acceptance should confirm rigid concealed mounting, leak-free threaded connections, accurate thermostatic temperature regulation, smooth two-function selector operation, stable mixed-water delivery, proper trim alignment, and repeatable performance during extended operational cycling under normal service conditions.

Free Shipping

We Ship Internationally!

Fontana Chrome Concealed Luxury Mixer with Thermostatic

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1197DP

Request Quote

Description

Technical Specs

Extended Information

Brushed Nickel

Gold

Brushed Gold

Rose Gold

Oil Rubbed Bronze

Champagne

Matte White

Matte Black

Gun Metal Gray

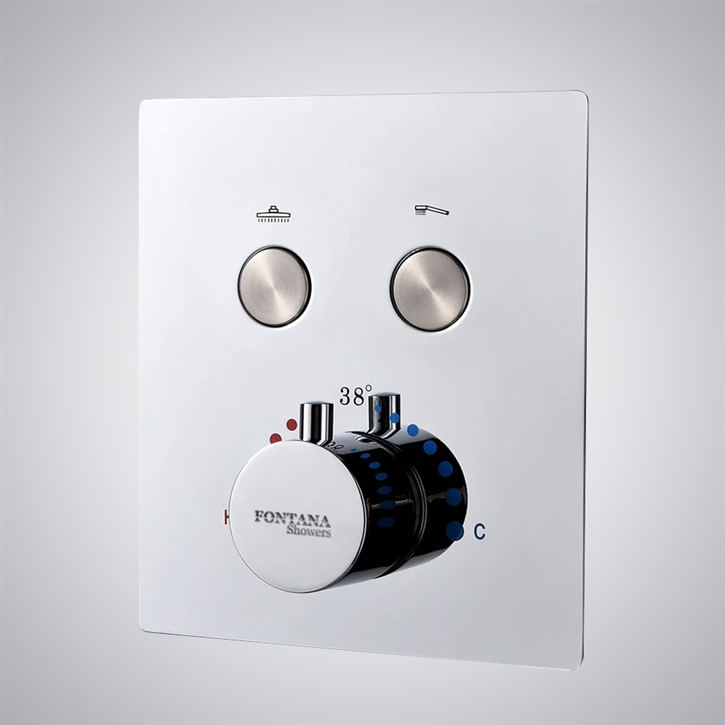

Fontana Chrome Concealed Luxury Mixer with Thermostatic

This Fontana Shower Mixer delivers superior performance and has a solid construction for long-term durability. It will upgrade your bathroom with a modern and cool look for a long time. Regarding new bathroom upgrades, FontanaShowers offers the shapes, finishes and styles you've been looking for. Tailored to your discerning taste, Fontana Showers leads the way in delivering confidence-inspiring bathroom upgrades. Elevate your daily routine to a luxurious experience with The Fontana Showers Bathroom Faucet In Chrome Brass Concealed Mixer Built-in Thermostat Mixer, where cutting-edge design seamlessly meets unparalleled durability.

Fontana Chrome Concealed Luxury Mixer with Thermostatic Features:

Brand Name: FontanaShowers®
Model Number: FS-1197DP
Finish: Chrome
Size: 5.16" - 7.87"
Shower Valve Functions: 2
Installation: Wall Mounted
Cold/Hot Water Control Type: Auto-Thermostat Control
Material: Brass
Style: Contemporary
