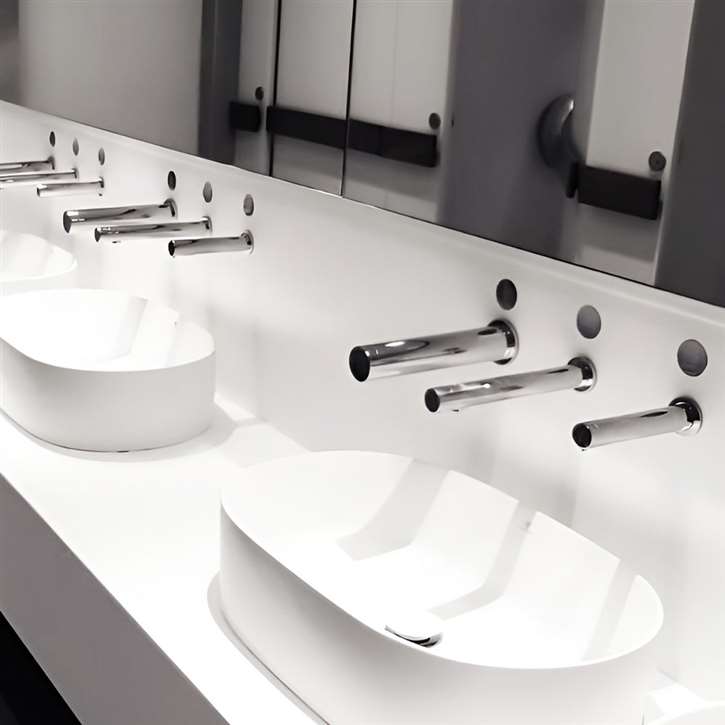

 Fontana Chrome Triple-Functional Restroom Technology Combo (Motion Sensor Faucet, Automatic Soap Dispenser and Hand Dryer)
Looking for a reliable, easy-to-use handwashing solution for your business or public restroom? Look no further than the Fontana Triple-Functional Restroom Technology Combo. This combo includes a motion sensor faucet, automatic soap dispenser, and hand dryer, all in one convenient package. With Fontana's innovative design, you can be sure that each handwashing session is quick and easy – perfect for busy environments. The autofill soap dispenser provides the perfect amount of soap every time, while the sleek, wall-mounted design creates a sophisticated look in any restroom. Installation is simple and straightforward with the included support frame, so you can have your new hand washing station up and running in no time. Give your customers and employees the peace of mind that comes with knowing their hands are clean. The Fontana Triple-Functional Restroom Technology Combo is the perfect solution for any business or public restroom. Don't settle for anything less than the best – order your combo today!
Fontana Chrome Triple-Functional Restroom Technology Combo (Motion Sensor Faucet, Automatic Soap Dispenser and Hand Dryer) Advantages:
- Allows a robust and simplified installation.
- Minimizes water splashes on the floor and around the sink.
- Anti-vandal fixation of the nozzles in a metal frame.
- Drastic reduction in the consumption of water and soap.
- No contact. Participates in the protection of users against cross-contamination.
- Height adjustable drain, sink and faucet.
- Provides a complete electronic solution of water, air and soap, as well as all mounting elements (excluding the sink ).
- Ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, and hospitals. Fits all standard US plumbing.
Technical characteristics:
- Chrome Finish
- For partitions with a maximum thickness of 40 mm (70 mm optional).
- Adjustable frame height from 1140 to 1340 mm.
- Galvanized feet adjustable in height 0-200 mm, swivel.
- Distance between fixing axes to the washbasin is 60 - 360 mm.
- C profile frame in 40/40 mm. Blue epoxy paint.
- Protective cover for openings against humidity and dirt, to be cut according to wall thickness.
- Infrared detection valve, adjustable at any time by remote control RES-31: detection length, safety shutdown delay, flow shutdown time, temporary shutdown.
- Power and sound volume for hand dryers are adjustable by button. HEPA filter.
- 3-year limited warranty, 2-year soap dispenser.
Comes with : Fontana electronic soap dispenser with 150 mm spout - Fontana Motion Sensor Faucet with 170 mm spout – Fontana hand dryer with 220 mm spout; Drain bend ø 50 mm - Gasket ø 44/32 mm - 2 M10 threaded rods for fixing the sink and screw caps - Floor and wall fixing set.
COMPONENTS:
|
Fontana Motion Sensor Faucet
|
|
|
Facility
|
Recessed wall light with frame
|
|
Electrical power supply
|
12V transformer (for water and soap with distributor connector)
|
Pressure
|
0.5-8 bar
|
|
Water flow
|
6 L/min – in option 3L/min / 1.9L/min / 1.3 L/min
|
|
Temperature
|
Max 70°C
|
|
Safety shutdown
|
After 90 sec. without interruption (adjustable by remote control)
|
|
Fontan Auto Soap Dispenser
|
|
|
Facility
|
Recessed wall light with frame
|
|
Electrical power supply
|
12V transformer (for water and soap with distributor connector)
|
|
Soap
|
1L tank. Pericarditis pump for all types of liquid soap, detergent or antibacterial gel.
|
Dose of soap
|
default: 1.2 -1.6 cc (adjustable by remote control).
|
|
Filling
|
Soap priming by button on the pump or by remote control
|
|
Fontana Hand Dryer
|
|
|
Facility
|
Recessed wall light with frame
|
|
Power
|
1600 W adjustable (motor 350-700 W - resistance 450-900 W)
|
|
Supply voltage
|
200-240V 50-60Hz / 1.3-1.6KW / 6.1-6.7A
|
|
Security
|
Automatic disconnection in case of irregular use plus 60 seconds. Motor with safety thermostat at 85°C. Resistance shutdown by thermal fuse at 142°C
|
|
Consumption in mode
|
0.3 - 0.4W
|
|
Safe stop
|
After 60 seconds without interruption or in case of overheating
|
|
Peak length
|
170mm ± 20, self-adjusting
|
|
Degree of protection
|
IP21
|
|
|
 |
 |
 |
 |

|
