How should the FS-1198ORB concealed thermostatic mixer be installed to maintain accurate rough-in geometry and trim alignment?

Secure the solid brass valve body to rigid structural framing before waterproofing and tile installation. Confirm the specified rough-in depth, maintain precise horizontal alignment, and ensure the Oil Rubbed Bronze trim projects evenly from the finished wall to prevent mechanical stress on the concealed assembly.

What commissioning procedure should be performed before placing the 35 mm ceramic cartridge into continuous service?

Flush both hot and cold supply lines independently to remove solder residue, pipe scale, and construction debris before operating the mixer. Cycle the 35 mm ceramic cartridge through its complete operating range several times to verify smooth modulation, stable sealing surfaces, and drip-free shutoff performance.

How can installers validate thermostatic accuracy throughout the 20–50°C operating range?

Stabilize the inlet water supplies and measure the mixed-water outlet with a calibrated thermometer while adjusting the thermostatic control across multiple temperature settings. Verify repeatable outlet temperatures throughout the 20–50°C operating range without excessive thermal drift or delayed stabilization.

Why should concealed 1/2-inch threaded connections undergo hydrostatic and dynamic pressure testing before wall closure?

Hydrostatic testing confirms the integrity of concealed threaded joints under static pressure, while dynamic testing evaluates sealing performance during normal operating flow. Inspect every connection for leakage, pressure decay, joint movement, and thread integrity before permanently enclosing the valve body.

How should the anti-slip thermostatic temperature control be evaluated during acceptance testing?

Rotate the anti-slip temperature control repeatedly through its full adjustment range while monitoring operating torque, shaft engagement, rotational consistency, and outlet temperature response. Proper performance is confirmed when movement remains smooth, repeatable, and free from slipping, backlash, or excessive resistance.

How should connected shower outlets be verified for hydraulic compatibility with the FS-1198ORB mixer?

Connect compatible shower heads, hand showers, or body sprays using the specified 1/2-inch threaded outlets and test each fixture under operating pressure. Verify balanced hydraulic distribution, stable discharge characteristics, and continuous thermostatic regulation without excessive pressure loss or flow instability.

What maintenance practices help preserve the Oil Rubbed Bronze finish and internal thermostatic assembly?

Clean exposed Oil Rubbed Bronze surfaces using a soft microfiber cloth with a pH-neutral cleaner while avoiding abrasive pads, acidic descalers, chlorine bleach, and ammonia-based chemicals. Periodically flush the plumbing system to minimize mineral accumulation that could affect the ceramic cartridge and thermostatic valve components.

Which final acceptance inspections confirm the FS-1198ORB is fully commissioned for commercial operation?

Final acceptance should verify rigid concealed mounting, leak-free 1/2-inch threaded connections, smooth ceramic cartridge operation, accurate thermostatic temperature regulation across the specified operating range, secure control performance, proper trim alignment, and repeatable hydraulic performance during extended operational cycling.

Free Shipping

We Ship Internationally!

Fontana Classic Oil Rubbed Bronze Wall Mounted Shower Mixer

Alternative Views:

Availability: Project Pricing Available Request Quote

Product Code: FS-1198ORB

Request Quote

Description

Technical Specs

Extended Information

Brushed Nickel

Gold

Brushed Gold

Rose Gold

Chrome

Champagne

Matte White

Matte Black

Gun Metal Gray

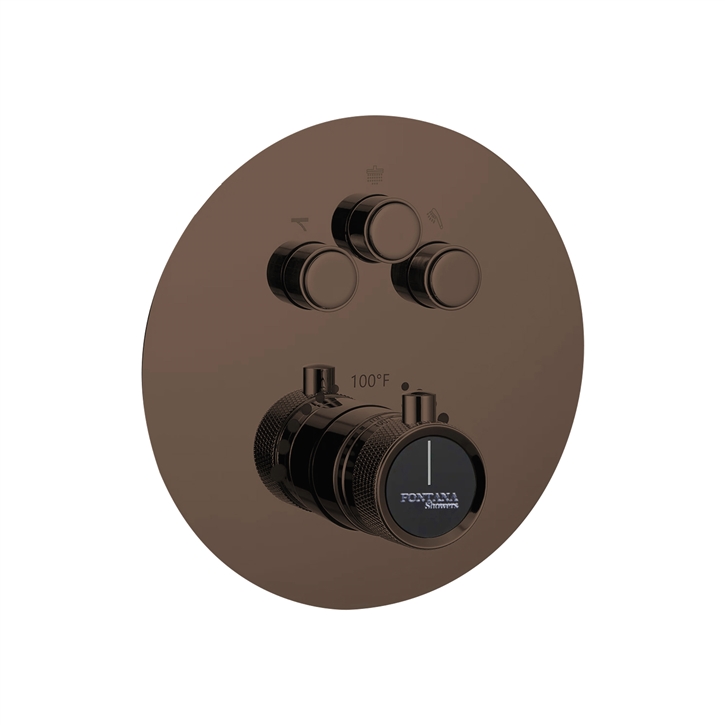

Fontana Classic Oil Rubbed Bronze Wall Mounted Shower Mixer

Elevate your bathroom experience with the Fontana Classic Oil Rubbed Bronze Wall Mounted Shower Mixer, an exquisite blend of timeless elegance and modern functionality. The rich, warm tone of its oil rubbed bronze finish complements a variety of bathroom styles, from traditional to contemporary, adding a touch of sophistication to your space. Crafted from high-quality materials, this shower mixer is built to withstand daily use, resisting tarnishing and corrosion for long-lasting beauty and reliability. The precision-engineered mixer valve ensures smooth and effortless control over water temperature and flow, while the ergonomic handle design provides comfortable and intuitive operation. Its wall-mounted installation saves space and offers a streamlined look, making cleaning and maintenance easier. Enhanced with water-saving technology, this shower mixer helps conserve water without compromising on performance, allowing you to enjoy a luxurious shower experience while being environmentally conscious. Complete with all necessary installation hardware and instructions, the Fontana Classic Oil Rubbed Bronze Wall Mounted Shower Mixer is perfect for homeowners, interior designers, and anyone who appreciates the perfect balance of classic aesthetics and modern technology in their bathroom fixtures. Transform your bathroom into a sanctuary of comfort and style with this elegant and durable addition.

Fontana Classic Oil Rubbed Bronze Wall Mounted Shower Mixer Features:

Brand Name: FontanaShowers®
Model Number: FS-1198ORB
Type: Shower Mixer
Style: Modern
Finish: Oil Rubbed Bronze
Surface Treatment: Brushed
Installation Type: Wall Mounted
Shape: Round
Material: Solid Brass
Hot and Cold Water: Yes
Cartridge: 1.38" Ceramic Cartridge
Operating Range: 20 - 50 degrees
Inlet Pipe Diameter: 1/2"
Outlet Pipe Diameter: 1/2"
Knob: Anti Slip Temperature Control
Function: Multifunction
Usage: Commercial or Residential
