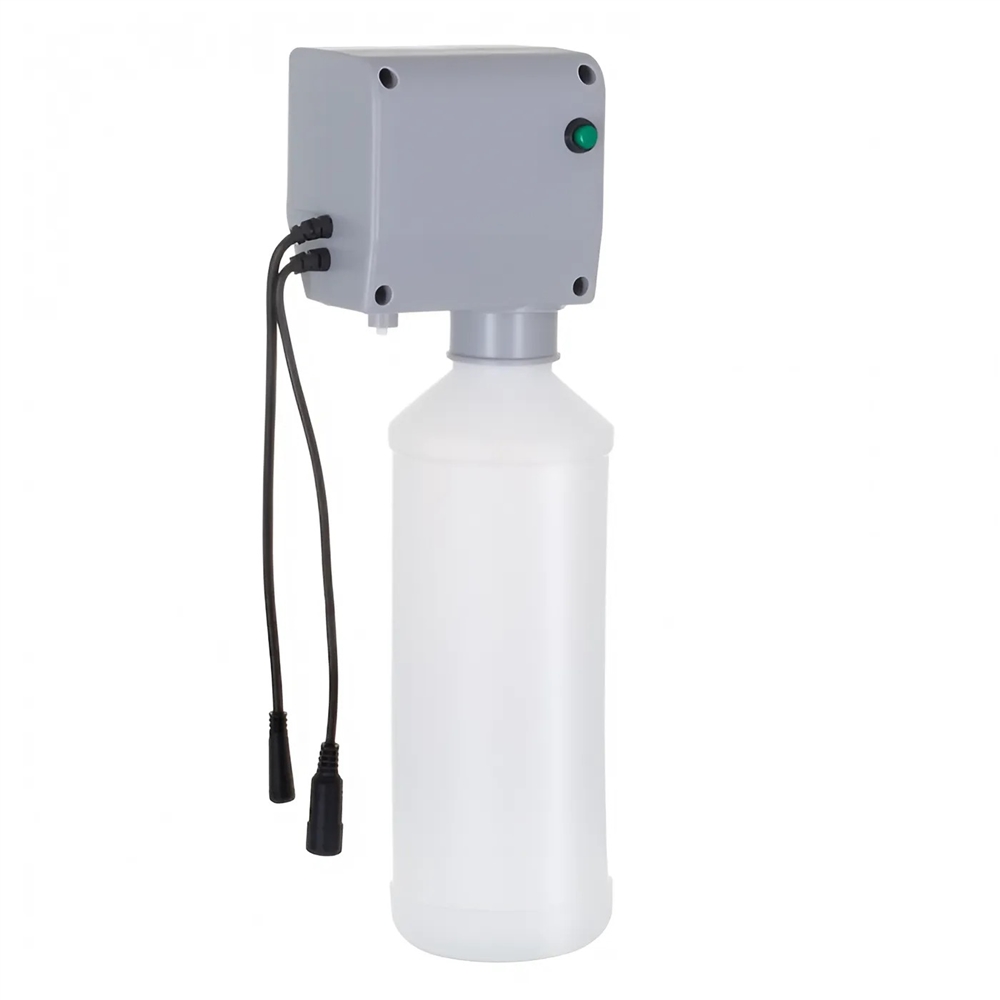

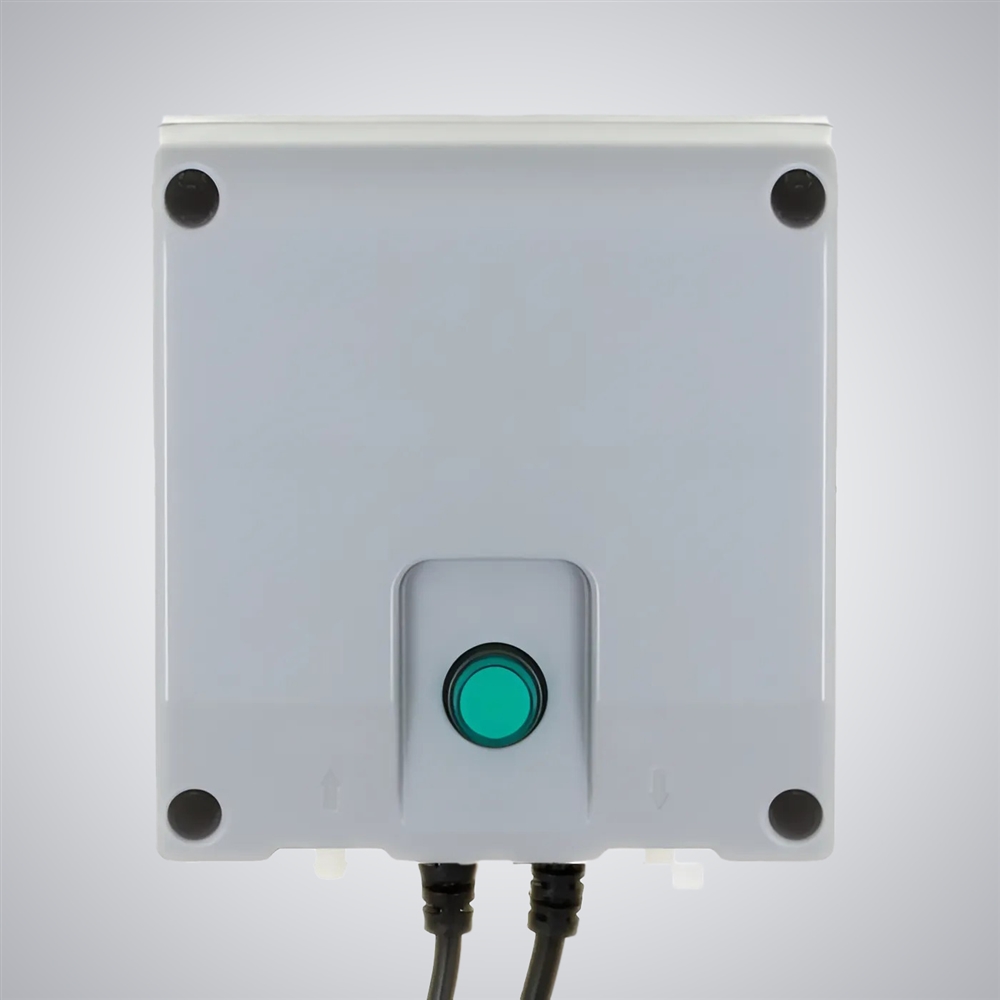

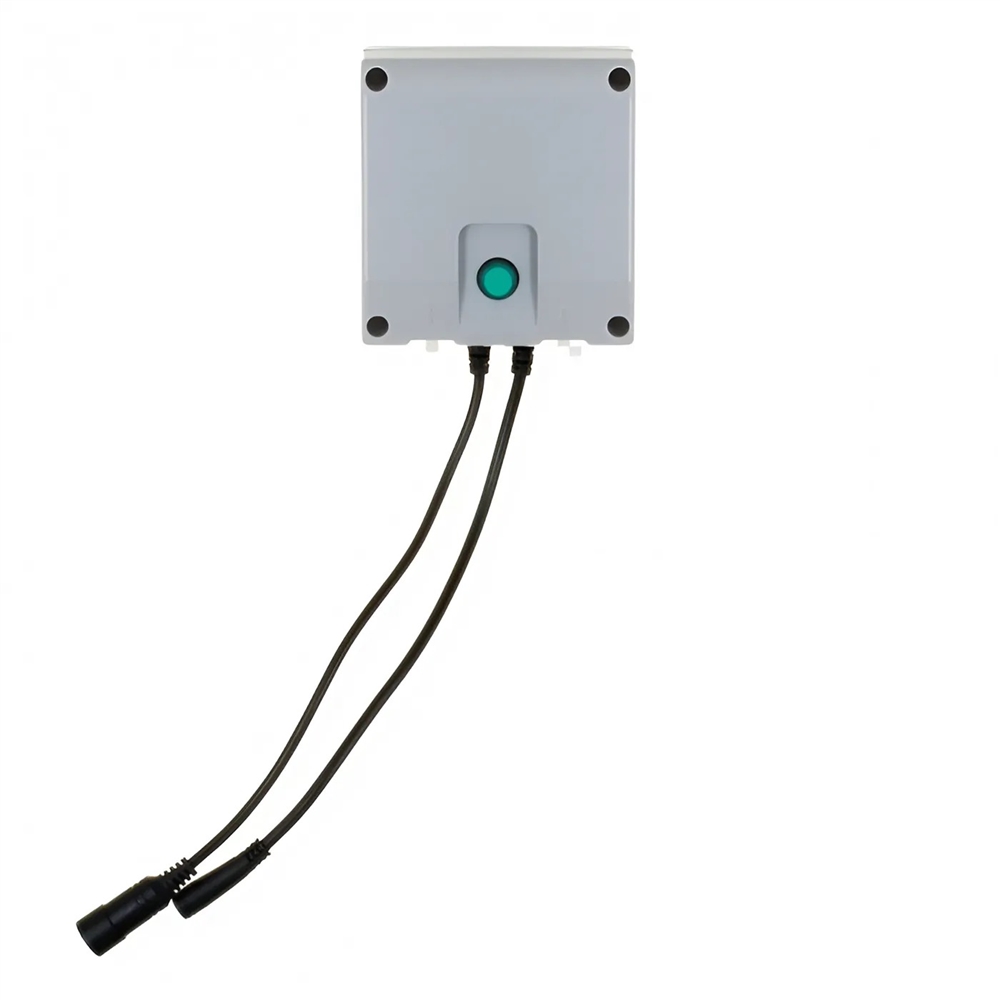

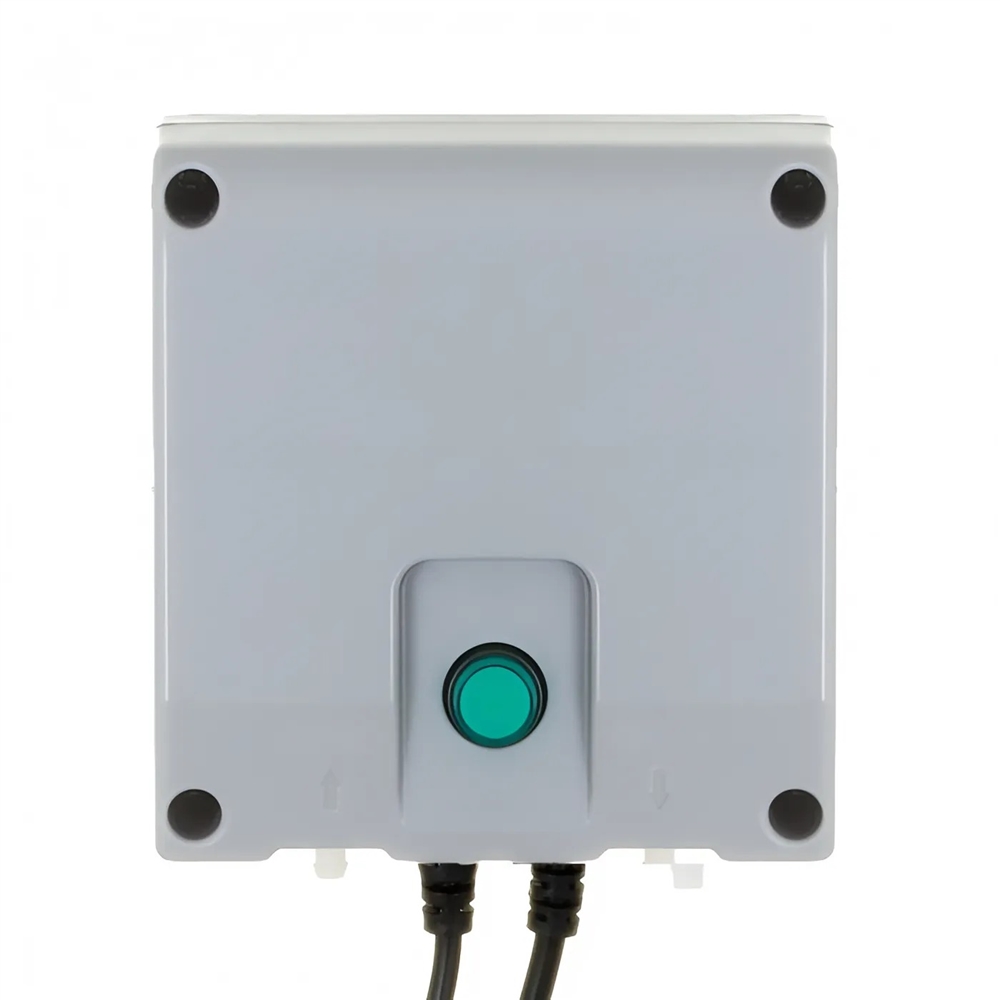

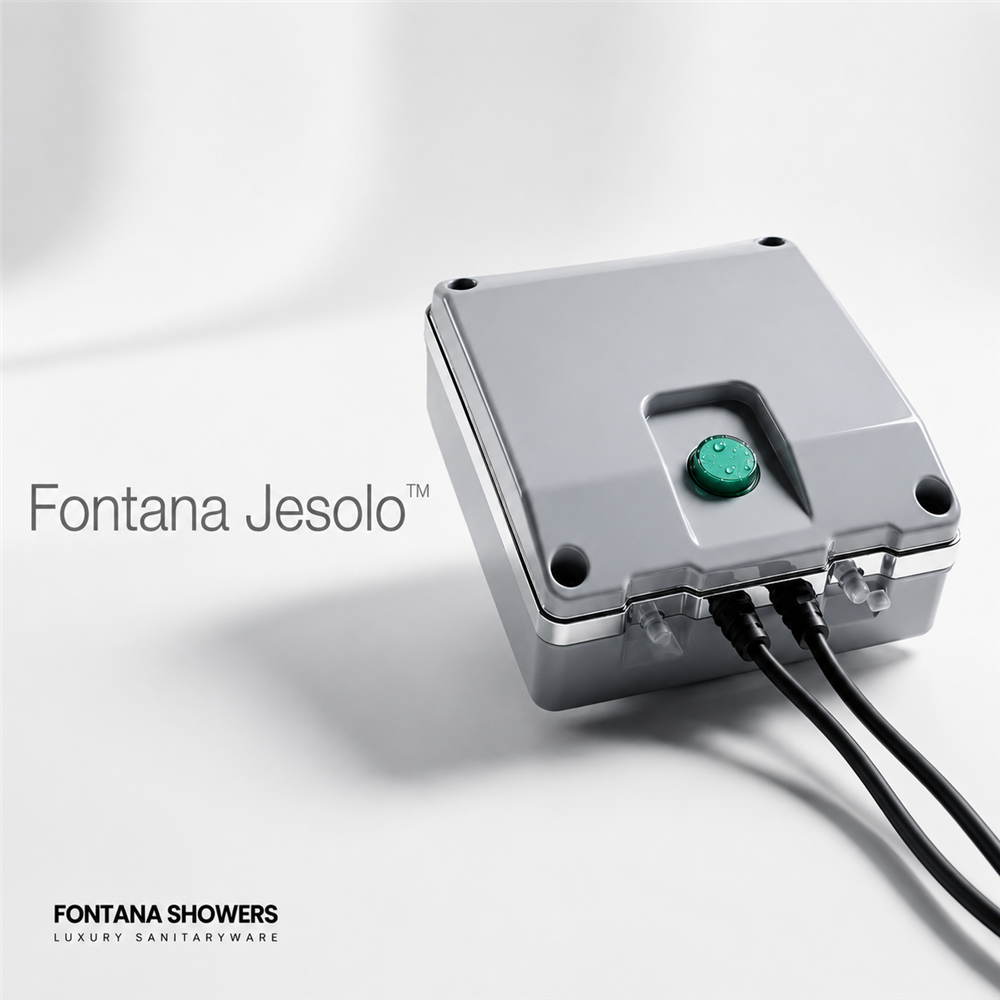

Fontana Jesolo Control Box for Foam Soap Dispenser

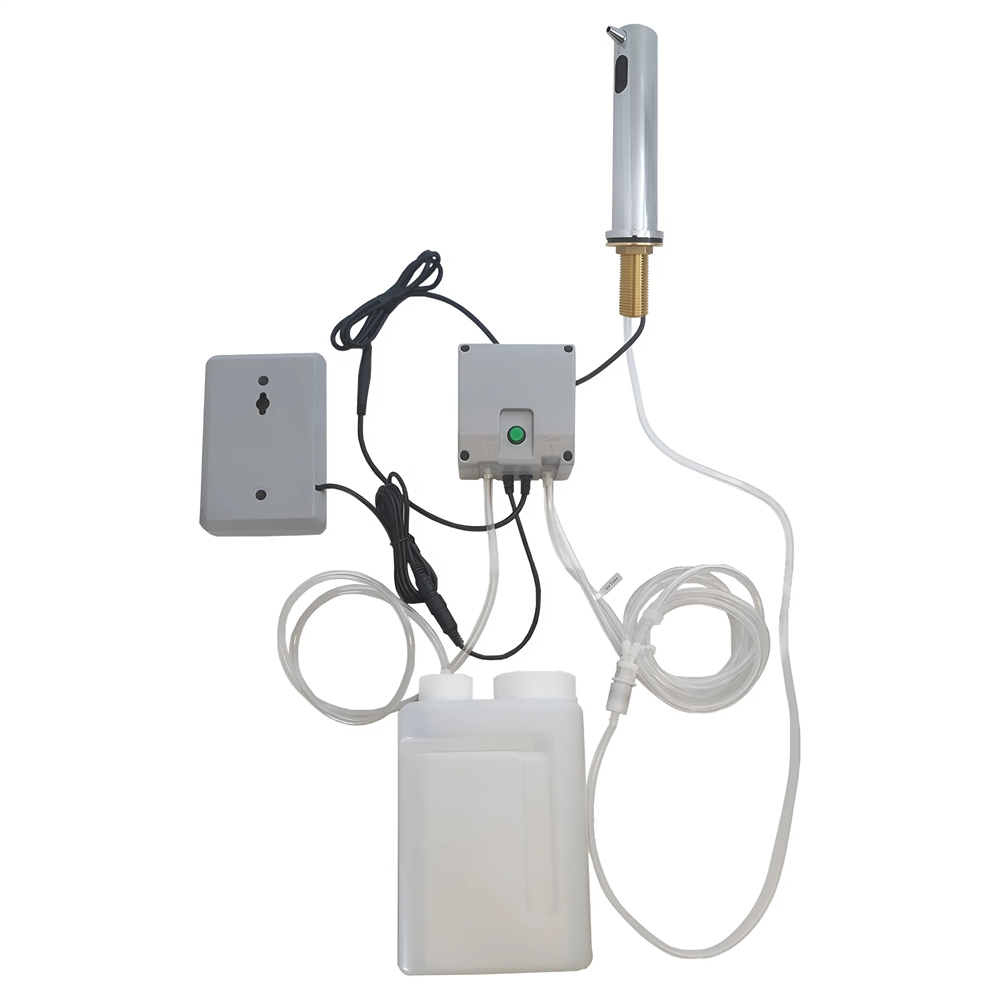

The Fontana Jesolo Control Box for Foam Soap Dispenser is an essential component designed to ensure smooth and hygienic soap dispensing in modern restroom applications. FontanaShowers® manufactures this control box, which is compatible with the Jesolo series foam soap dispenser (Model FS7090CH) and ensures consistent, touch-free performance.
With a chrome finish perfect for modern bathroom interiors, the control box features touchless operation for improved hygiene and blends well with the rest of the bathroom interior. Wall-mounted over behind panel walls, perfect for false stud walls 60mm to 100mm thick, it provides a smooth and clutter-free appearance.
Especially suited for use with foam soap products, it can deal with soap viscosities ranging from 1 to 500mPa.S with a full adjustable dispensing cycle of 0.5ml to 25ml. Adjustable sensor distance from 5mm to 150mm is also included in the control box to provide flexible and convenient use in any public and commercial environments.
It holds a capacity of 1000ml and minimizes the requirement of constant re-filling, making it a cost-effective solution for public places. The control box possesses a low power requirement of 1.2W (max ≤5W) and functions economically. It also comes with a 2-meter-long sensor cable, enabling convenient installation in any preferred position.
Built to perform in a wide temperature range (1°C to 55°C), the Fontana Jesolo Control Box provides stable operation in different conditions. Installed in offices, airports, hotels, or other commercial toilets, this unit provides a reliable and modern solution for high hygiene requirements.
Fontana Jesolo Control Box for Foam Soap Dispenser Features:
- Brand: FontanaShowers®
- Model Number: FS7090CH
- Type: Control Box For Foam Soap Dispenser
- Style: Modern
- Finish: Chrome
- Feature: Touchless
- Soap Viscosity: 1~500mPa.S
- Length of Sensor Cable: 2
- Applicable Temperature: 1~55℃
- To Be Fitted On False Stud Walls: 60mm - 100mm
- Sensor Distance: 5~150mm Adjustable
- Foam Soap Dispensing Cycle: 0.5~25ml Adjustable
- Power Consumption: 1.2W(≤5W)
- Capacity (ml): 1000ml

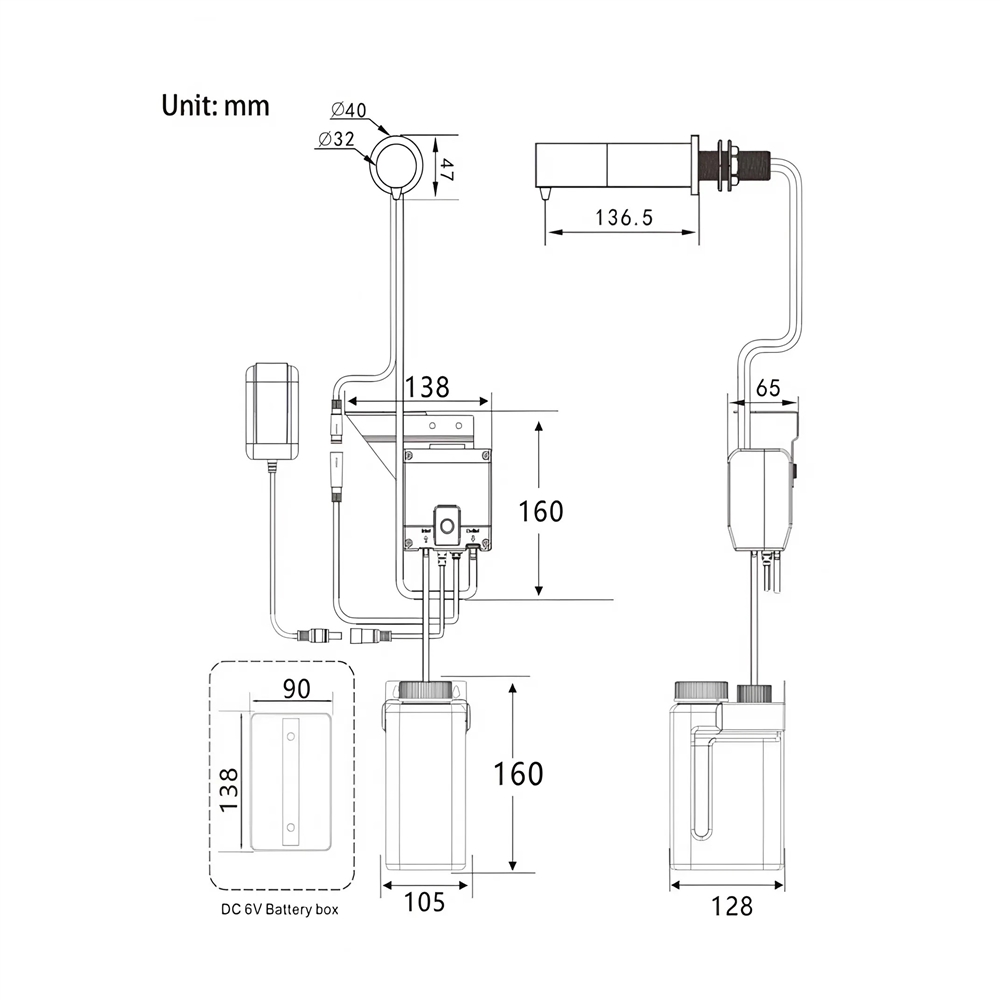

- Size: 1.85"*5.35" (47mm x 136.5mm)
