Fontana Lyon Matte Black Wall-Mounted Shower Head FAQ
2.5 GPM Verification, Wall-Arm Alignment & Rainfall Spray Balancing

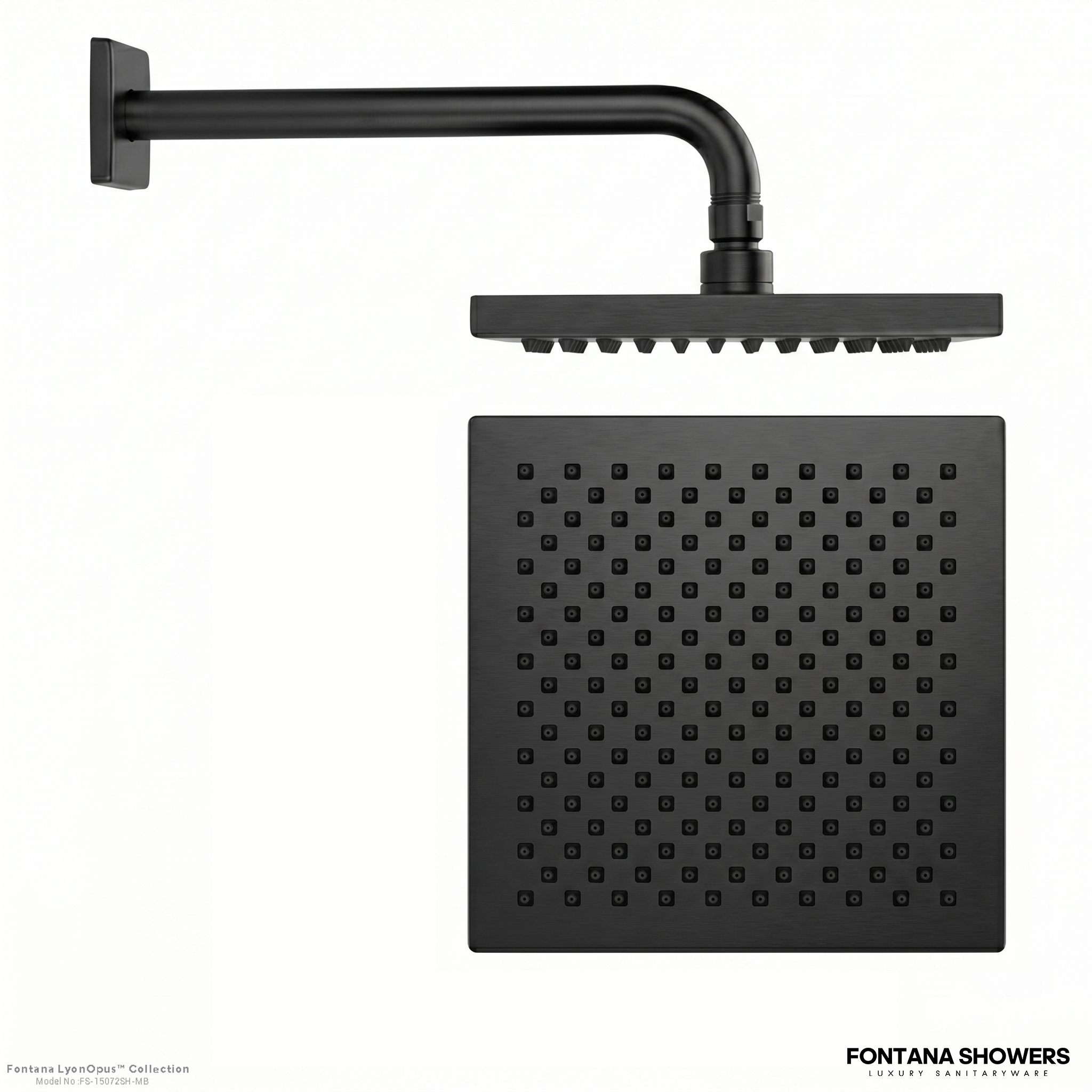

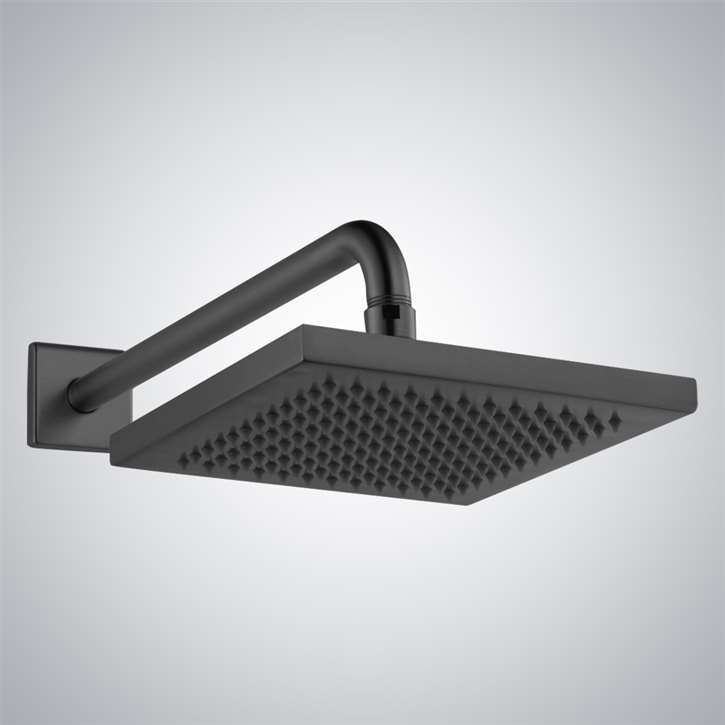

This matte black square wall-mounted shower head combines
corrosion-resistant stainless-steel construction, a 7-11/16-inch
rainfall spray face, a single-function 2.5 GPM discharge, and a
standard 1/2-inch threaded connection for modern shower installations.
How should the shower supply branch be flushed before final installation?
Remove the finished shower head and flush the wall branch until
solder residue, pipe scale, construction debris, and excess
thread-sealing compound are fully discharged. Inspect the
1/2-inch threaded outlet before connecting the finished fixture.
How should the wall arm and square spray face be aligned?
Confirm that the shower arm projects squarely from the finished
wall without lateral loading. Apply approved thread sealant
sparingly, level the square spray face, and avoid transferring
excessive tightening torque into the stainless-steel inlet body.
How should the specified 2.5 GPM discharge be verified?
Stabilize the operating pressure, purge entrained air, and perform
a timed volumetric test at the shower head. Reduced delivery may
indicate branch-line pressure loss, construction debris, mineral
restriction, or blockage within the internal flow passage.
What confirms balanced rainfall spray-face commissioning?
Verify uniform water distribution across the complete 7-11/16-inch
spray field without inactive outlets, weak perimeter zones,
pulsing, lateral jetting, or irregular droplet formation. Uneven
coverage normally requires branch flushing or nozzle cleaning.
