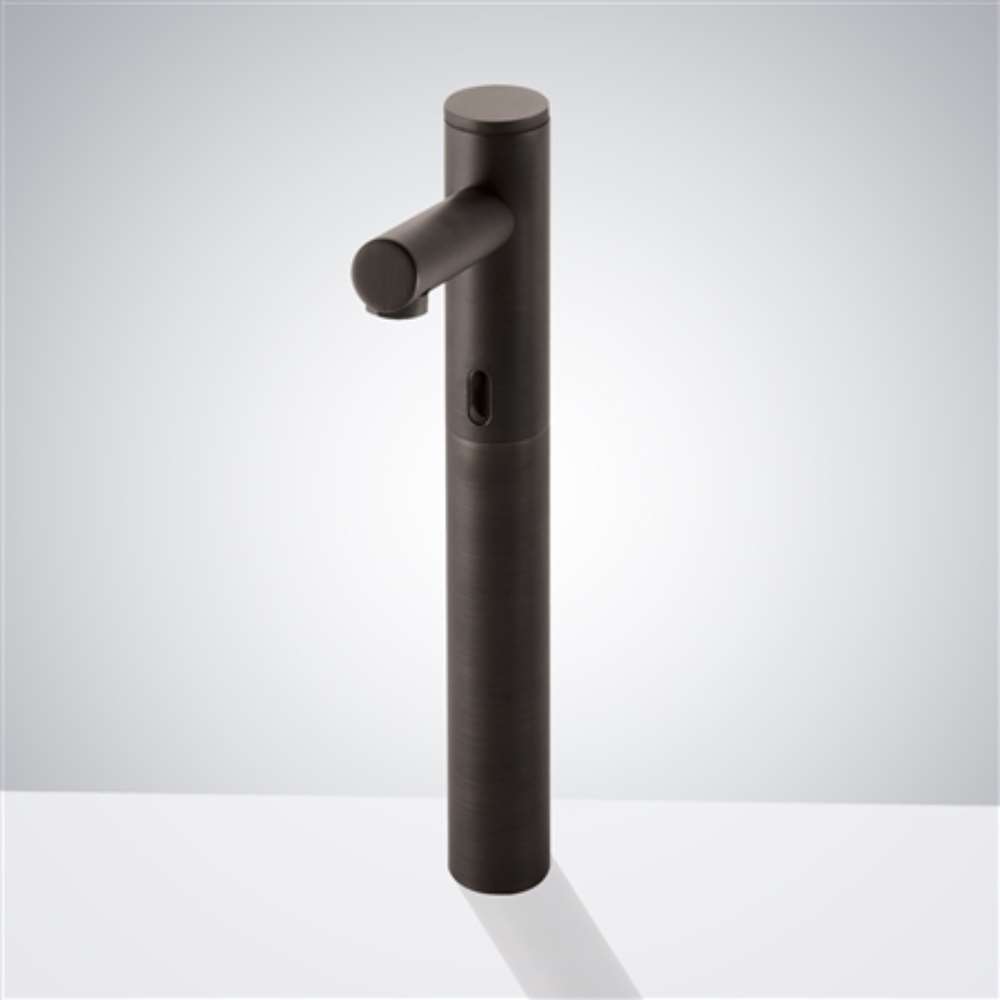

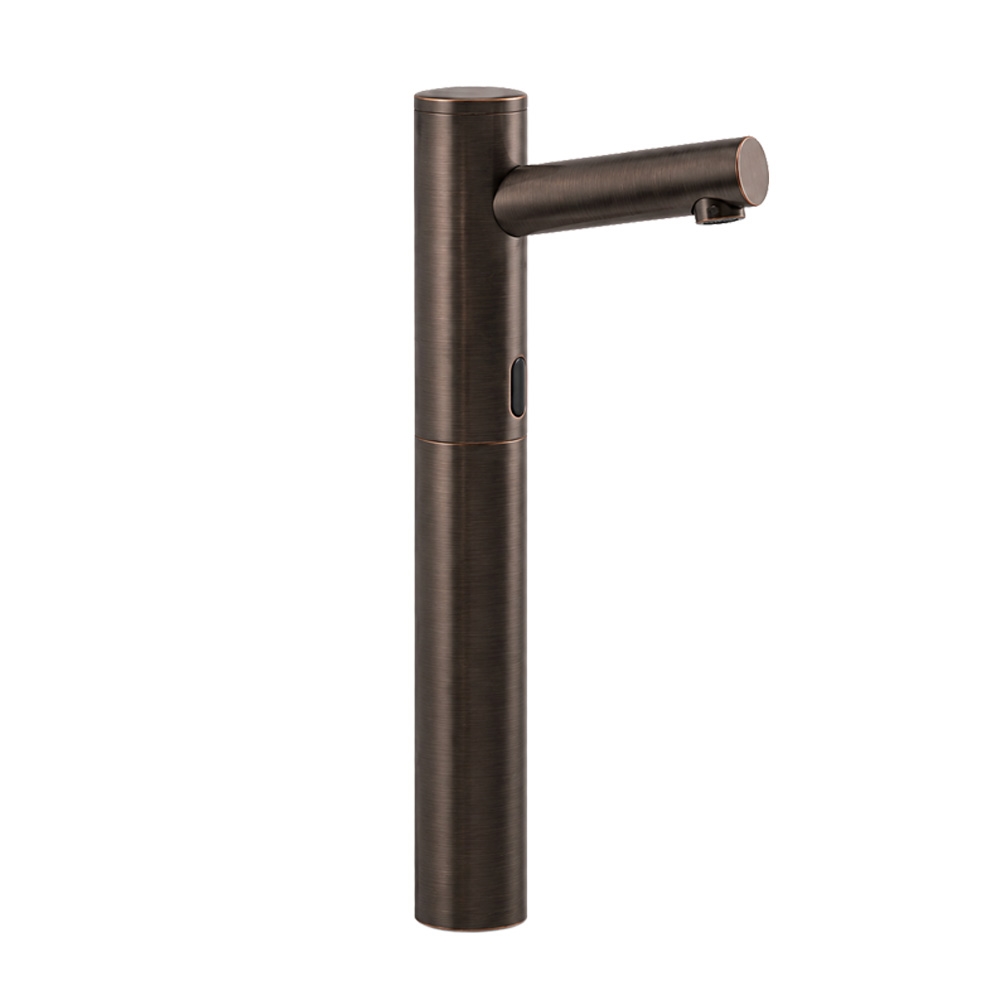

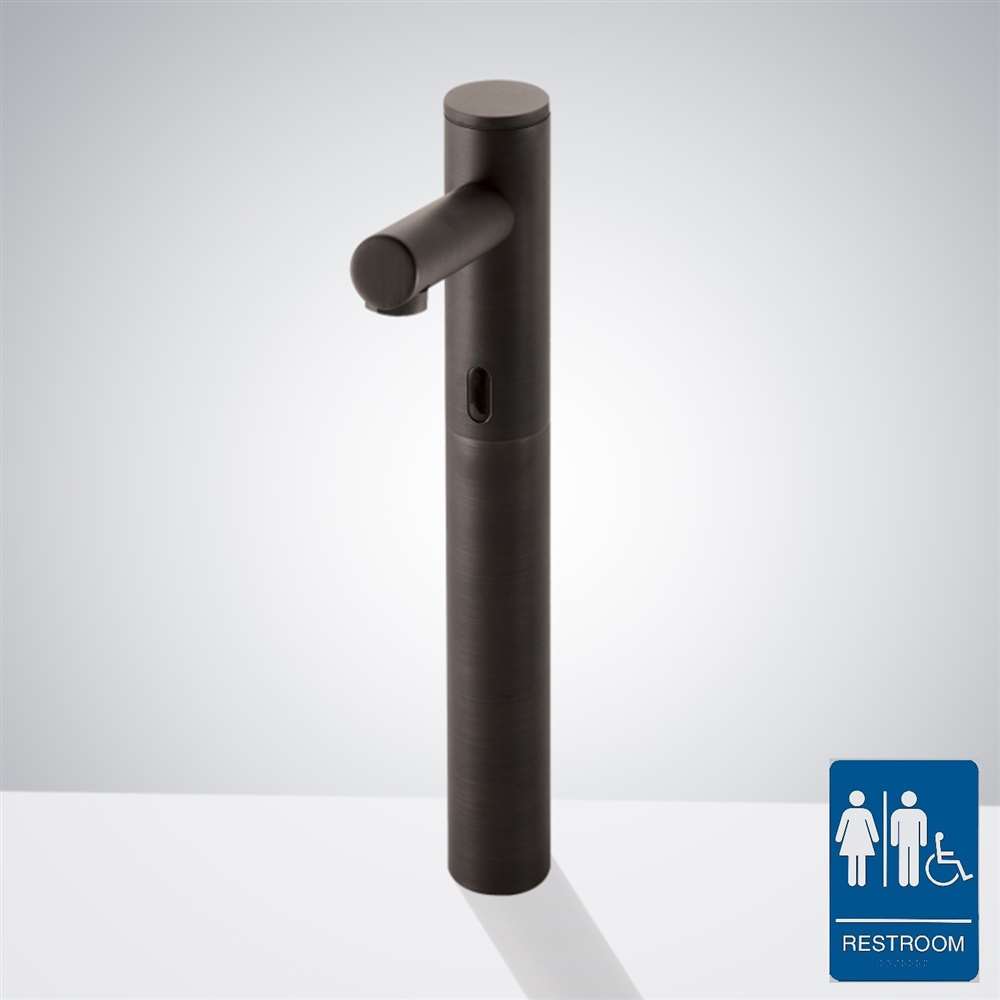

Fontana Rio Oil Rubbed Bronze Finish Commercial Automatic Sensor Faucet

Alternative Views:

Retail Price: $833.15

Sale Price: $728.92

Savings: $104.23

Price with Selected Options: $728.92

Availability: Usually Ships in 5 to 10 Business Days

Product Code: FS-AORBSFORB

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Rose Gold

Chrome

Intelligent: with its micro-computer controlling its action, the faucet can self-adjust its best detection zone as per the color and shape of the lavatory! Sensor Faucet finish is Black, with built-in Infrared AI Smart-Chip No Water Dripping Design with 100% Touch-free operation. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water by eliminating unnecessary or unattended water flow.

Solo Sensor Activated Faucet Specifications

Diameter of inlet pipe: DN15
Diameter of outlet pipe: DN15
Water Pressure: 0.05Mpa - 0.7Mpa
Power: DC.6V
Power Consumption: 0.5MW
Detection Zone: Factory set 25cm/10" (based on standard inductive board)
Ambient Temperature: 1 - 45 Â°C / 33.8 -113 Â°F
Degree of protection by enclosure: 1P56
Battery: 4 x 'AA' size cells
Operational water pressure range: 0.05 - 0.6MPa
US standard water supply pipe size: DN15 (G1/2")
Ambient temperature range: 0.1 - 45ÂºC
Sensing distance: 9.84" (25cm)
Time delay: 0.5 seconds
Operation duration: Power will automatically cut off after continuous use for 60 seconds
Pop-up drain: No
Color: Oil Rubbed Bronze Finish

Infrared sensor operated, touch-free operation

Advanced energy-saving design for long-lasting battery life

Waterproof sensor

Battery low LED light indicator

Sensing distance adjusted automatically

Long life durable body

Advanced circuit design saves electricity and water

For longevity of lifetime and to stand against daily wear and tear the black finish used is PVD coatings

Sensor Faucet Advantage

Conserves water

Saves energy during the water heating process

Hygienic, no-touch activation

Easy installation

Durable, solid all-brass construction

Built-in filter

ADA compliant Ideal for use by disabled people

Vandal resistant

Waterproof Components

automatic-faucet-rohos automatic-faucet-ceimages automatic-faucet-diagram

Fontana Rio Oil Rubbed Bronze Finish Commercial Automatic Sensor Faucet

Our Rio Oil Rubbed Bronze Sensor faucet is a brilliant solution for a specialty designed restroom being simple 90 degree shape and charming black color. Its built-in feature of 30 second shut off makes it more suitable for public places. It is appreciated for both its beauty and triple-edged savings (water, energy and cost). Its intelligent design prevents water dripping. You will also minimize waste of water, by using this automatic faucet. Manual faucets can be a breeding ground for germs and other bacterias and being completely touch-free operation means that you can avoid the mess and spread of germs entirely. This touchless faucet not only hygienic but will immediately reduces water waste by eliminating unnecessary and unattended water flow. The automatic faucet provides water only when needed. Additionally, since these faucets are preset to shut off after approximately 30 seconds, accidental flooding can't occur if a person leaves it running. And, because they are hands-free, they help reduce the spread of germs and keep the vanity area clean.

Sensor Faucet water-saving; hygienic; automatically opens and closes

to free hands - no touch, avoid bacteria mutual infections!

A great addition to powder room; kids bathroom!

This Sensor Faucet Applications; Commercial use & ADA

This faucet is shipped complete. ANSI A112.18.1M CSA Standard B125, 2.2 U.S.
GPM Complies with NSF Standard 61, Section 9
Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed All the hardware necessary for satisfactory installation

Specifications and Dimensions

Spout	Chrome Plated Solid Brass
Power	4 (AA) Alkaline Batteries or AC Adapter
Battery life expectancy	250,000 cycles
Solenoid valve	6 Volt magnet latching
Working Water Pressure	1 PSI -100 PSI
Supply Inlet Size	1/2” NPT Male
Water Temperature Control	Built-in Pop-Up Drain
Sensor type and Location	Active Infrared, Neck mount Sensor
Microprocessor	Digital, Pug And Play
Sensing Range	2” to 6”
Response Time	0.3 Second
Shut-Off Delay Time	2 Seconds
Anti vandalism maximum Running Time	60 Seconds
Particle filter size	50
Mesh Aerator	2.2 GPM Standard

Features

Touchless Motion Activated Sink Faucet Features

Fits all US standard plumbing./li>
Uses 4AA Alkaline Batteries (purchase separately).
Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi.
Motion detection touchless sensor faucet operation
Commercial use
Sensitive Sensor with Infrared AI Smart-Chip
Factory set to 30-second Auto Shutoff (can be adjusted).
Water Pressure: 0.5 - 7.0 KGS/cm , 10 - 125 psi
Solid Brass Construction, Oil Rubbed Bronze
Easy to Install - Instructions Included
Water resistant solenoid enclosure
Advanced energy saving design for long lasting battery life
Comes complete with Hoses & Accessories
Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
ADA Compliant.
Easily can be installed in new or retrofit applications.

Solo Sensor Activated Faucet Special Features

Durable Vandal-Resistant Brass Body; Ideal for commercial high use applications
Intelligent: with its micro-computer controlling its action, the faucet will self adjust its best detection zone as per the color and shape of lavatory
Flashing light indicator; a diagnostic indicators for power up, low battery, and solenoid function.
Meaning of the codes are described in the installation instructions.
Convenient to maintain; with built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
Faucet can be mount to any sink surface.
ADA Compliant.
Batteries life 8,000 cycles per month and with enough water pressure is approx 5 year service life of the batteries.
Adjustable sensing range; while the factory range is set about 4"to 5"from the sensor, it can be adjusted.
