How should the FS-1185-V vertical concealed mixer be positioned to ensure proper five-handle alignment after wall finishing?

Mount the concealed valve body plumb and securely on structural backing while accounting for waterproofing layers and finished wall thickness. Verify that all five control stems extend uniformly through the trim openings to ensure smooth handle operation and proper sealing against the finished surface.

How is the thermostatic cartridge commissioned to maintain stable outlet temperature across four shower functions?

After flushing the supply lines, stabilize the hot and cold water sources and measure outlet temperature with a calibrated thermometer while operating each shower function individually. Confirm that the thermostatic cartridge rapidly compensates for inlet pressure fluctuations without noticeable temperature overshoot.

What commissioning procedure verifies hydraulic separation between the four controlled outlets?

Operate each outlet independently and then in approved combined operating modes while monitoring flow distribution and pressure stability. Proper commissioning confirms that inactive circuits remain isolated, outlet transitions are smooth, and no internal cross-flow occurs between the four water channels.

Why should the ceramic valve core be evaluated after repeated outlet switching cycles?

Repeated cycling verifies that the ceramic sealing surfaces maintain consistent rotational resistance, accurate flow modulation, and positive shutoff under normal operating conditions. Stable performance after multiple switching sequences confirms proper cartridge seating and long-term durability.

How should the concealed G1/2-inch threaded interfaces be inspected before closing the wall?

Complete both static and flowing pressure tests after connecting every G1/2-inch inlet and outlet. Inspect each threaded connection for leakage, thread integrity, pressure loss, and pipe movement before waterproofing and decorative wall finishes are completed.

What installation practices improve hydraulic balancing within the four-function vertical mixer?

Maintain equal supply pipe sizing, minimize unnecessary fittings near the valve body, and thoroughly flush all branch lines before installing the thermostatic cartridge. Balanced hydraulic conditions improve temperature stability, outlet consistency, and overall diverter performance during simultaneous operation.

How should preventive maintenance be performed to preserve long-term thermostatic performance?

Periodically inspect inlet passages for mineral accumulation, verify unrestricted handle movement, clean exposed trim using only nonabrasive pH-neutral cleaners, and confirm thermostatic response during scheduled maintenance. Recalibrate the temperature setting whenever significant supply conditions change.

Which acceptance inspections confirm the FS-1185-V is ready for commercial operation?

Final acceptance should verify rigid concealed mounting, leak-free G1/2-inch interfaces, accurate thermostatic calibration, reliable ceramic valve performance, smooth five-handle operation, correct routing of all four shower outlets, stable temperature under varying inlet pressures, and repeatable hydraulic performance during extended operational testing.

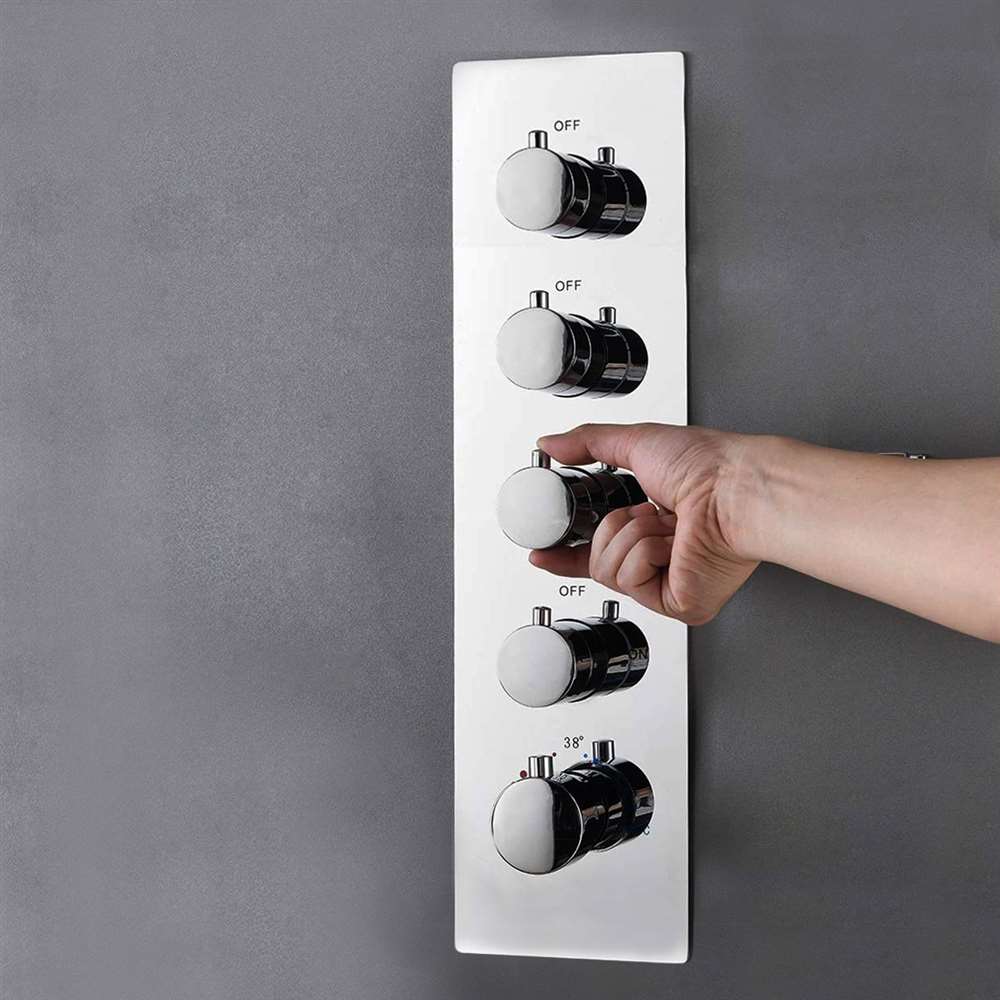

Fontana Shower Four Function Shower Mixer Thermostatic Valve

Alternative Views:

Retail Price: $1,023.54

Sale Price: $856.78

Savings: $166.76

Availability: Usually Ships in 1 to 2 Weeks

Product Code: FS-1185-V

Qty:

Description

Technical Specs

Extended Information

Fontana Shower Four Function Shower Mixer Thermostatic Valve Vertical

This Fontana Shower Mixer is capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. When it comes to new bathroom upgrades, FontanaShowers offers shape, finishes and styles that you've been looking for.

Fontana Shower Three Function Shower Mixer Thermostatic Valve Features:

Brand Name: FontanaShowers

Model Number: FS-1185-V

Type: Shower Mixer Valve

Surface Finish: Chrome

Surface Treatment: Polished

Valve Core Material: Ceramic

Type: Fixed Support Type

Feature: Auto-Thermostat Control

Style: Contemporary

Size: 201-300mm

Number of Handles: Five Handle

Type: Wall Mounted

Strong Anti-Corrosion

High Quality

Interface Thread Size: G1/2 Inch

Fontana Shower Four Function Shower Mixer Thermostatic Valve

Features

Fontana Shower Four Function Shower Mixer Thermostatic Valve Vertical

Vertical Four-Outlet Distribution, Thermostatic Regulation & Five-Handle Hydraulic Control

Designed for concealed luxury shower systems, this vertical four-function thermostatic mixer combines precision ceramic valve technology, thermostatic temperature stabilization, and independent outlet management to coordinate multiple shower functions with balanced hydraulic performance. :contentReference[oaicite:0]{index=0}

How does the vertical five-handle configuration improve shower control?

The vertically aligned controls separate temperature adjustment from individual outlet selection, allowing each shower function to be operated without affecting the preset thermostatic temperature.

What enables four outlets to operate with stable hydraulic performance?

The internal brass manifold distributes mixed water through dedicated outlet channels, reducing flow interference while maintaining balanced delivery across multiple shower functions.

How does the thermostatic cartridge respond to pressure fluctuations?

The auto-thermostatic element continuously compensates for changing hot and cold supply conditions, helping maintain a consistent outlet temperature and reducing thermal shock. :contentReference[oaicite:1]{index=1}

Why are ceramic valve cores specified for multi-function thermostatic mixers?

Precision ceramic discs provide smooth rotational control, excellent sealing performance, reduced operating friction, and dependable durability during repeated outlet selection and temperature adjustments.
