Fontana Geneva Brushed Nickel Wall-Mounted Faucet FAQ
Concealed Rough-In, Ceramic Valve Testing & 7.87-Inch Spout Alignment

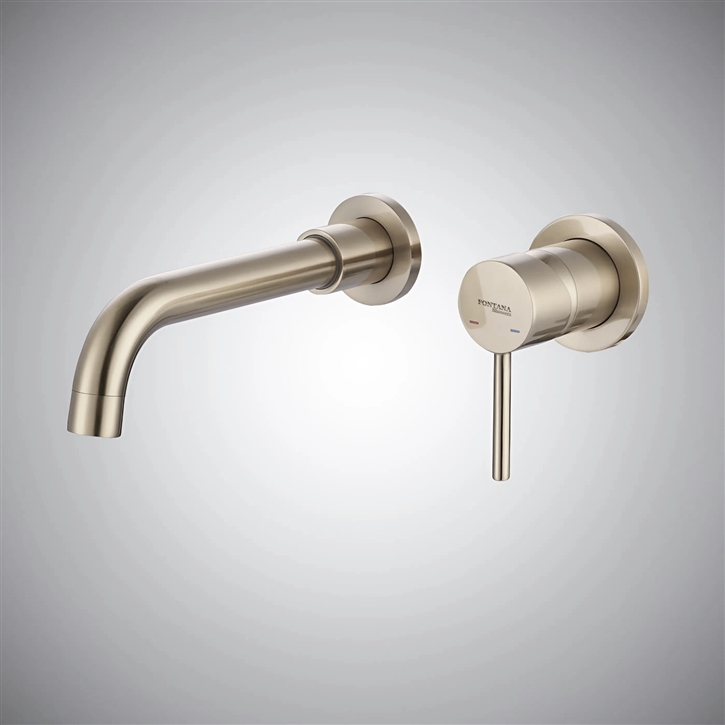

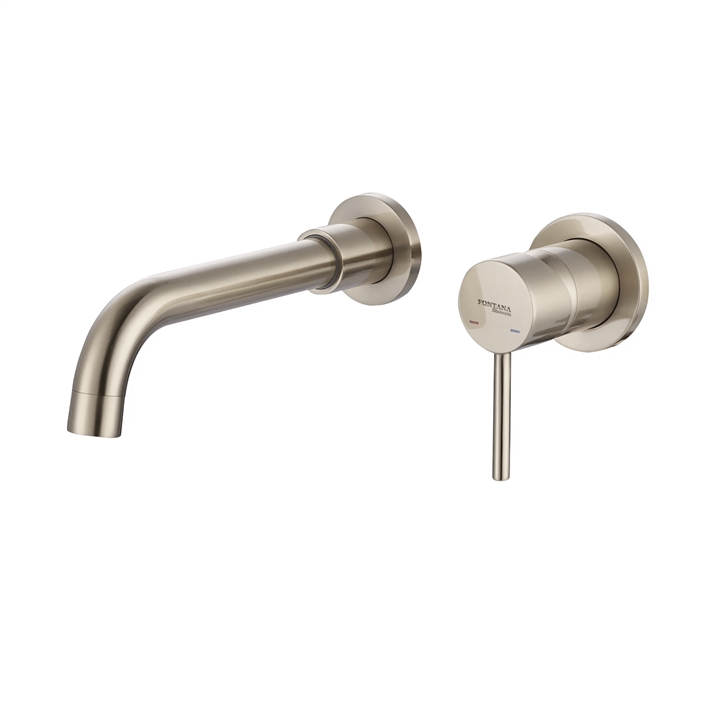

This brushed nickel wall-mounted bathroom faucet combines a concealed brass valve body,
single-lever ceramic control, hot-and-cold mixing, and a 7.87-inch projecting spout.
How should the concealed valve depth be coordinated before wall closure?
Set the brass valve body square and level within the manufacturer’s finished-wall depth range, account for tile and backing thickness, and confirm that the trim escutcheons will seat fully against the completed surface.
How should the hot and cold branches be flushed before cartridge installation?
Isolate the valve body, flush both supply branches independently until construction debris is cleared, verify correct inlet orientation, and prevent sediment from entering the ceramic mixing cartridge.
What should be verified during concealed pressure testing?
Test the inlet joints, valve-body connections, outlet branch, and temporary test plugs under static pressure before waterproofing, then inspect all concealed interfaces for seepage or pressure loss.
How should the 7.87-inch wall spout be aligned during commissioning?
Position the outlet over the basin’s effective drainage zone, confirm adequate clearance from the rear rim, test flow at normal operating pressure, and rotate the spout before final tightening to minimize splash.
