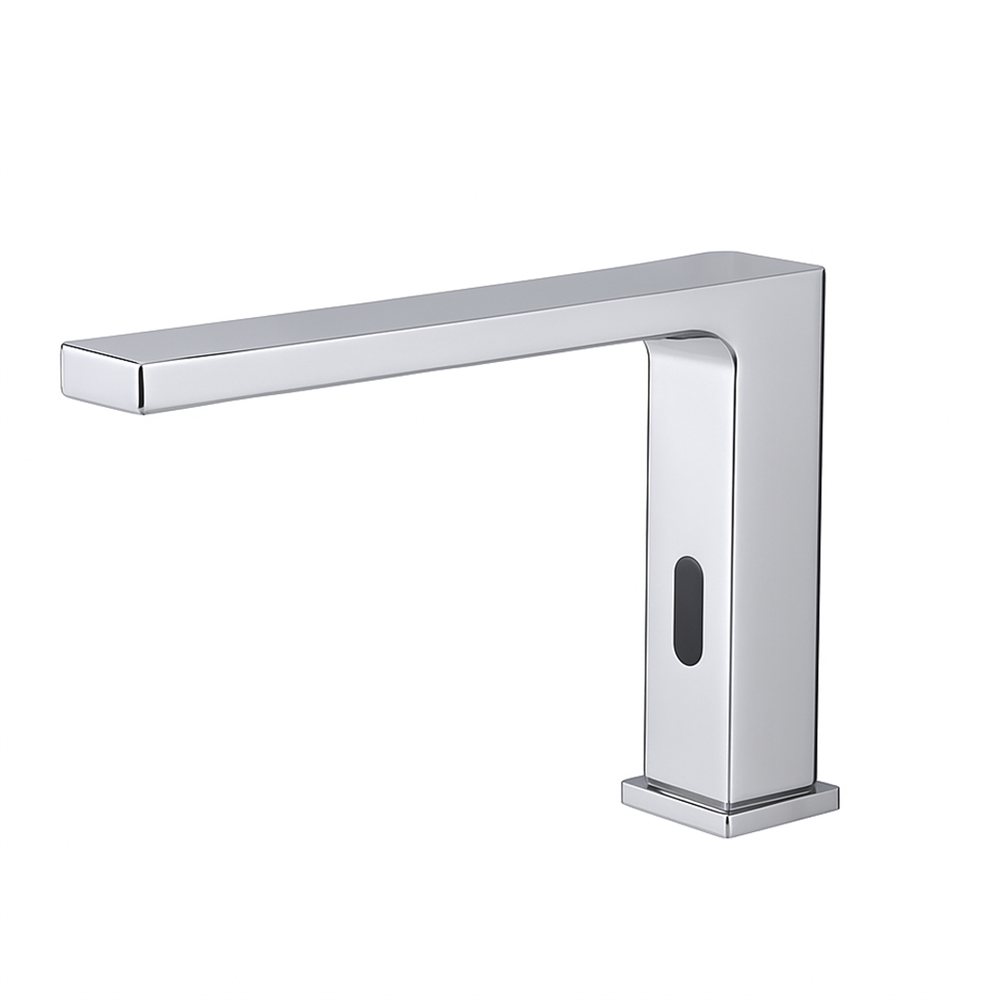

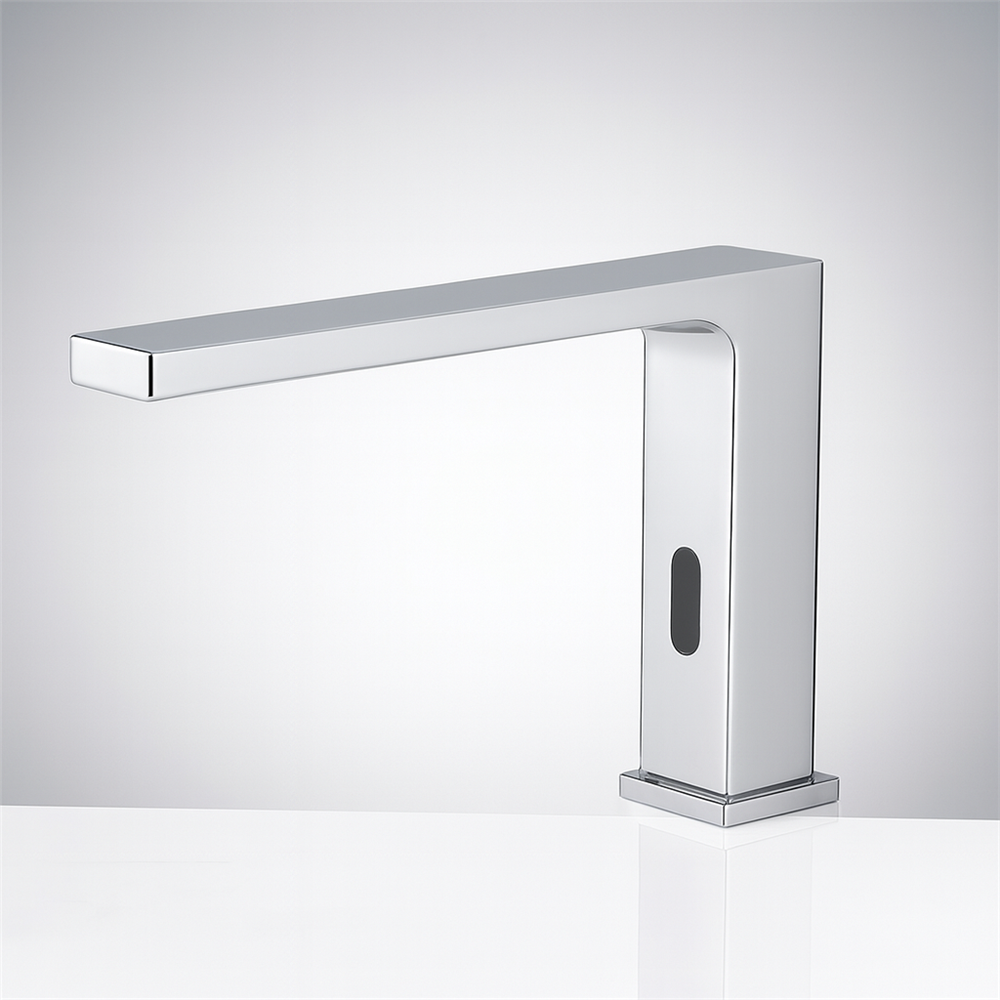

FontanaAquaVeil Chrome Touchless Deck Mounted Faucet
Enchanting with contemporary glamour, the FontanaAquaVeil™ – Chrome Pro lends refined elegance and practicality to contemporary restrooms. Solid brass construction, complemented by a stainless steel structure, makes for an essentially indestructible facility, sleek in design. The smooth chrome finish enriches any décor with classic elegance. While technically adept, the unit is truly an artefact somewhere between cheap utility and costly art. Sensor design supports hygiene by minimizing redundant touch while ensuring easy use. The waterfall stream promises to be smooth, refreshing, and elegant, not just practical. Deck mounting supports single-hole configurations for easy integration into a home or commercial setting. Hot and cold water supply mixes for individual-specific comfort, instantly accommodating one's present requirement. The power supply is of a DC-AC type that ensures uninterrupted efficiency when in use, with plural-thread compatibility providing flexibility during installations. The housing should be strongly constructed so that it is able to offer enduring durability and, hence, lasting quality in heavy traffic areas. Incorporating state-of-the-art technology, durable construction, and aesthetic design.
- Brand Name: FontanaShowers®
- Model Number: FS8090CH
- Style: Contemporary
- Type: Touchless Faucet
- Finish: Chrome
- Material: Brass/304 Stainless Steel
- Installation Type: Deck Mounted
- Hot & Cold Water: Yes
- Power Supply: DC-AC
- Thread: G1/2,G3/8,G9/16
- Number of Holes: Single Hole
- Faucet Height: 5.90"
- Spout Reach: 9.50"
Polished Chrome Deck Elegance
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
GENERAL
Where can I download BIM, spec sheet, and installation docs for AquaVeil™ (FS8090CH)?
Use the Submittal Pack links below for the Specification Sheet, BIM/Revit Family, Installation Instructions, Maintenance Guide, and Warranty. For a combined PDF, contact AEC Support.
GENERAL
Is this faucet deck-mounted and single-hole?
Yes—AquaVeil™ Chrome Elegance is a deck-mounted, single-hole touchless faucet for commercial restrooms.
GENERAL
What finish and materials are used?
Finish: polished chrome. Materials: solid brass with 304 stainless steel structure.
GENERAL
What are the key dimensions?
- Overall height: 5.90"
- Spout reach: 9.50"
Verify clearances with the spec sheet for your sink/countertop.
GENERAL
Does it support hot & cold mixing?
Yes—use an appropriate thermostatic mixing valve per local code.
GENERAL
What thread types are supported?
GENERAL
What is the warranty?
5-year product warranty coverage.
Technical FAQ
TECHConstruction & finishes
- Body: brass with 304 stainless steel structure.
- Finish: polished chrome.
- Deck-mounted single-hole installation.
TECHPlumbing & mixing
- Hot & cold inlets; ASSE-listed mixing valves recommended.
- Thread compatibility: G1/2, G3/8, G9/16.
TECHTouchless operation
Integrated hands-free sensor. Set detection range per install guidance and sink geometry.
TECHPower options
- DC/AC power supply (see spec sheet for wiring/adapter details).
- Provide a dedicated, protected circuit where required by code.
Frequently Asked Questions
Items referencing PoE/telemetry/multifeed soap apply to Smart SKUs and soap systems. FS8090CH is a touchless faucet; include those only when specified.
How do I access BIM/Revit files and CSI submittals?
Use the BIM & Spec library to download Revit families, cut sheets, and CSI docs. For a compiled submittal pack, contact our team.
Which power option is best for large facilities?
Hybrid AC/DC ensures continuity during outages or maintenance. See the Power Source guidance for selection considerations.
Do you support multifeed soap for high occupancy?
Yes. Review the Soap Capacity guide and contact us for multifeed planning and dosing recommendations.
Are fixtures compliant with accessibility & environmental requirements?
See Regulations & Certifications for ADA, WaterSense, and local code documentation.
General FAQ
Are Fontana Touchless faucets and dispensers suitable for airports, office towers, and transit hubs?
Yes—they’re engineered for heavy-duty use with vandal-resistant housings, industrial-grade sensors, and large-capacity soap systems.
What finishes are available?
A wide range of durable PVD finishes: matte black, chrome, brushed nickel, brushed gold, and bronze—each with an anti-fingerprint coating for public use.
Do they save water and soap?
Yes—laminar flow rates of 0.35–0.5 gpm reduce water consumption, while smart soap pumps minimize waste and stockouts.
How are they powered?
Mains power (100–240 VAC) with battery backup (≥400k activations). Smart versions can also use Power-over-Ethernet (PoE).
Are they reliable in bright or crowded spaces?
Yes—Time-of-Flight (ToF) sensors ensure fast, accurate detection even in direct sunlight or heavy foot traffic.
How easy is maintenance?
Front-serviceable design with common spare parts; average repair time is under 20 minutes. Recommended service interval is every 3–12 months.
Can they be integrated into our building systems?
Smart models connect to BMS platforms (BACnet, Modbus, MQTT) for monitoring usage, faults, and soap levels.
What is the warranty?
Standard 3–5 years with extended options available. Key components are rated for 1M+ cycles.
Can they be customized?
Yes—finishes, branding, flow rates, and soap types can be tailored to project needs. BIM/Revit files are available for design teams.
Technical FAQ
Design & Hardware specifications
- 316 stainless steel or dezincification-resistant brass (DZR).
- IK10 impact resistance with concealed fixings.
- PVD finishes with ≥72h salt spray testing; anti-fingerprint topcoat.
- ADA-compliant heights, reach, and knee clearances.
Hydraulics & mixing
- Flow: 0.35–0.5 gpm (laminar preferred in healthcare/food zones).
- Thermostatic mixing (ASSE 1070 or 1017) with cold-fail shutoff.
- Inlet protection: 200 μm Y-strainer; integral check valves.
Sensors & electronics
- Time-of-Flight (ToF) 940 nm emitter.
- Response time <200 ms; ambient light immunity >100k lux.
- Electronics: IP65+ sealed (IP67 for exposed dispensers).
- Conformal-coated PCBs; IEC 61000 EMC/ESD compliance.
- Locking M8/M12 connectors with gold-plated pins.
Power & backup options
- AC (100–240 VAC) with 12–24 VDC isolation.
- Battery backup ≥400k activations (AA lithium/LiFePO4).
- PoE (802.3af) option for Smart SKUs.
Soap dispensing system
- Central multifeed (5–10 L reservoir, 6–8 heads).
- Peristaltic/diaphragm pumps with non-drip valves.
- Supports viscosities 1–3,000 cP.
- Leak sensors; level sensing via ultrasonic or weight cell.
- Auto-purge and inline filtration for clog prevention.
Controls & remote management
- BLE/IR commissioning for range, dwell, purge, thermal disinfection.
- QR codes per fixture for quick configuration.
- Smart telemetry: usage counts, battery/mains status, soap levels, error codes.
- Integration: BACnet/IP, Modbus TCP, MQTT; CMMS auto-ticketing.
Hygiene & safety features
- Legionella prevention: auto-flush (24–72h cycles) and thermal shock (70 °C).
- Laminar outlets; antimicrobial PVD optional.
- Smooth, knurl-free surfaces for easy cleaning.
Maintenance & reliability
Preventive maintenance:
- Every 3 months → filters, firmware, soap purge.
- Every 12 months → seals, ToF recalibration, disinfection validation.
- Hot spares: 5–10% for solenoids, sensors, controllers.
- MTBF: controllers ≥250k hrs; solenoids ≥1M cycles; pumps ≥500k cycles.
Security (Smart SKUs)
- Secure boot and signed firmware.
- TLS 1.2+ encrypted communication.
- VLAN support and certificate-based onboarding.
Compliance & certifications
- NSF/ANSI 61 & 372 (lead-free), ADA, IPC/UPC.
- UL/ETL certified.
- WaterSense eligible flows.
- LEED/WELL credit support with EPD/HPD documentation.
Logistics & warranty
- Serialized assets with QR codes for CMMS integration.
- Centralized distribution for large-scale rollouts.
- Standard 3–5 year warranty; extended coverage available.
- KPIs: uptime ≥99.7%, soap stockouts <1%, mis-trigger rate <0.3%.
Customization & deliverables
- Finish & branding options (custom logos, engravings).
- Flow rate and soap type tuning (liquid/foam).
- Integration with third-party dashboards.
- BIM/Revit families, CAD drawings, and O&M guides included.
