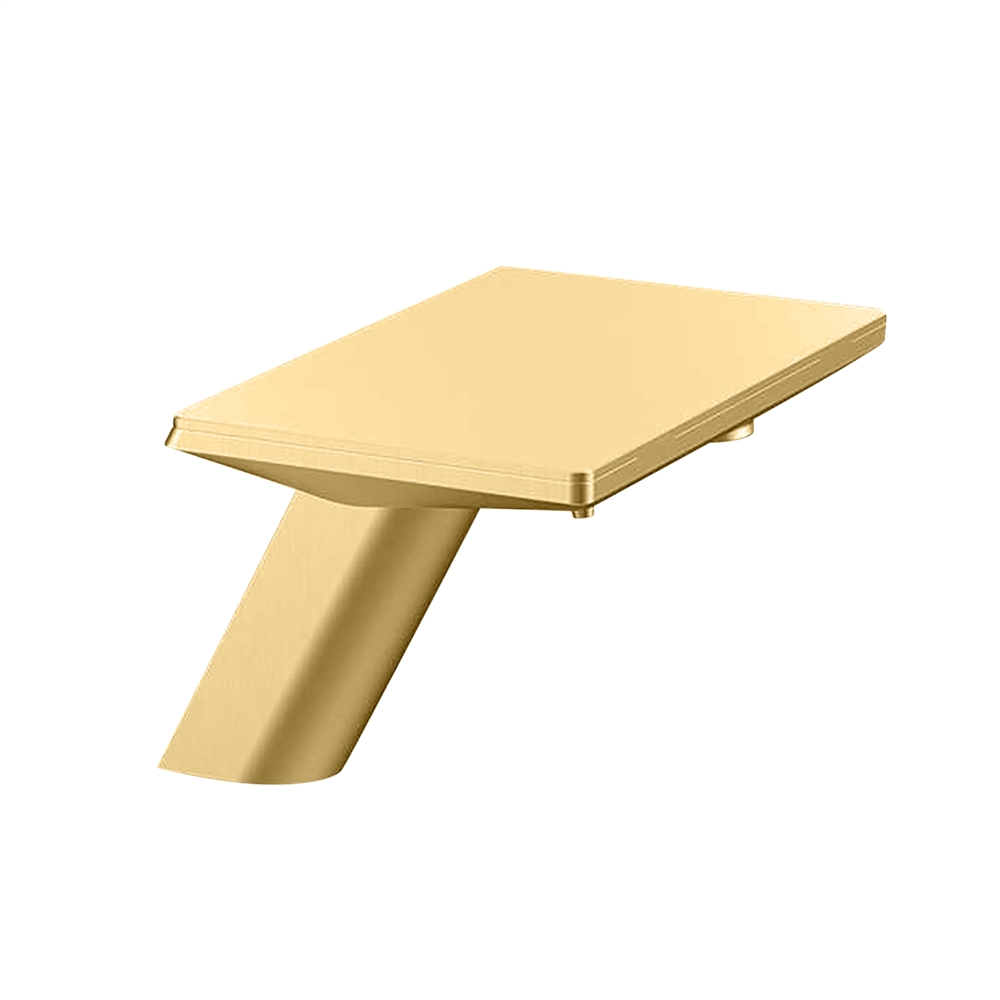

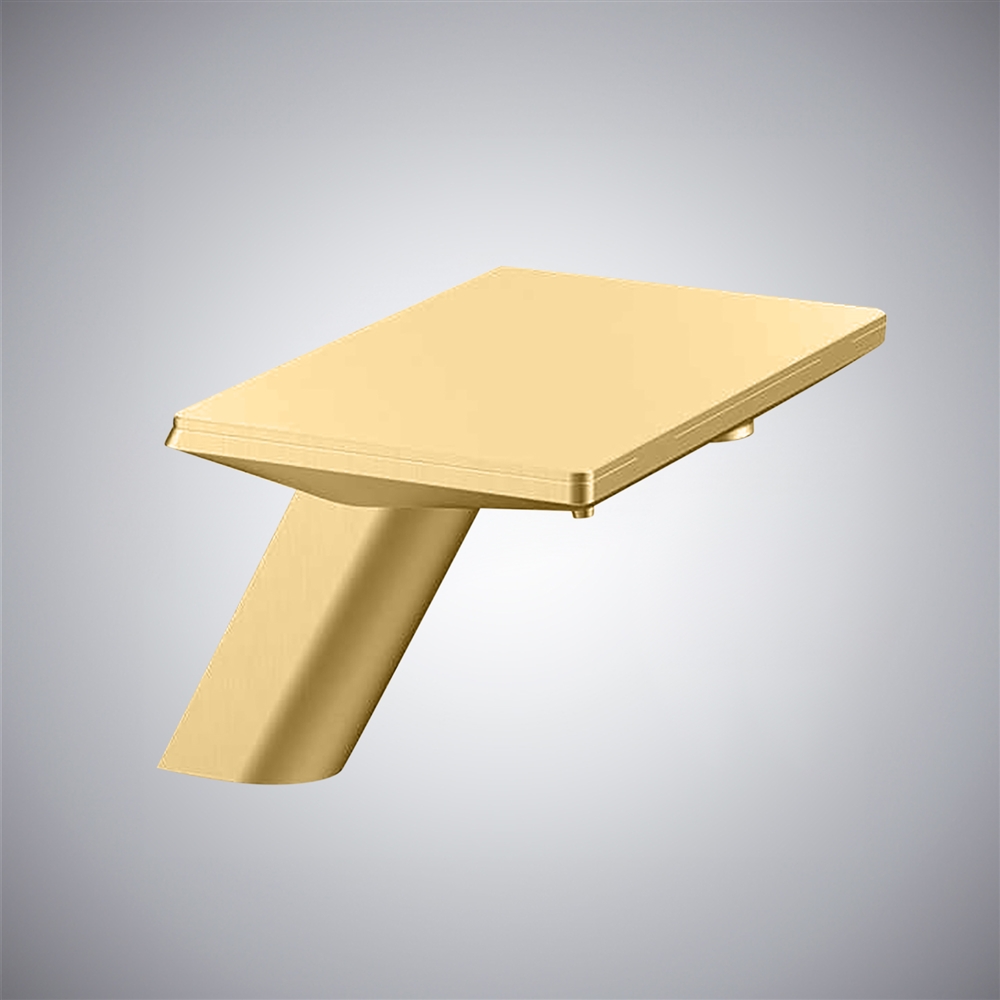

Fontana Otranto 2 in 1 Automatic Sensor Faucet with Soap Dispenser in Brushed Gold Finish
Experience an improved operation with the FontanaBlend Otranto™ in brushed gold, an elegant fixture that will improve any washroom. This one-of-a-kind dual-use unit with an integrated motion-sensing system delivers both cleansing liquid and running water to the user experience, without requiring any touches. The body of the fixture is made of solid brass, that will survive extensive daily use and will still look great. The brushed gold finish makes it the perfect fit for upscale locations like elite hotels and modern architectural styles. The angled spout and flat-top design allow for a unique, and functional form to merge with upscale interiors.
The hands-free operation makes use of infrared sensing which means the unit will consistently react to movement which provides an intuitive and efficient use of the unit, while still adding a level of hygiene for the user. The unit has a ceramic valve core to achieve reliable performance and long-term functionality that minimizes the risks of frequent maintenance. With a flow rate of 3.5 liters per minute, it provides adequate rinsing capacity without excess.

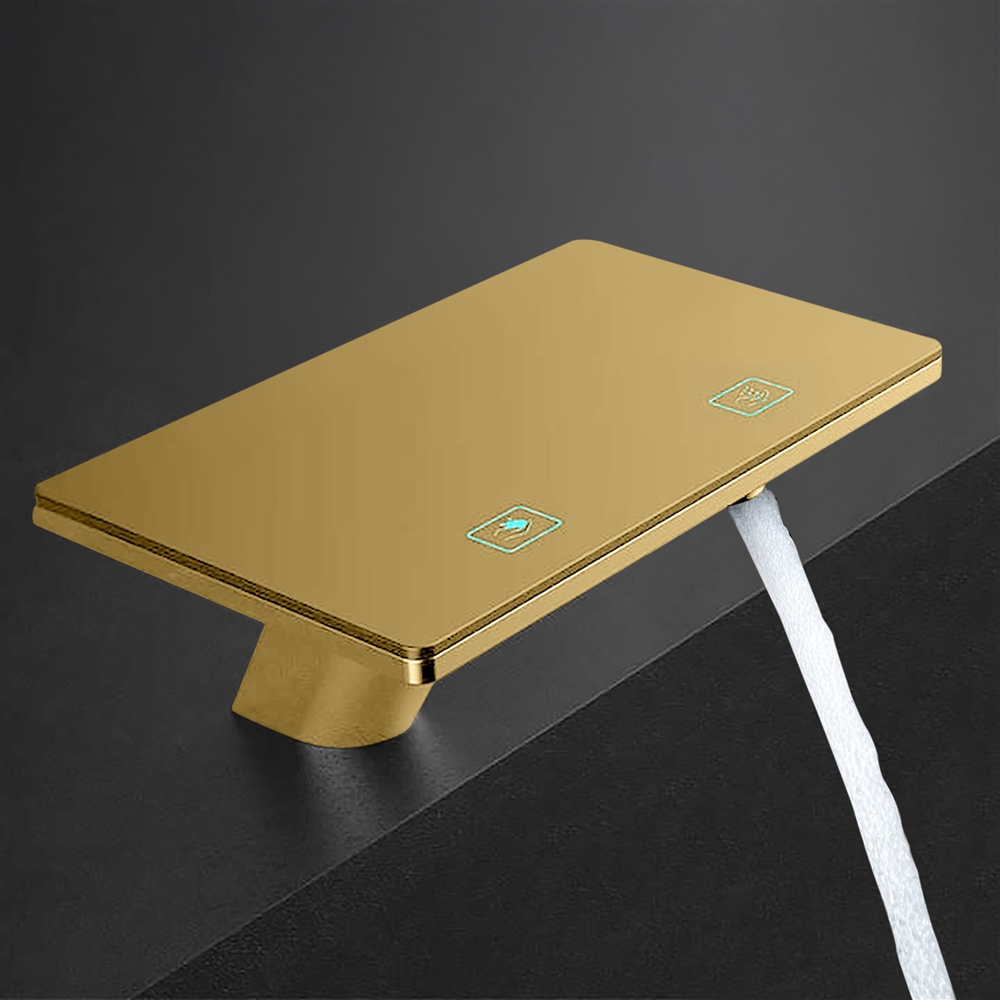

The uncomplicated plan is intended for use at a single-hole deck installation, as its purpose is to provide multiple sink configurations. The unit has LED lights to signal or indicate use with real-time feedback to the preferences of the user. This is a thoughtful feature so that use can be preferred by accessibility.
FontanaBlend Otranto™ Brushed Gold 2-in-1 Touchless Faucet & Soap Dispenser FAQ
Dual-Sensor Commissioning, 3.5 L/min Flow Verification; Brushed Gold Surface Protection
The FontanaBlend Otranto™ Brushed Gold 2-in-1 system combines solid-brass construction, infrared hands-free water and soap operation, a ceramic valve core, single-hole deck mounting, LED operating indicators, and controlled 3.5 L/min water delivery for high-traffic commercial washrooms.
How should the faucet and soap-dispenser sensing zones be commissioned?
Complete sensor testing after the basin, countertop, backsplash, mirror, lighting, and surrounding accessories are installed. Test water and soap activation independently and confirm that normal hand movement triggers only the intended function without cross-activation from the adjacent sensor, reflective basin surfaces, or nearby movement.
How should the specified 3.5 L/min water flow be verified during commissioning?
Flush the supply line before final connection, inspect the inlet passage for construction debris, fully open the service stop, and perform a timed volumetric flow test while the faucet operates under normal dynamic pressure. Restricted tubing, trapped air, sediment, or partially closed upstream valves can reduce the specified 3.5 L/min discharge.
What should be checked if automatic water shutoff or soap dispensing becomes inconsistent?
Clean both infrared sensor windows, verify stable electrical power, inspect the water-control valve and soap delivery path, and remove reflective objects from the detection zone. Construction debris at the ceramic valve, trapped air in the soap line, unstable power, or sensor interference can cause delayed activation, repeated cycling, or incomplete shutoff.
How should the Brushed Gold finish be cleaned without changing its directional texture?
Wipe the exposed surfaces in the direction of the brushed grain using a soft damp microfiber cloth, then dry them immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, steel wool, polishing compounds, metal polish, and concentrated disinfectants that may create bright or uneven areas.
- Brand Name: FontanaShowers®
- Model Number: FS7953BG
- Product Type: Touchless Faucet and Soap Dispenser
- Design Style: Modern
- Material: Brass
- Finish: Brushed Gold
- Valve Core Material: Ceramic
- Sensor Type: Infrared (Touchless)
- Flow Rate: 3.5L/min
- Installation Type: Deck Mounted
- Number of Holes for Installation: Single Hole
- Number of Handles: None
- Application: Hotel, Apartment, Hospital, Mall, Sports Venues
- Features: Dual-function sensor, LED indicators, hygienic hands-free operation
- ADA Compliant
