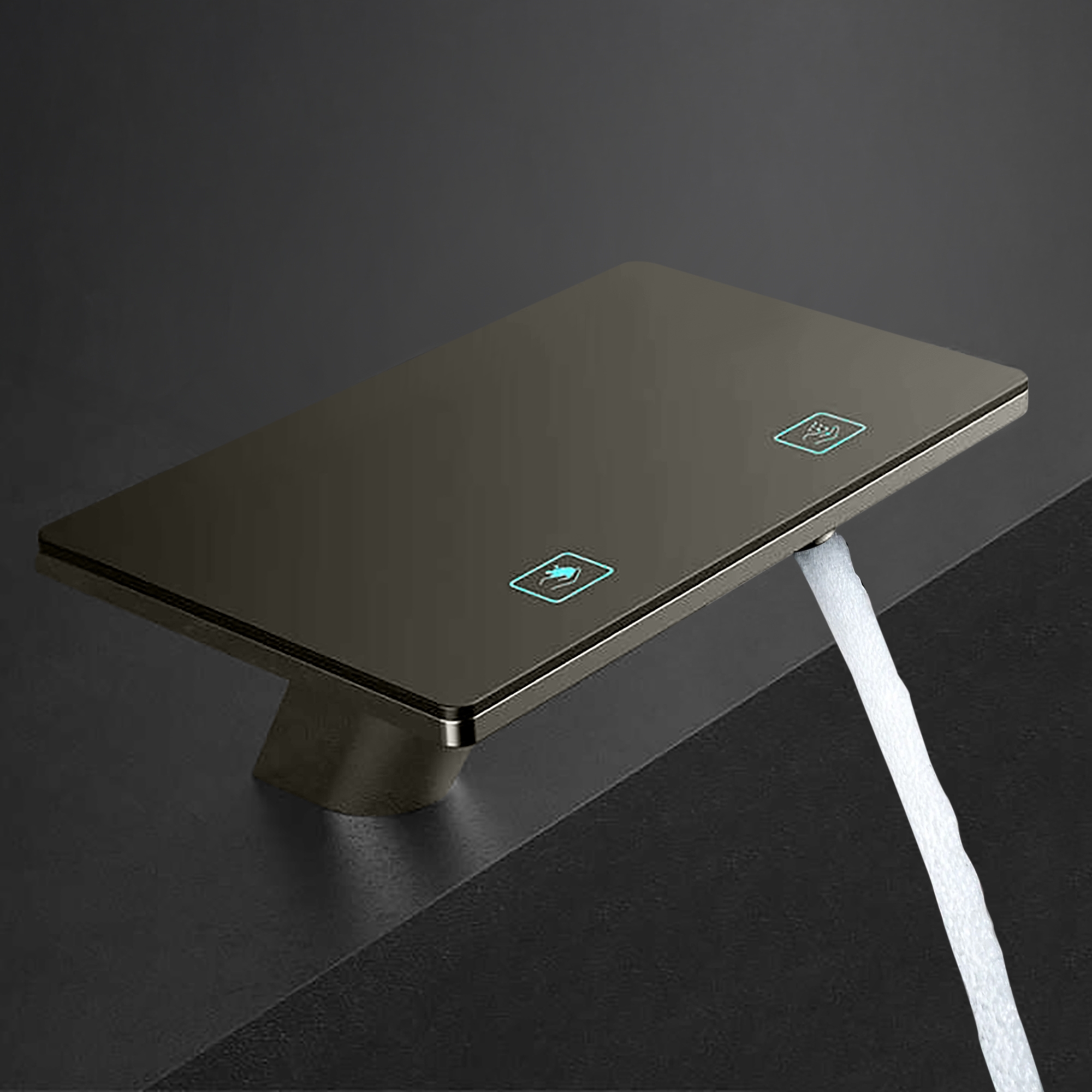

Fontana Otranto Gun Metal Gray 2 in 1 Touchless Faucet and Soap Dispenserr

The FontanaBlend Otranto IR™ in Gun Metal Gray is the best fusion of smart design and functionality by combining a faucet and soap dispenser into one single solution. The system works off a motion sensor, allowing it to be hands-free, even in hectic public environments, and it improves hygienic performance. The darker metallic coating and variation of textures provide a luxury and refined visual style for commercial interior applications. This counter mounted system features a smooth surface flat top design with LED visual indicators for easy operation. Built from solid brass and plating in a Gun Metal finish, the FontanaBlend Otranto IR™ will complement any application including hotels, retail spaces, transportation centers, healthcare environments, and residences. The infrared technology used for both water and soap is precise and contactless, keeping germ transfer low. Not only is the FontanaBlend Otranto IR™ durable and stylish, it supplies water at 3.5 litres per minute and has a high performance ceramic cartridge designed to absorb movement over time to prevent leaking. The compact setup for a single hole installation lets it fit with almost any sink height, and the lack of manual levers preserves the minimalist style of the product. Developed to support architectural coordination with controlled projection limits, standardized mounting centers, and consistent dimensional logic.

FONTANABLEND OTRANTO™ LINE

FontanaBlend Otranto Touchless Faucet FAQs

Commercial 2-in-1 infrared touchless faucet and automatic soap dispenser with solid brass construction, ceramic valve control, LED operating indicators, single-hole deck mounting, hot and cold water capability, and controlled 3.5 L/min performance.

✥ Dual Sensor Calibration Procedure? +

Complete commissioning after the basin, countertop, backsplash, mirror, lighting, and surrounding accessories are fully installed. Test the water and soap sensors independently and confirm normal hand movement activates only the intended function without cross-triggering the adjacent sensor or nearby reflective surfaces.

◇ Hydraulic Checks During Installation? +

Flush the water supply before final connection, inspect the inlet path for construction debris, verify secure fittings, and confirm the upstream service stop is fully open. Perform repeated sensor cycles under normal dynamic pressure before final commissioning.

◯ 3.5 L/Min Flow Verification? +

Verify approximately 3.5 L/min using a timed volumetric collection test under normal dynamic pressure. If output is restricted, inspect the supply tubing, service stop, inlet path, ceramic valve, and outlet for trapped air, sediment, or other restrictions.

↻ Continuous Water Flow Diagnostics? +

Clean the infrared sensor window, remove reflective or stationary objects from the sensing field, verify stable electronic power, and inspect the ceramic water-control valve for construction debris, mineral deposits, or incomplete closure if automatic shutoff becomes inconsistent.

⌁ Soap Dispenser Commissioning? +

Prime the soap-delivery circuit before final operation and test several automatic dispensing cycles. Confirm a consistent dose without dripping or delayed delivery. Check the soap line for trapped air, dried product, restrictions, or incompatible soap viscosity if dispensing becomes irregular.

⌂ Hot and Cold Water Commissioning? +

The Otranto supports hot and cold water operation. Flush both supplies before final connection, verify secure fittings and balanced water conditions, establish the required mixed-water temperature, and perform repeated sensor cycles to confirm stable temperature and flow.

⚡ LED Indicator Function? +

The integrated LED indicators provide visual operating feedback for the touchless system. During commissioning, verify that the indicators respond properly during water and soap activation and remain clearly visible under the installed restroom lighting conditions.

⌕ Routine Commercial Maintenance? +

Periodically clean both infrared sensor windows, inspect the faucet outlet and ceramic valve system, maintain the automatic soap-delivery circuit, remove mineral deposits, and verify dependable automatic shutoff. Clean decorative finishes with a soft cloth and mild pH-neutral cleaner.

‹ ›

Gun Metal Gray

Gun Metal Gray Chrome Brushed Nickel Gold Brushed Gold Rose Gold Matte Black Oil Rubbed Bronze Champagne Matte White

♧

3.5 L/Min Controlled Water Flow

◇

Solid Brass Durable Construction

⌁

Dual Infrared Water & Soap Sensors

⚙

Ceramic Valve Precision Control

◇

2-in-1 System Faucet & Soap Dispenser

• Brand Name: FontanaShowers®
• Model Number: FS7953GMG
• Style: Contemporary
• Type: Touchless Bathroom Faucet
• Material: Brass
• Color Finish: Gun Metal Gray
• Number of Holes for Installation: One Hole
• Number of Handles: Single Handle
• Features: Electric Faucets, Sense Faucets
• Faucet Mount: Single Hole
• Function: Hot Cold Water
