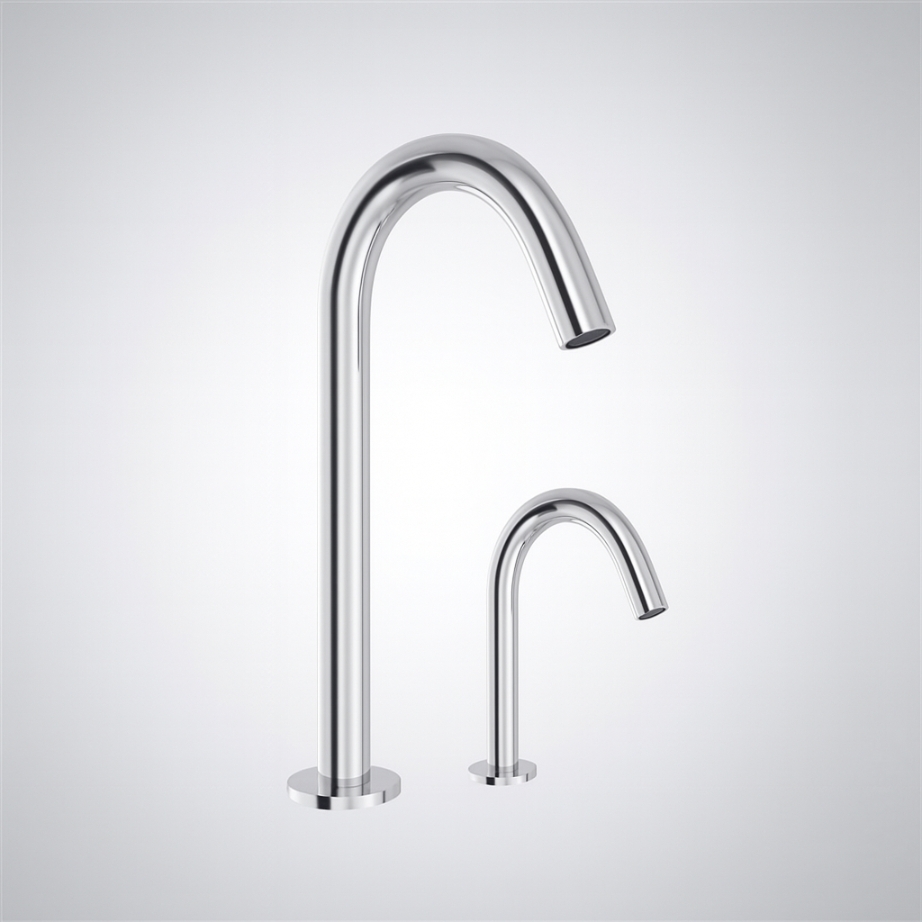

FontanaStreamSense Chrome Touch Free Faucet & Dual Sensor Soap Dispenser

Transform your commercial spaces with the FontanaStreamSense™ chrome finished touch less tap and dual sensor soap dispenser configuration, combining modern style, hygiene and convenience. This set is made from robust solid brass for maximum durability, and its chrome finish is designed for today's contemporary interior aesthetics. The touchless motion detectors in both the tap and the soap dispenser operate using infrared sensing, which provides a totally contact free user experience while maintaining hygiene. They also feature an auto shut off, that's factory set for 30 seconds but can be adjusted if needed, which conserves water while being user friendly. The FontanaStreamSense™ tutu's water pressure range (0.5–7.0 KGS/cm², 10–125 PSI) gives you the flexibility needed to maintain good performance in different plumbing situations.It comes complete with hoses, accessories and all the required add-ons minimized installation time. It can adapt to your needs with utilizing standard mains electricity, 6V battery (not included) or a 5V DC 3A power delivery service (only battery type is required for sanitary mode).Fully compliant with the ADA hygienic requirements for the modern high traffic environment modern and sterile to accommodate busy commercial service spaces including offices, hotels, hospitals, and upscale commercial spaces.

Fontana StreamSense Faucet FAQs

Dual Sensor Control, Solenoid Activation & Soap Flow Coordination

Fontana StreamSense chrome dual sensor set combines touchless water activation, automatic soap dispensing, solid brass construction, and synchronized commercial restroom hygiene performance.

How are the faucet and soap dispenser controlled independently?

Separate infrared sensors control water flow and soap dispensing, preventing cross-triggering between the faucet solenoid and soap pump.

What should be checked for sensor alignment during installation?

Installers should verify basin depth, sensor angle, user approach distance, and dispenser spacing to avoid false activation or missed detection.

How does the dual-sensor layout reduce water and soap waste?

Each sensor activates only its assigned function, allowing water and soap output to run only when user presence is detected.

What construction detail supports high-traffic restroom durability?

The solid brass fixture body improves structural strength, corrosion resistance, and long-term reliability in commercial washroom installations.

Chrome

• Brand Name: FontanaShowers®
• Model Number: FS10907CH
• Finish: Chrome
• Materials: Solid Brass
• Product Type: Automatic Faucet and Soap Dispenser
• Sensor Type: Infrared Motion Detection
• Auto Shutoff: Factory set to 30 seconds (adjustable to meet user preference)
• Compliant: ADA
• Water Pressure Range: 0.5 – 7.0 KGS/cm² (10 – 125 psi)
• Power Supply: AC 110V or DC 6V (batteries not included)
• Power Options: Dual AC/DC for flexible application
• Hoses & Accessories: Included
• Usage: Commercial
