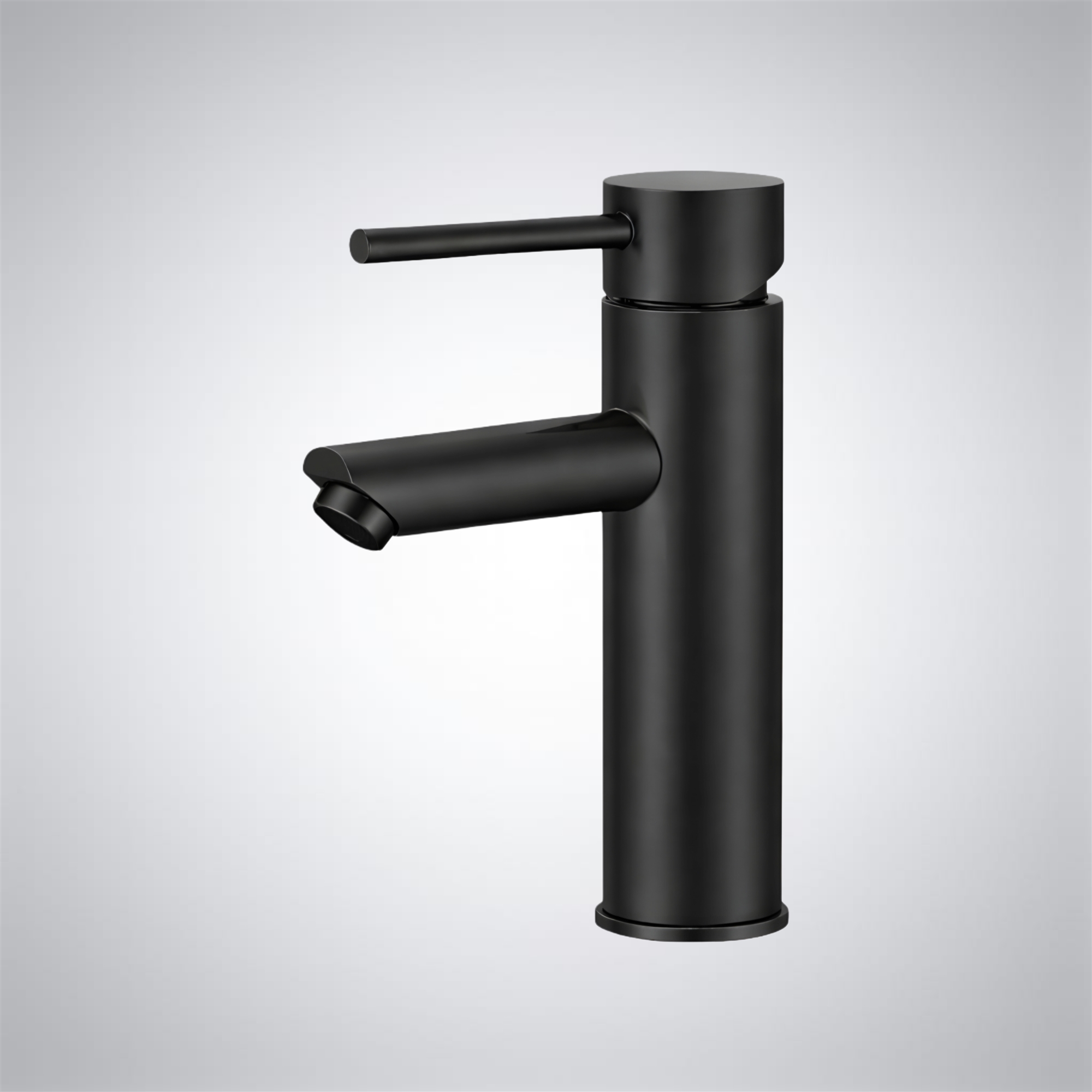

Fontana VectorOne Matte Black Architectural Deck Mount Basin Faucet

The Fontana VectorOne™ matte black architectural deck mount basin faucet is a daring linear expression that has been shaped through precision engineering, spatial discipline, and modern design intent. The angular shape gives the faucet a strong architectural character and, thus, contemporary bathroom interior designs are not only enhanced but also spread in residential and even commercial environments. The lead-free solid brass body gives the faucet a substantial weight that is a good indicator of its durability, structural support, and finally, it is reliable for a long time even with daily use. The matte black finish presents a very rich and soft tone that is easy to combine with other materials such as concrete, stone, marble, and wood or with neutral color palettes. The smooth surface also eliminates the need for continuous cleaning, thus, this looks elegant all through its long service life. As well, the deck mount configuration allows for vanities, countertops, and minimalist sink layouts to be installed without any interruption. The single hole setup not only leaves the whole thing tidy but also the flow of the area is reinforced and its mixing of the order is made easier in both compact and large designs. The single handle control is so easy to understand that it just invites you to adjust the temperature. The internal ceramic valve system guarantees no noise, no leak even in the long run, and in this case, longevity is measured by the number of cycles. The flow is very well balanced for the user to be responsible in water consumption but still, comfort and consistency are not compromised. The design philosophy is based on clarity, proportions, and architectural truth. Sculptural water ware characterized by well-disciplined geometry transforms the functional element into a statement feature.

FontanaVectorOne™ Matte Black Architectural Deck Mount Basin Faucet FAQ

Lead-Free Brass Construction, Ceramic Cartridge; 4.25" Spout Reach & Matte Black Surface Protection

The FontanaVectorOne™ Matte Black architectural basin faucet combines a lead-free solid-brass body, single-hole deck mounting, single-lever control, and a ceramic cartridge in a disciplined contemporary geometry. The fixture measures 7.56 inches in total height, with a 4.25-inch spout reach, 4.06-inch spout height, and 1.88-inch body diameter for coordinated installation with modern residential and commercial washbasins.

How should the 4.25-inch spout reach and 4.06-inch spout height be coordinated with the basin?

Establish the faucet centerline relative to the basin before drilling the single mounting hole. The 4.25-inch spout reach should position the water stream within the primary washing area without discharging too close to the rear wall, drain assembly, or front edge of the bowl. The 4.06-inch spout height should also be checked against the basin rim and bowl depth to maintain useful hand clearance while limiting splash. Final positioning should be confirmed with the actual basin rather than countertop dimensions alone.

What should be verified during single-hole deck-mount installation?

Confirm that the countertop or vanity provides a flat, structurally sound mounting surface capable of supporting the solid-brass faucet body. The 1.88-inch body diameter and mounting hardware should be coordinated with the prepared opening before installation. Keep hot and cold supply connections free from twisting or excessive tension, secure the faucet so its geometry remains square to the basin, and verify that lever movement is unobstructed by the backsplash, mirror, or nearby accessories.

What should be checked if the ceramic cartridge develops dripping or irregular control?

Flush the hot and cold supply lines before final connection to prevent construction debris from entering the ceramic cartridge. If dripping, stiffness, incomplete shutoff, or uneven temperature adjustment develops, first inspect supply valves, flexible connections, and outlet passages for restrictions. If the supply side is operating normally, isolate the faucet and inspect the ceramic cartridge for contamination, improper seating, or wear rather than applying excessive force to the single lever.

How should the Matte Black finish be cleaned without damaging the surface?

Remove fingerprints, soap residue, and water deposits with a soft damp microfiber cloth and dry the faucet after cleaning. Use diluted pH-neutral soap when additional cleaning is required. Avoid abrasive pads, steel wool, scouring powders, acidic descalers, bleach, ammonia, aggressive solvents, and metal-polishing compounds. These materials can scratch, burnish, discolor, or permanently alter the uniform appearance of the Matte Black architectural finish.

Matte Black

• Brand Name: FontanaShowers®
• Model Number: FS10663MB
• Finish: Matte Black
• Type: Basin Faucet
• Style: Contemporary
• Material: Lead Free Brass
• Installation Type: Deck Mounted
• Number of Handles: Single Handle
• Number of Holes: Single Hole
• Control: Lever
• Valve Core Material: Ceramic Cartridge
• Total Height: 7.56"
• Spout Reach: 4.25"
• Spout Height: 4.06"
• Body Diameter: 1.88"
