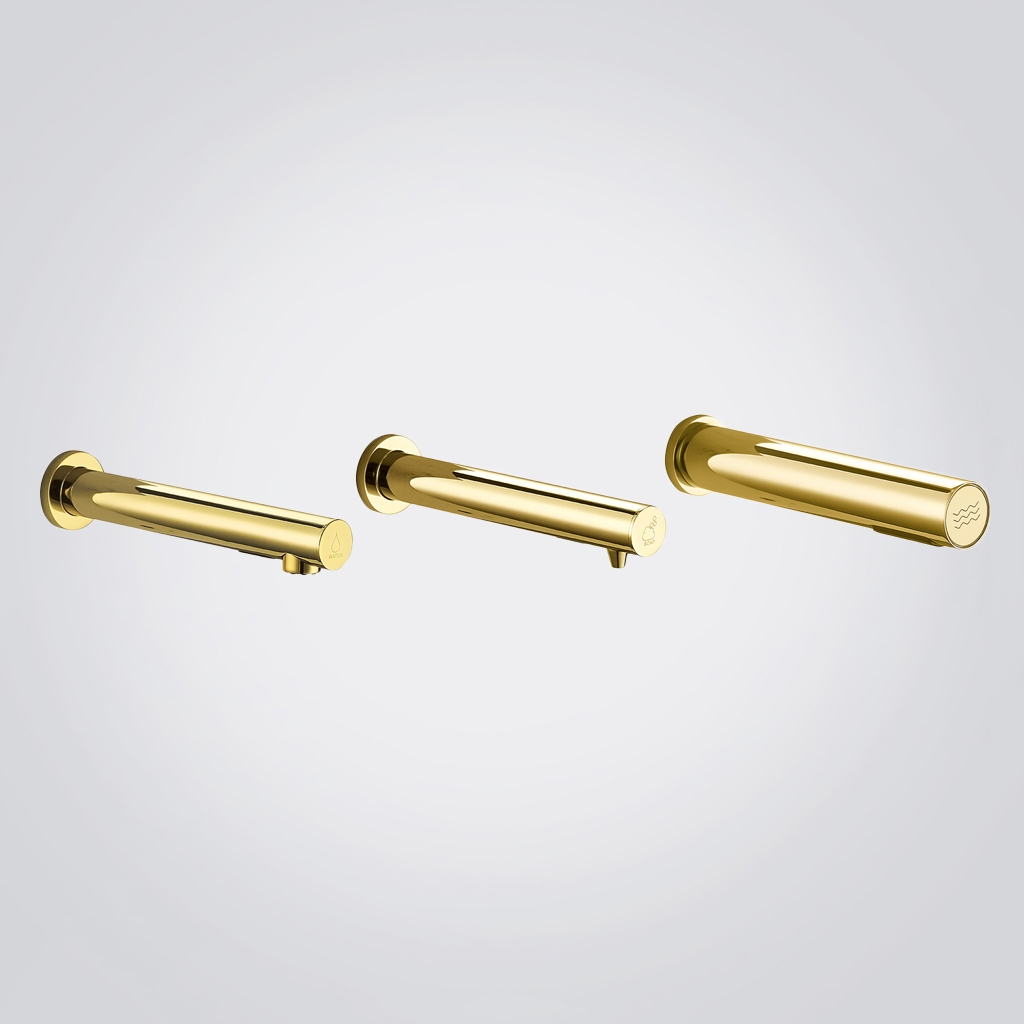

FontanaWhisperTrio Gold 3-in-1 Touchless Automatic Soap Dispenser, Water Tap & Hand Dryer
Refined innovation is to be enjoyed with the FontanaWhisperTrio™ Gold. A 3-in-1 system of the highest order, this fixture aims to bring a redefinition to restroom luxury. This one is a good design, it must integrate elegance with the soap dispenser, sensor use, and hand dryer to make hygiene easier. The beautiful gold finish will give a sophisticated touch to ultramodern interiors, more importantly, it guarantees whisper-silent operation, enhancing user experience. The technology behind the sensory functions makes it a touch-free operation, hence promoting cleanliness as well as great ease of use.
It blows air at a high speed of 95 m/s, drying quickly while the HEPA filter purifies the air. The ceramic valve core, along with the heavy-duty construction, makes it very durable and dependable even in arduous applications. In addition, it can be configured with a brushless or brushed motor and with outlets for either liquid or foam soap, catering to a wide variety of needs. Therefore, unites style, efficiency, and performance, ergo becoming the perfect solution for luxury commercial restrooms.
FontanaWhisperTrio™ Gold 3-in-1 Touchless Soap Dispenser, Faucet & Hand Dryer FAQ
95 m/s High-Velocity Drying, HEPA Filtration;
1–6 Bar Water Control & Gold Surface Protection
The FontanaWhisperTrio™ Gold 3-in-1 touchless system combines an automatic
soap dispenser, sensor-operated water faucet, and high-speed hand dryer in a
coordinated three-hole wall-mounted configuration. It features a ceramic valve
core, 1-liter soap capacity, liquid or foam soap outlet compatibility,
G1/2-inch inlet connection, 1–6 bar operating water pressure, HEPA filtration,
95 m/s dryer airflow, and approximately 70 dB operating noise measured at 2 meters.
How should the soap, faucet, and dryer sensor zones be commissioned?
Complete commissioning only after the basin, finished wall, mirror,
lighting, partitions, and surrounding restroom accessories are fully
installed. Test the soap dispenser, water faucet, and hand dryer
independently from normal hand positions and confirm that each sensor
activates only its intended function. Verify controlled soap delivery,
prompt water activation and shutoff, and reliable dryer response without
cross-triggering between the three adjacent touchless zones.
What should be checked if drying performance drops below the specified 95 m/s airflow?
Inspect the HEPA filter, air intake, dryer outlet, motor enclosure, and
internal air path for dust or restriction. A loaded filter or obstructed
intake can reduce effective airflow even while the motor continues to run.
Confirm that the wall-mounted assembly has sufficient ventilation and
service access, and inspect for loose air connections, unusual vibration,
or motor noise before replacing the dryer assembly.
How should the 1–6 bar water system and 1-liter soap reservoir be serviced?
Flush the water supply before final connection and verify that dynamic
pressure remains within the specified 1–6 bar range during faucet operation.
Maintain service access to the G1/2-inch inlet, ceramic valve, 1-liter soap
reservoir, pump, tubing, sensor wiring, and dryer components. When servicing
the dispenser, clear dried soap from the delivery path and confirm that the
selected liquid or foam outlet matches the soap type before recommissioning.
How should the Gold finish, sensor areas, and exposed outlets be maintained?
Clean exposed Gold surfaces with a soft damp microfiber cloth and dry them
after cleaning to minimize fingerprints, soap residue, and mineral spotting.
Keep all sensor windows, soap outlets, water outlets, air intakes, and dryer
discharge openings free from buildup. Use diluted pH-neutral soap when
necessary and avoid abrasive pads, steel wool, acidic cleaners, bleach,
ammonia, aggressive metal polish, and concentrated chemicals that may alter
or damage the Gold surface.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10506GL
- Style: Modern Simplicity
- Type: Touchless Basin Faucet
- Material: Stainless Steel
- Finish: Gold
- Number of Holes for Installation: Three Hole
- Features: Electric Faucets, Sense Faucets
- Function: Soap Dispenser, Faucet, Hand Dryer
- Installation Type: Wall Mounted
- Valve Core Material: Ceramic
- Surface Treatment: Polished
- OEM and ODM: Highly Welcomed
- Capacity: 1 L
- Dispenser Type: Available with Liquid or Foam Outlets
- Inlet Connection: G1 /2"
- Operating Water Pressure: 1 - 6 bar
- Available with Brushless or Brush Motor: Yes
- Filter Type: HEPA
- Air Speed: 95m/s
- Noise Level at 2m: 70db
- Application: Hotel, Apartment, Bathroom
