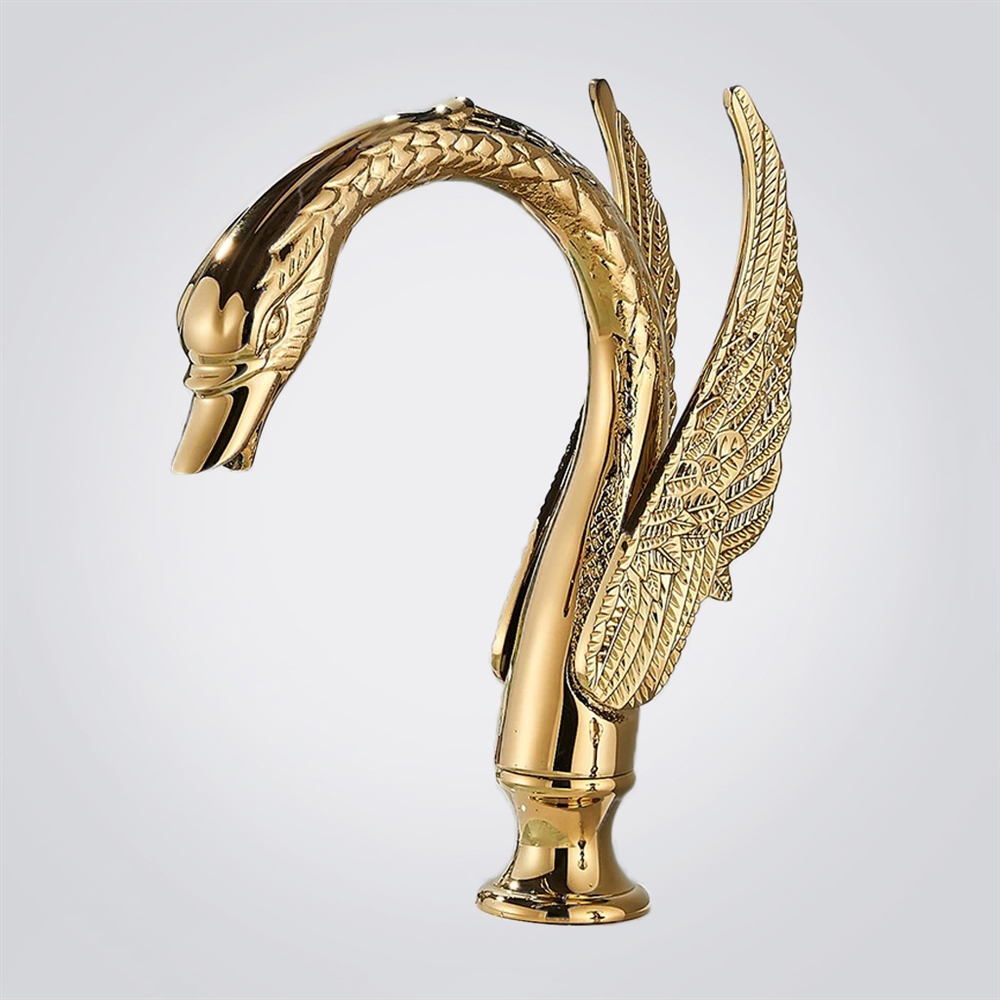

FontanaXelyra Gold Deck Mounted Swan Inspired Touchless Faucet
Casting grandeur, the FontanaXelyra™ Swan Inspired Gold Motion Sensor Faucet turns any modern restroom into a grand canvas of artistic innovation. Its lissome silhouette, reminiscent of a swan, clad in an unforgettable gold finish, becomes a showpiece of classic elegance. For commercial use, this fixture combines touchless operation with materials that withstand the rigors of time for easy cleaning, convenience, and lasting performance.
Machined from solid brass, this faucet exudes the style that fine plating brings to high-end interiors, appealing to the cognoscenti. Designed to complement any project in a myriad of architectural styles, installation is simply a matter of mounting the faucet through a single hole in the deck. Functionality remains unimpeachable with a water pressure range of 0.05Mpa to 0.8Mpa. The flow rate is restricted to 1.58 gallons per minute to encourage water savings without any loss of comfort. Exhibiting a perfect balance between form and function, FontanaShowers is a tribute to the company's commitment to making sensor-enabled products symphonies of visual elegance alongside the latest innovations in bathroom technology.
FontanaXelyra™ Gold Swan Inspired Deck Mounted Touchless Faucet FAQ
Motion Sensor Activation, 1.58 GPM Flow Stability;
Gold Surface Protection
The FontanaXelyra™ Gold Swan Inspired Touchless Faucet combines solid-brass
construction, single-hole deck mounting, motion-sensor activation, a controlled
1.58 GPM / 6 L/min flow rate, and reliable operation across a 0.05–0.8 MPa
water-pressure range. Its sculptural swan-inspired geometry provides a
6.69-inch overall height, 4.92-inch spout length, and 3.93-inch spout height
for luxury commercial and architectural washroom applications.
How should the motion-sensor detection zone be commissioned?
Complete sensor commissioning after the basin, countertop, backsplash,
mirror, lighting, soap accessories, and surrounding fixtures are fully
installed. Perform repeated activation tests from normal hand-washing
positions and verify prompt water delivery followed by complete automatic
shutoff. Check reflective stone, mirrors, metallic accessories, cleaning
activity, and nearby movement to ensure objects outside the intended
sensing area do not create false triggering.
How should the specified 1.58 GPM flow rate be verified?
Flush the supply piping before final connection, fully open the service
stop, and verify that dynamic water pressure remains within the specified
0.05–0.8 MPa range. Perform a timed volumetric flow test under normal
operating pressure to confirm approximately 1.58 GPM / 6 L/min delivery.
Restricted tubing, accumulated sediment, trapped debris, or a partially
closed upstream valve can reduce the specified flow even when the sensor
and automatic valve continue to operate normally.
How should the 4.92-inch swan-style spout be coordinated with the basin?
Position the single mounting hole so the 4.92-inch spout projection directs
the stream toward the primary washing zone and basin drain. Confirm the
actual stream landing point under operating pressure before final tightening.
The 3.93-inch spout height and 6.69-inch overall faucet height should provide
comfortable hand clearance while preventing the stream from striking the
rear bowl wall, drain fitting, or shallow basin edge and creating excessive splash.
How should the Gold finish and sensor surface be cleaned?
Remove fingerprints, water spots, soap film, and mineral residue using a
soft damp microfiber cloth and dry the exposed Gold surfaces immediately.
Keep the motion-sensor area clean so deposits do not interfere with reliable
detection. Use diluted pH-neutral soap only when necessary and avoid
abrasive pads, acidic descalers, bleach, ammonia, steel wool, polishing
powders, aggressive metal polish, and concentrated disinfectants that may
scratch, discolor, or alter the Gold surface.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS47820GL
- Type: Motion Sensor Faucet
- Style: Contemporary
- Finish: Gold
- Number of Holes: Single Hole
- Installation Type: Deck Mounted
- Material: Brass
- Water Pressure: 0.05Mpa-0.8Mpa
- Water Flow: 1.58 gallons per minute/6 liters per minute
- Usage: Commercial
- Faucet height: 6.69"
- Spout length: 4.92"
- Spout height: 3.93"
