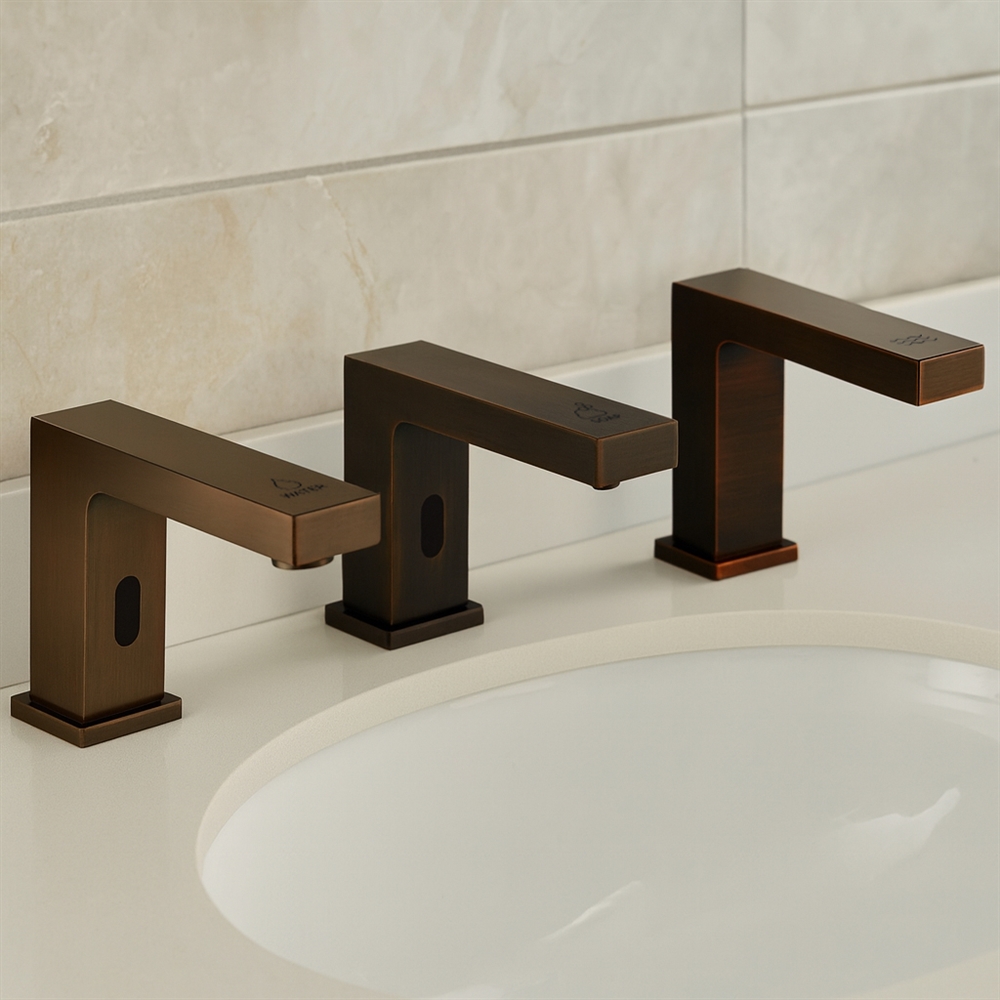

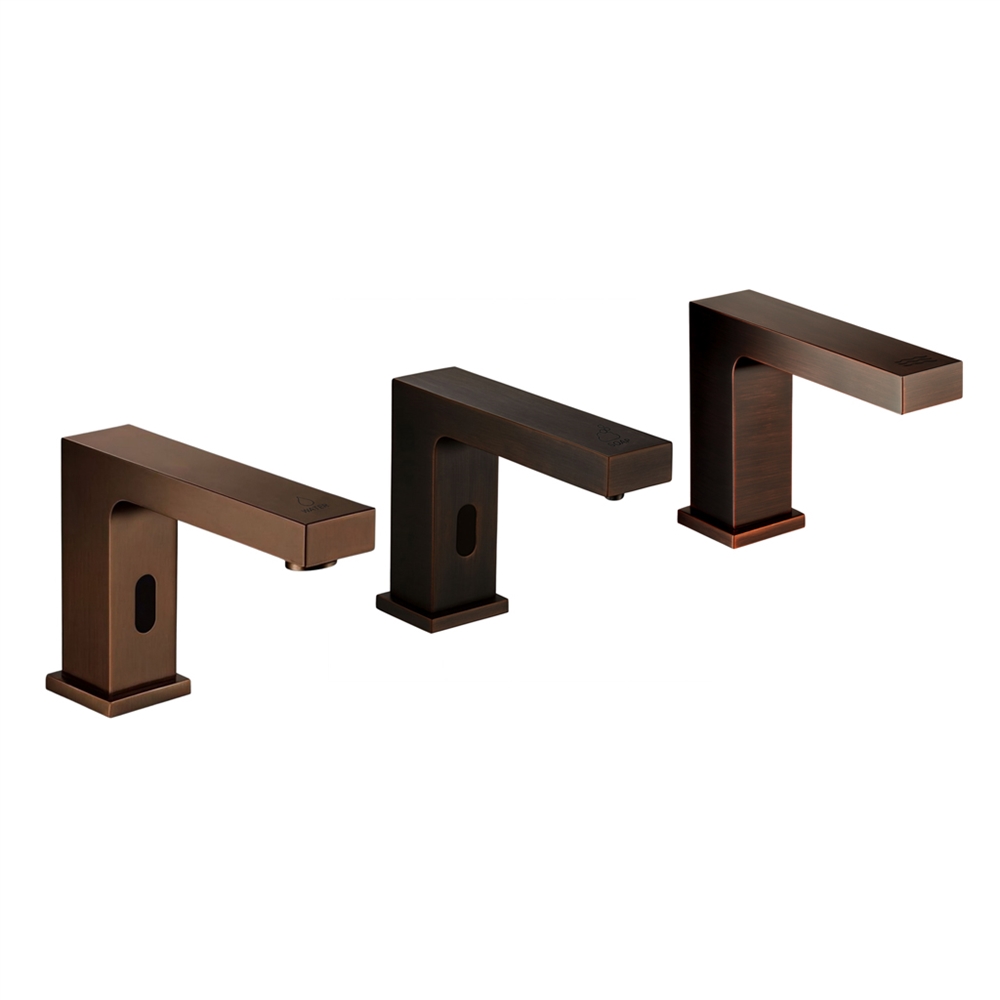

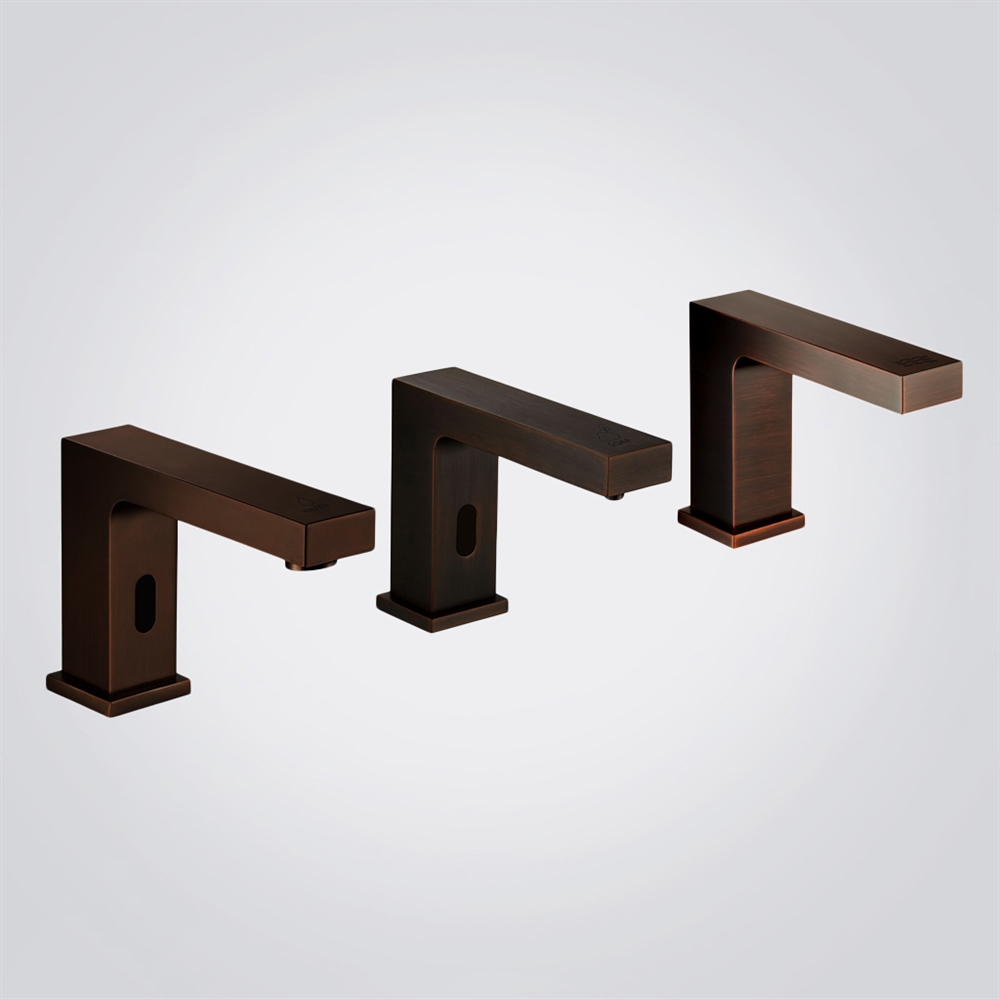

Fontana HarmonyTrio™ Oil Rubbed Bronze Auto Trio offers a design that combines premium quality, convenience, hygiene, and decor in one integrated unit. Constructed of solid brass with an oil rubbed bronze finish, this deck-mounted set contains a touchless faucet, automatic soap dispenser, and high-speed hand dryer. The HarmonyTrio™ offers a complete, sleek solution for a modern restroom. The faucet works efficiently at water pressure between 0.05-0.6 MPA and will operate in a temperature range of 0.1-50°C.
The dispenser has a 1L capacity, which means you will refill less frequently. The high-speed dryer has a brushless motor that operates at 38,000RPM, allowing for an airspeed of 90m/s, which will dry hands in just 10-15 seconds at a comfortable operating air temperature of 30-40 °C,C producing low noise levels to meet the requirement of being ADA compliant at 75dB or lower. All units are energy-efficient, using only 1 W in standby and offer HEPA-filtered airflow as well. Each piece is compactly sized at a tap height of 4.92 in, dispenser 4.92 in, and a high-speed dryer at 5.91 in tall with appropriately sized motor cases. Durable construction combined with the timeless design will provide a stylish, practical, and seamless upgrade for your restroom.
Fontana HarmonyTrio Bronze FAQs
Independent Sensor Zones, HEPA Drying & Integrated Power Control
Fontana HarmonyTrio oil rubbed bronze wash station integrates touchless water delivery, automatic soap dispensing, HEPA-filtered hand drying, solid-brass construction, and AC/DC-compatible commercial control.
How are accidental cross-activations between functions prevented?
The faucet, soap dispenser, and hand dryer use dedicated sensing zones, allowing each module to respond independently without activating adjacent functions.
Which hydraulic conditions support reliable faucet activation?
The faucet is engineered for 0.05–0.6 MPa supply pressure and water temperatures from 0.1–50°C, supporting stable sensor-controlled flow across commercial plumbing conditions.
How does the dryer achieve a 10–15 second drying cycle?
A 38,000 RPM brushless motor generates approximately 90m/s airflow at 30–40°C, while HEPA filtration helps clean the intake air before discharge.
What electrical provisions should be coordinated during installation?
The station supports 220–240V AC operation with DC6V compatibility, a 1300W dryer load, 50Hz frequency, and approximately 1W standby consumption.
