How to install Fontana Dijon Rainfall Style Stainless Steel Massage Shower Panel With Handheld Shower, Massage Jets System And Waterproof 12-Inch TV | FS-15065SP
Installation Instructions for Bathroom Shower Panel
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Panel Installation Instructions
Size:
Step 1:
shower
Step 2:
Step 3:
Step 4:
Step 5:
Step 6:
IMPORTANT Before drilling any holes for the shower panel brackets, ensure there are no hidden cables or pipelines aligned with the desired drilling position.
Drill the two holes for the top bracket 1” apart at the desired height. Drill the two holes for the bottom bracket 1” apart at approximately 45” below the top bracket. Insert the wall anchors into the pre-drilled holes as shown in Figure B. Place the shower panel brackets aligned with the drilled holes and using a Philips screw-driver tighten the screws to secure the brackets.
Insert the shower wand holder through the pre-drilled hole on the shower panel. Install the water supply hose for the shower wand onto the holder, as shown. Make sure all O-rings are inserted to prevent leakage. Once the shower panel is fully installed and hung on the bracket, you can install the shower wand hose to the holder connection. Finally, install the hand shower to the hose. Screw the cold and hot water hose from the shower panel to the supply lines in the wall. Carefully hang the shower panel on the secured mounting brackets.
Functions: 12 inch screen Waterproof Wireless Bluetooth Video display USB port 2 stereo speakers 12V power supply Remote control Integrated seat Led Precipitation Shower Head Massage Jets Hand Shower
Model
FS-15065SP
Material
304 Stainless Steel
Size
2100*320(mm) / 11.8" - 78.7" inches
Color
Rose Gold
Surface Finished
Polished
Description
Four Handles for control
1.5m S/S flexible hose and 40cm S/S cold and hot hose
Valve Core:Cooper and Ceramic
ABS Hand Shower
Special Features
Two Big Area High Pressure Back Massage Nozzles
High Pressure Big Area Top Shower with LED Lights
Four Small Pcs Massage Nozzles

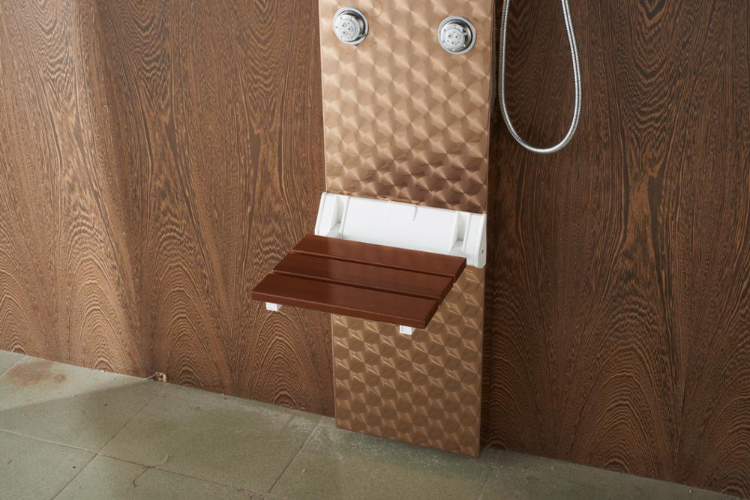

Wooden Shower Seat

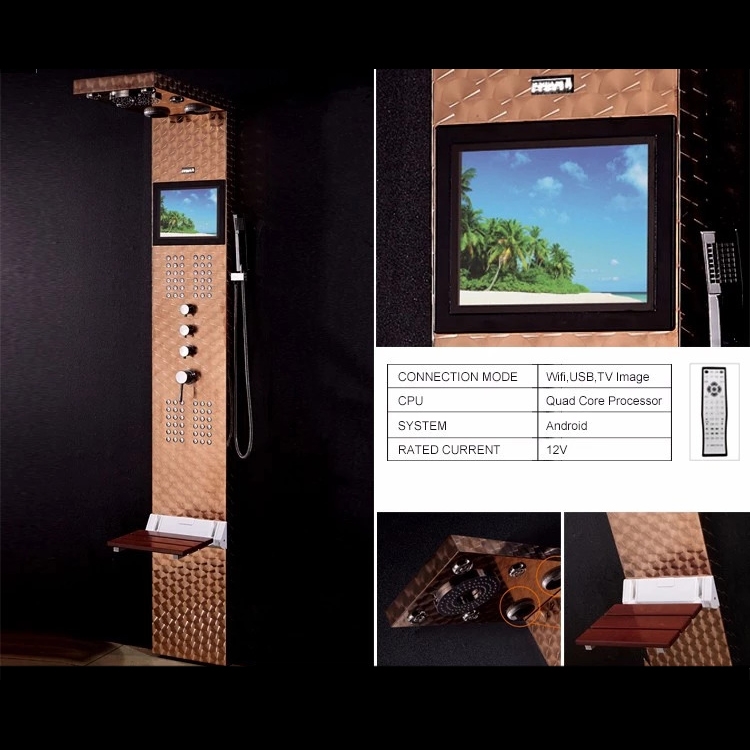

12 inch Waterproof Smart TV(Android System,Bluetooth)
Two Hifi
Fontana Shower Panel System Rainfall Waterfall Multi-Functional Sprayer Hand Shower W/ Tub Spout

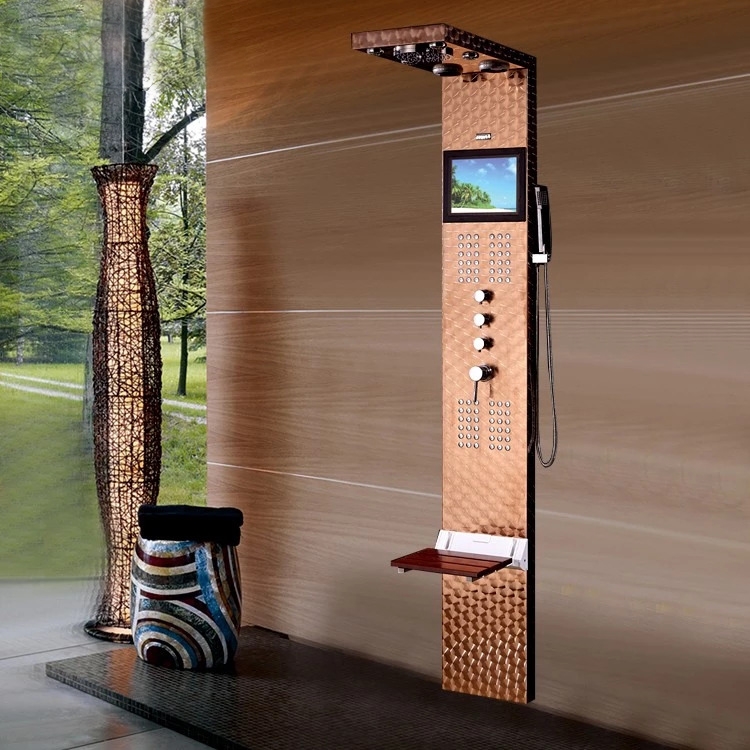

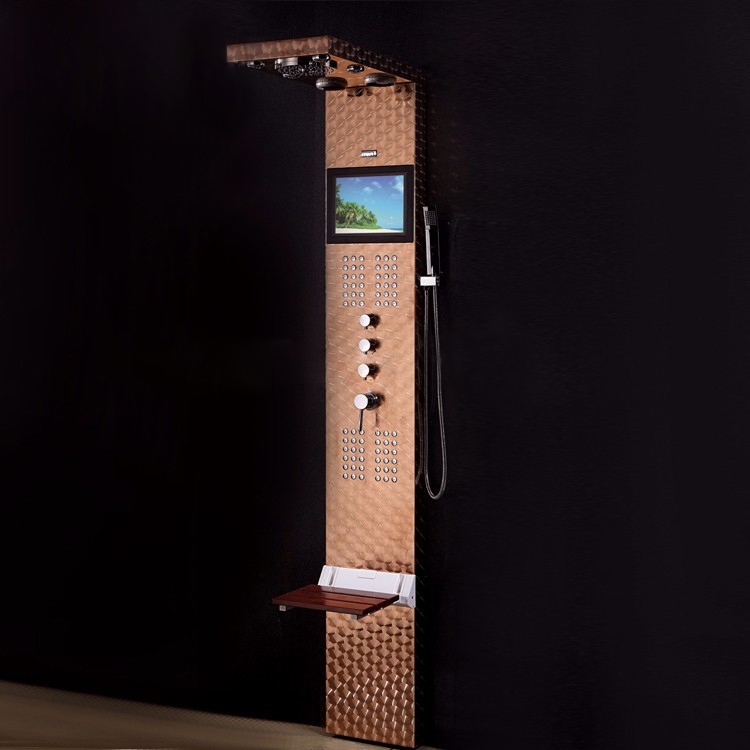

Get a Spa shower experience at home. The Fontana Thermostatic Shower Massage Panel System offers a unique combination of a traditional shower and water massage. This panel is equipped with everything you can wish for in a shower system: adjustable massage jets, rainfall showerhead, elegant hand shower. All functions can be used independently or in any combination you wish. Since it is factory pre-plumbed and it has standard connections and is easy to install.
Features:
Brand Name: FontanaShowers
Model Number: FS-15065SP
Type: Shower Panel
Special Feature 1: Two Big Area High Pressure Back Massage Nozzles and Four Pcs Small Massage Nozzles
Special Feature 2: High Pressure Big Area Top Shower with Lights
Special Feature 3: with Wooden Seat
Special Feature 4: Waterproof 12 inch TV(Android System,Bluetooth)
Special Feature 5: Two Hifi
Installation: Wall Mount
Style: Contemporary
Function: Hot and Cold
Material: 304 STAINLESS STEEL
Surface Finishing: Stainless Steel
Surface Treatment: Polished
Number of Handles: Four Handles
Valve Core Material: Ceramic
Size: 2100 x 320 mm
Color: Rose Gold
Hose Length: 1.5m flexible hose
Easy Installation
Pre-plumbed, Surface mounted and wall-mounted options
Including all standard installation accessories and hardware.
