How should the FS-15065SP shower panel be rough-plumbed before the 2100 × 320 mm stainless steel body is mounted?

Position the hot and cold supply outlets within the panel’s concealed connection zone and verify that both branches are fully flushed before final hookup. The wall substrate must support the 2100 × 320 mm panel, wooden seat, massage assemblies, television, and operating loads without deflection. Confirm adequate service clearance behind the surface-mounted body before drilling the mounting points.

What commissioning sequence should be used for the rainfall head, handheld shower, and six massage nozzles?

Commission each hydraulic function independently before testing combined operation. Begin with the illuminated high-pressure top shower, then test the handheld outlet, the two large back-massage nozzles, and the four smaller massage nozzles. Confirm stable discharge, positive four-handle control, complete outlet shutoff, and no unintended cross-flow before activating multiple functions together.

How should the ceramic valve controls be evaluated during acceptance testing?

Cycle all four handles repeatedly through their full operating ranges while monitoring rotational torque, hot-to-cold modulation, outlet selection, and shutoff integrity. The ceramic valve cores should move smoothly without binding, chatter, or residual discharge. Any irregular resistance should be investigated before handover because construction debris can damage the ceramic sealing surfaces.

How can installers verify adequate hydraulic capacity when several shower functions operate simultaneously?

Run the rainfall head and selected massage zones together while observing pressure recovery, spray uniformity, and temperature stability. Because the panel permits independent or combined operation, the building supply must maintain sufficient dynamic pressure and flow for the chosen outlet combination. Excessive spray collapse indicates undersized piping, restrictive fittings, or inadequate available pressure.

What electrical and moisture-protection checks are required for the waterproof 12-inch Android television and HiFi system?

Verify that all electrical connections serving the waterproof 12-inch Android television, Bluetooth functions, and two HiFi speakers follow the project electrical requirements for wet locations. Keep power connections isolated from water piping, confirm secure cable routing, and test the television and audio functions only after the panel has passed its complete leak inspection.

How should the 1.5 m handheld-shower hose be inspected during commissioning?

Pressurize the handheld circuit and inspect both hose couplings, the flexible 1.5 m hose body, and the hand-shower connection for seepage, twisting, abrasion, or interference with the wooden seat and control handles. The hose should move freely across its service range without kinking or loading the outlet fitting.

What pre-handover testing is necessary for the factory pre-plumbed shower panel?

Although the system is factory pre-plumbed, complete a site pressure test after connecting the standard hot and cold supplies. Inspect every accessible factory joint, field connection, massage nozzle manifold, top-shower feed, handheld branch, and valve interface under static and flowing conditions. Final acceptance should include an extended multi-function run to detect delayed leakage.

Which maintenance procedures support long-term performance of the polished Rose Gold 304 stainless steel panel?

Clean the polished Rose Gold stainless steel surface with a soft cloth and nonabrasive pH-neutral cleaner. Periodically remove mineral deposits from the illuminated top shower, handheld spray face, two large massage nozzles, and four small nozzles. Scheduled inspections should also verify ceramic valve operation, hose condition, mounting stability, television sealing, speaker performance, and joint integrity.

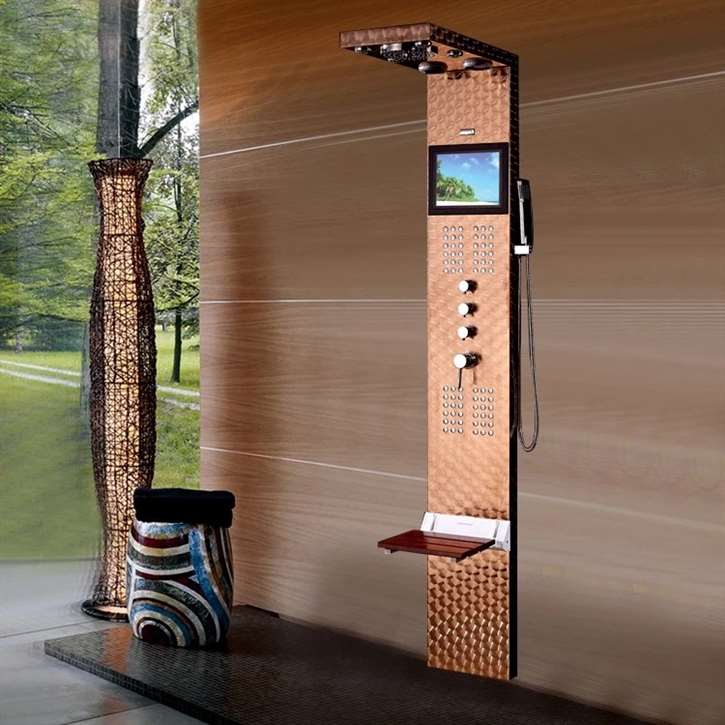

Fontana Dijon Rainfall Style Stainless Steel Massage Shower Panel With Handheld Shower, Massage Jets System and Waterproof 12-inch TV

Alternative Views:

Retail Price: $1,498.62

Commercial Price $1,354.23

Savings: $144.39

Availability: Usually Ships in 1 to 2 Weeks

Product Code: FS-15065SP

Request Quote

Description

Technical Specs

Extended Information

Fontana Dijon Rainfall Style Stainless Steel Massage Shower Panel With Handheld Shower, Massage Jets System and Waterproof 12-inch TV

Get a Spa shower experience at home. The Fontana Dijon Rainfall Style Stainless Steel Massage Shower Panel offers a unique combination of a traditional shower and water massage. This panel is equipped with everything you can wish for in a shower system: massage jets, rainfall shower head, elegant hand shower and waterproof tv. All functions can be used independently or in any combination you wish. Since it is factory pre-plumbed and it has standard connections and is easy to install.

Fontana Dijon Rainfall Style Stainless Steel Massage Shower Panel With Handheld Shower, Massage Jets System and Waterproof 12-inch TV Features:

Brand Name: FontanaShowers

Model Number: FS-15065SP

Type: Shower Panel

Special Feature 1: Two Big Area High Pressure Back Massage Nozzles and Four Pcs Small Massage Nozzles

Special Feature 2: High Pressure Big Area Top Shower with Lights

Special Feature 3: with Wooden Seat

Special Feature 4: Waterproof 12 inch TV(Android System,Bluetooth)

Special Feature 5: Two Hifi

Installation: Wall Mount

Style: Contemporary

Function: Hot and Cold

Material: 304 STAINLESS STEEL

Surface Finish: Stainless Steel

Surface Treatment: Polished

Number of Handles: Four Handles

Valve Core Material: Ceramic

Size: 2100 x 320 mm

Color: Rose Gold

Hose Length: 1.5m flexible hose

Easy Installation

Pre-plumbed, Surface mounted and wall-mounted options

Including all standard installation accessories and hardware.

Features

Fontana Dijon Stainless Steel Massage Shower Panel with Waterproof TV

Hydrotherapy Zone Balancing, Integrated Multimedia Isolation & Multi-Circuit Shower Panel Engineering

Designed as an all-in-one luxury shower panel, this stainless steel system integrates independent hydrotherapy circuits, a waterproof Android display, rainfall delivery, and ceramic valve technology for reliable multi-function operation and long-term structural durability.

How are the massage jets hydraulically balanced during operation?

The internal water manifold distributes supply pressure evenly between the large hydro-massage outlets and auxiliary body jets, preventing localized pressure loss while maintaining consistent therapeutic coverage across every spray zone.

How is the waterproof television protected from shower moisture?

The multimedia compartment is isolated from the hydraulic chamber using independent sealing architecture, allowing electronic components to remain separated from internal water passages while maintaining reliable operation in wet environments.

Why is the shower panel factory pre-plumbed?

Factory pre-plumbing reduces installation complexity by aligning the internal hydraulic pathways before delivery, minimizing field assembly errors while ensuring accurate flow routing between rainfall, hand shower, and massage outlets. :contentReference[oaicite:1]{index=1}

How does the ceramic valve improve long-term switching performance?

Precision ceramic discs maintain low-friction operation during repeated outlet selection, reducing internal wear while preserving smooth handle movement and dependable sealing after prolonged commercial or residential use.
