How to install Bravat Luxury Rounded Chrome Wall Mount Shower Mixer | FS9512
Easy step by step Installation Instructions for 2 Way Wall-Mounted Shower Faucet Mixer Valve
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

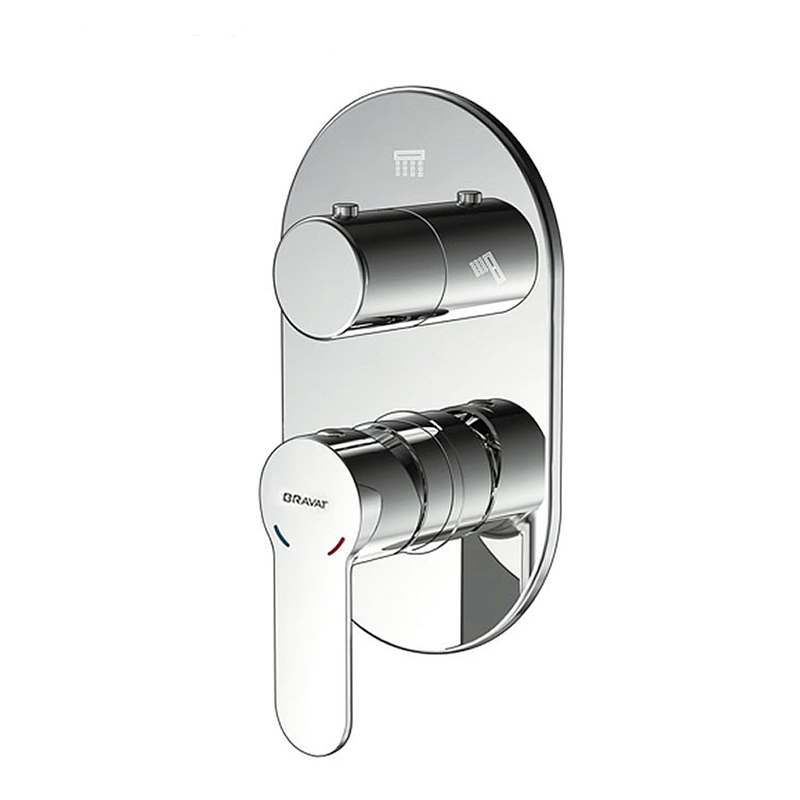

Shower mixer
Shower Mixer Installation Instruction
Shower Mixer Size and Dimension
Parts List
Shower Valve
Hot Water Inlet
Cold Water Inlet
Diverter Knob
Handle
Set Screw
Allen Key
Indication Button
Escutcheon
mixer
Shower Mixer Installation Overview
shower mixer
shower mixer
Step 1:
mixer
Step 2:
shower mixer
shower mixer
Step 3:
Step 4:
1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)
2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.
3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.
Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.
Shower Mixer Wall Mount View Connection
Shower Mixer Connection Overview
Shower Mix
Shower Mixer
Shower Mixer
Shower Mixer

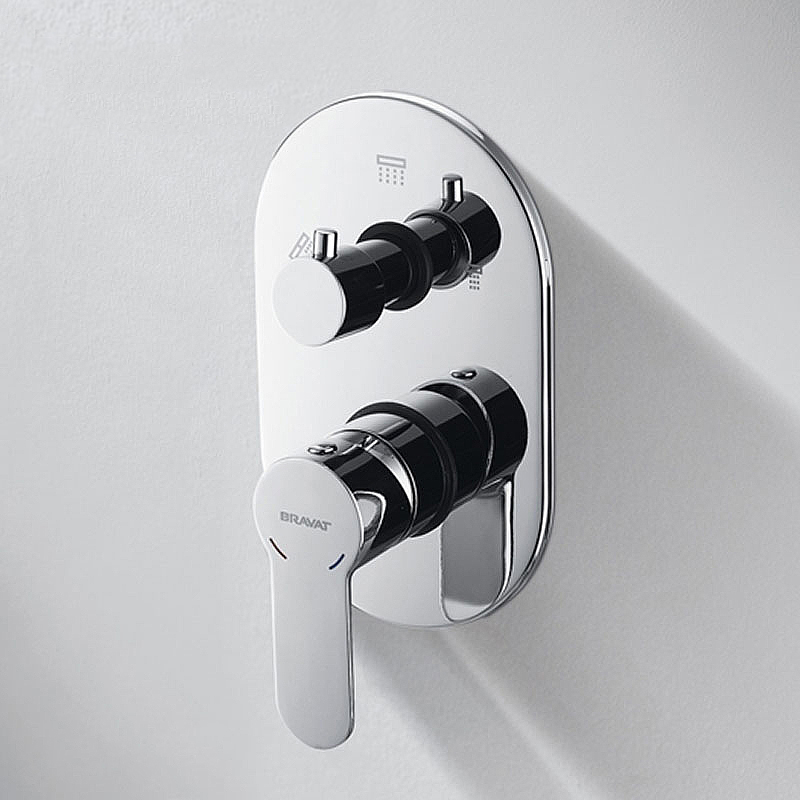

Bravat Luxury Rounded Chrome Thermostatic Wall Mount Shower Mixer
