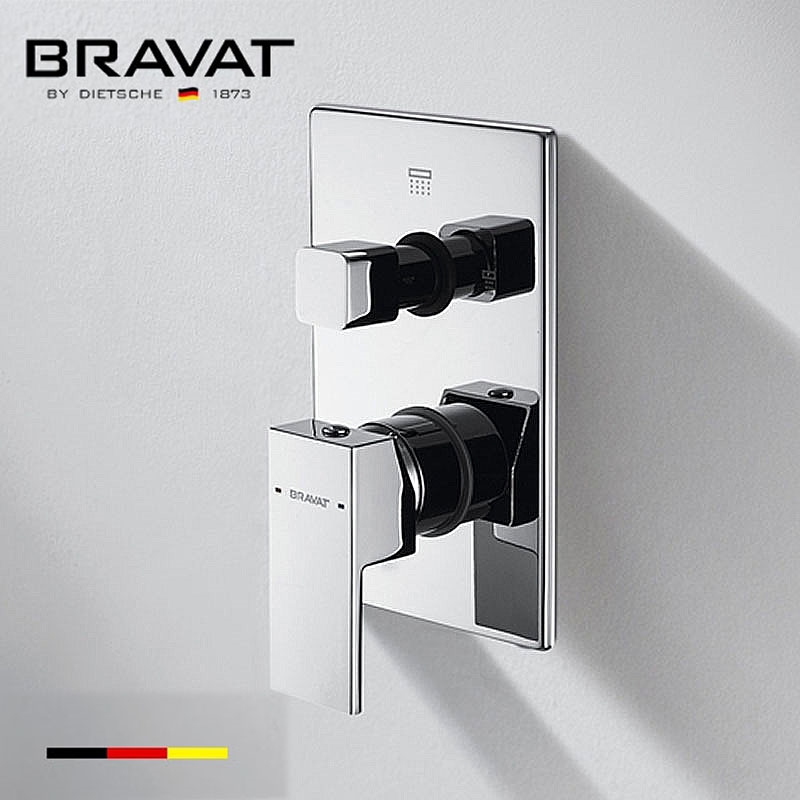

How to install Bravat Amazing Style Square Chrome Dual Handle Wall Mount Mixer | FS9514
Easy step by step Installation Instructions for 2 Way Wall-Mounted Shower Faucet Mixer Valve
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
Shower mixer
Shower Mixer Installation Instructions
shower mixer
shower mixer
Step 1:
mixer
Step 2:
shower mixer
shower mixer
Step 3:
Step 4:
shower mixer
shower mixer
Step 5:
mixer
Step 6:
shower mixer
shower mixer
Step 7:
1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)
2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.
3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.
Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

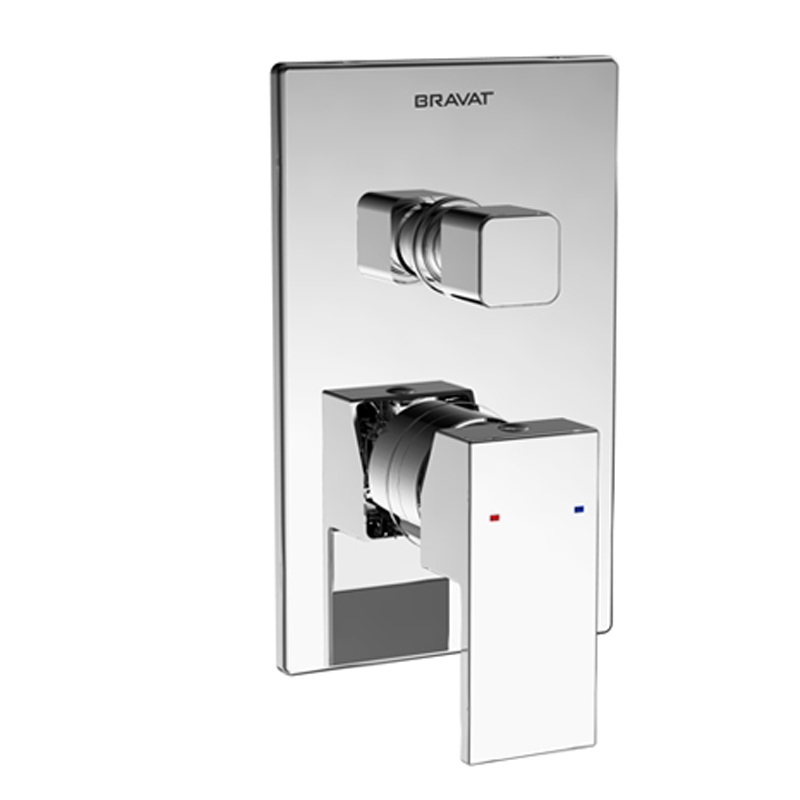

Bravat chrome plated finish faucet has a silver color set of a shower-head faucet. The contemporary styling of this shower is the perfect solution for updating your existing bathroom hardware. This faucet handle has been made with premium grade lightweight. This model is made for accommodating everyday use in your bathroom, chrome shower spray-these can be used to suit everyone’s needs and can be used separately or together.
