How to install Acerra Luxurious Automatic Sensor Mixer Chrome Brass Bathroom Faucet | FS275A
Easy step by steps installation instructions for Sensor Faucet
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the products for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
sensor
Sensor Faucet Installations Instructions

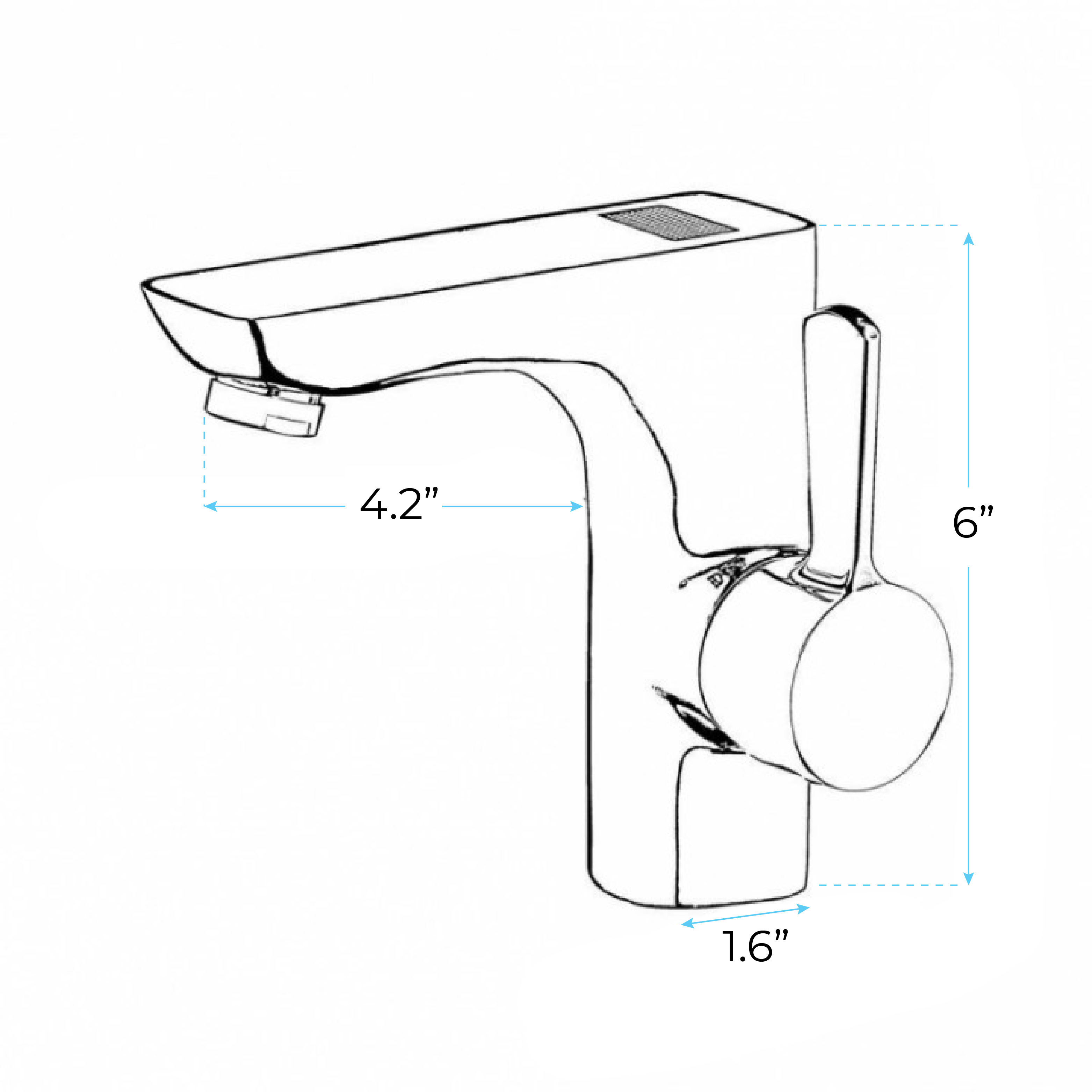

Size:
Hole Size:
sensor
Size 1: Deck Mount Installation
Step 2:
sensor
Step 3: Connect to Power Supply
Step 4:
Step 5:
Step 6: (Correct way for Hose)
Before installing your new mixer, flush through the pipework to ensure removal of debris, turn off the water supply.
Ensure the ‘O’ ring is in place at the bottom of the mixer body.
Push the control cable down through the hole and position the mixer on the basin. From the underside of the basin fit the rubber washer, metal washer onto the threaded tube followed by the nut. Tighten the nut to clamp the mixer to the basin. Tighten the 2 side screws up onto the washer.
CAUTION: Do not over tighten the nut/bolts as this may damage the basin.
Screw the two flexible pipes to the mixer body, but do not over tighten, hand tighten only.
Connect the water supply to the inlet pipes. The hot water should be connected to the front pipe.
Plug together the connectors coming from the mixer to the transformer. Line up the flats on both the plug and socket and firmly push together.
Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See above for recommended ways to fit the flexible connecting hose.
Important: Failure to follow these guidelines may result in poor performance and damage to the flexible connection hose.
Features:
1. Intelligent Detecting: Water comes out once your hands get into the detection zone. And it will stop once you leave the detection zone. Sensor Confirming Time is less than 0.7s.
2. Super mini designed PCB is controlled by computer chip, saving power intelligently. With mini chip controlling, the static power consumption will be no more than 60uA.
3. Hygienic: Self-open and close to free hands from any touching, which can prevent you from bacteria mutual infections.
4. Overtime Protection: It will shut off automatically when it flows more than 1 minute continuously to avoid water wasting caused by obstacles inside detection zone.
5. Detection Zone Adjusting Automatically: With controlling of mini-computer, it can set up the best detection zone according to the environment automatically.
6. Intelligent Power-Saving: Controlled by low-consumption chips and with power-saving working mode, the faucet is super low-consumption. (DC-type products use 4pcs of AA Alkaline batteries. Its statics current is no more than 60μA. Its lifetime can reach 2 years when it uses 300cycles per day.)
Acerra Bathroom Faucet is a stylish, contemporary designed, deck mounted faucet. The faucet has a single handle and comes in a polished chrome finish. Acerra Faucet has a hand sensor feature with a hot and cold water mixer.
