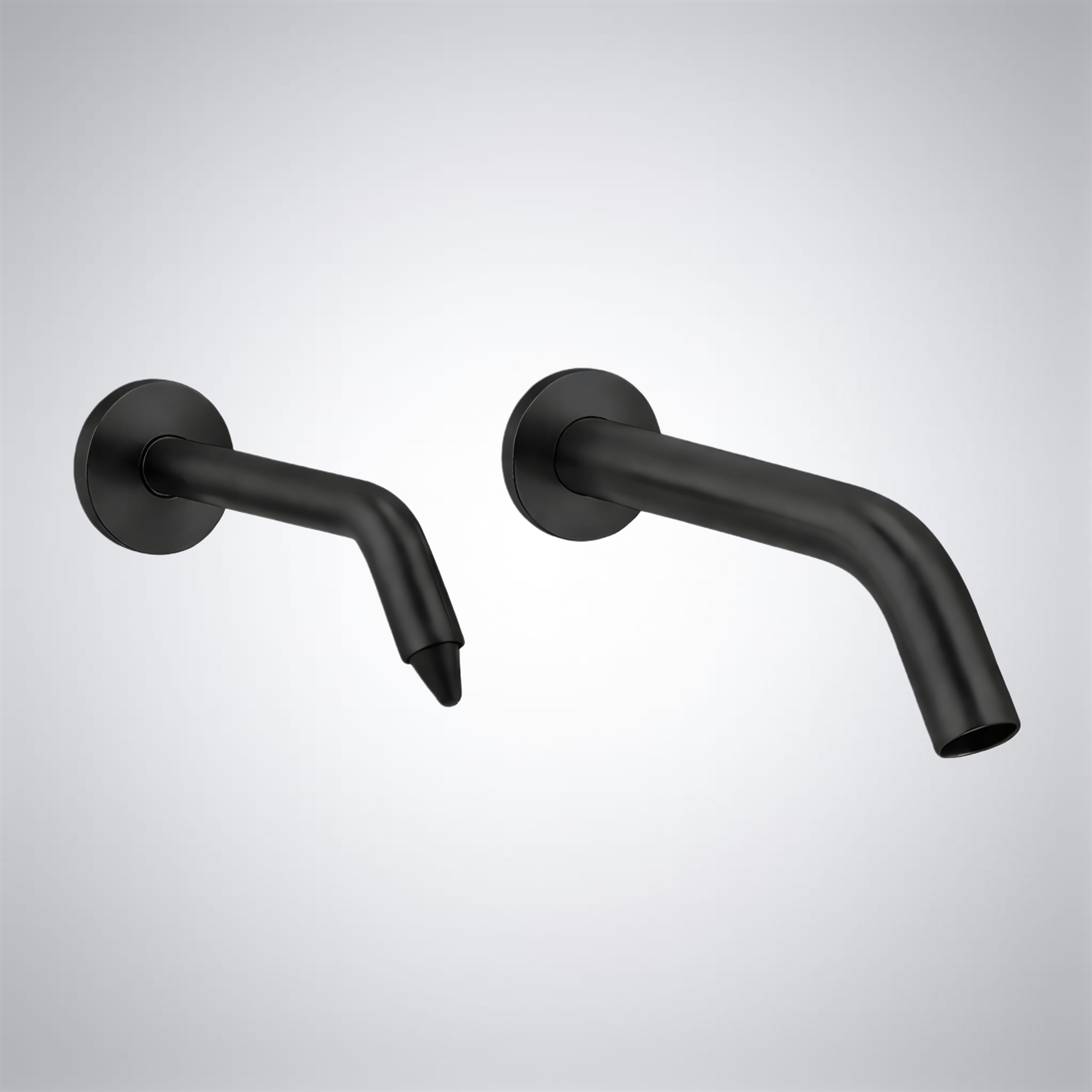

Fontana HydroPrime Series Matte Black Touchless Faucet With Soap Dispenser
The Fontana HydroPrime™ Series Matte Black Touchless Faucet With Dispenser makes an eye-catching redesign for the restroom that harmoniously combines striking modern aesthetics with automatics of high-performance for elegant public areas. This system coordinates together the sensor-activated water outlet with an automated soap system, thus providing a smooth hands-free experience, which is perfect for places like airports, hotels, restaurants, shopping malls and the like, where hygiene standards are high and functionality is expected to be reliable. The matte-black finish makes a very bold modern statement, while the solid brass material used makes the faucet very durable and long-lasting even when used very often in a day. The advanced infrared technology ensures instant activation, which helps minimize contact, thus maintaining cleanliness and letting the management of resources be more efficient in the areas with heavy traffic. The large 1500ML soap tank allows long availability, and the AC110-220V operating range has performance stability even under diverse installation conditions. The sensor comes with a lifespan of 300,000 cycles and is coupled with a pump having a life of 80,000 cycles, thus giving exceptional reliability to washroom applications with high-performance demands. Its sleek wall-mounted design does not impede but rather improves the architectural flow and gives a nice modern look through the bathroom concepts presented for smoothing the co-present appearance. Additionally, with touchless faucet with dispenser, hands-free hygiene fixture, and automated washroom system, planners looking for advanced sanitation solutions naturally have their relevance strengthened. Moreover, the certifications with ASME, CSA, ADA, WaterSense, and CALGreen are a promise that accountability, accessibility, efficiency, and excellent engineering are all parts of the whole assembly.
HYDROPRIME™ COMMERCIAL DUO
Fontana HydroPrime Matte Black FAQs
Matte black wall-mounted touchless faucet and automatic soap dispenser
with brass construction, infrared activation, and a 1500 mL reservoir.
✥
What Is The Soap Sensor Range?
+
The dispenser uses a published sensing distance of approximately
2.4–3.9 inches. Final commissioning should be completed after
the basin and finished wall surfaces are installed to confirm
reliable activation without unintended soap dispensing.
◇
What Power Supply Is Required?
+
The automatic soap dispenser is specified for AC110–220V
operation. Coordinate transformer placement, electrical
routing and service access before completing the wall assembly.
◯
What Is The Soap Capacity?
+
The HydroPrime dispenser uses a 1500 mL soap reservoir.
For high-traffic installations, establish refill intervals
based on actual consumption while preserving maintenance
access to the tank, tubing and pump.
↻
What Is The Sensor Cycle Rating?
+
The dispenser sensor is rated for approximately 300,000
on/off cycles. Actual service life can vary with traffic,
power conditions, sensor-window cleanliness and preventive
maintenance frequency.
⌁
What Is The Pump Cycle Rating?
+
The soap-dispenser pump is specified for approximately
80,000 operating cycles. Preventive maintenance should
include checking soap output consistency, tubing condition
and pump performance.
⌂
What Installation Layout Is Required?
+
The HydroPrime uses a two-hole wall-mounted configuration.
Coordinate faucet and dispenser centerlines, concealed
water supply, electrical routing, soap tubing and basin
geometry before completing finished wall surfaces.
⚙
What Material Is Used?
+
The FS20005MB product specification identifies brass
construction. This supports structural durability for
commercial wall-mounted applications exposed to frequent
daily use.
⌕
Matte Black Finish Maintenance?
+
Clean the matte black surfaces and sensor windows with a
soft non-abrasive cloth. Inspect the faucet outlet and soap
nozzle, verify reservoir level and pump output, and avoid
aggressive cleaners that may mark or dull the finish.
‹
›
Matte Black
◇
Brass Body
Commercial Construction
⌁
2.4–3.9"
Soap Sensor Range
⚡
AC110–220V
Dispenser Power
⚙
300K Cycles
Sensor Life
Brand Name: FontanaShowers® Model Number: FS20005MB Type: Touchless Faucet With Soap Dispenser Style: Contemporary Installation Type: Wall Mounted Finish: Matte Black Material: Brass Number of Holes: Two Holes Dispenser Working Power: AC110-220V Dispenser Soap Capacity: 1500ML Dispenser Sensor lifetime: 300,000 times on/off Dispenser Pump lifetime: 80,000 times on/off
Dispenser Sensor Distance: 2.4"-3.9"
Smart Touchless Integration
Abuse Test Passed
