How to install Bravat Light Oil Rubbed Bronze Wall Mounted Shower Valve Mixer | FS1044

Easy step by step Installation Instructions for 1 Way Wall-Mounted Shower Faucet Mixer Valve

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.

Shower
mixer

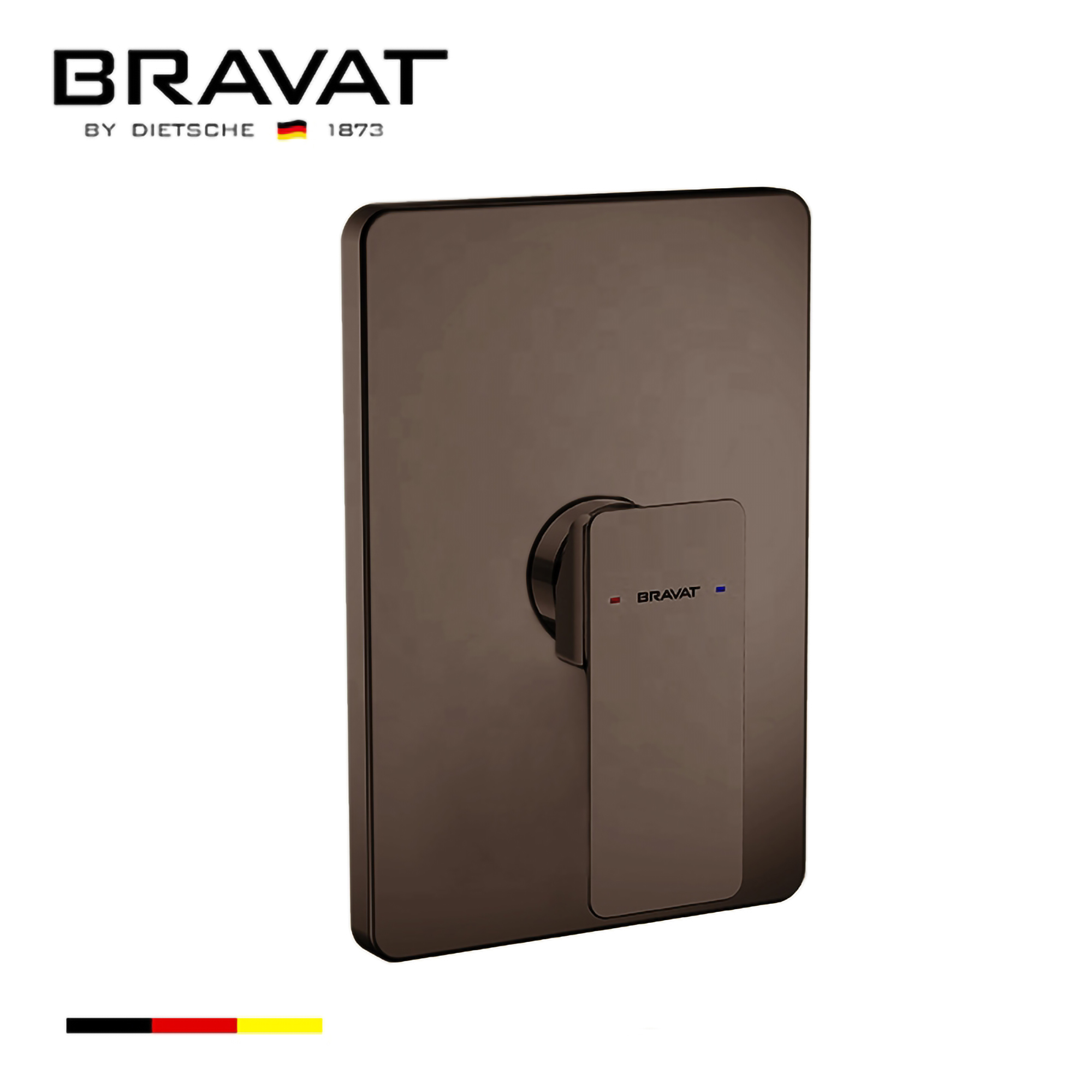

Bravat Light Oil Rubbed Bronze Wall Mounted Shower Valve Mixer

Shower Mixer Installation Instructions

Shower Mixer		Shower Mixer Inlet and Outlet Connections
	Shower Mixer
Shower Mixer

shower mixer		shower mixer
Step 1:	mixer	Step 2:


shower mixer		shower mixer
Step 3:		Step 4:

1) Fix the shower valve into the wall with screws. Use a level to ensure that the valve is straight and level. (Important: Flush the water supply pipes to remove any dirt and debris before installing the valve body)

2) Wrap Teflon tape around the pipe thread. Connect hot and cold water supply lines and all the in-wall pipes (not included) as desired to the valve. Turn on the water supply and open the cartridge to check for leaks. Then, put on the protective cover.

3) Remove the protective cover when the wall finished wall is completed. Install escutcheon onto the shower valve and press it against the finished wall. Then, install the handle and diverter knob to the valve and tighten set screws with the Allen key and put on the indication button.

Function: Check connections for leaks and check function of fitting. Flow is diverted automatically from shower outlet to bath inlet when the fitting is closed.

Shower Mixer Wall Mount View Connection		Shower Mixer Connection Overview
	Shower Mi

Bravat Light Oil Rubbed Bronze Wall Mounted Thermostatic Shower Valve Mixer

The Bravat Light Oil Rubbed Bronze Shower Valve Thermostatic Mixer Wall Mount is one of the most trendiest finishes across decor styles in the bathroom. It has a contemporary style with a beautiful Light Oil Rubbed Bronze finish. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for.

Features:

Brand Name: FontanaShowers

Model Number: FS1044

Type: Thermostatic Bath & Shower Mixer

Style: Contemporary

Type: Fixed Support Type

Surface Finish: Light Oil Rubbed Bronze

Installation Type: Wall Mount

Size: 7.91"-11.85" (201-300mm)

Surface Treatment: Polished

Valve Core Material: Ceramic

Bath Shower Type: In-Wall Shower Mixer

Valve Type: Ceramic Valve
