Home > Installation Instructions Fontana Milan 8" Antique Brass Rainfall Shower Set C

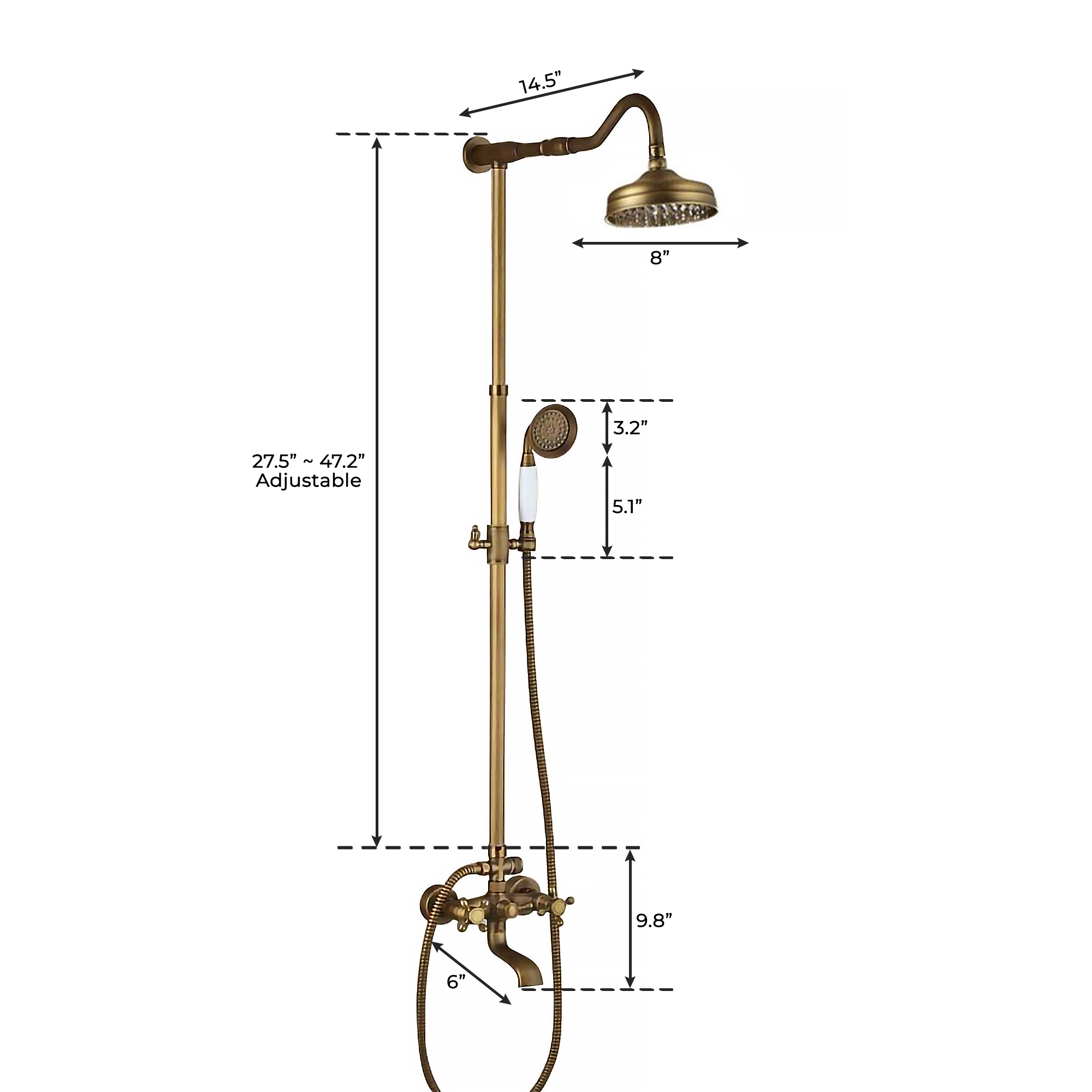

Fontana Milan 8" Antique Brass Rainfall Shower Set C

Using premium brass to make whole shower set, Fontana Milan 8" Antique Brass Rainfall Shower Set C looks elegant and is suited to bathroom hotels, club, or even your own home. Luxurious downpour shower head for a pleasant shower with it's 8" showerhead. Antique Brass finish more anti-oxidation and anti-scratch, not easy to discoloration, simultaneously makes bathing more comfortable. High-quality antique brass finish. Simple and classic comes with dual handle control hot and cold water for the faucet. Diverter switches between the top shower and hand spray, Either one works or the other. Individuals and families can trust that this faucet will remain rust, corrosion, and tarnish resistant throughout years of use due to its solid brass construction. Be sure, when it comes to new bathroom shower set, FontanaShowers is offering shape, finish and styles you're looking for.

Fontana Milan 8" Antique Brass Rainfall Shower Set C Features:

Brand Name: FontanaShowers

Model Number: FS9733

Size: 8 inches

Hot / Cold Water: Yes

Control Type: Dual Control

Style: Classic

Type: Shower Set with Faucet

Main Valve Material: Ceramic

Shower Set Material: Brass

Number of Handles: Double Handle

Finish: Antique Brass

Connection: G1/2"

Fontana Milan 8" Antique Brass Rainfall Shower Set C

FontanaShowers® Product Warranty Information FontanaShowers Product Warranty

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

shower

Shower Set Installation Instructions

Step 1:		Step 2:
	shower

Step 3:		Step 4:


Step 5:		Step 6:


Step 7:		Step 8:


Step 9:

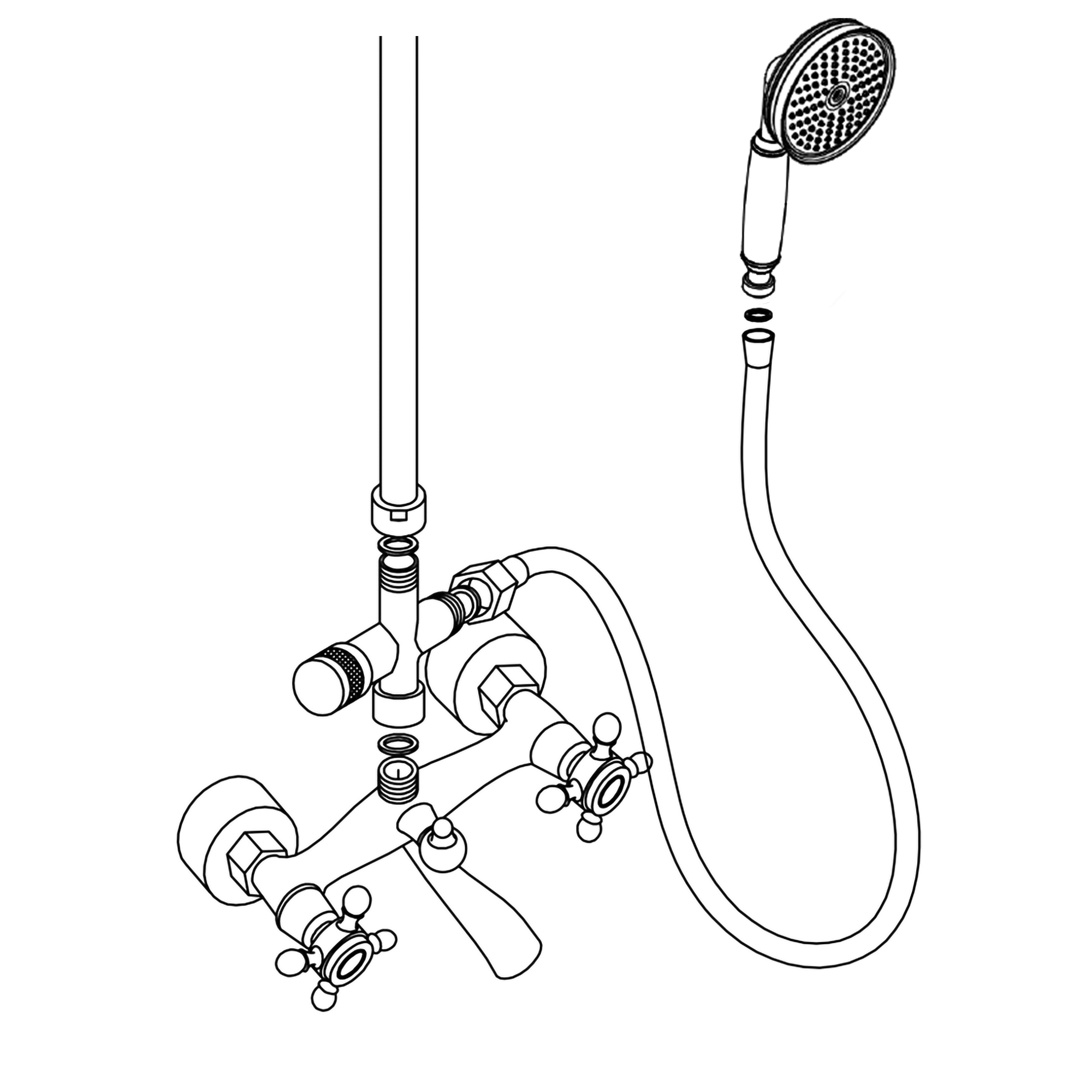

1. Wrap the threads of s-union with Teflon tape. Screw the s-unions into the female fittings of water supplies. Make sure that the s-unions are level. 2. Install the escutcheon. Fix the washers into the inlets on the valve body. Install the connecting threads on the s-unions. 3. Drill the hole and install the anchors. Fix the mounting plate to the wall with screws. Screw the mounting bracket through the cover plate into the mounting plate. 4. Put on screen washer and thread the showerhead into the shower arm. Screw the riser into the shower arm assembly. Then, locate the shower arm assembly into the mounting bracket and tighten the screw with a screwdriver. 5. Add rubber washers to both ends of the diverter and screw diverter into the valve outlet. Then level and fix the riser securely over the diverter outlet. 6. Install the hand shower. Place the rubber washers at both ends of the hose. Screw one end into the hand shower outlet on the diverter and the other end into the hand shower. Place the hand shower in the hand shower holder.
