Home > How to Install Fontana Reno Bronze Shower Set?

Fontana Reno Oil Rubbed Bronze Single Function Premium Wall Mount Square Shower Set

It is our goal to provide the customer with not only excellent products but also leading lifestyle. One of the worst things that might happen within the shower is inconsistent water temperature. we all hate once it happens: unexpected hot water that burns our skin and can even harm the epidermal. however with our shower, there's no need to worry since the distinctive structure within the pressure balance valve will quickly stop the outflow of hot water, keeping you safe from any burns. Having a beautifully designed showerhead is not enough for you to have the foremost comfy bathroom.

Fontana Reno Oil Rubbed Bronze Single Function Premium Wall Mount Square Shower Set Features:

Brand Name: FontanaShowers

Model Number: FS9639Surface Treatment: Blackened

Number of Handles: Single Handle

Valve Core Material: Ceramic

Type: Fixed Support Type

Cold/Hot Water Control Type: Single Holder Dual Control

Feature: Cold and Hot

Style: Contemporary

Product Type: Shower Mixer

Material: Durable Solid-brass Construction

Color: Oil Rubbed Bronze

Type: Shower Set

Shower Arm Material: Brass

Valve Material: Brass

Shower Head Material: Stainless Steel

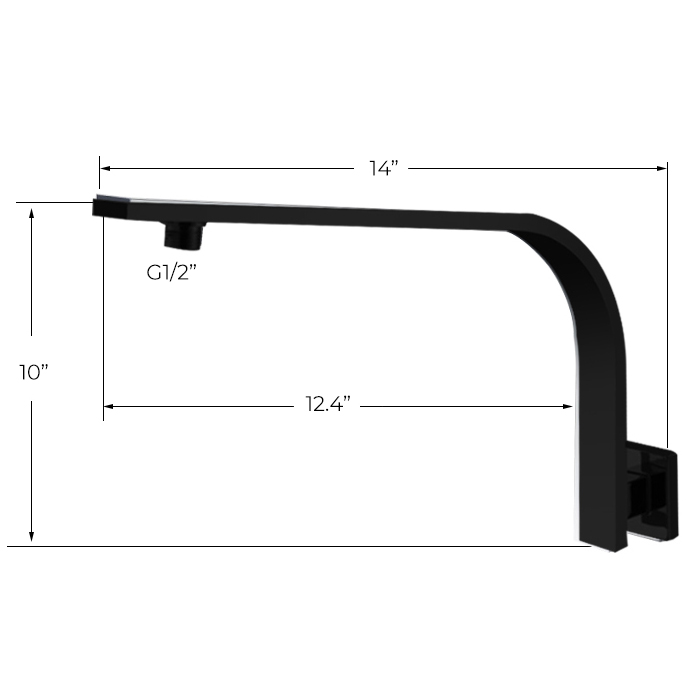

Sizes: 8, 10 and 12 inches

Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

shower

Shower Head Installation Instructions


Step 1:	shower	Step 2:



Step 3:		Step 4:



Step 5:		Step 6:


Step 7:		Step 8:


Step 9:

1. Loosen set screw by supplied Hex Wrench, and remove the adaptor from the body. NOTE: there is a seal in the adaptor. Leave it in the adaptor.
2. Slide the adaptor over the stub-out pipe and screw onto the threaded end. Tighten it with 3/8" Hex Wrench (not included).

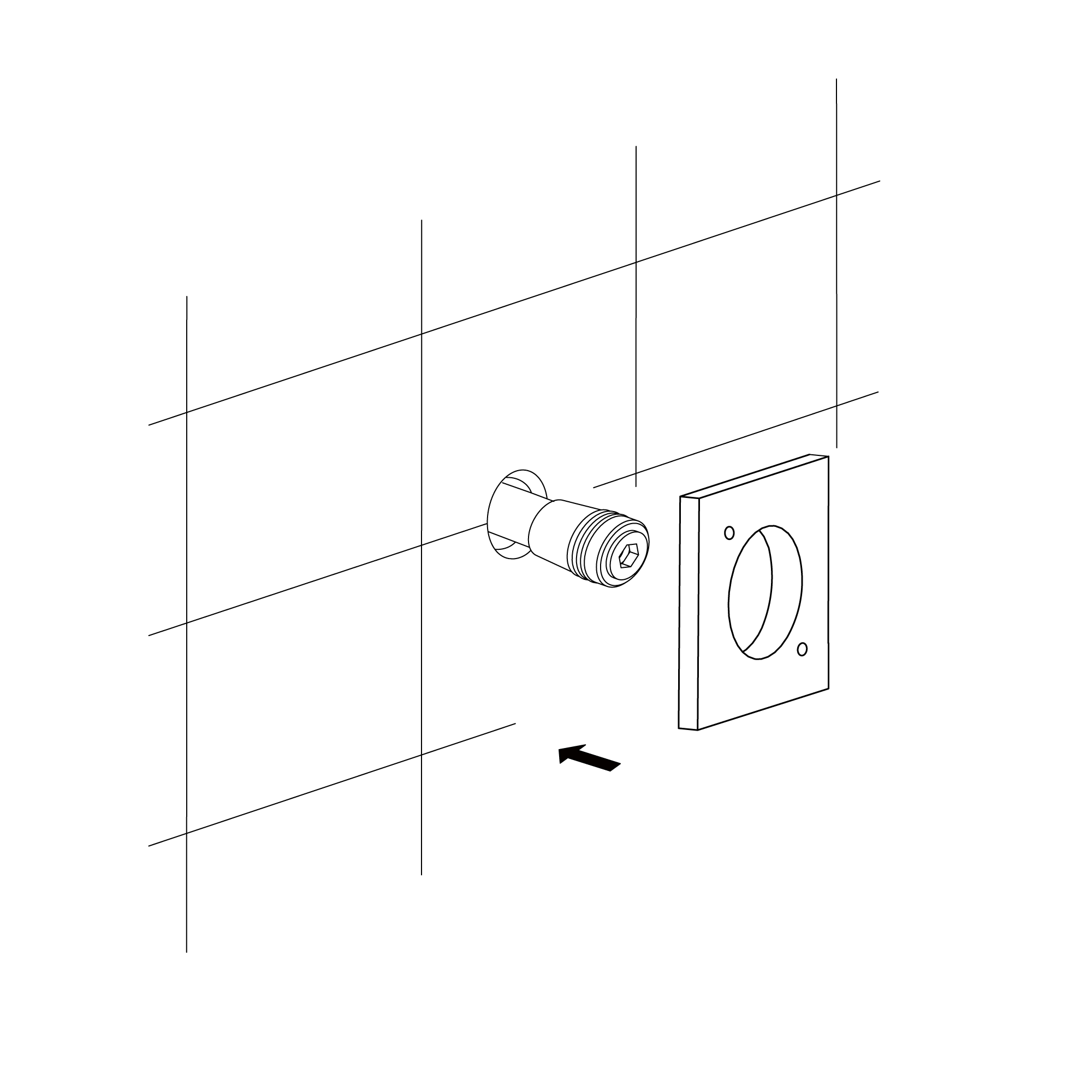

3. Slide wall escutcheon over the stub-out pipe to cover the wall hole.

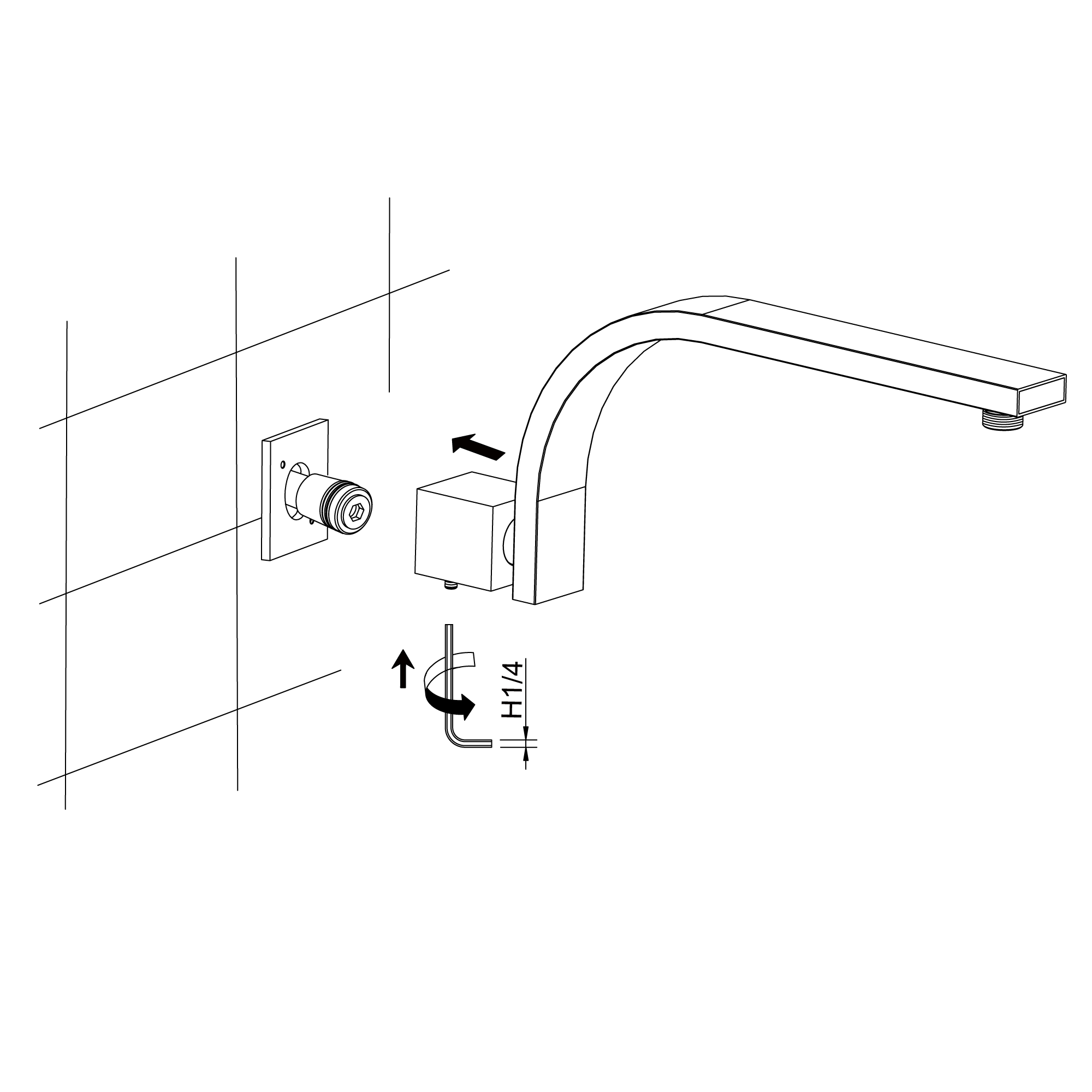

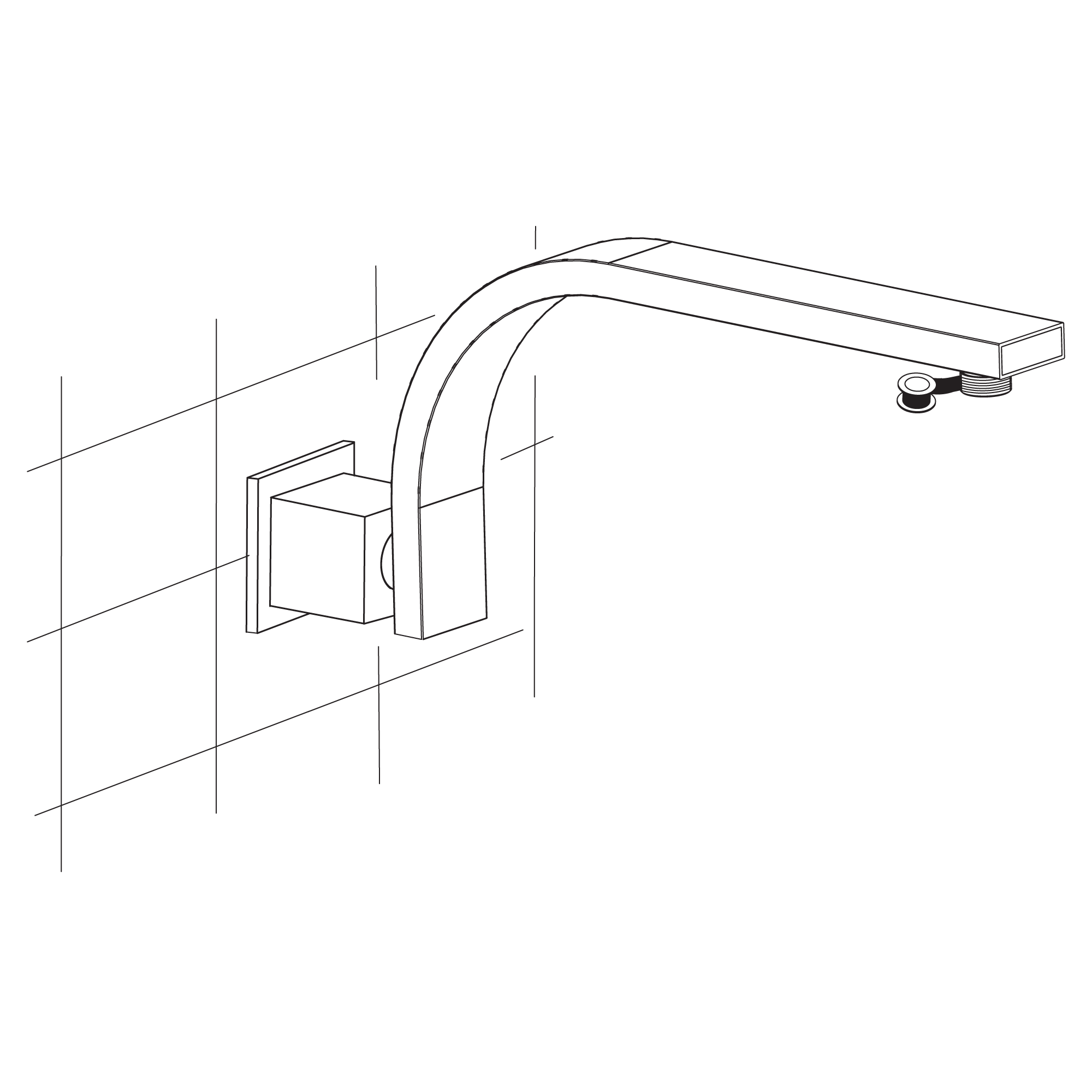

4. Gently slide the body over the adapter, make sure it touch the wall escutcheon firmly. Tighten the set screw with supplied Hex Wrench.

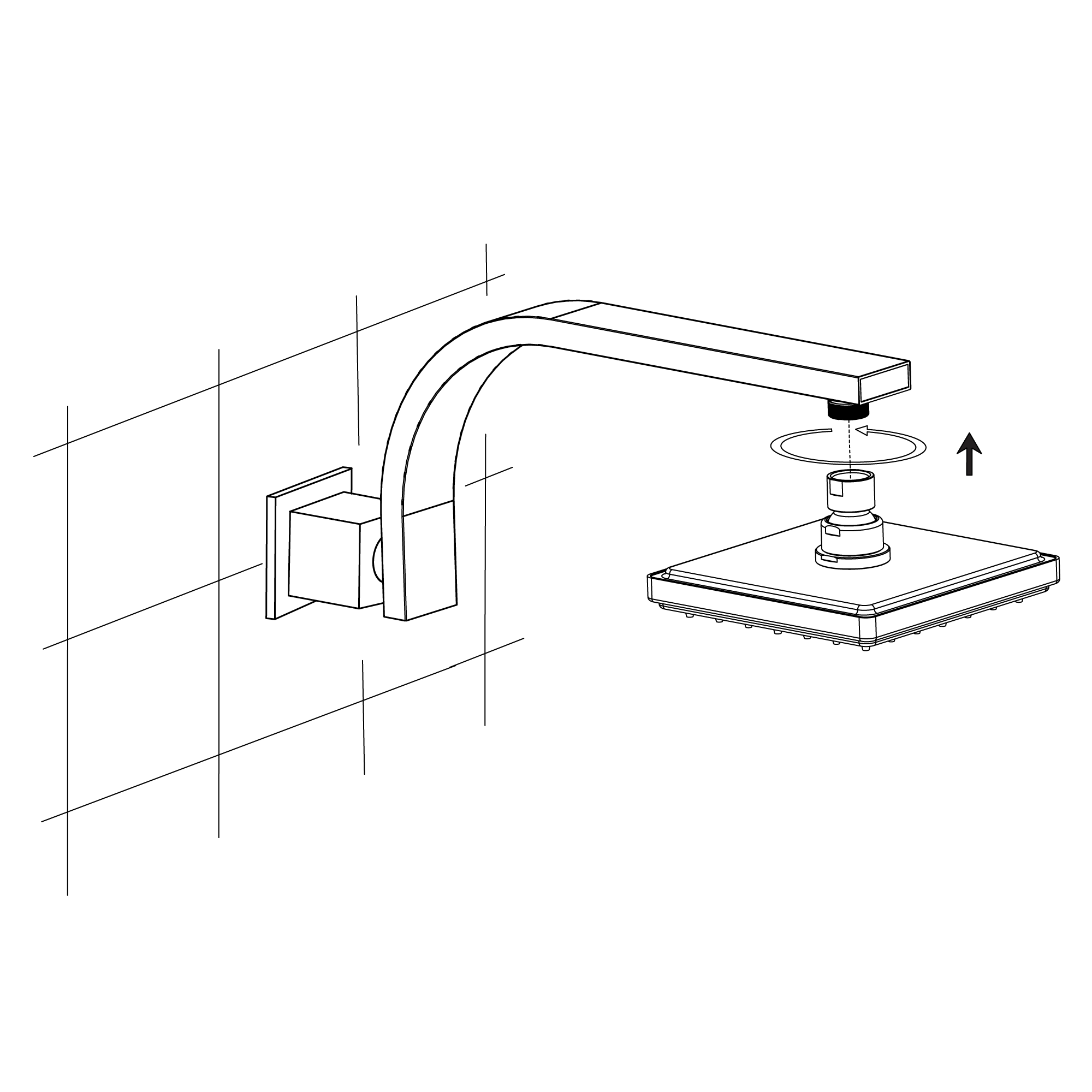

5. Install showerhead: Wrap pipe sealant tape around threads and install showerhead. Tighten securely.
