How should the infrared sensing area be validated after the entire lavatory assembly is completed?

Commission the faucet only after the basin, mirror, soap dispenser, drain trim, backsplash, and countertop accessories have been permanently installed. Verify consistent activation from multiple hand-entry angles while ensuring polished surfaces, standing water, or adjacent fixtures do not interfere with infrared detection.

How should hydraulic stability be confirmed throughout the 0.05–0.8 MPa operating range?

Measure both static and flowing pressure during repeated activation cycles. Confirm rapid valve response, stable discharge, complete automatic shutoff, and smooth stream formation without cavitation, pulsation, excessive splash, or pressure-induced vibration.

Why should the deck-mounted brass body be checked for torsional stability after installation?

Commercial restrooms experience frequent cleaning and continuous user interaction that can gradually loosen mounting hardware. Inspect the mounting assembly for rotational movement and verify that the countertop adequately supports the faucet without transmitting stress to the supply hoses.

How can engineers verify that the six-liter water-saving function remains consistent over repeated cycles?

Measure discharged water during several consecutive sensor activations while recording activation duration and operating pressure. Consistent volume confirms proper valve timing, unrestricted hydraulic flow, and stable controller performance suitable for long-term commercial operation.

How should optional hot-and-cold mixing be evaluated under fluctuating building demand?

Adjust the mixing valve while the faucet is flowing, then simultaneously operate nearby fixtures to simulate peak occupancy. Verify that pressure variations do not produce unstable outlet temperature, flow interruption, or delayed automatic operation.

What commissioning procedure protects the internal automatic valve from construction contamination?

Flush every branch line thoroughly before connecting the faucet and inspect inlet filtration after the first operating cycles. Removing pipe scale, solder residue, thread sealant, and debris helps prevent premature valve wear, restricted flow, and incomplete automatic shutoff.

How should the brushed nickel finish and infrared window be maintained in commercial environments?

Clean with a soft microfiber cloth and pH-neutral cleaner before rinsing and drying all exposed surfaces. Avoid abrasive pads, chlorine compounds, acidic descalers, polishing pastes, and solvent-based cleaners that may damage the finish or reduce infrared sensor accuracy.

Which final acceptance inspections verify complete FS-109BNDP commissioning?

Verify rigid deck mounting, repeatable infrared activation, stable hydraulic performance throughout the specified pressure range, complete automatic shutoff, measured water-saving performance, leak-free plumbing, optional mixed-water stability, ADA accessibility, and reliable operation during repeated high-traffic commercial cycles.

Lowes Touchless Bathroom Faucet

Alternative Views:

Retail Price: $601.39

Sale Price: $595.42

Savings: $5.97

Sale Price: $595.42

Availability: Usually Ships in 2 to 3 Weeks

Product Code: FS-109BNDP

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

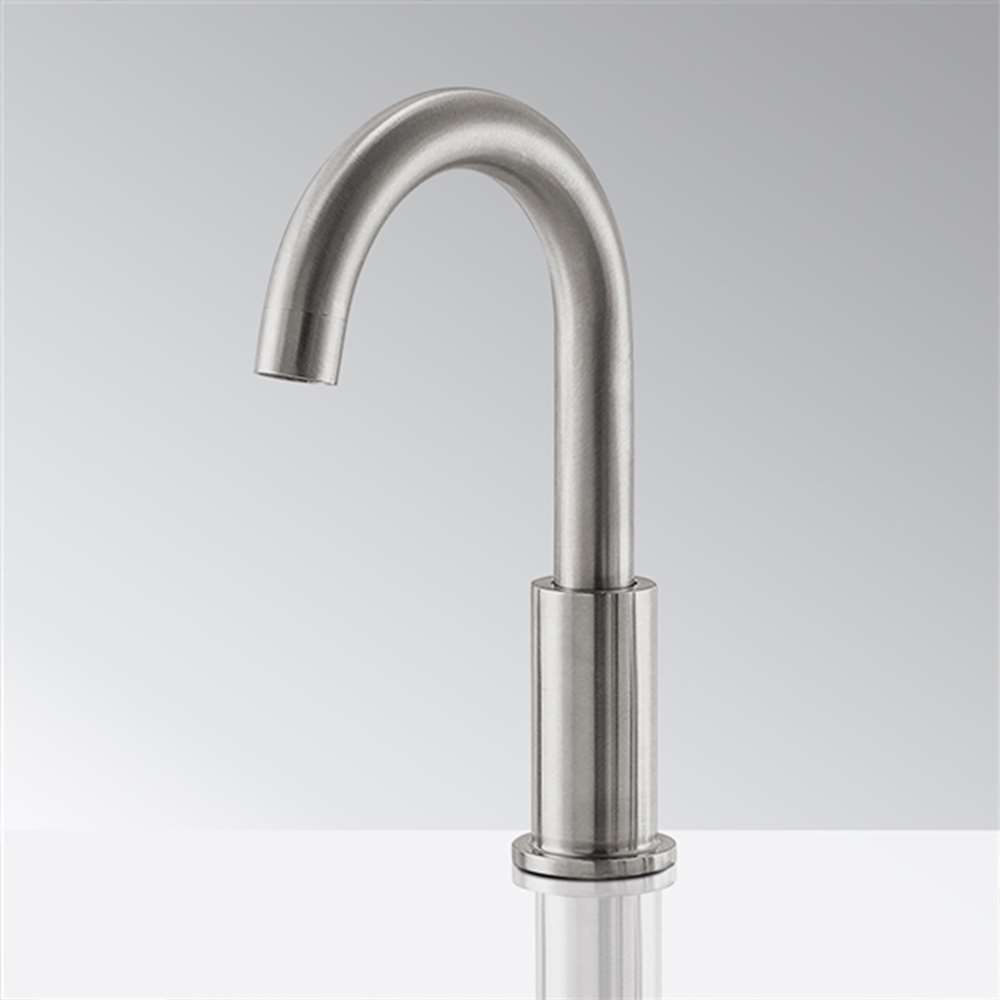

Lowes Touchless Bathroom Faucet

Well-made with a durable finish our high-quality touchless bathroom faucet no Touch Volume Sensor faucet is in a class of its own. The Lowes Touchless Bathroom Faucet comes with a brushed nickel finish which sets your restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs. These faucets are activated by a sensor, so you can just wave your hand underneath to turn on the water. No more wasted time at the sink! And Lowes Touchless Bathroom Faucet is great for avoiding the spread of germs. Just think - no more having to touch the handle after someone else has used it. That's a Germaphobe's dream come true! But that's not all. Automatic touchless sensor faucets are also more energy-efficient than traditional faucets because they automatically turn off when they're not in use. So if you're looking for a convenient and hygienic way to wash your hands, Lowes Touchless Bathroom Faucet is the way to go.

Lowes Touchless Bathroom Faucet Features:

Brand Name: FontanaShowers®
Model Number: FS-109BNDP
Type:Commercial Touchless Bathroom Faucet, Motion Sensor Sink Faucet
Style: Contemporary
Finish: Brushed Nickel
Faucet Mount: Single Hole
Installation Type: Deck Mount
Material: Brass
Water Pressure: 0.05Mpa-0.8Mpa
Water Saving: Volume 6L Each Time
Usage: Commercial restrooms, and high traffic bathroom facilities
Hands-free operation is ideal for commercial use applications in public restrooms, restaurants, office buildings, public facilities, airports, and hotels. Fits all standard US plumbing.
ADA Compliant

Features

Fontana Brushed Nickel Commercial Touchless Faucet FAQ

Activation Timing, Deck-Seal Integrity & High-Traffic Maintenance Access

This Brushed Nickel commercial touchless faucet uses a brass single-hole body, infrared hand detection, and automatic water shutoff to support hygienic, water-efficient service in airports, hotels, offices, restaurants, and public facilities.

How can delayed activation be separated from a hydraulic flow restriction?

Technicians should first listen for valve actuation when hands enter the sensing field. Immediate valve response with weak discharge indicates a blocked inlet screen, restricted stop, kinked hose, or clogged aerator rather than a sensor-timing fault.

Why must the deck gasket remain evenly compressed around the faucet base?

Uniform compression stabilizes the faucet body and limits water migration through the mounting opening, protecting the shank, wiring, connectors, and below-deck electronic components from moisture exposure.

What acceptance test confirms dependable operation during peak restroom demand?

The faucet should be cycled repeatedly while adjacent faucets and flush valves operate, confirming reliable detection, stable discharge, complete shutoff, and leak-free connections despite temporary branch-pressure variation.

How should the below-deck components be arranged to reduce future downtime?

Isolation stops, inlet filtration, flexible hoses, sensor connectors, and the valve-control assembly should remain clearly routed and accessible so one faucet can be diagnosed or serviced without closing the entire restroom supply branch.
