Luxury Shower System Brands

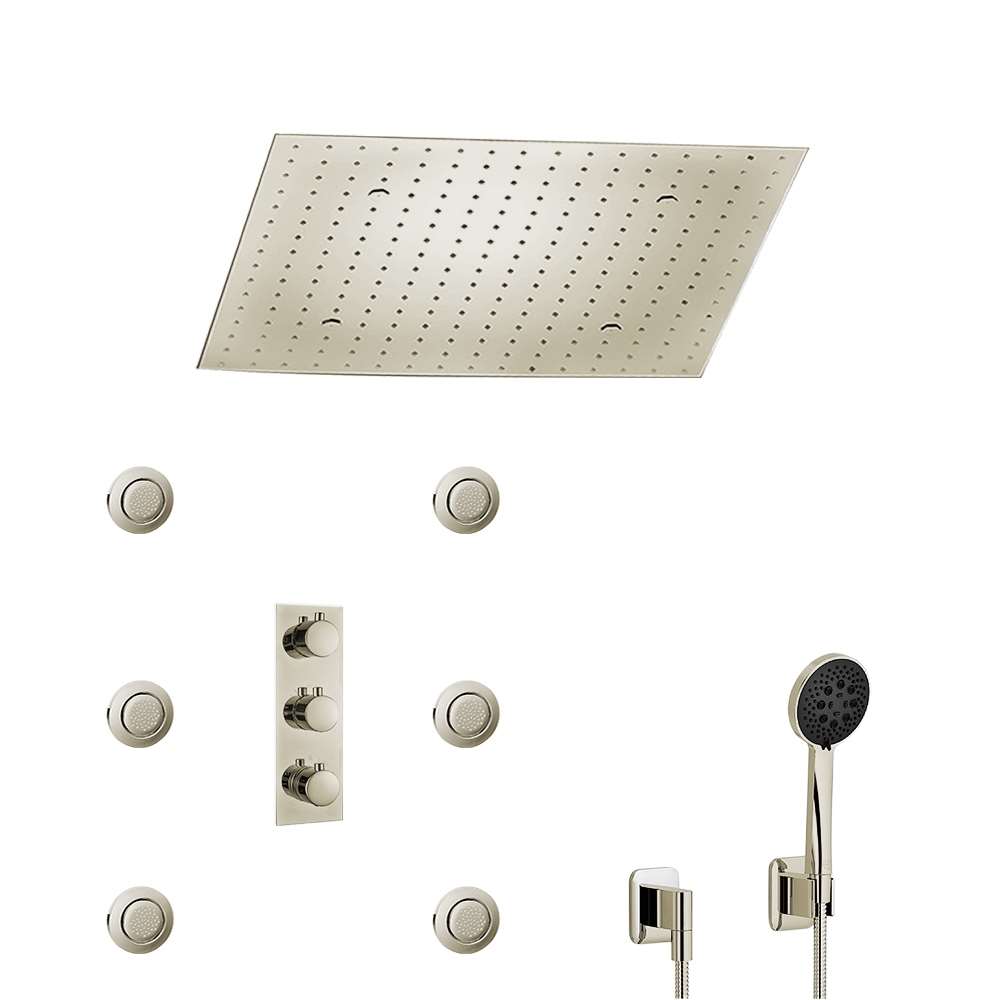

Upgrade your bathroom with a luxury shower system featuring rainfall, body jets, and advanced multifunction controls. Once you've chosen your shower head, which size body massage sprayers do you want? And lastly, round or square shape for your massage sprayers? The Luxury Shower System Brands -- that your custom-designed yourself! The Luxury Shower System Brands is manufactured using superior quality solid brass material. The shower system comes with a ceiling mount shower head, 6 body massage sprays with 36 rubber nozzles that give strong massage pressure, and a handheld shower to offer you complete showering convenience and a ceiling mount shower arm in 22.04" (56cm) size. When it comes to new bathroom shower sets, FontanaShowers is offering shape, finish, and styles you're looking for. Configurable luxury shower system with large ceiling rain head, six adjustable body sprays, and handheld shower engineered for balanced multi-outlet flow. Experience spa-like comfort with a premium system designed for performance, durability, and modern aesthetics. Luxury Shower System Set; Designed for premium performance with rainfall showerhead, handheld spray, thermostatic control, solid brass construction, multi-function spray modes, and contemporary high-end bathroom styling. LED rainfall shower panel; multifunction body jets optimize immersive spa-grade bathing efficiency.High-end luxury shower system engineered with premium brass components, multi-function water delivery, contemporary design aesthetics, and exceptional durability for upscale residential bathrooms.
Luxury Shower System Brands Features:
- Brand Name: FontanaShowers
- Shower Model Number: FS-7209
- Material: Solid Brass
- Shower Arm Size: 22.04" (56cm)
- Shower Head Size: 20" X 20", 24" X 24", 31" X 31", 40" X 20", 40" X 40"
- Body Spray Shape: Round / Square
- Showerhead Finish: Brushed Nickel
- Water Hose Size: 59"(1.5m)
- Male Thread: G1/2" x G1/2"
- Water Hose Material: Stainless Steel
- Working Pressure: 0.05-1.0Mpa
|

FS-7209DP
G1/2 Connections
0.05–1.0 MPa
Rain + 6 Sprays + Hand

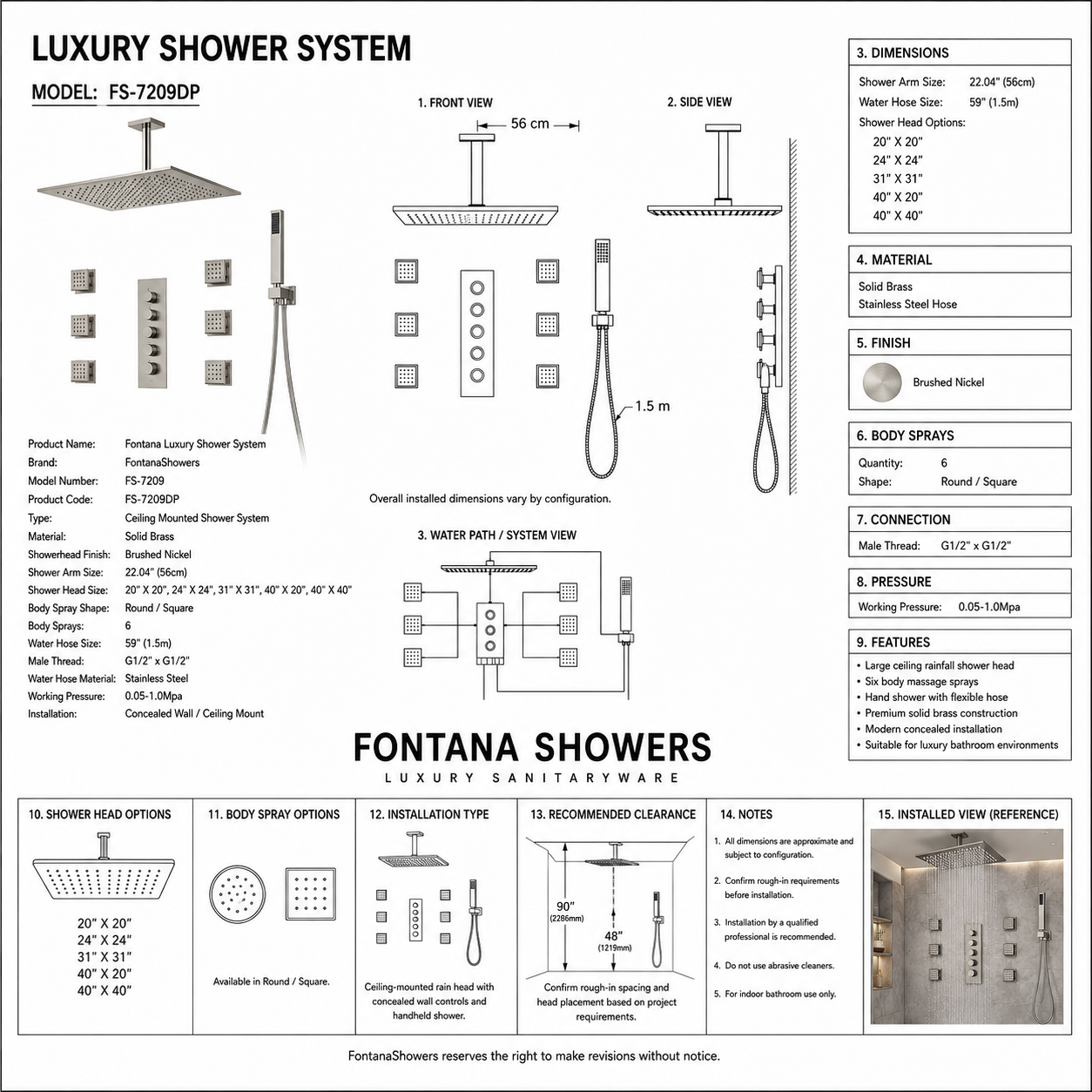

System Diagrams
Diagram-style overview for rough-in planning, commissioning, and outlet balancing on multi-function shower assemblies.
Diagram 1 — Water Path & Outlet Groups
HOT SUPPLY (G1/2) COLD SUPPLY (G1/2)
│ │
└───────────────┬────────────────────────┘
▼
┌─────────────────────┐
│ MIXING / CONTROL │ (valve/controls selected at rough-in)
└──────────┬──────────┘
│
(TRANSFER / DIVERTER)
│
┌─────────────────────┼───────────────────────────┐
▼ ▼ ▼
┌───────────────┐ ┌──────────────────┐ ┌─────────────────┐
│ CEILING RAIN │ │ BODY SPRAYS x6 │ │ HAND SHOWER │
│ 20"x20" … │ │ (36 rubber │ │ 59" hose │
│ 40"x40" │ │ nozzles total) │ │ stainless steel │
└──────┬────────┘ └─────────┬────────┘ └────────┬────────┘
│ │ │
22.04" ceiling arm Wall branches / manifold* Wall outlet / service access
- Thread standard: G1/2" x G1/2" (male thread).
- Operating pressure: 0.05–1.0 MPa (verify dynamic pressure under flow).
- Construction callout: solid brass components; stainless steel shower hose.
- Balancing note: for 6 sprays, keep branch lengths similar or use a simple manifold to reduce intensity variance.
Diagram 2 — Rough-In & Commissioning Workflow
[1] ROUGH-IN CHECKS
├─ Verify G1/2 supplies + accessible shutoffs
├─ Confirm ceiling drop + arm reach (22.04")
└─ Plan 6 body spray layout + equalized branches
▼
[2] FLUSH & DEBRIS CONTROL
├─ Flush hot + cold lines before trim-out
└─ Flush each outlet branch (rain + sprays + hand)
▼
[3] TRIM-OUT & OUTLET VALIDATION
├─ Install ceiling head (selected size) + arm
├─ Install body sprays (round/square, selected size)
└─ Install hand shower + 59" hose
▼
[4] PERFORMANCE VERIFICATION
├─ Confirm stable temperature at mixed outlet
├─ Check rainfall uniformity (large head sensitivity to restrictions)
├─ Check balance across all 6 body sprays
└─ Confirm no continuous drip after shutoff
- Acceptance criteria: uniform rain distribution, comparable spray intensity across all 6 outlets, stable mixed temperature.
- Common cause of weak zones: debris/restriction at inlet screens or unequal branch routing (address during flush + balance).
- Normal behavior: brief drain-down from overhead lines after shutoff; persistent drip indicates incomplete flush or sealing contamination.
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Luxury Shower System FAQ
Fontana Luxury Shower System
This Engineered as a configurable ceiling-fed shower assembly with large-format rain discharge,
six body-massage sprays, handheld outlet integration, G1/2 threaded hydraulic connections,
and pressure-rated performance for balanced multi-outlet operation.
What hydraulic configuration defines the FS-7209DP system architecture?
The system is built around a ceiling-mounted rain shower head, six body massage sprays, a handheld shower, and a ceiling-mount shower arm, creating a distributed multi-outlet layout for full-body coverage and controlled outlet balancing.
What pressure envelope and thread standard must be supported at rough-in?
The assembly is specified for 0.05–1.0 MPa working pressure and uses G1/2 male-thread connections, so the rough-in and supply network should be coordinated for both connection compatibility and stable dynamic pressure under simultaneous demand.
How do the body sprays affect flow-distribution and commissioning requirements?
The six body sprays incorporate a total of 36 rubber nozzles, and multi-branch commissioning should aim to minimize branch-length imbalance so spray intensity remains more uniform across the full showering field.
What construction and dimensional specifications are relevant for long-term reliability?
The system is manufactured from solid brass, uses a 59-inch stainless-steel water hose, includes a 22.04-inch ceiling shower arm, and is available in multiple rain-head sizes up to 40 × 40 inches for project-specific overhead coverage design.
|
|
|
|
|
|
|
Reliable Multi-Function Control
System Pressure Harmony
