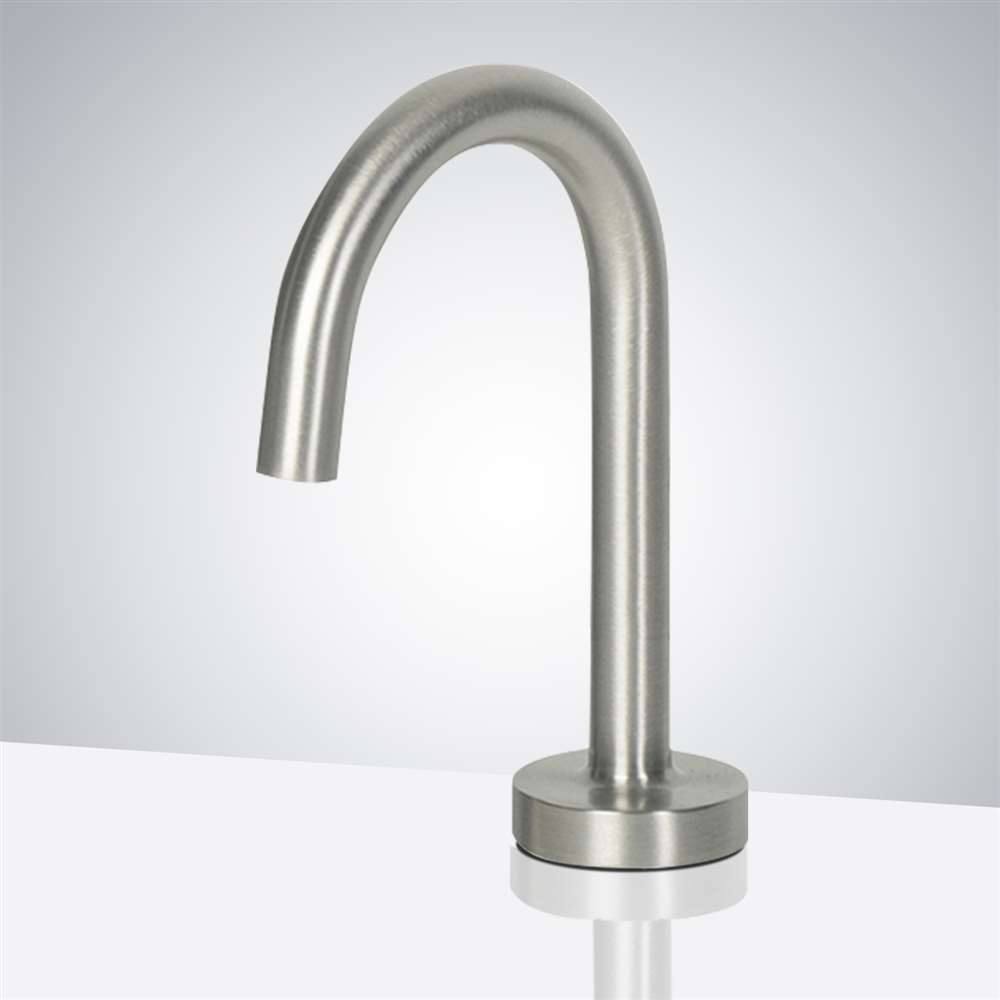

Fontana Lyon Hands Free Commercial Automatic Goose Neck Brushed Nickel Faucet Sensor Faucet

Our Eco-minded professionals have tapped the latest technologies to achieve water and energy-saving goals. ADA Compliant. Heavy Duty Sensor Faucet, Brushed Nickel, Generally Suitable for Heavy Traffic Environments such as Food Handling Facilities, Laboratories, Clinics as well as Commercial Applications. Solenoid valve rated for high-duty-cycle operation stabilizes performance under continuous use.

Fontana Lyon Hands Free Commercial Automatic Goose Neck Brushed Nickel Sensor Faucet

Solenoid Response Control, 20 cm Infrared Calibration & Commercial Hydraulic Stability

Engineered for heavy-traffic washrooms, this solid-brass sensor faucet combines 1.3 GPM delivery, 6V electronic control, and automatic shutoff for dependable touch-free operation.

How should the factory-set 20 cm sensing distance be evaluated during commissioning?

The approximately 20 cm detection field should be verified after the faucet and basin are completely installed. Basin reflectivity, bowl geometry, and nearby surfaces can influence infrared return signals, so repeated hand-entry tests should confirm reliable activation without false triggering from stationary objects.

How does the 0.05–0.6 MPa operational pressure range influence hydraulic specification?

The operating envelope corresponds to approximately 7.3–87 PSI. Engineers should verify dynamic pressure at the DN15 supply connection during peak fixture demand because upstream friction losses can affect the specified 1.3 GPM discharge even when static pressure remains within the allowable range.

What is the engineering significance of the 0.5-second control delay?

The specified 0.5-second delay provides controlled electronic response between infrared detection and valve operation. This helps distinguish intentional hand presence from extremely brief disturbances within the sensing field while retaining sufficiently rapid activation for high-frequency commercial handwashing cycles.

How does the 60-second automatic cutoff protect a high-traffic installation?

If continuous detection persists, electrical power to the valve automatically terminates after approximately 60 seconds. This limits uncontrolled water discharge caused by sensor obstruction or prolonged activation while reducing unnecessary hydraulic demand and water consumption in unattended commercial environments.

• Brand Name: FontanaShowers®
• Model Number:FST9874SF-BN
• Finish: Brushed Nickel
• Diameter of Inlet/outlet pipe:DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power: DC.6V
• Detection Zone: Factory set 25cm(based on standard inactive board)
• Ambient Temperature: 1 - 45° / 33.8 -113 °F
• Degree of protection by enclosure:1P56
• Overall Height: 11- 1/2" (measured from countertop to the highest part of the faucet)
• Spout Height: 7-3/4" (measured from countertop to the spout outlet)
• Spout Reach: 5-1/2" (measured from the center of the faucet base to the center of the spout outlet)
• Mounting Type: Single Hole
• Number of Holes Required for Installation: 1
• Faucet Centers (Distance Between Handle Installation Holes): Single Hole
• Flow Rate:1.3 GPM (gallons-per-minute)
• Maximum Deck Thickness:1-5/8"
• Maximum Deck Thickness:1-5/8"
• Faucet Body Material: Solid Brass
• Faucet Spout Material: Solid Brass
• Hot and Cold Water: Optional
• Valve Type: Solenoid Valve
• Installation Type: Deck Mounted
• Battery: 4*'AAA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• Water supply pipe size: DN15
• Ambient temperature range: 0.1 - 45 degrees
• Sensing distance: factory set 20cm
• Time delay: 0.5 seconds
• Operation duration: power will automatically cut off after continuous use for 60 seconds
• Pop-up drain: No
• Long life durable body: Yes
• Advanced circuit design saves electricity and water: Yes
• ADA Compliant: Yes
