How should the adjustable 16–32 cm infrared detection zone be commissioned?

Allow the faucet to complete its automatic calibration without placing hands or objects inside the sensing field. After calibration, verify activation at multiple approach angles and adjust only when basin reflections or nearby accessories create false triggering or detection gaps.

Why must the faucet remain unused during its initial sensor-calibration period?

Movement within the sensing field during startup may be interpreted as part of the surrounding environment, producing an unsuitable detection distance. Keeping the basin area clear allows the controller to establish a stable infrared reference.

How should the specified opening and closing response times be verified?

Repeated cycle testing should confirm water delivery in less than one second after hand detection and valve closure in less than two seconds after the hands leave. Slower response can indicate low power, cable issues, restricted inlet flow, or valve contamination.

What commissioning procedure protects the G1/2-inch motor valve from construction debris?

Flush the incoming water line into a container before connecting it to the control box, then operate the faucet for an additional flushing cycle. This removes particles that could obstruct the inlet screen or damage the motor-valve sealing surfaces.

How should AC and DC power continuity be tested for the FS-1095N?

Verify normal operation from the AC 220–240 V supply, then interrupt mains power and confirm that the DC 6 V battery system maintains sensor and valve operation. Use four new alkaline AA batteries of the same brand and condition.

Why should the faucet and an automatic soap dispenser have parallel rather than intersecting sensor centerlines?

Intersecting infrared fields can cause one fixture to activate when a user approaches the other. Parallel centerlines and adequate lateral separation help preserve independent detection zones and reduce simultaneous nuisance activation.

How should the optional thermostatic mixer be validated under changing supply conditions?

Confirm correct inlet orientation, stable mixed-water delivery, and safe outlet temperature while cycling nearby fixtures to create pressure variation. The mixer should remain accessible beneath the sink for adjustment, inspection, and servicing.

Which lifecycle checks support the motor valve's rated high-cycle performance?

Maintain clean inlet screens, stable operating pressure, secure electrical connections, correct battery condition, unobstructed G1/2-inch waterways, and prompt valve closure. Periodic cycle testing can identify increasing response time or residual leakage before functional failure.

Napoli Brushed Nickel Touchless Faucets

Napoli Commercial Brushed Nickel Automatic Touchless Restroom Smart Sensor Faucet

Alternative Views:

Retail Price: $876.31

Sale Price: $826.31

Savings: $50.00

Sale Price: $826.31

Availability: Special Order(Min Qty Required)

Product Code: FS-1095N

Hot & Cold Option:

Qty:

Description

Technical Specs

Extended Information

Matte Black

Chrome

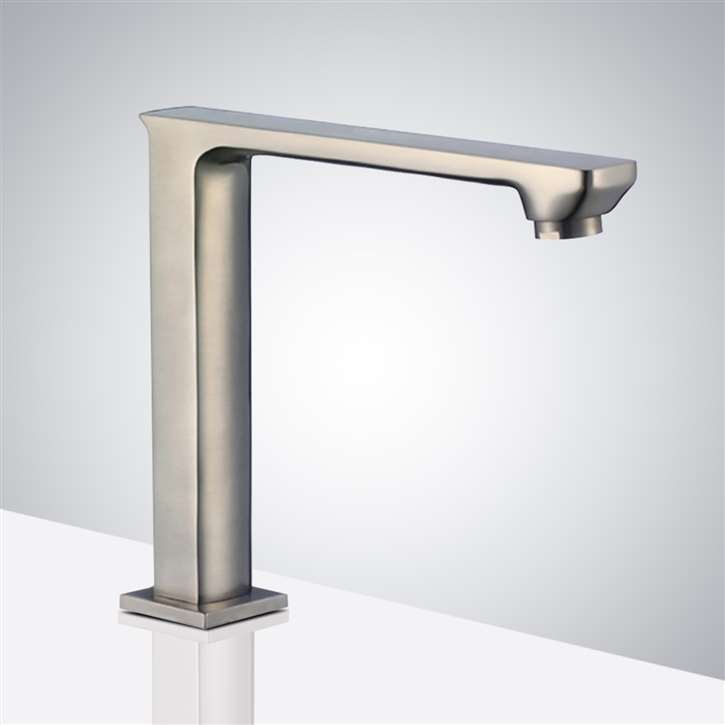

Napoli Commercial Brushed Nickel Automatic Touchless Restroom Smart Sensor Faucet

This Napoli Commercial Brushed Nickel Automatic Touchless Restroom Smart Sensor Faucet will make your life easier. It has a Brushed Nickel finish providing exceptional amenities that sets your restroom apart from others. The infrared sensors enable totally hands-free operation, effectively preventing the transfer of germs.

This Napoli Commercial Brushed Nickel Automatic Touchless Restroom Smart Sensor Faucet is compatible with all standard US plumbing. The faucet can be used in commercial locations, is ADA Compliant, and has a 5-year warranty. This cast brass electronic faucet in reducing the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucet handles. Overall, the low maintenance and precise design of Fontana touchless faucets make them an attractive and practical choice for architects and designers to choose our bathroom faucets in high end projects they help to reduce waste and conserve resources while also being convenient to use.

Napoli Brushed Nickel Commercial Touchless Faucet FAQ

Infrared Beam Optimization, Pressure Stability & Electronic Water Control

The Napoli Commercial Brushed Nickel touchless faucet combines infrared detection technology, solid brass construction, and electronically regulated flow to deliver dependable performance for demanding public restrooms and institutional facilities.

Why is the adjustable sensing zone important during final commissioning?

The adjustable 16–32 cm detection field should be verified after installation to prevent unintended activation from nearby countertops while ensuring reliable hand recognition beneath the spout.

How does operating pressure influence automatic valve performance?

Stable supply pressure within the recommended operating range allows the electronic valve to maintain consistent discharge while minimizing splash and ensuring predictable sensor-controlled shutoff.

Why are quick-connect fittings advantageous for commercial maintenance?

Quick-connect plumbing simplifies servicing of the control box, solenoid valve, and filter assembly, reducing maintenance time without disturbing the deck-mounted faucet body.

Which engineering features support continuous commercial operation?

The faucet features a cast brass body, brushed nickel finish, single-hole deck installation, AC or battery power compatibility, G1/2 water connections, adjustable infrared sensing, and approximately 500,000-cycle motor-valve durability. :contentReference[oaicite:1]{index=1}

Brand Name: FontanaShowers®
Model Number: FS-1095N
Type:Commercial Touchless Bathroom Faucet, Motion Sensor Sink Faucet
Style: Contemporary
Finish: Brushed Nickel
Faucet Mount: Single Hole
Faucets height: 6.69" (170mm)
Spout length: 4.92" (125mm)
Spout height: 3.93" (100mm)
Installation Type: Deck Mount
Material: Brass
Water Pressure: 0.05Mpa-0.8Mpa
Surface Treatment: Polished
Water Saving: Volume 6L Each Time
Usage: Commercial restrooms, and high traffic bathroom facilities
Hands-free operation is ideal for commercial use applications in public restrooms, restaurants, office buildings, and public facilities. Fits all standard US plumbing.
ADA Compliant
