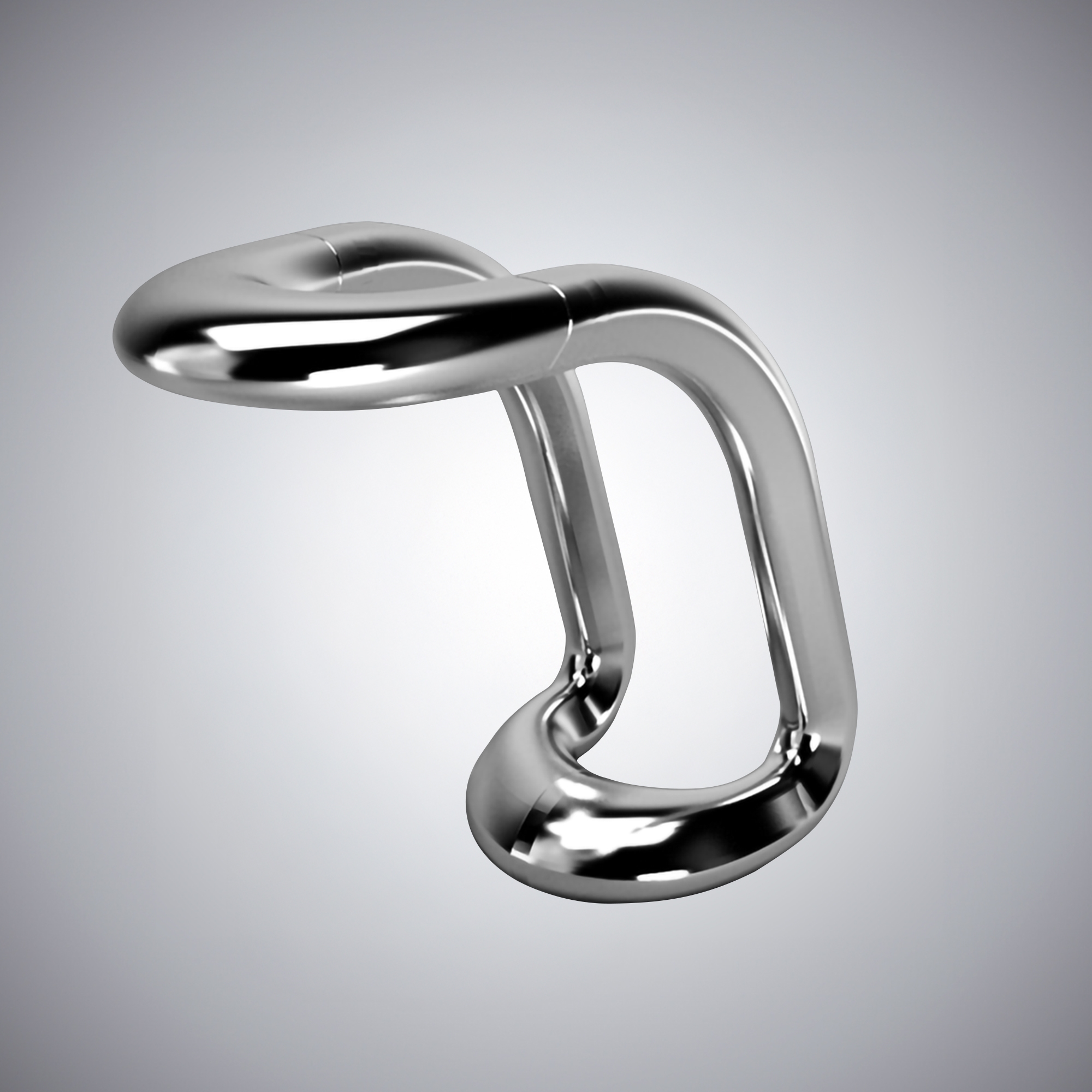

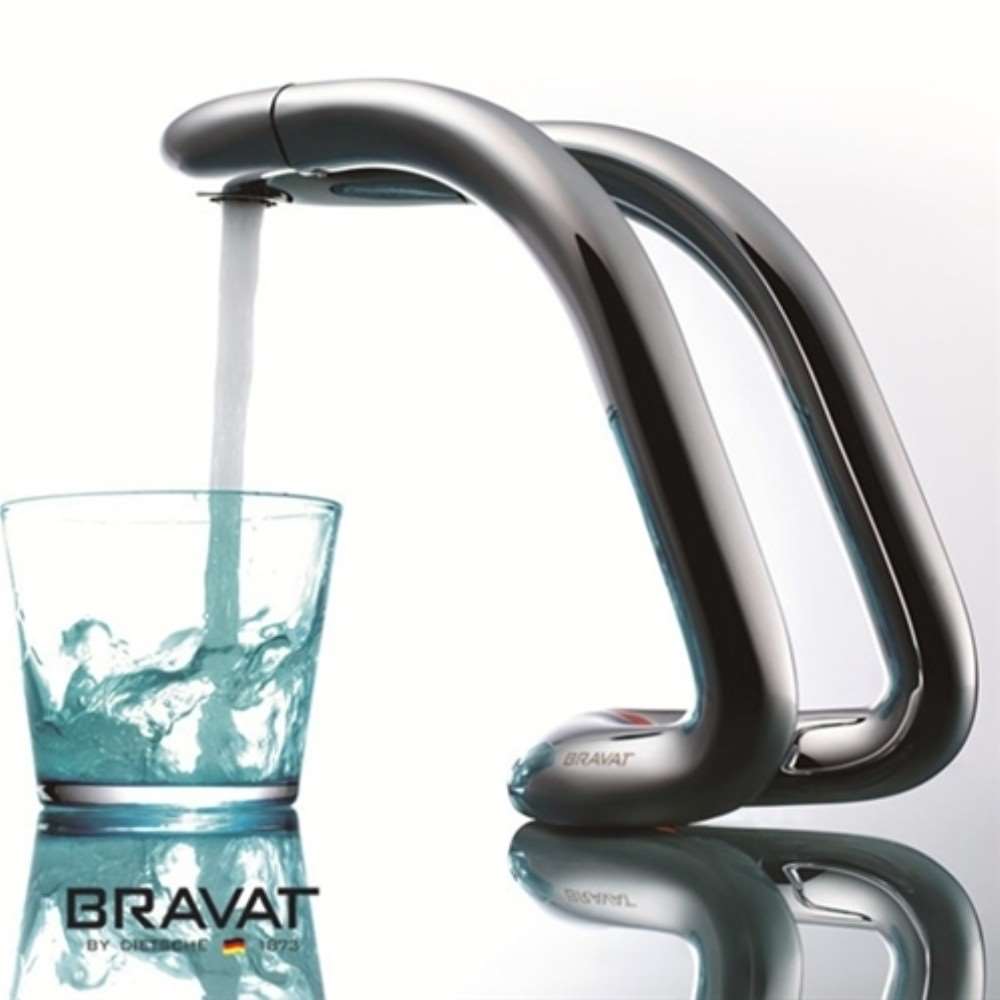

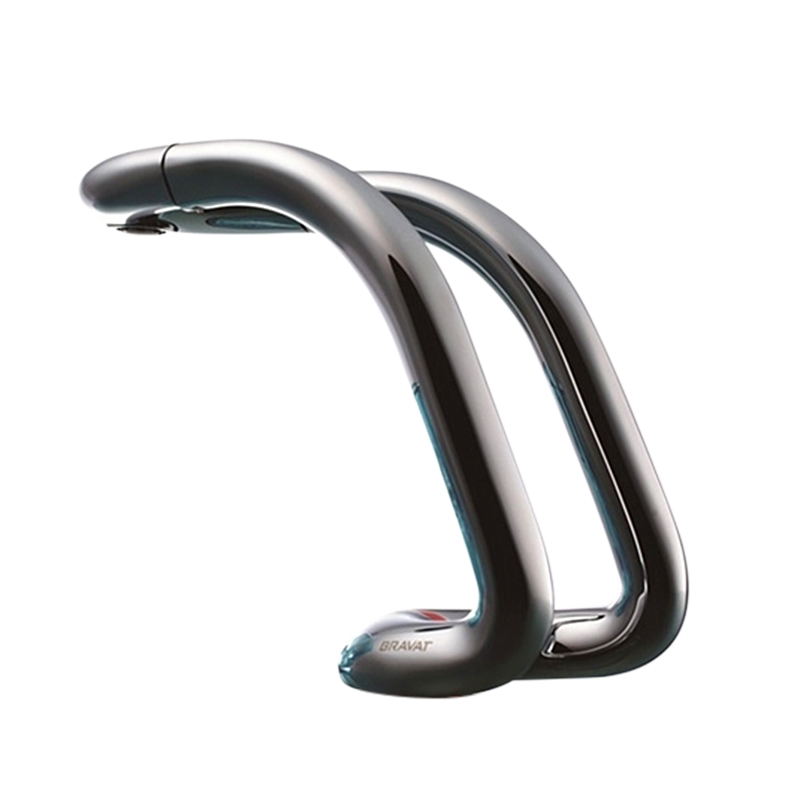

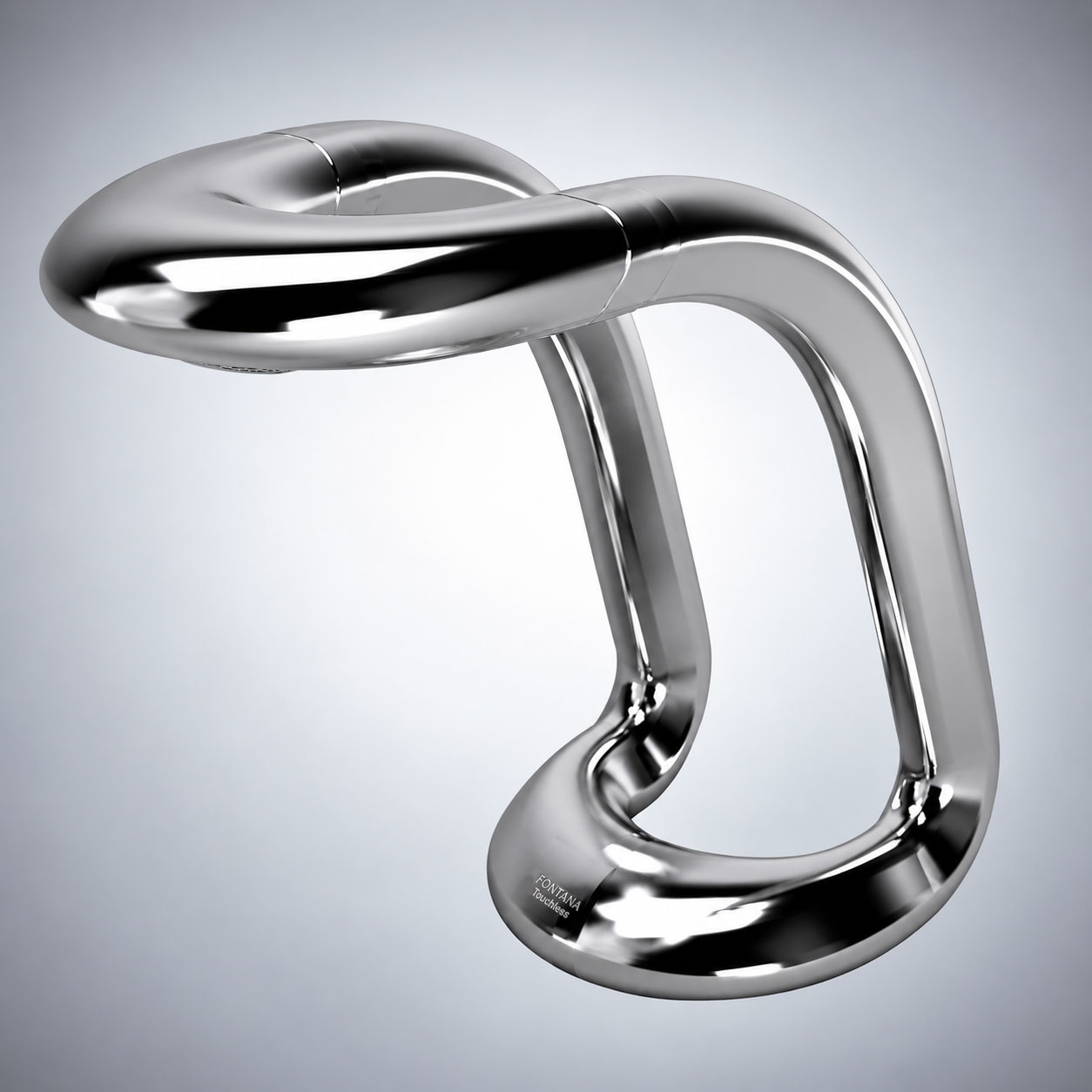

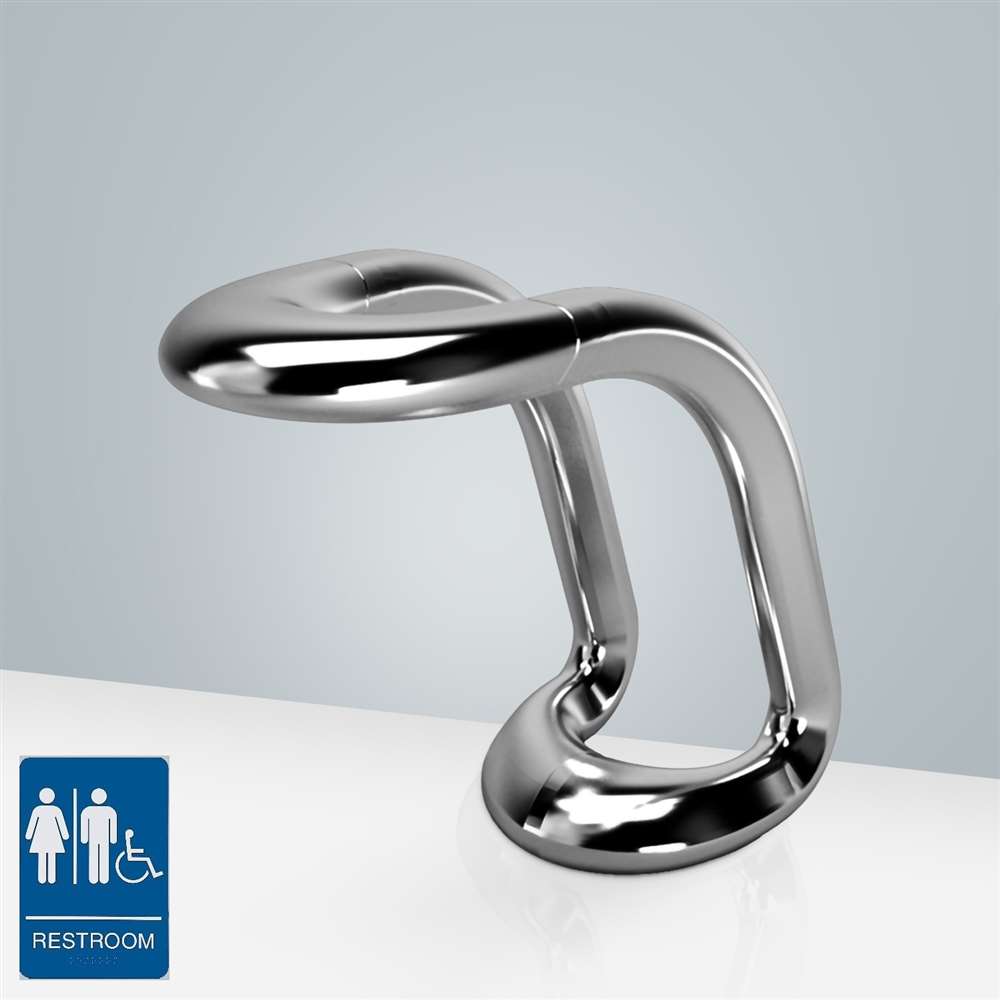

Bravat Commercial Automatic Aqua Motion Sensor Faucets Nickel Finish

Our modern design Baravat Aqua Motion Sensor faucet is a blend of style and durability. Its double-arm unique shape and Nickel Finish add style to your bathrooms. Its intelligent motion detection and longer battery life save you both precious water and energy. Our customers have highly appreciated this splendid addition to our portfolio. Minimize waste of water, by using the automatic faucet. Handel-operated faucets in public restrooms can be breeding grounds for germs and other bacteria while touch-free operation means that you can avoid the mess and spread of germs entirely. This touchless faucet is not only hygienic but will immediately reduce water waste by eliminating unnecessary and unattended water flow. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchase separately). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing and drying hands by eliminating unnecessary and unattended water flow.

Bravat Commercial Automatic Aqua Motion Sensor Faucets Nickel Finish Features:

• Diameter of inlet pipe: DN15
• Diameter of the outlet pipe: DN15
• Water Pressure: 0.05Mpa - 0.7Mpa
• Power and Voltage: DC.6V / AC.110-220V - 50/60Hz
• Power Consumption: 0.5MW
• Detection Zone: Factory set 25cm/10" (based on standard inductive board)
• Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
• Degree of protection by enclosure: 1P56
• Battery: 4 x 'AA' size cells
• Operational water pressure range: 0.05 - 0.6MPa
• Water supply pipe size: DN15

Sensor Activated Faucet Special Features

• Durable Vandal-Resistant Brass Body; Ideal for commercial high-use applications
• Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
• Flashing light indicator; a diagnostic indicator for power-up, low battery, and solenoid function.
• The meaning of the codes is described in the installation instructions.
• Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
• The faucet can be mounted to any sink surface.
• ADA Compliant.
• Three-year battery life based on 3,000 hand washes per month
• Adjustable sensing range; while the factory range is set about 4" to 5" from the sensor, it can be adjusted.
