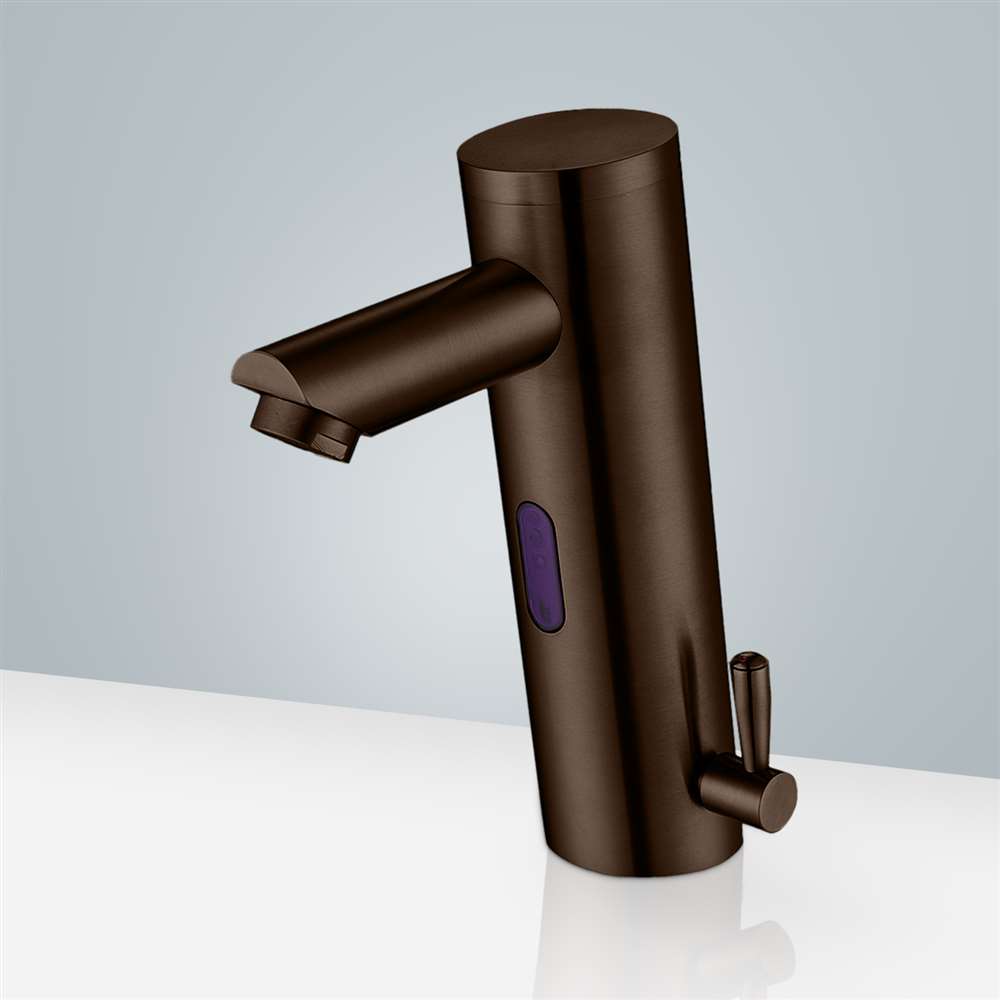

Platinum Temperature Control Oil Rubbed Bronze Thermostatic Commercial Motion Sensor Faucet
The Platinum Temperature Control Sensor Faucet an electronically controlled faucets that eliminate the need to touch or turn handles. Through the use of sensor beams the automatic faucet determines when an object is in front of it and automatically turns on the faucet. Since there is nothing to touch and nothing to reach for, an automatic faucet eliminates all of that cleaning and disinfecting that you do to try to maintain a hygienic surface. Bathroom sensor faucets are anti-erosion, anti-abrasion and high strength. Premium touchless hardwired and battery operated faucet. Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow.
Platinum Temperature Control Oil Rubbed Bronze Thermostatic Commercial Motion Sensor Faucet Features:
- Brand Name: FontanaShowers
- Model Number: FS-505RB
- Type: Automatic Faucet
- Water Pressure: 0.5-7.0 KGS/cm , 10-125 psi
- Finish: Oil Rubbed Bronze
- Construction: Solid Brass
- Power Supply: DC6V
- Batteries Included: Not
- Mounting Type: Deck Mount
- Usage: Commercial and Residential
- Body Material: Brass
- Faucet Mount: Single Hole
- Style: Contemporary
- Flow Rate: 1.3 GPM (gallons-per-minute)
- Ambient Temperature: 1 - 45 °C / 33.8 -113 °F
- Overall Height: 7"
- Spout Height: 3-1/2"
- Spout Reach: 4"
- Usage: Commercial / Residential
- Ideal for commercial use applications in public restrooms, restaurants, office building, public facilities, hospitals. Fits all US standard plumbing.
FontanaShowers® Product Warranty Information
Installation Instructions for Platinum Thermostatic Commercial Motion Sensor Faucet
Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to powder room; kids bathroom, hotels, restaurants, public places, government facilities...!
This Sensor Faucet Applications; Residential, Commercial use & ADA
- This faucet is shipped complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Specifications and Dimensions
Spout
|
Chrome Plated Solid Brass
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
Battery life expectancy
|
250,000 cycles
|
Solenoid valve
|
6 Volt magnet latching
|
Working Water Pressure
|
1 PSI -100 PSI
|
Supply Inlet Size
|
1/2” NPT Male
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
Microprocessor
|
Digital, Pug And Play
|
Sensing Range
|
2” to 6”
|
Response Time
|
0.3 Second
|
Shut-Off Delay Time
|
2 Seconds
|
Anti vandalism maximum Running Time
|
60 Seconds
|
Particle filter size
|
50
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
 |
