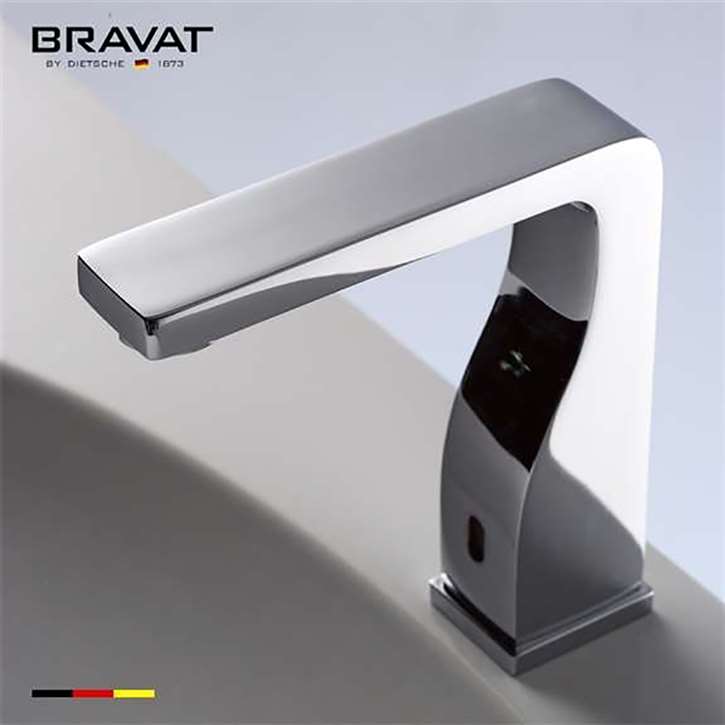

Top Commercial Toilets Motion Sensor Faucet
Commercial Automatic Hands-Free Sensor Faucet Specifications
- Brand Name: FontanaShowers®
- Model Number: FS-D637KDP
- Diameter of inlet pipe: DN15
-
Diameter of outlet pipe:
DN15
-
Faucet height:
7" (178mm)
-
Spout Length:
6.69" (170mm)
-
Spout height:
6.22" (158mm)
-
Water Pressure:
0.05Mpa - 0.7Mpa
-
Power and Voltage:
DC.6V / AC.110-220V - 50/60Hz
-
Power Consumption:
0.5MW
-
Detection Zone:
Factory set 25cm/10" (based on standard inductive board)
-
Ambient Temperature:
1 - 45 °C / 33.8 -113 °F
-
Degree of protection by enclosure:
1P56
-
Battery:
4 x 'AA' size cells
-
Operational water pressure range:
0.05 - 0.6MPa
-
Water supply pipe size:
DN15
Top Commercial Toilets Motion Sensor Faucet Features
Infrared sensor operated, touch-free operation
Water Conserving
Waterproof sensor
Battery low LED light indicator
Advanced circuit design saves electricity and water
Advanced energy-saving design for long-lasting battery life.
Three-year battery life based on 3,000 hand washes per month
The sensor is not affected by reflections or abnormal lighting
Self-adapting sensors range
Long life durable body
Power Supply Options
Hands-Free Sanitary Operation
ADA Complaint
Vandal-Resistant Aerator
Automatic 30-Second Time Out
Highly-Polished, Chrome Plated Cast Brass Bodies
Low Battery Indicator Light
In-Line Filter
Factory Set Sensor Range
The Top Commercial Toilets Motion Sensor Faucet
|
Minimize waste of water, by using the automatic faucet. Immediately reduces water waste by eliminating unnecessary and unattended water flow. Fits all standard US plumbing. Uses 4AA Alkaline Batteries (purchased separately). Water Pressure: 0.5 - 7.0 KGS/cm, 10-125 psi. Reduces the transfer of germs by preventing cross-contamination and re-contamination of germs and bacteria by not touching the faucets or handles. Cut down on water usage by minimizing waste of water while soaping, lathering, scrubbing, and drying hands by eliminating unnecessary and unattended water flow.
|
Top Commercial Toilets Motion Sensor Faucet water-saving; hygienic; automatically opens and closes
to free hands - no touch, avoid bacteria mutual infections!
A great addition to the powder room; kids' bathroom, hotels, restaurants, public places, government facilities...!
Bravat Sensor Faucet Applications; Commercial use & ADA
- This faucet comes complete. ANSI A112.18.1M
CSA Standard B125, 2.2 U.S.
- GPM Complies with NSF Standard 61, Section 9
- Flow Preventers Stainless Steel Hoses Mounting Hardware Batteries Pre-installed
- All the hardware necessary for satisfactory installation
Bravat Specifications and Dimensions
|
Spout
|
Chrome Plated Solid Brass
|
|
Power
|
4 (AA) Alkaline Batteries or AC Adapter
|
|
Battery life expectancy
|
250,000 cycles
|
|
Solenoid valve
|
6 Volt magnet latching
|
|
Working Water Pressure
|
1 PSI -100 PSI
|
|
Supply Inlet Size
|
1/2” NPT Male
|
|
Water Temperature Control
|
Built-in
Pop-Up Drain
|
|
Sensor type and Location
|
Active Infrared, Neck mount Sensor
|
|
Microprocessor
|
Digital, Pug And Play
|
|
Sensing Range
|
2” to 6”
|
|
Response Time
|
0.3 Second
|
|
Shut-Off Delay Time
|
2 Seconds
|
|
Anti vandalism maximum Running Time
|
60 Seconds
|
|
Particle filter size
|
50
|
|
Mesh Aerator
|
2.2 GPM Standard
|
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
Top Commercial Toilets Motion Sensor Faucet Features
- Sensor faucet complete motion detection operation.
- Sensitive Sensor with Infrared AI Smart-Chip
- Factory set to 30-second Auto Shutoff (can be adjusted).
- Water Pressure: 0.5 - 7.0 KGS/cm, 10 - 125 psi
- Solid Brass Construction, Polished Chrome Finish
- Easy to Install - Instructions Included
- Water-resistant solenoid enclosure /li>
- Advanced energy-saving design for long-lasting battery life
- Comes complete with Hoses & Accessories
- Power Supply: AC110V And DC6V (batteries not included)
AC/DC power option.
-
ADA Compliant
- Easily can be installed in new or retrofit applications.
Top Commercial Toilets Motion Sensor Faucet Special Features
- Durable Vandal-Resistant Brass Body; Ideal for commercial high-use applications
- Intelligent: with its micro-computer controlling its action, the faucet will self-adjust its best detection zone as per the color and shape of the lavatory
- Flashing light indicator; diagnostic indicators for power up, low battery, and solenoid function.
- The meanings of the codes are described in the installation instructions.
- Convenient to maintain; with a built-in strainer to prevent sundries from entering the solenoid valve and the strainer is easy to clean
- The faucet can be mounted to any sink surface.
- ADA Compliant.
- Batteries life is 8,000 cycles per month and with enough water pressure is the approx 5-year service life of the batteries.
- Adjustable sensing range; while the factory range is set about 4"to 5" from the sensor, it can be adjusted.
|
|
|
|
|
|
|
Effortless to use
